300-77-180-00-001050 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 300-77-180-00-001050

300-77-180-00-001050: DescriptionCard Edge Connector, 80 Contact(s), 1 Row(s), Female, Solder Terminal, Socket,; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

300-77-180-00-001050 Overview

Card Edge Connector, 80 Contact(s), 1 Row(s), Female, Solder Terminal, Socket,

300-77-180-00-001050 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MODULE ORIENTATION: VERTICAL, LATCHED, STAGGERED CONFIGURATION
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SIMM.SIMR
Mixed contacts	NO
Installation type	BOARD
Number of rows loaded	1
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
Base Number Matches	1

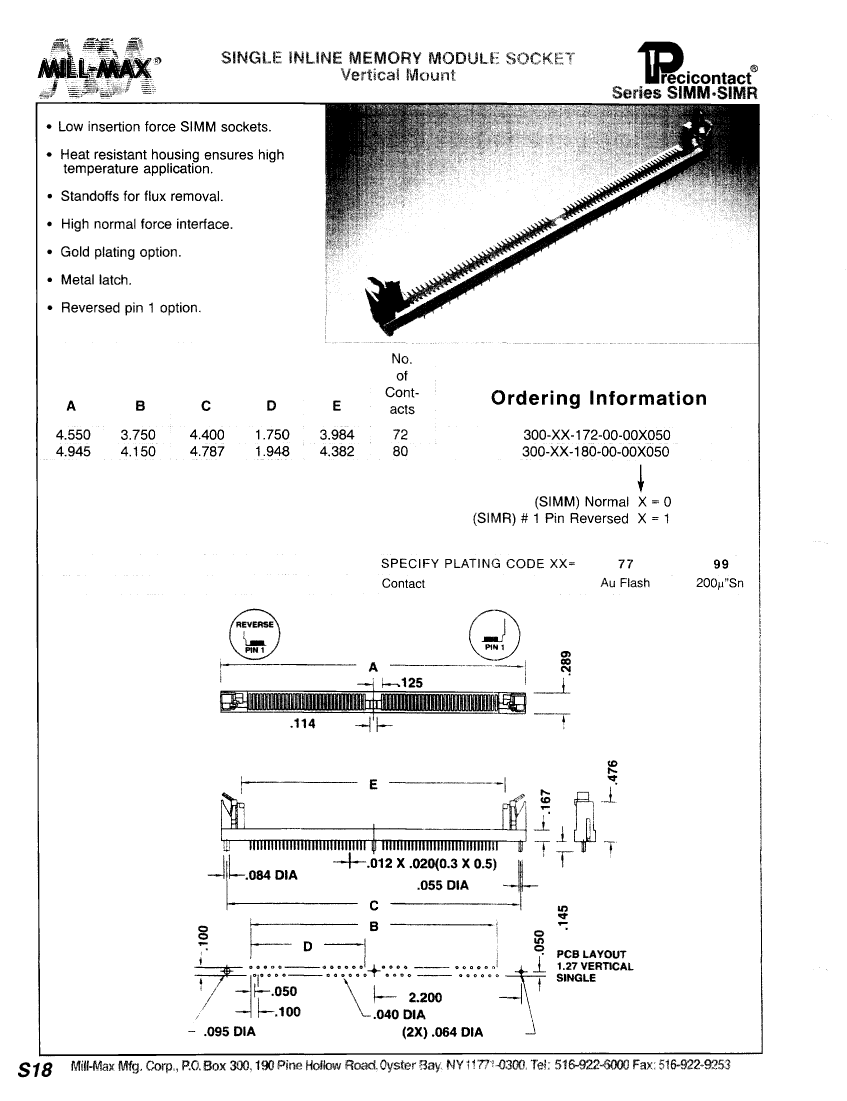

Preview

Download Datasheet

View All

300-77-180-00-001050 Related Products

	300-77-180-00-001050	300-77-172-00-000050	300-99-172-00-001050	300-99-180-00-001050	300-99-172-00-000050	300-77-180-00-000050	300-77-172-00-001050	300-99-180-00-000050
Description	Card Edge Connector, 80 Contact(s), 1 Row(s), Female, Solder Terminal, Socket,	Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Solder Terminal, Socket,	Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Solder Terminal, Socket,	Card Edge Connector, 80 Contact(s), 1 Row(s), Female, Solder Terminal, Socket,	Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Solder Terminal, Socket,	Card Edge Connector, 80 Contact(s), 1 Row(s), Female, Solder Terminal, Socket,	Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Solder Terminal, Socket,	Card Edge Connector, 80 Contact(s), 1 Row(s), Female, Solder Terminal, Socket,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	MODULE ORIENTATION: VERTICAL, LATCHED, STAGGERED CONFIGURATION	MODULE ORIENTATION: VERTICAL, LATCHED, STAGGERED CONFIGURATION	MODULE ORIENTATION: VERTICAL, LATCHED, STAGGERED CONFIGURATION	MODULE ORIENTATION: VERTICAL, LATCHED, STAGGERED CONFIGURATION	MODULE ORIENTATION: VERTICAL, LATCHED, STAGGERED CONFIGURATION	MODULE ORIENTATION: VERTICAL, LATCHED, STAGGERED CONFIGURATION	MODULE ORIENTATION: VERTICAL, LATCHED, STAGGERED CONFIGURATION	MODULE ORIENTATION: VERTICAL, LATCHED, STAGGERED CONFIGURATION
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact completed and terminated	GOLD FLASH	GOLD FLASH	TIN (200)	TIN (200)	TIN (200)	GOLD FLASH	GOLD FLASH	TIN (200)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e3	e3	e3	e4	e4	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	SIMM.SIMR	SIMM.SIMR	SIMM.SIMR	SIMM.SIMR	SIMM.SIMR	SIMM.SIMR	SIMM.SIMR	SIMM.SIMR
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	80	72	72	80	72	80	72	80
Base Number Matches	1	1	1	1	1	1	1	1
