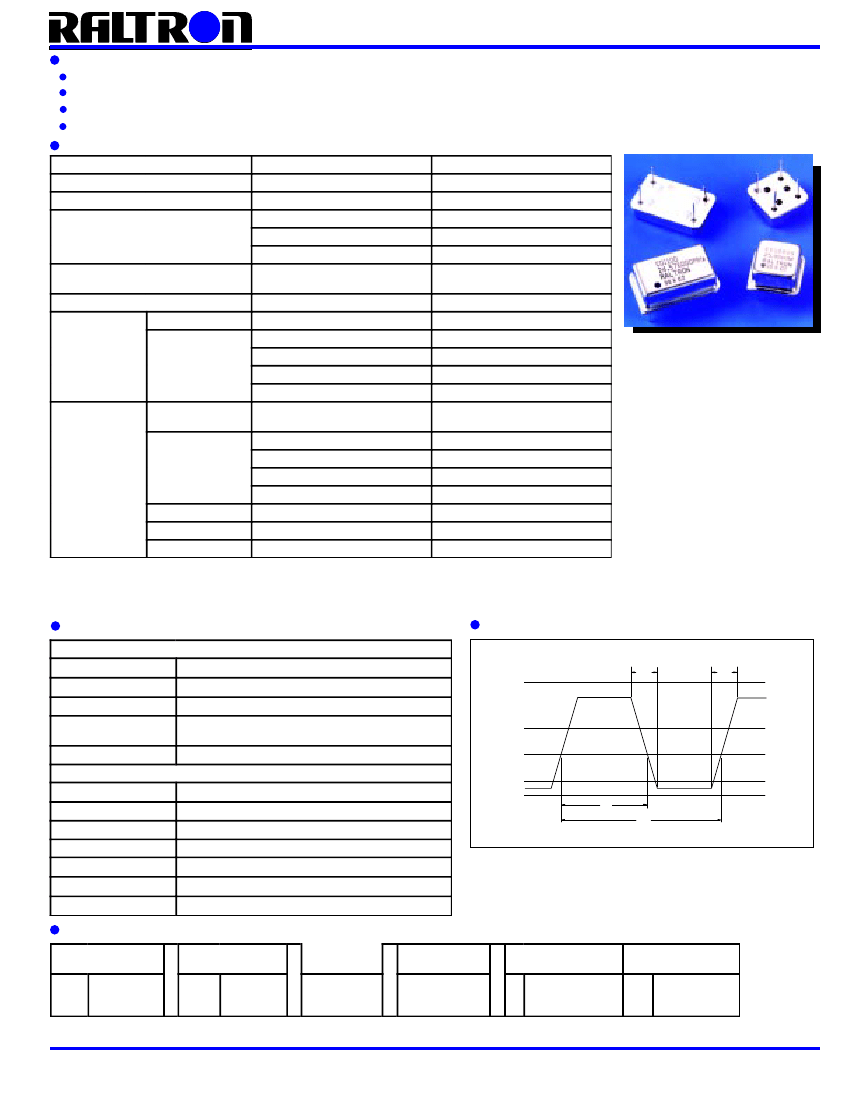

THROUGH HOLE CLOCK OSCILLATORS - TTL COMPATIBLE
FEATURES
STANDARD 8 AND 14 PIN DIP PACKAGE
TOLERANCE AND STABILITY TO
±
25 PPM
LOW COST
AVAILABLE IN 3.3 VOLT
SPECIFICATIONS
SERIES
PACKAGE
FREQUENCY RANGE
CO1
14 PIN DIP
500.00 KHz TO 125.00 MHz
CO1100 : ±100 ppm
FREQUENCY STABILITY†
CO1050 : ±50 ppm
CO1025 : ±25 ppm
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE RANGE
VOLTAGE††
0° C TO +70° C STANDARD
-40° C TO +85° C EXTENDED
-55° C TO +125° C
+5 VDC ±0.5 VDC
500.00 KHz TO 2.999 MHz: 30 mA
INPUT
CURRENT (MAX)
3.00 MHz TO 31.999 MHz: 50 mA
32.00 MHz TO 79.999 MHz: 70 mA
80.00 MHz TO 125.00 MHz: 80 mA
SYMMETRY
(AT 1.4 VDC LEVEL)
40 TO 60% NORMAL
45 TO 55% TIGHT
UNDER 9 MHz : ±15 ns MAX
RISE AND FALL TIME
(0.4 - 2.4 VDC)
9 MHz TO 32 MHz : ±10 ns MAX
32 MHz TO 80 MHz : ±6 ns MAX
80 MHz TO 125 MHz : ±4 ns MAX
LOGIC "0" LEVEL
LOGIC "1" LEVEL
LOAD†††
+0.5 V MAX, SINK TO 16 mA
+2.4 V MIN, SOURCE 0.4 mA
1 TO 10 TTL STANDARD
SERIES CO1 AND CO13
CO13
8 PIN DIP
500.00 KHz TO 125.00 MHz
CO13100 : ±100 ppm
CO13050 : ±50 ppm
CO13025 : ±25 ppm
0° C TO +70° C STANDARD
-40° C TO +85° C EXTENDED
-55° C TO +125° C
+5 VDC ±0.5 VDC
500.00 KHz TO 2.999 MHz: 30 mA
3.00 MHz TO 31.999 MHz: 50 mA
32.00 MHz TO 79.999 MHz: 70 mA
80.00 MHz TO 125.00 MHz: 80 mA
40 TO 60% NORMAL
45 TO 55% TIGHT
UNDER 9 MHz : ±15 ns MAX
9 MHz TO 32 MHz : ±10 ns MAX
32 MHz TO 80 MHz : ±6 ns MAX
80 MHz TO 125 MHz : ±4 ns MAX
+0.5 V MAX, SINK TO 16 mA
+2.4 V MIN, SOURCE 0.4 mA
1 TO 10 TTL STANDARD
OUTPUT
35
† FREQUENCY STABILITY INCLUSIVE OF ROOM TOLERANCE ,
FREQUENCY STABILITY OVER TEMPERATURE, 10% POWER SUPPLY VARIATION, AGING, SHOCK, AND VIBRATION
†† +3.3 VOLT VERSION IS AVAILABLE. CONSULT RALTRON FOR SPECIFICATIONS
††† OUTPUT LOADS ALSO AVAILABLE AT 15 pF, 30 pF AND 50 pF. CONSULT RALTRON FOR SPECIFICATIONS

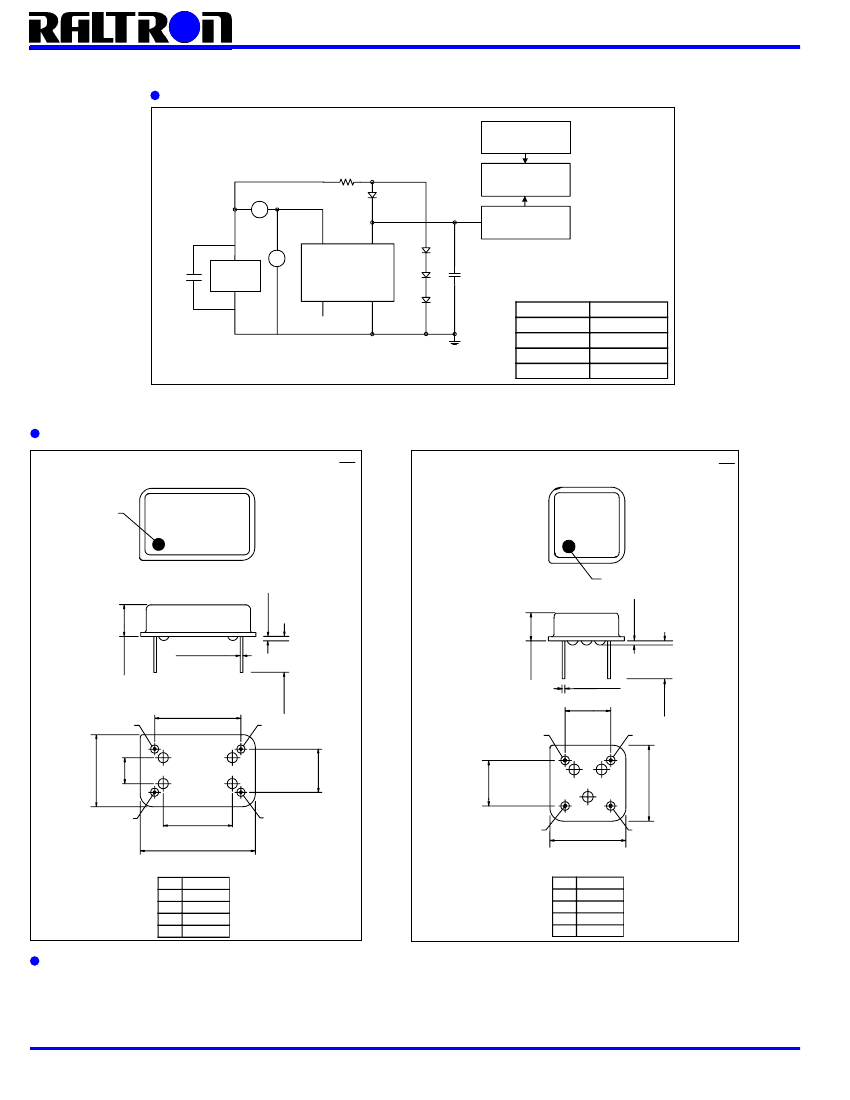

ENVIRONMENTAL AND TECHNICAL CONDITIONS
ENVIRONMENTAL
TEMPERATURE CYCLE
SHOCK
VIBRATION
RESISTANCE TO
SOLDERING HEAT
HUMIDITY
MIL-STD 883, METHOD 1010, 10 CYCLES -20° C TO 85° C
MIL-STD-202, METHOD 213, TEST CONDITION C
MIL-STD-202, METHOD 204, TEST CONDITION A
MIL-STD-202, METHOD 210, TEST CONDITION B
85% RELATIVE HUMIDITY AT 85° C 250 HOURS
MECHANICAL
GROSS LEAK TEST
FINE LEAK TEST
TERMINAL STRENGTH
MARKING INK
MIL-STD-883, METHOD 1014, TEST CONDITION C
MIL-STD-883, METHOD 1014, TEST CONDITION A
MIL-STD-202, METHOD 211, TEST CONDITION A AND C
EPOXY, HEAT CURED.
OUTPUT WAVEFORM
tf
VCC
tr
"1" LEVEL
+2.5 VDC
+1.5 VDC
"0" LEVEL
0 VDC
t
T
+0.5 VDC
MOISTURE RESISTANCE MIL-STD 202, METHOD 106, OMIT STEP 7B
SOLDERABILITY
SOLVENT RESISTANCE
MIL-STD-202, METHOD 208, 95% COVERAGE
MIL-STD-202, METHOD 2002, METHOD 215
PART NUMBERING SYSTEM
SERIES
CO1
CO13
(14 PIN DIP)
(8 PIN DIP)
-
FREQUENCY
STABILITY
100
050
025
±100 PPM
±50 PPM
±25 PPM
-
IN MHz
FREQUENCY
-
EXT
EXTENDED
TEMPERATURE
-
T
TIGHT SYMMETRY
SYMMETRY
OPTIONS
TR TAPE AND REEL
GW GULL WING
3.3V +3.3 V
EXAMPLE: CO1100-20.000-EXT-T, CO13050-32.000-T-TR
Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.
Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
