30DF1 datasheet, PDF - EEWORLD Datasheet

30DF1: DescriptionRectifier Diode, 1 Phase, 1 Element, 1.66A, 100V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size56KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

30DF1 Overview

Rectifier Diode, 1 Phase, 1 Element, 1.66A, 100V V(RRM), Silicon

Parameter Name	Attribute value
package instruction	O-PALF-W2
Reach Compliance Code	unknown
Other features	LOW POWER LOSS
application	SUPER FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	110 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	1.66 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.2 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

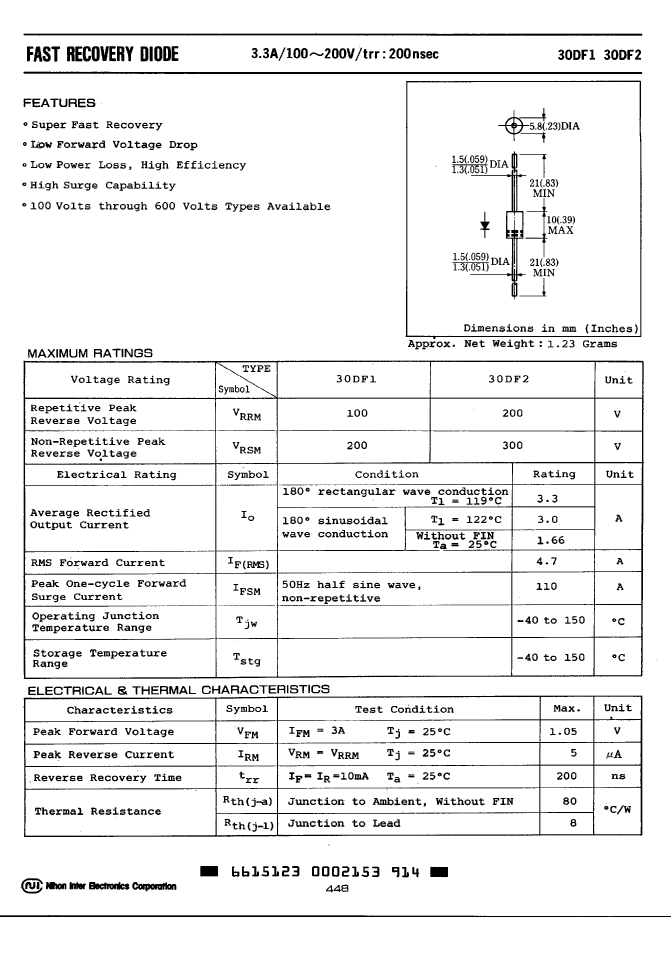

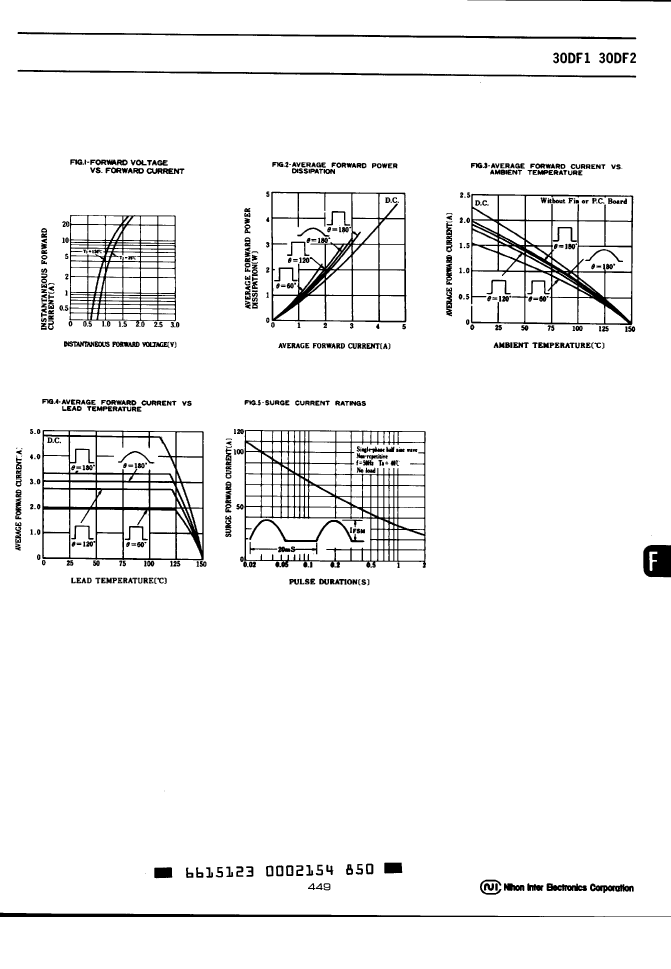

This Material Copyrighted By Its Respective Manufacturer

	30DF1	30DF2
Description	Rectifier Diode, 1 Phase, 1 Element, 1.66A, 100V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 1.66A, 200V V(RRM), Silicon,
package instruction	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknown	unknown
Other features	LOW POWER LOSS	LOW POWER LOSS
application	SUPER FAST RECOVERY	SUPER FAST RECOVERY
Shell connection	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V	1.05 V
JESD-30 code	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	110 A	110 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	1.66 A	1.66 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	200 V
Maximum reverse current	5 µA	5 µA
Maximum reverse recovery time	0.2 µs	0.2 µs
surface mount	NO	NO
Terminal form	WIRE	WIRE
Terminal location	AXIAL	AXIAL
Base Number Matches	1	1
