54855L: DescriptionWire Terminal,; CategoryThe connector terminals; File Size67KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

54855L Overview

Wire Terminal,

54855L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Thomas & Betts Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	WIRE TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

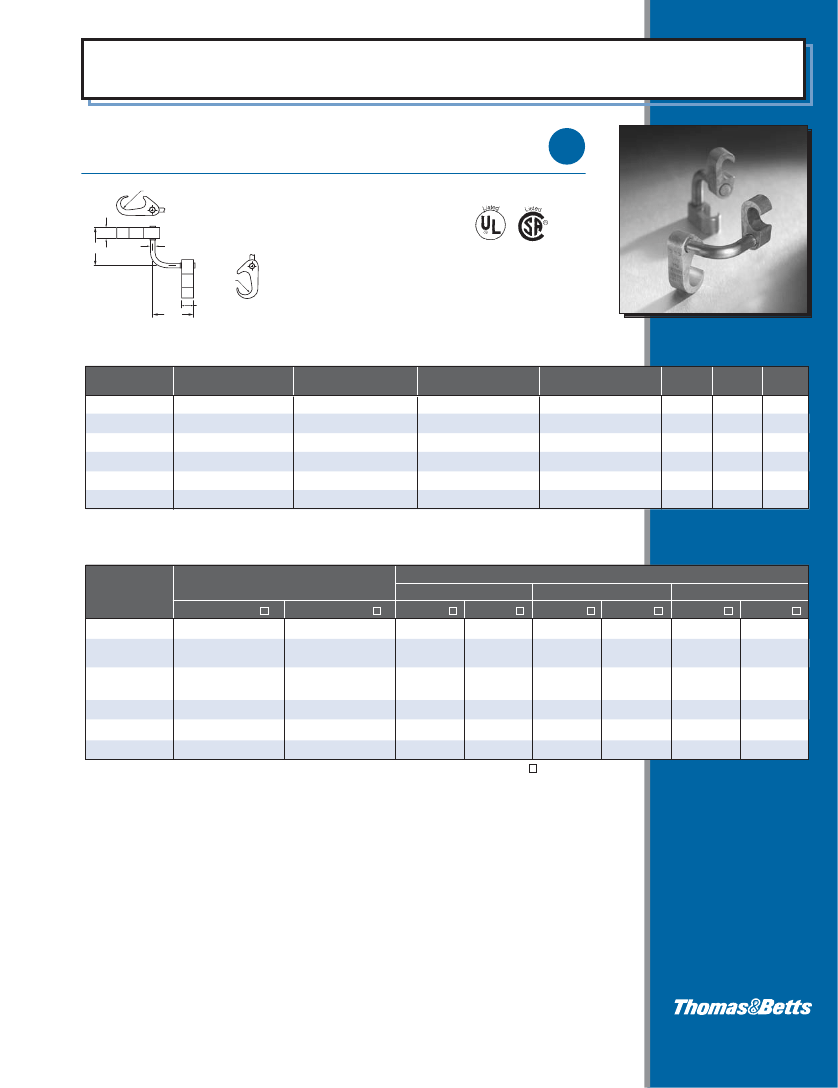

EZ Ground

TM

Figure 6 to 6 Compression

Ground Grid Connectors

ELEMENT A

ITEM

5

T-T

2 1/2"

D

MEETS

ELEMENT B

IEEE

837 REQUIREMENTS

T

2 1/2"

Material : high conductivity copper.

Acceptable for direct burial.

Cat. No.

54900L

54895L

54885L

54875L

54865L

54855L

Element A

Cable

250 MCM - 500 MCM

#2 STR - 250 MCM

#6 SOL - #2 STR

#2 STR - 250 MCM

#6 SOL - #2 STR

Element B

to Cable

250 MCM - 500 MCM

#2 STR - 250 MCM

#1 STR - 250 MCM

#6 SOL - #2 STR

Element B

to Ground Rod

5/8” - 3/4” ROD

1/2” -5/8” ROD

________________

Element B

to Rebar

5/8” - 3/4” #5 - #6 REBAR

3/8” - 1/2” #3 - #4 REBAR

________________

D

3/4”

1/2”

5/16”

1/2”

5/16”

T

1-1/8”

3/4”

T-T

1-1/8”

3/4”

Cat. No.

Dies for T&B

14 and 15 Ton Tools

Element A

*

Burndy Tools and Dies

Y750

*

Y45

B

*

Y46

B

*

Element B

15G121R

15G126R

15G86R

15501A

A

*

A

*

A

*

B

*

54900L

54895L

54885L

54875L

54865L

54855L

15G121R

15G86R

15501A

15G86R

15501A

3

1

3

1

U1011

3

PU998

1

or PU998

1

U1011

3

U997

1

S1011

3

S998

1

or PU998

1

S998

1

U997

1

U997

1

U-0

1

S1011

3

U997

1

U-0

1

U997

1

U-0

1

U-0

1

P1011

3

P998

1

P998

1

U997

1

U997

1

U-0

1

P1011

3

U997

1

U-0

1

U997

1

U-0

1

U-0

1

PU998

1

U-0

1

or PU998

1

or PU998

1

U997

1

U997

1

U-0

1

U997

1

U-0

1

U-0

1

Use 15500 adaptor for T&B 15 ton tool.

*

= Number of crimps

9

54855L Related Products

	54855L	54895L	54900L	54885L
Description	Wire Terminal,	Wire Terminal,	Wire Terminal, 322.58mm2,	Wire Terminal,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Terminal and terminal strip types	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL
Base Number Matches	1	1	1	1
Maker	Thomas & Betts Corporation	-	Thomas & Betts Corporation	Thomas & Betts Corporation
