94X Series
(942-O4N-2D-1A1/1A2-80E,
943-O4V-2D-001/002/1C0/1D0-80E,
947-O4V-2D-1C0/1D0-80E)

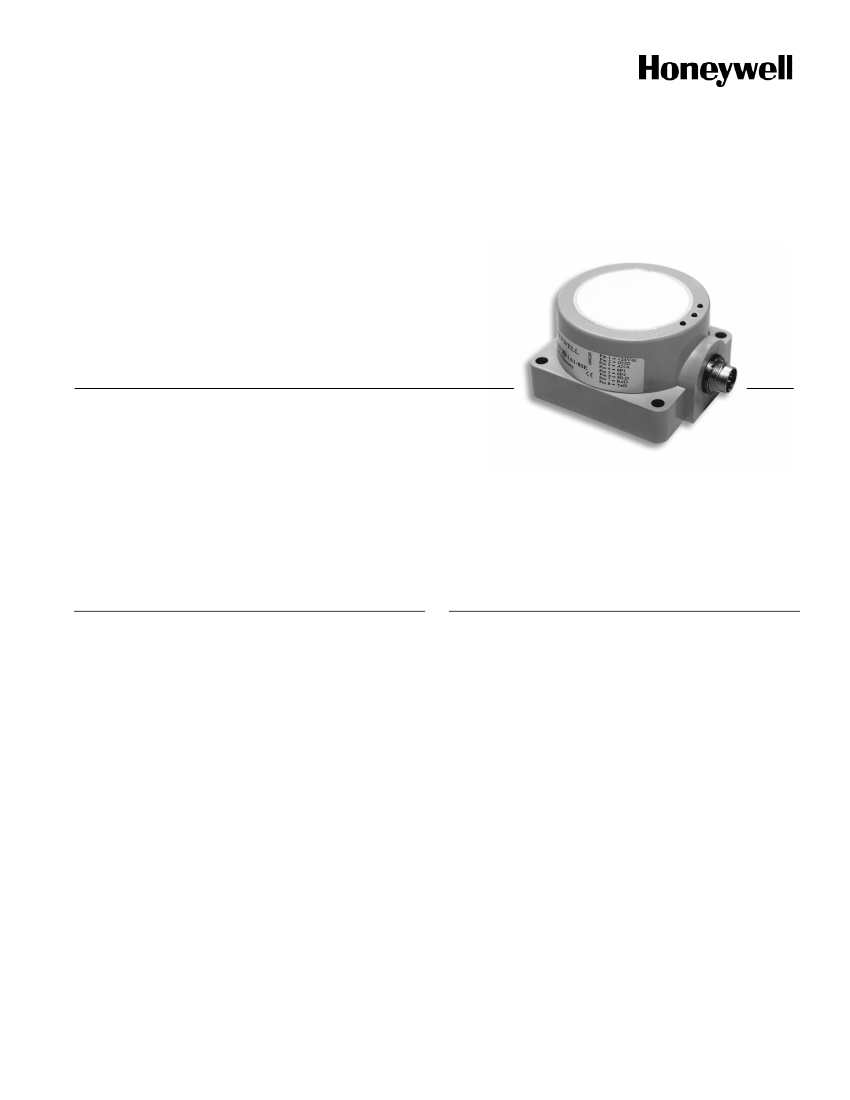

Ultrasonic Distance Sensors
DESCRIPTION
This collection of ultrasonic devices offers enhanced sensing
range capability in a square plastic housing. Available sensor
types include programmable, Teach-In, and analogue and
fixed output versions.
FEATURES
•
•
•
•
Non contact distance sensing for use in non invasive
measurement
Reduced sensitivity to light intensity/reflectivity/opacity of
target for enhanced flexibility and certainty of measurement
Detects over much longer distance than other detection
methods reducing the need for close proximity to the target
Extremely long sensing distance (up to 6 m [19.65 ft])
reducing the need for close proximity measurement which
can be critical for some applications
•
•
•
POTENTIAL APPLICATIONS
Level measurement
Presence/absence detection
Distance measurement
943 Series (942-O4N-2D-1A1/1A2-80E,
943-O4V-2D-001/002/1C0/1D0-80E, 947-O4V-2D-1C0/1D0-80E)
Specifications
Parameter
Max. sensing distance
Min. sensing distance
Expected response time 90%
of final value
Beam angle
Switching frequency
Linearity error
Hysteresis
Repeatability of measured
distance
Temperature range
Temperature compensation
Operating voltage
Expected current consumption
Analogue output
Analogue output selection by
load
Switching outputs
Expected output current
Adjustment
Alignment LED
Status switching output 1
Status switching output 2
Control input
Inhibit connect to:
Synchronisation connect to:
Enable connect to:
Interface
Plastic housing
Sealing*
Connector
942-O4N-2D-
1A1-80E
942-O4N-2D-
1A2-80E
943-O4V-2D-
001-80E
943-O4V-2D-
002-80E
943-O4V-2D-
1C0-80E
943-O4V-2D-
1D0-80E
6000 mm [236.22 in]
600 mm [23.62 in]
–
8º
0.5 Hz
–
~1%
–
947-O4V-2D-
947-O4V-2D-
1C0-80E
1D0-80E
5000 mm [196.85 in]
500 mm [19.69 in]
400 ms
10º
7 Hz/prog
<0.5 %
–
0.2%
±2
mm [0.08 in]
0.2%
250 ms/prog
700 ms
7 Hz/prog
<0.3%
prog
0.2%
15 Vdc to 30 Vdc
100 mA
0 V to 10 V/4 mA to 20 mA
load >2 kOhm Uout
load <500 Ohm Iout
2 PNP NO/NC 2 NPN NO/NC 2 PNP NO/NC
2 NPN NO/NC
100 mA max.
500 mA max.
programming
Teach-In
green (1)
yellow (2)
yellow (3)
–
Pin 6→ 0 V
Pin 6
↔
Pin 6
Pin 6
→
NC
RS232
PBPT
IP65
8 pin M16x0.75
-15 °C to 70 °C [-5 °F to 158 °F]
yes
12 Vdc to 30 Vdc
15 Vdc to 30 Vdc
<80 mA
<35 mA
–
0 V to 10 V
4 mA to 20 mA
–
–
–
–
24 Vdc
±20%
<40 mA
0 V to 10 V
4 mA to 20 mA
–
–
Pin 2→ 0 V
Pin 2
↔
Pin 2
Pin 2
→
NC
–
5 pin M12x1
*Attention! Do not expose sensor head to hot water >50 °C or steam vapour.
Accessories: 942-O4N-2D-1A1/1A2-80E
Catalog Listing
Description
66195126-001
Mating connector straight
55000005-002
Programming adaptor
55000010-001
Software programming adaptor and PC connection cable
55000018-001
Programming cable
Accessories: 943-O4V-2D-001/002-80E, 943-O4V-2D-1C0/1D0-80E, 947-O4V-2D-1C0/1D0-80E
Catalog Listing
Description
66195044-001
Mating connector straight
66195045-001
Mating connector angled
66195214-001
Straight cable/connector 2 m
66195216-001
Right-angle cable/connector 2 m
2
www.honeywell.com/sensing
Detection Range
942-O4N-2D-1A1/1A2-80E,
943-04V-2D-001/002/1C0/1D0-80E
+1000
mm
-1000
0
600
mm
6000
947-04V-2D-1C0/1D0-80E
+600
mm
-600
0
500
mm
5000
Enhanced detection of a target 100 mm² x 100 mm²
Possible detection of a large target
Enhanced detection of a target 100 mm² x 100 mm²
Possible detection of a large target
