CDH48D14SHPNP-R85MB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDH48D14SHPNP-R85MB

CDH48D14SHPNP-R85MB: DescriptionGeneral Purpose Inductor, 0.85uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size88KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDH48D14SHPNP-R85MB Overview

General Purpose Inductor, 0.85uH, 20%, 1 Element, SMD, ROHS COMPLIANT

CDH48D14SHPNP-R85MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.0429 Ω
Nominal inductance(L)	0.85 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CSLF3226B
Number of functions	1
Number of terminals	2
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

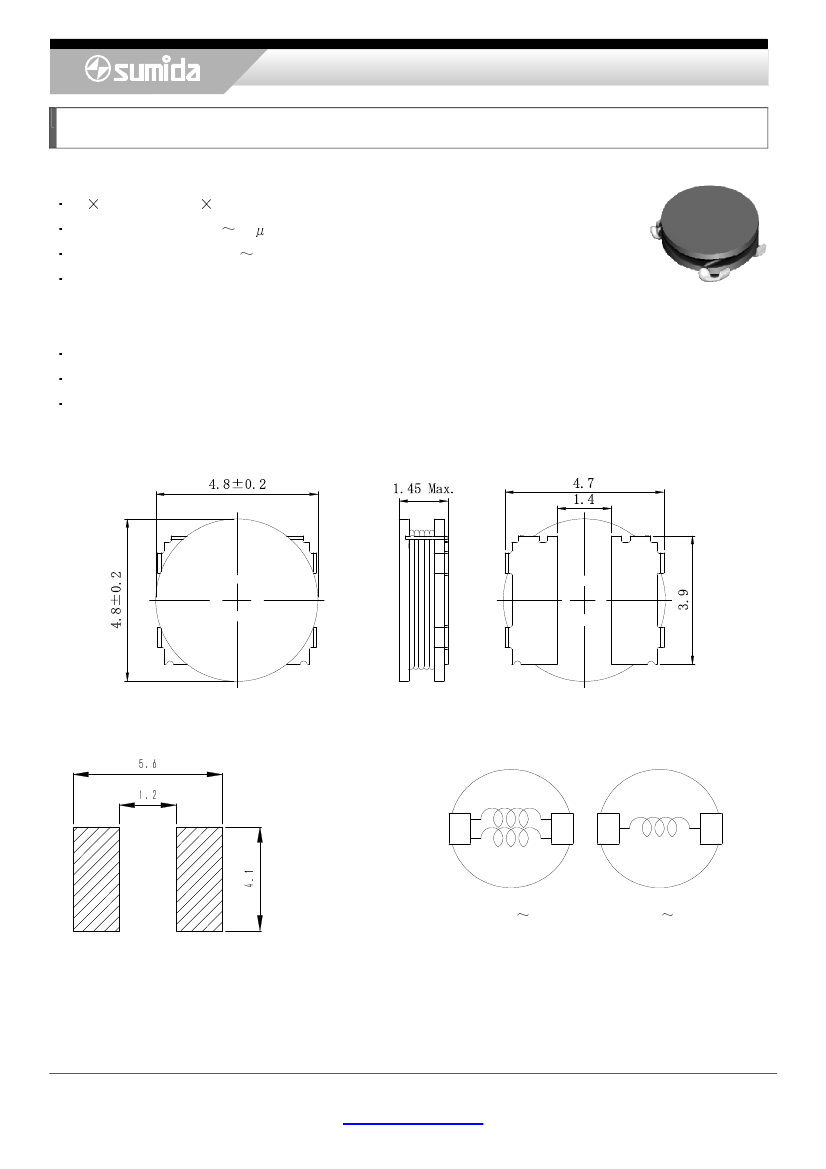

Power Inductors <SMD Type: CDH Series>

Type: CDH48D14/SHP

◆

Product Description

5.0 5.0mm Max.(L W), 1.5mm Max. Height.

Inductance range: 0.85 33 H.

Rated current range: 0.60 3.2A.

Custom design is available.

◆

Feature

Magnetically unshielded construction.

Ideally used in Mobilephone,PDA,MP3,DSC/DVC,HDD,etc as DC-DC Converter inductors.

RoHS Compliance

◆

Dimensions (mm)

◆

Land Pattern (mm)

6.5

Please refer to the sales offices on our website for a representative near you

www.sumida.com

μ ½

2.1

・

◆

Schematics (Bottom)

(0.85µH

3.3µH)

(4.7µH

33µH)

1/2
