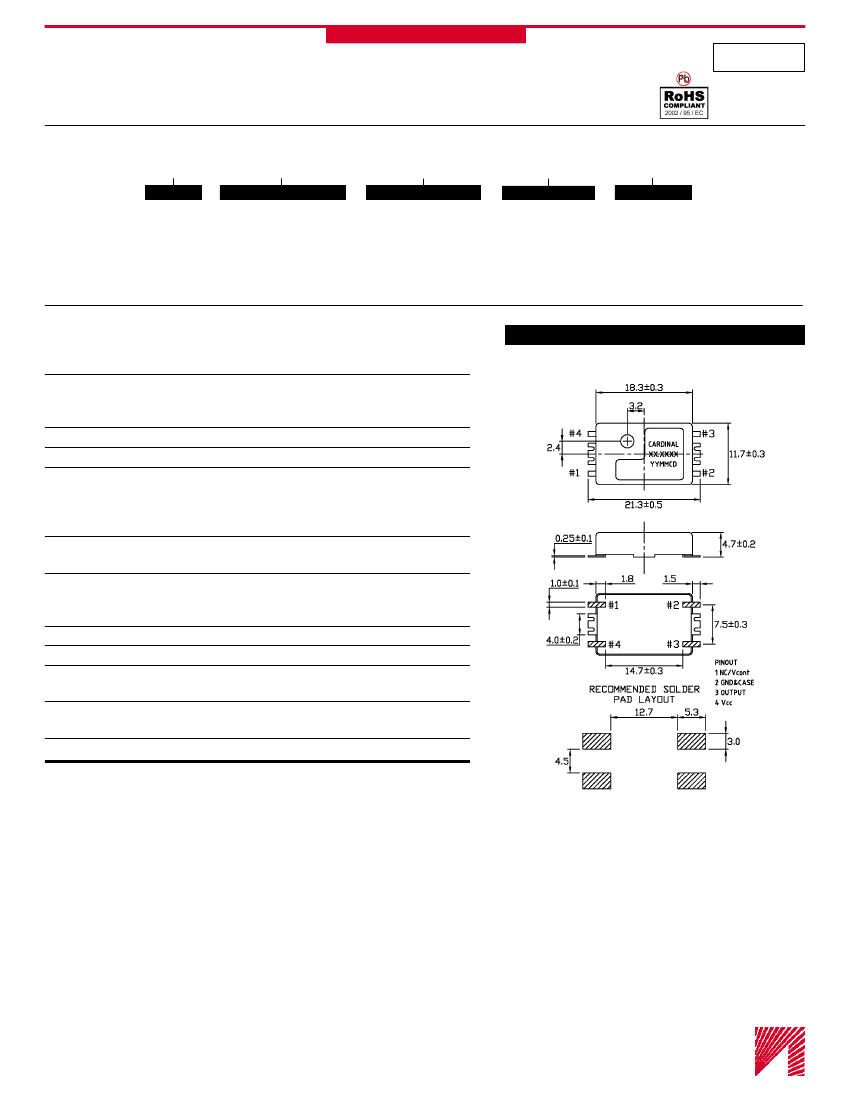

CARDINAL COMPONENTS
Surface Mount TCX0
• Industry standard footprint
Series CTX8
Part Numbering Example: CTX8 Z - A3 B3 - 15.360
CTX8
SERIES
CTX8
Z
PACKAGING OPTIONS
Z = Tape and Reel
A3
OPERATING TEMP.
A1=-10°C ~ +50°C
A2=-10°C ~ +60°C
A3=-30°C ~ +75°C
A4=-40°C ~ +75°C
B3
STABILITY
B1 = ±5.0 ppm
B2 = ±3.0 ppm
B3 = ±2.5 ppm
15.360
FREQUENCY
Specifications:
Frequency Range:
9.600 MHz to 32.000 MHz
CTX8
Available Stability Options:
±5.0 ppm
±3.0 ppm
±2.5 ppm
Output Series:
Input Voltage:
Operating Temperature
Range Options:
Clipped Sine
+5.0 VDC ±5%
-10°C
-10°C
-30°C
-40°C
to
to
to
to
+50°C
+60°C
+75°C
+75°C
Output Voltage:
Frequency Trim Range
With Externally
Adjustable Trimmer:
Output Load:
Maximum Input Current:
Maximum Frequency
Aging at +25°C:
Freq. Stability Vs. Change
of Input Voltage of ±5%:
Packaging:
1.0 Volt Peak to Peak
Minimum
± 3.0 ppm Minimum
10K OHM Parallel with 10 pf
2.0 mA
±1 ppm/yr
±0.3 ppm
Tape and Reel (1K per Reel)
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
.
http://www.cardinalxtal.com
E-Mail: cardinal@cardinalxtal.com
