CTA16-800SWPT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> CTA16-800SWPT

CTA16-800SWPT: Description4 Quadrant Logic Level TRIAC, 800V V(DRM), 16A I(T)RMS, TO-220AB, ISOLATED TO-220AB, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size67KB，2 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric View All

CTA16-800SWPT Overview

4 Quadrant Logic Level TRIAC, 800V V(DRM), 16A I(T)RMS, TO-220AB, ISOLATED TO-220AB, 3 PIN

CTA16-800SWPT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crydom
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	SINGLE
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	1.3 V
Maximum holding current	15 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum leakage current	0.005 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	16 A
Off-state repetitive peak voltage	800 V
surface mount	NO
Terminal surface	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1

Preview

Download Datasheet

View All

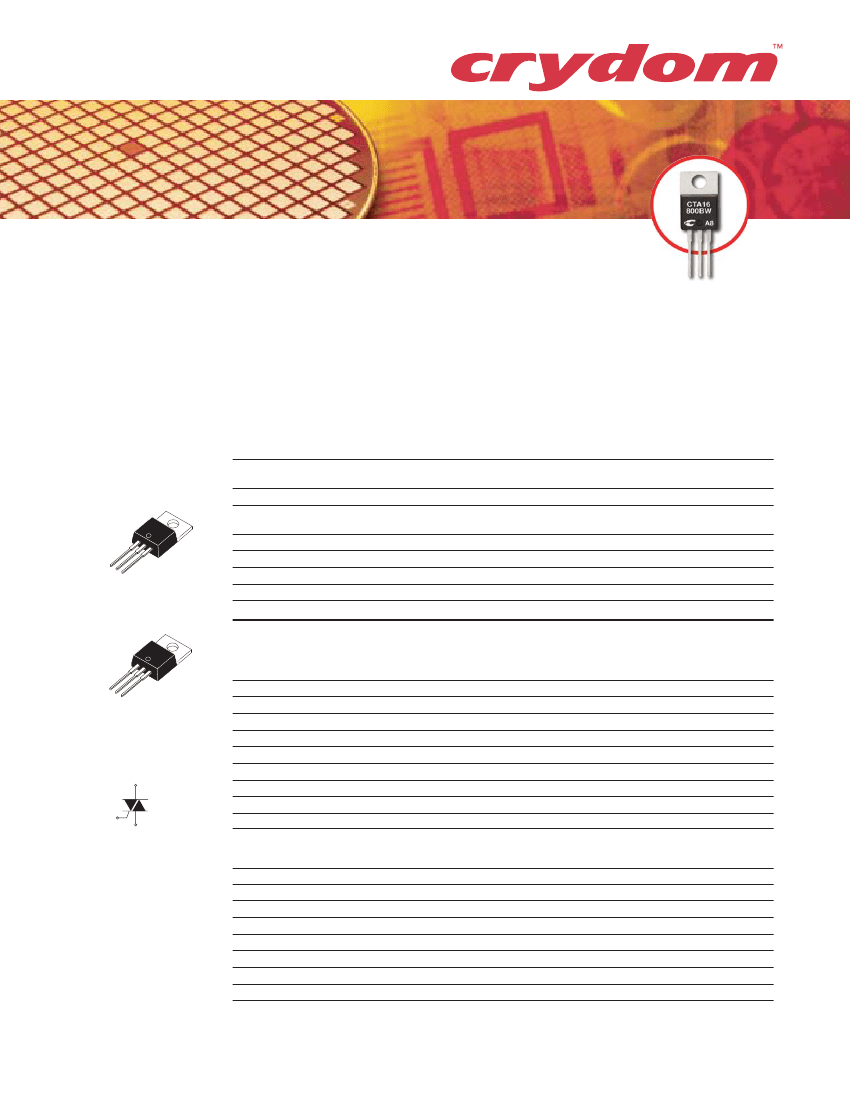

POWER COMPONENTS

Applications

• Phase Control

• Static Switching

• Light Dimming

• Motor Speed Control

• Kitchen Equipment

• Power Tools

• Solenoid Valve Controls:

• Dishwasher

• Washing Machines

Suitable for General Purpose AC Switching

Alternistor/No Snubber Versions

for Inductive Loads

Logic Level Available for use with

Microcontrollers and Low Level Devices

IGT Range 10-50 mA (Q1)

DRM

RMM

400, 600, 800, 1000V

CTA/CTB16

16Amp - 400/600/800/1000V -

TRIAC

SYMBOL

T(RMS)

TSM

di/dt

tp = 20 µs

G(AV)

Tstg

ISO

Absolute Maximum Ratings

RMS On-State Current (full sine wave)

Non Repetitive Surge Peak On-State Current

(Full Cycle, Tj Initial = 25˚C)

t Value for fusing

Critical rate of rise of on-state current

=2 x I

, tr<100ns, Tj = 125˚C

Peak Gate Current @ Tj = 125˚C

Average Gate Power Dissipation @ Tj = 125˚C

Tc = 100˚C

Tc = 85˚C

CONDITIONS

TO-220AB

TO-220AB Iso

F =50 Hz

F =60 Hz

tp = 10 ms

RATING

16A

160A

168A

144A

100A/µs

-40 to +150˚C

-40 to +125˚C

2500 V

RMS

Storage Temperature Range

Operating Junction Temperature Range

Isolation Voltage (CTA Series only)

TO-220AB Isolated

(CTA16)

Electrical Characteristics

ALTERNISTOR/NO SNUBBER AND LOGIC LEVEL (3 Quadrants)

MAX @ V

=12 V, R

= 30Ω

NOTE 1

QI-II-III

Tj = 125˚C

QI-II-III

MAX @ V

=12 V, R

= 30Ω

10mA

1.3V

0.2V

15mA

QI-III

Q-II

25mA

30mA

40V/µs

8.5A/ms

3.0A/ms

8.5A/ms

QI-II-III

QIV

Q-All

Tj = 125˚C

Q-All

25mA

QI-III-IV

Q-II

40mA

80mA

200V/µs

5V/µs

25mA

50mA

1.3V

0.2V

50mA

100mA

400V/µs

10V/µs

50mA

100mA

14A/ms

35mA

1.3V

0.2V

35mA

50mA

60mA

500V/µs

50mA

1.3V

0.2V

50mA

70mA

80mA

1000V/µs

MIN @ V

DRM

, R

= 3.3kΩ

MAX @ I

= 500 mA

MAX @ I

= 1.2 I

MAX @ I

= 1.2 I

TO-220AB Non-Isolated

(CTB16)

NOTE 2

dv/dt MIN @ VD = 67%V

DRM

(gate open)

NOTE 2

Tj = 125˚C

(dv/dt)c MIN @ (dv/dt)c = 0.1 V/ms

NOTE 2

Tj = 125˚C

(dv/dt)c MIN @ (dv/dt)c = 10 V/ms

NOTE 2

(di/dt)c MIN without Snubber

NOTE 2

STANDARD (4 Quadrants)

MAX @ V

=12 V, R

= 30Ω

NOTE 1

MAX @ V

=12 V, R

= 30Ω

NOTE 1

MAX @ V

=12 V, R

= 30Ω

MIN @ V

DRM

, R

= 3.3kΩ

MAX @ I

= 500 mA

MAX @ I

= 1.2 I

MAX @ I

= 1.2 I

dv/dt MIN @ VD = 67%V

DRM

(gate open)

NOTE 2

Tj = 125˚C

(dv/dt)c MIN @ (di/dt)c = 7.0 A/ms

NOTE 2

Tj = 125˚C

NOTE 2

ISO9001 Certified

GENERAL NOTES

1. Minimum IGT is guaranted at 5% of IGT max.

2. For both polarities of A2 referenced to A1

3. All parameters at 25 degrees C unless otherwise specified.
