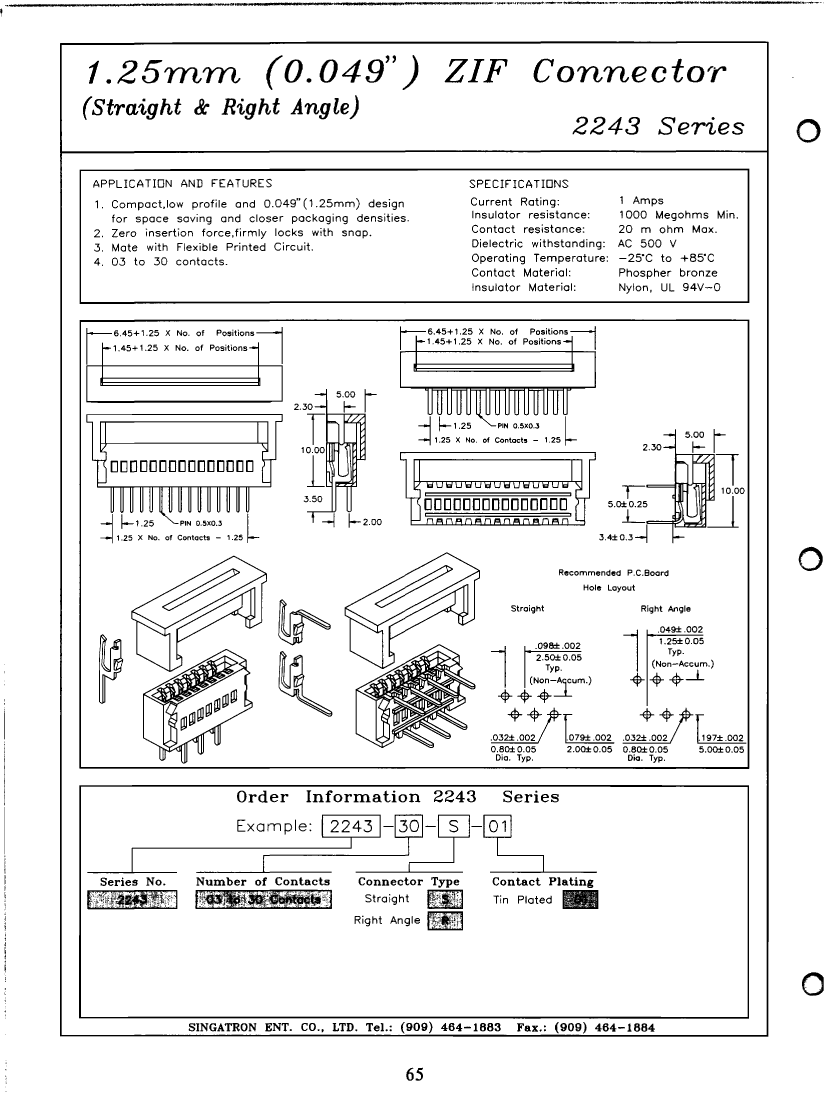

2243-13-R-01 datasheet, PDF - EEWORLD Datasheet

2243-13-R-01: DescriptionCard Edge Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking Mech; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

2243-13-R-01 Overview

Card Edge Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking Mech

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE; STAGGERED CONFIGURATION
body width	0.197 inch
subject depth	0.394 inch
body length	0.894 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	5000000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	5.0038 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	13
Evacuation force-minimum value	ZIF N
Base Number Matches	1
