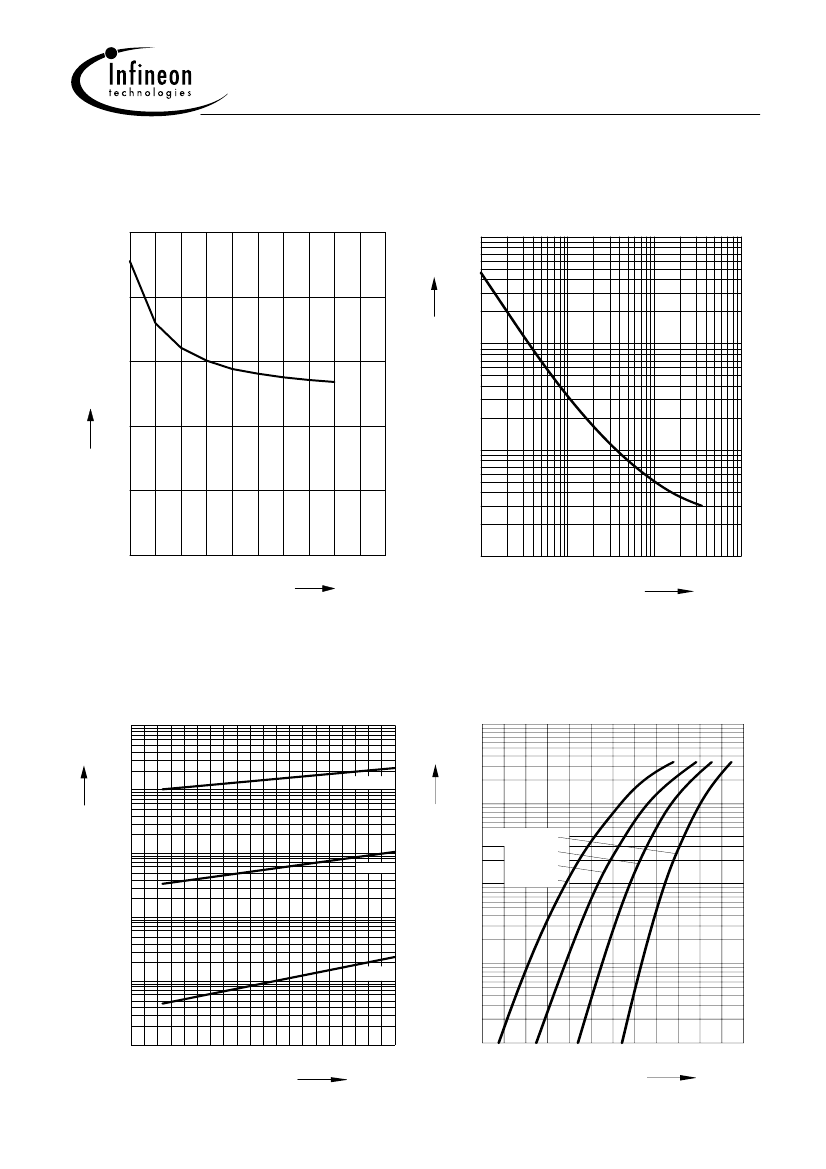

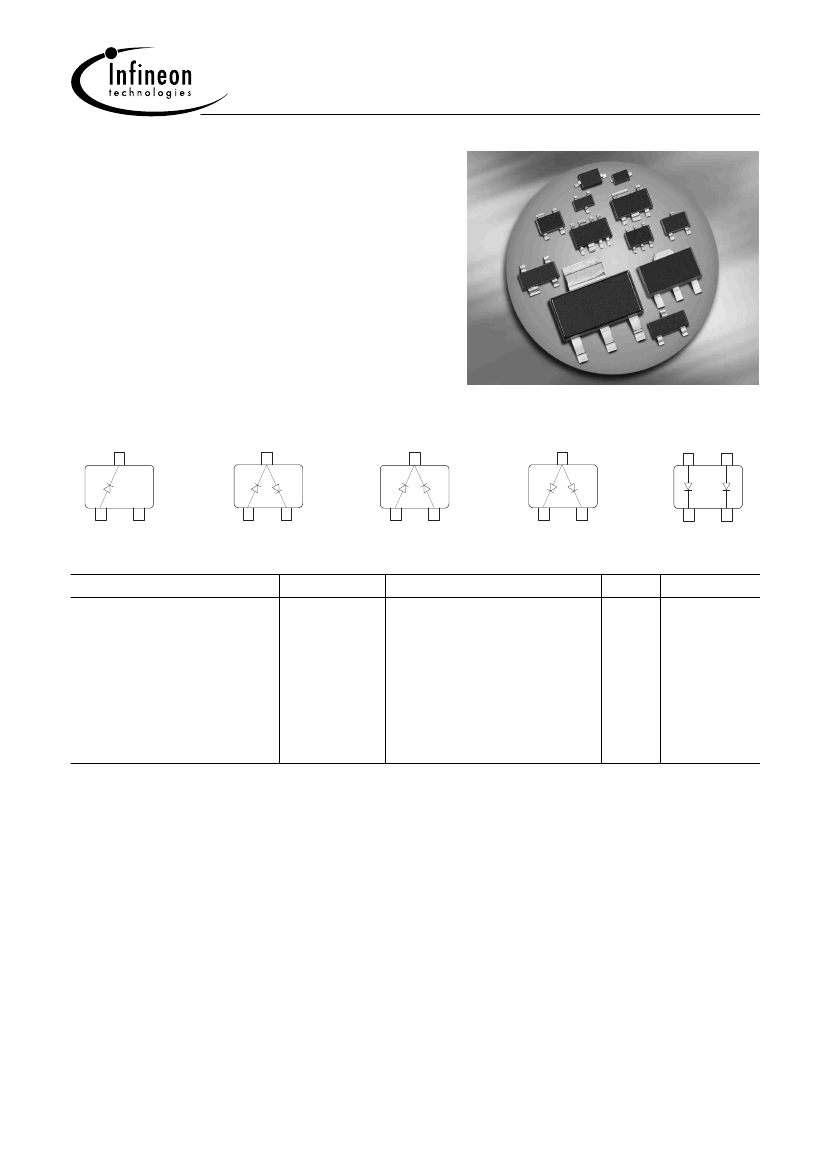

Mixer Diode, Very High Frequency to Ultra High Frequency, Silicon, SOT-323, 3 PIN
| Parameter Name | Attribute value |
| Maker | Infineon |
| Parts packaging code | SC-70 |
| package instruction | R-PDSO-G3 |
| Contacts | 3 |
| Manufacturer packaging code | SOT323 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS |
| Maximum diode capacitance | 0.75 pF |
| Diode component materials | SILICON |
| Diode type | MIXER DIODE |
| frequency band | VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY |
| JESD-30 code | R-PDSO-G3 |
| Number of components | 2 |
| Number of terminals | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Maximum power dissipation | 0.15 W |
| surface mount | YES |
| technology | SCHOTTKY |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| BAT1704WE6327XT | BAT17-04E6433 | BAT17-04WE6433 | P0505K2083DBT | BAT1705WE6327XT | BAT17-05E6433 | BAT17-06WE6433 | BAT17-07E6433 | BAT17E6433 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Mixer Diode, Very High Frequency to Ultra High Frequency, Silicon, SOT-323, 3 PIN | Mixer Diode, Very High Frequency to Ultra High Frequency, Silicon, SOT-23, 3 PIN | Mixer Diode, Very High Frequency to Ultra High Frequency, Silicon, SOT-323, 3 PIN | Fixed Resistor, Thin Film, 0.125W, 208000ohm, 50V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 0505, CHIP | Mixer Diode, Very High Frequency to Ultra High Frequency, Silicon, SOT-323, 3 PIN | Mixer Diode, Very High Frequency to Ultra High Frequency, Silicon, SOT-23, 3 PIN | Mixer Diode, Very High Frequency to Ultra High Frequency, Silicon, SOT-323, 3 PIN | Mixer Diode, Very High Frequency to Ultra High Frequency, Silicon, SOT-143, 4 PIN | Mixer Diode, Very High Frequency to Ultra High Frequency, Silicon, SOT-23, 3 PIN |
| package instruction | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | CHIP | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G4 | SOT-23, 3 PIN |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Number of terminals | 3 | 3 | 3 | 2 | 3 | 3 | 3 | 4 | 3 |
| Maximum operating temperature | 125 °C | 150 °C | 150 °C | 155 °C | 125 °C | 150 °C | 150 °C | 150 °C | 125 °C |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMT | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | THIN FILM | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Maker | Infineon | Infineon | Infineon | - | Infineon | Infineon | Infineon | Infineon | Infineon |
| Parts packaging code | SC-70 | SOT-23 | SC-70 | - | SC-70 | SOT-23 | SC-70 | SOT-143 | SOT-23 |
| Contacts | 3 | 3 | 3 | - | 3 | 3 | 3 | 4 | 3 |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | - | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON ANODE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS | SINGLE |
| Maximum diode capacitance | 0.75 pF | 0.75 pF | 0.75 pF | - | 0.75 pF | 0.75 pF | 0.75 pF | 0.75 pF | 0.75 pF |
| Diode component materials | SILICON | SILICON | SILICON | - | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | MIXER DIODE | MIXER DIODE | MIXER DIODE | - | MIXER DIODE | MIXER DIODE | MIXER DIODE | MIXER DIODE | MIXER DIODE |
| frequency band | VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY | VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY | VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY | - | VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY | VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY | VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY | VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY | VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY |
| JESD-30 code | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | - | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G4 | R-PDSO-G3 |
| Number of components | 2 | 2 | 2 | - | 2 | 2 | 2 | 2 | 1 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Maximum power dissipation | 0.15 W | 0.15 W | 0.15 W | - | 0.15 W | 0.15 W | 0.15 W | 0.15 W | 0.15 W |
| Terminal form | GULL WING | GULL WING | GULL WING | - | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | - | DUAL | DUAL | DUAL | DUAL | DUAL |
| Is it Rohs certified? | - | conform to | conform to | incompatible | - | conform to | conform to | conform to | conform to |
| Maximum forward voltage (VF) | - | 0.35 V | 0.35 V | - | - | 0.35 V | 0.35 V | 0.35 V | 0.35 V |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Certification status | - | Not Qualified | Not Qualified | - | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
