87708-1010T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87708-1010T

87708-1010T: Description8 CONTACT(S), MALE, DIP CONNECTOR, IDC; CategoryThe connector The connector; File Size162KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

87708-1010T Overview

8 CONTACT(S), MALE, DIP CONNECTOR, IDC

87708-1010T Parametric

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SOLDERED DIRECTLY TO THE BOARD
body width	0.421 inch
subject depth	0.181 inch
body length	0.488 inch
Connector type	DIP CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	TIN LEAD (300) OVER NICKEL
Contact completed and terminated	TIN LEAD (300) OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	877
Plug contact pitch	0.1 inch
Match contact row spacing	0.3 inch
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	8
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

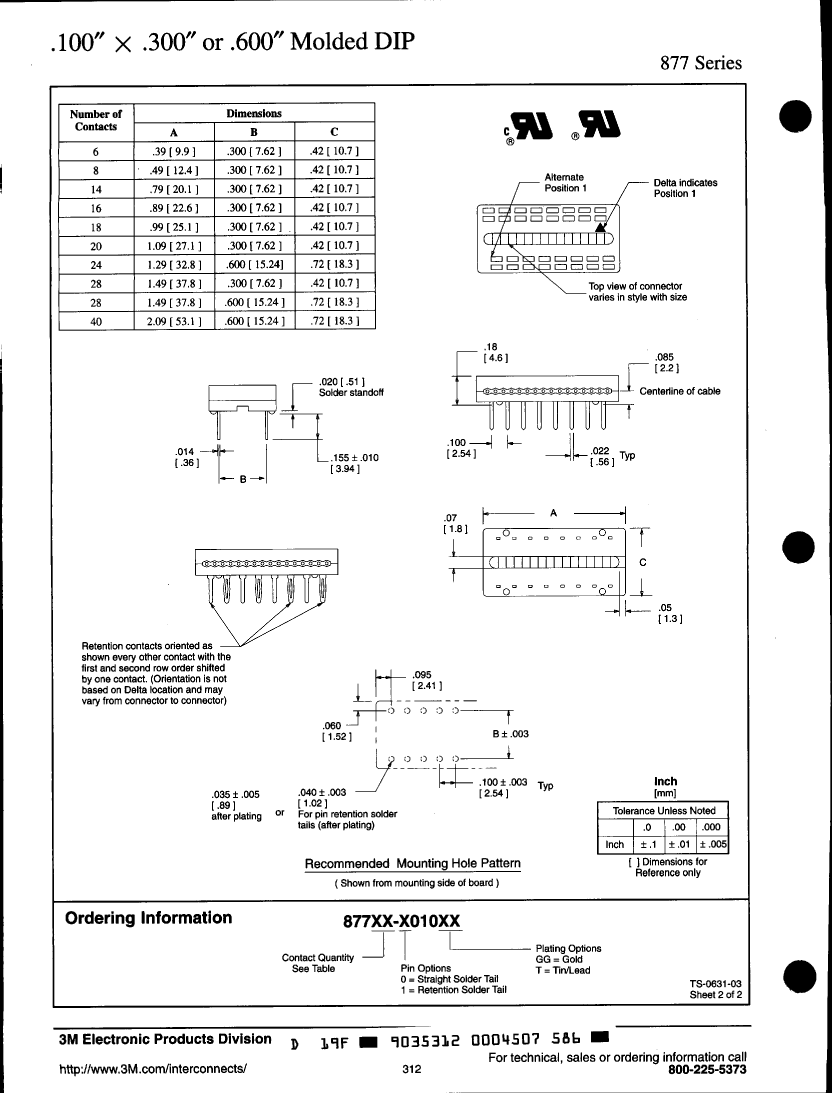

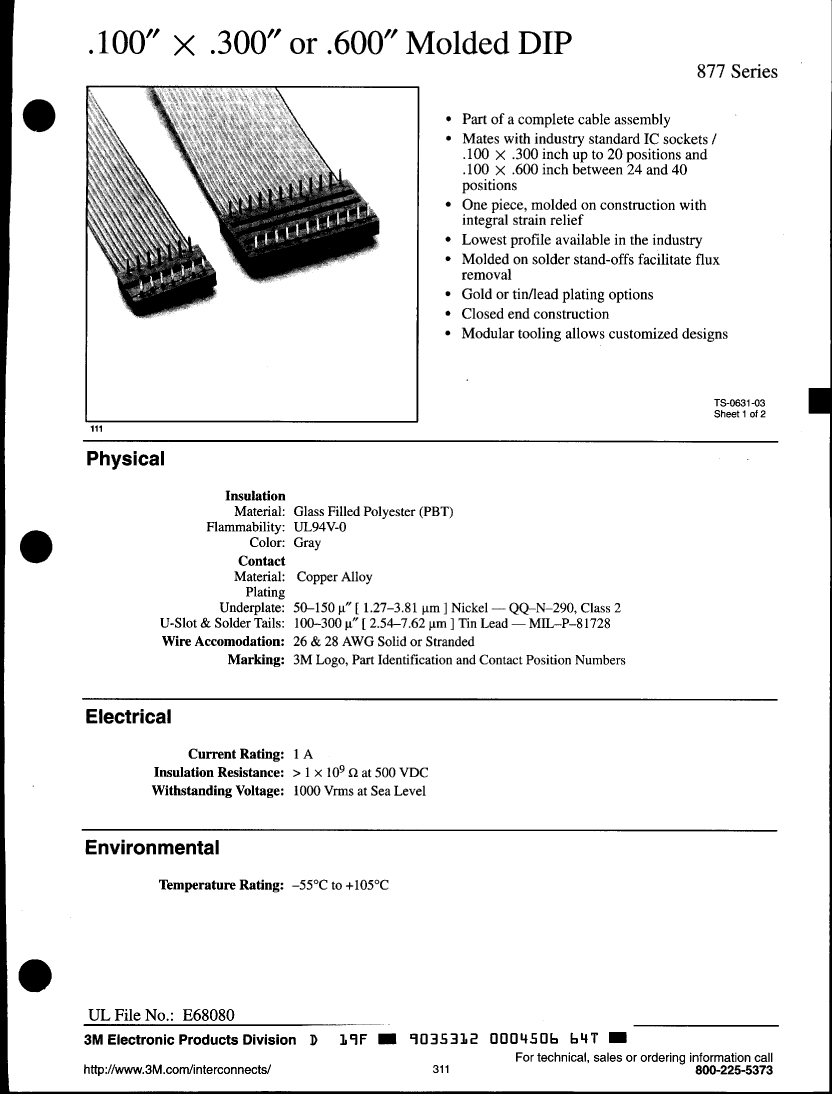

Preview

Download Datasheet

View All

87708-1010T Related Products

	87708-1010T	87708-1010GG	87706-0010T	87718-1010GG	87724-0010T	87740-1010GG	87716-0010T	87716-1010GG	87720-0010T
Description	8 CONTACT(S), MALE, DIP CONNECTOR, IDC	8 CONTACT(S), MALE, DIP CONNECTOR, IDC	6 CONTACT(S), MALE, DIP CONNECTOR, IDC	18 CONTACT(S), MALE, DIP CONNECTOR, IDC	24 CONTACT(S), MALE, DIP CONNECTOR, IDC	40 CONTACT(S), MALE, DIP CONNECTOR, IDC	16 CONTACT(S), MALE, DIP CONNECTOR, IDC	16 CONTACT(S), MALE, DIP CONNECTOR, IDC	20 CONTACT(S), MALE, DIP CONNECTOR, IDC
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	SOLDERED DIRECTLY TO THE BOARD	SOLDERED DIRECTLY TO THE BOARD	SOLDERED DIRECTLY TO THE BOARD	SOLDERED DIRECTLY TO THE BOARD	SOLDERED DIRECTLY TO THE BOARD	SOLDERED DIRECTLY TO THE BOARD	SOLDERED DIRECTLY TO THE BOARD	SOLDERED DIRECTLY TO THE BOARD	SOLDERED DIRECTLY TO THE BOARD
body width	0.421 inch	0.421 inch	0.421 inch	0.421 inch	0.72 inch	0.72 inch	0.421 inch	0.421 inch	0.421 inch
subject depth	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch
body length	0.488 inch	0.488 inch	0.39 inch	0.988 inch	1.291 inch	2.091 inch	0.89 inch	0.89 inch	1.067 inch
Connector type	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	TIN LEAD (300) OVER NICKEL	GOLD OVER NICKEL	TIN LEAD (300) OVER NICKEL	GOLD OVER NICKEL	TIN LEAD (300) OVER NICKEL	GOLD OVER NICKEL	TIN LEAD (300) OVER NICKEL	GOLD OVER NICKEL	TIN LEAD (300) OVER NICKEL
Contact completed and terminated	TIN LEAD (300) OVER NICKEL	GOLD OVER NICKEL	TIN LEAD (300) OVER NICKEL	GOLD OVER NICKEL	TIN LEAD (300) OVER NICKEL	GOLD OVER NICKEL	TIN LEAD (300) OVER NICKEL	GOLD OVER NICKEL	TIN LEAD (300) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
JESD-609 code	e0	e4	e0	e4	e0	e4	e0	e4	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.3 inch	0.3 inch	0.3 inch	0.3 inch	0.6 inch	0.6 inch	0.3 inch	0.3 inch	0.3 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	8	8	6	18	24	40	16	16	20
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Maker	3M	3M	3M	-	3M	-	3M	3M	3M
Manufacturer's serial number	877	877	877	-	877	-	877	877	877
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
