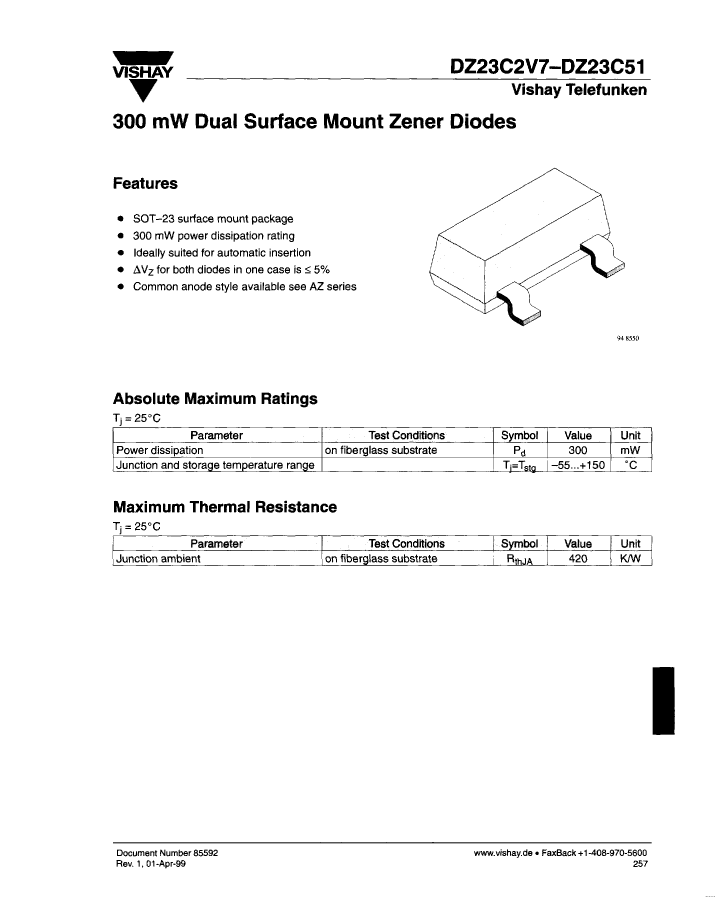

DZ23C9V1GS18

Description
Zener Diode, 9.1V V(Z), 6.08%, 0.3W, Silicon, Unidirectional, PLASTIC, SOT-23, 3 PIN
CategoryDiscrete semiconductor    diode
File Size66KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

DZ23C9V1GS18 Overview

Zener Diode, 9.1V V(Z), 6.08%, 0.3W, Silicon, Unidirectional, PLASTIC, SOT-23, 3 PIN

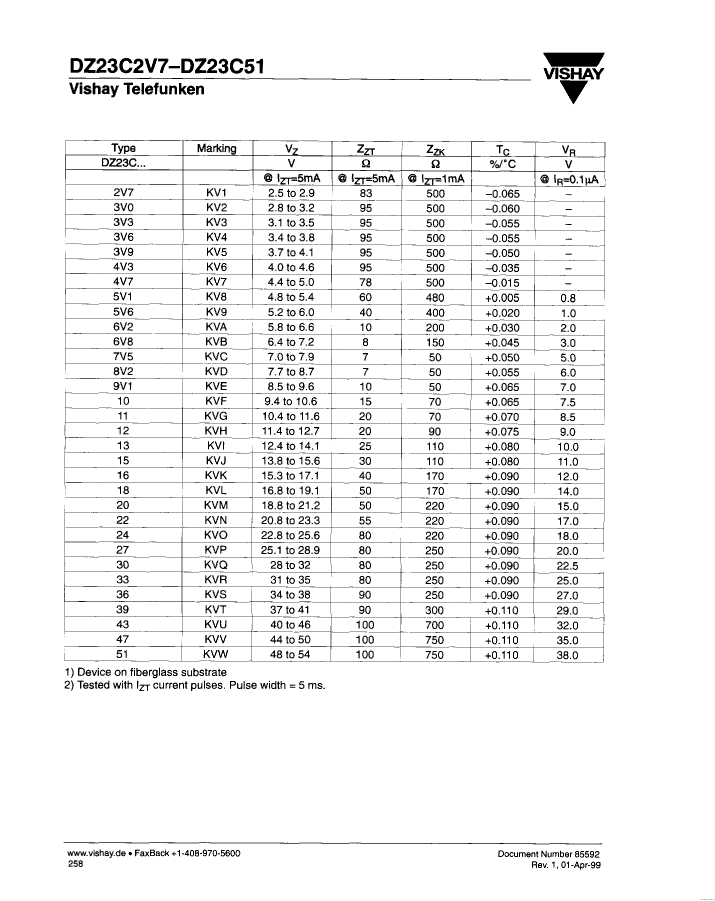

DZ23C9V1GS18 Parametric

Parameter NameAttribute value

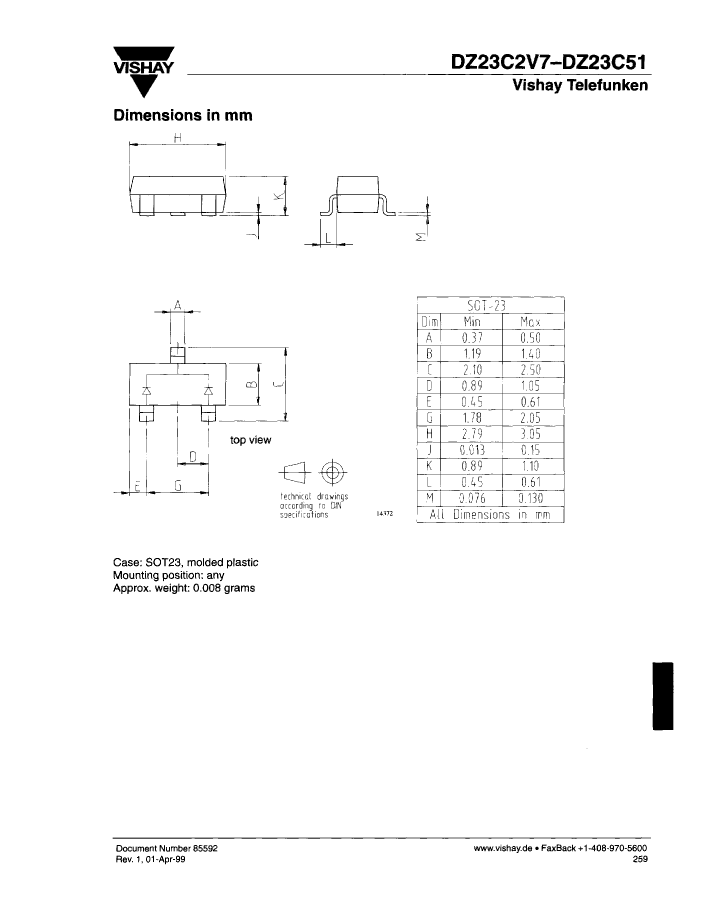

Parts packaging codeSOT-23
package instructionR-PDSO-G3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeZENER DIODE
JESD-30 codeR-PDSO-G3
Number of components2
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
polarityUNIDIRECTIONAL
Maximum power dissipation0.3 W
Certification statusNot Qualified
Nominal reference voltage9.1 V
surface mountYES
technologyZENER
Terminal formGULL WING
Terminal locationDUAL
Maximum voltage tolerance6.08%
Working test current5 mA
Base Number Matches1
