CX5032GBFREQ6H0HEQZ1: DescriptionParallel - Fundamental Quartz Crystal, 30MHz Min, 54MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-2; CategoryPassive components Crystal/resonator; File Size69KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

CX5032GBFREQ6H0HEQZ1 Overview

Parallel - Fundamental Quartz Crystal, 30MHz Min, 54MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-2

CX5032GBFREQ6H0HEQZ1 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	20 ppm
load capacitance	12 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	54 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

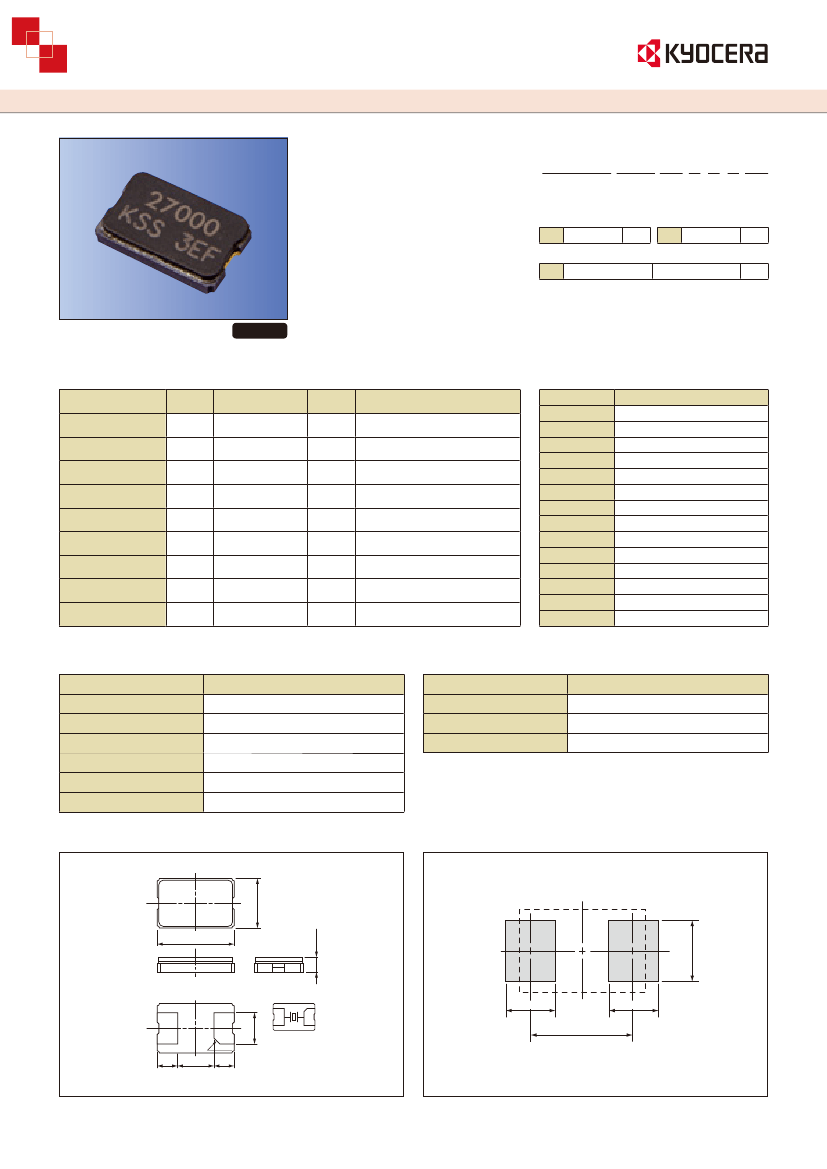

Crystal Units

Surface Mount Type CX5032GB (CX-53F)

5.0×3.2mm for Consumer Products

Features

• Crystal unit for Consumer Products

• Small and low profile (T=1.1mm max.)

(5.0×3.2×1.0mm)

• Ceramic package

• Product with lead free terminations

• Reflow compatible

How to Order

CX5032GB 27000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

②

Frequency

④

Frequency Stability

H

±20×10

−

6

Std.

±30×10

−

6

Std.

①

Series

③

Load Capacitance

H0

EQ

12 pF

Std.

Applications

• Digital Electronics

• Consumer Products

• Car audio and accessories

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

−10

to

+70°C

⑦

Individual Specification

Packaging (Tape & Reel 3000/ 1000 pcs./ reel)

RoHS Compliant

Specifications

Item

Frequency Range

Overtone Order

Load Capacitance

Frequency Stability

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

Symbol

f

_nom

OT

CL

f

_tol

R1

DL

T

_use

T

_stg

f

_tem

Specification

7372.8 to 54000

Fundamental

12

±20

Table 1

Table 2

−10

to

+70

−40

to

+85

±30

Units

kHz

―

pF

×10

−

6

ohm

μW

°C

×10

−

6

Freq. deviation from the value at 25°C

25°C±3°C

Remarks

Typical Frequencies and Part Numbers

Frequency (kHz)

10000.000

12000.000

14318.180

14745.600

16934.400

18432.000

22579.000

24000.000

24545.450

24576.000

27000.000

36000.000

48000.000

54000.000

Part Number

CX5032GB10000H0HEQZ1

CX5032GB12000H0HEQZ1

CX5032GB14318H0HEQZ1

CX5032GB14745H0HEQZ1

CX5032GB16934H0HEQZ1

CX5032GB18432H0HEQZ1

CX5032GB22579H0HEQZ1

CX5032GB24000H0HEQZ1

CX5032GB24545H0HEQZ1

CX5032GB24576H0HEQZ1

CX5032GB27000H0HEQZ1

CX5032GB36000H0HEQZ1

CX5032GB48000H0HEQZ1

CX5032GB54000H0HEQZ1

• Please contact us for other specifications.

Table1 Motional Series Resistance

Frequency Range

7372.8 to 9499kHz

9500 to 9999kHz

10000 to 13999kHz

14000 to 19999kHz

20000 to 29999kHz

30000 to 54000kHz

Motional Series Resistance

300Ω max.

200Ω max.

150Ω max.

100Ω max.

70Ω max.

50Ω max.

Table2 Level of Drive

Frequency Range

7372.8 to 15999kHz

16000 to 24999kHz

25000 to 54000kHz

Level of Drive

10μW (500μW max.)

10μW (300μW max.)

10μW (100μW max.)

Dimensions

(Unit: mm)

Recommended Land Pattern

(Unit: mm)

±

+

−

CX5032GBFREQ6H0HEQZ1 Related Products

	CX5032GBFREQ6H0HEQZ1	CX5032GBFREQ5H0HEQZ1
Description	Parallel - Fundamental Quartz Crystal, 30MHz Min, 54MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-2	Parallel - Fundamental Quartz Crystal, 20MHz Min, 29.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-2
Maker	Kyocera	Kyocera
Reach Compliance Code	unknown	unknown
Other features	TAPE AND REEL	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW
frequency stability	0.003%	0.003%
frequency tolerance	20 ppm	20 ppm
load capacitance	12 pF	12 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	54 MHz	29.999 MHz
Minimum operating frequency	30 MHz	20 MHz
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
physical size	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)
Series resistance	50 Ω	70 Ω
surface mount	YES	YES
