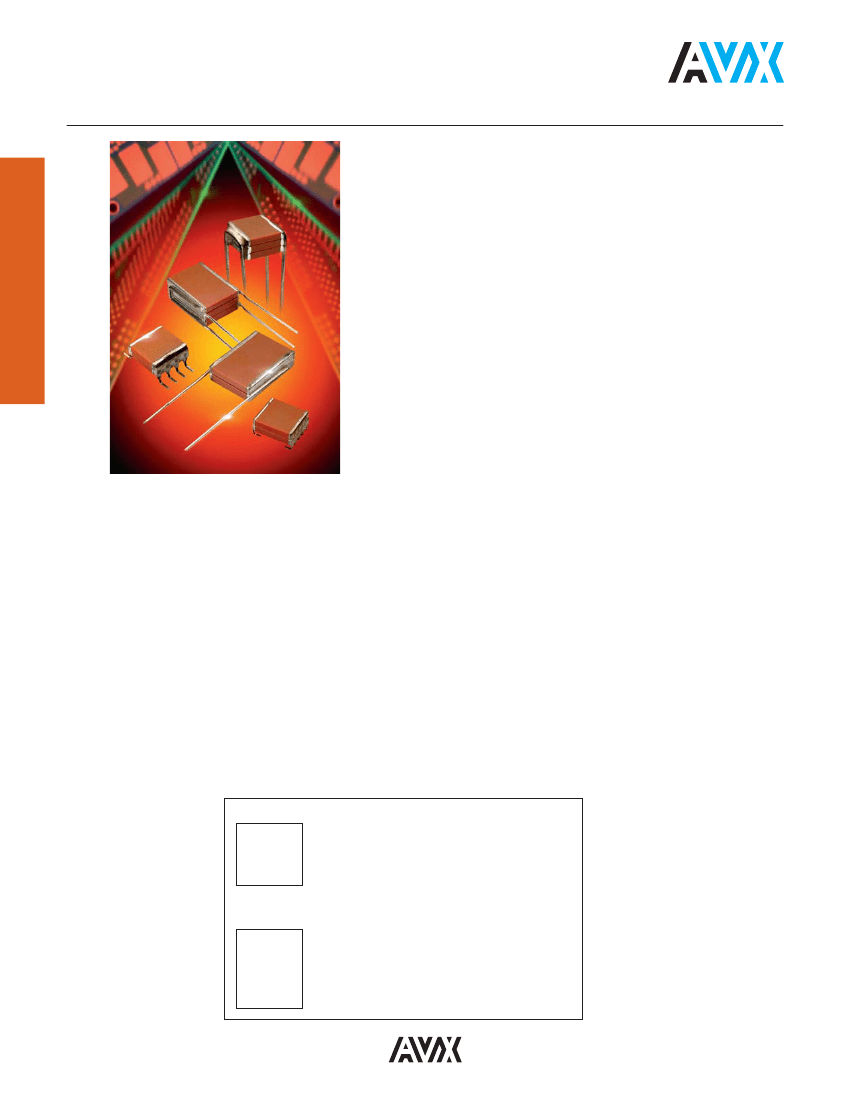

SMPS Capacitors Chip Assemblies
CH/CV - Radial, Dual-in-Line,
4 Terminal/SMT ‘J’ & ‘L’ Ranges
10nF to 180 μF
BS9100 approved
50V to 500 VDC
Low ESR/ESL
-55ºC to +125ºC
1B/C0G and 2C1/X7R Dielectrics
This range allows SMPS engineers to select the best volumetric
solution for input and output filter applications in high reliability designs.
Utilizing advanced multilayer ceramic techniques to minimize ESR/ESL
giving high current handling properties appropriate for filtering,
smoothing and decoupling circuits.
ELECTRICAL SPECIFICATIONS
Temperature Coefficient
CECC 30 000, (4.24.1)
1B/C0G: A Temperature Coefficient - 0 ± 30 ppm/ºC, -55º to +125ºC
2C1/X7R: C Temperature Characteristic - ± 15%, -55º to +125ºC
Capacitance Test 25ºC
1B/C0G: Measured at 1 VRMS max at 1KHz (1MHz for 100 pF or less)
2C1/X7R: Measured at 1 VRMS max at 1KHz
Dissipation Factor 25°C
1B/C0G: 0.15% max at 1KHz, 1 VRMS max (1MHz for 100 pF or less)
2C1/X7R: 2.5% max at 1KHz, 1 VRMS max
Insulation Resistance 25°C
1B/C0G & 2C1/X7R: 100K megohms or 1000 megohms-μF, whichever
is less
Dielectric Withstanding Voltage 25°C
(Flash Test)
1B/C0G & 2C1/X7R: 250% rated voltage for 5 seconds with 50 mA max
charging current. (500 Volt units @ 150% rated voltage)
Dielectric Withstanding Voltage 25°C
(Flash Test)
1B/C0G & 2C1/X7R: 250% rated voltage for 5 seconds with 50 mA
max charging current. (500 Volt units @ 150% rated voltage)
Life Test
(1000 hrs) CECC 30 000 (4.23)
1B/C0G & 2C1/X7R: 200% rated voltage at +125ºC.
(500 Volt units @ 120% rated voltage)
Damp Heat
IEC 68-2-3, 56 days.
Thermal Shock
IEC 68-2-14
-55ºC to +125ºC, 5 cycles
Resistance to Solder Heat
IEC 68-2-20
Vibration
IEC 68-2-6
10Hz - 2000Hz, 0.75mm or 98m/sec
2
, 6 hrs.
Bump
IEC 68-2-29
390m/sec
2
, 4000 bumps
MARKING
CH and CV 4x, 5x, 81-84
A5C
225K
xxxxxx
Top line A (AVX). Voltage code, dielectric code.
Middle line capacitance code, tolerance code.
Bottom line 6 digit batch code.
Other CH, CV Styles
AVX
5C
156M
xxxxxx
Top line AVX.
Second line voltage code, dielectric code.
Third line capacitance code, tolerance code.
Bottom line, 6 digit batch code.
36
SMPS Capacitors (CV Style)
Chip Assemblies
VERTICALLY MOUNTED RADIAL PRODUCT
Part Number format
(CVxxxxxxxxxxxA2)
Typical Part Number
CV525C106MA30A2
DIMENSIONS
Style
CV41-44
CV51-54
CV61-64
CV71-74
CV76-79
*Tolerance ± 0.8
25 (0.984)
±3
(0.118)
Lead Dia.
See Table
S
±0.5
(0.020)
millimeters (inches)
L
(max)
10.6
11.9
16.5
17.8
22.7
(0.417)
(0.468)
(0.649)
(0.700)
(0.893)
H
(max)
8.7
10.7
13.6
21.6
16.6
(0.342)
(0.421)
(0.535)
(0.850)
(0.653)
S
(nom)
8.2
10.2
15.2
15.2
21.2*
(0.322)
(0.400)
(0.600)
(0.600)
(0.834)
Lead
Dia
(nom)
0.7 (0.028)
0.9 (0.035)
0.9 (0.035)
0.9 (0.035)
0.9 (0.035)
T Max.
L Max.
H Max.
millimeters (inches)
Style
CV41/51/61/71/76
CV42/52/62/72/77
CV43/53/63/73/78
CV44/54/64/74/79
T max
3.80
7.40
11.1
14.8
(0.150)
(0.291)
(0.437)
(0.583)
VERTICALLY MOUNTED 4 TERMINAL RADIAL PRODUCT
Part Number format
(CVxxxxxxxxx3xx4)
Typical Part Number
CV435C106MA30A4
DIMENSIONS
Style
CV43-44
CV53-54
CV63-64
CV73-74
CV78-79
L
(max)
10.6
11.9
16.5
17.8
22.7
(0.417)
(0.468)
(0.649)
(0.700)
(0.893)
H
(max)
8.7
10.7
13.6
21.6
16.6
(0.342)
(0.421)
(0.535)
(0.850)
(0.653)
millimeters (inches)
S
(nom)
8.2
10.2
15.2
15.2
21.2*
(0.322)
(0.400)
(0.600)
(0.600)
(0.834)
Lead
Dia
(nom)
0.7 (0.028)
0.9 (0.035)
0.9 (0.035)
0.9 (0.035)
0.9 (0.035)
T Max.
M1 = M2
±0.5
(0.020)
H Max.
L Max.
*Tolerance ± 0.8 (0.031)
25 (0.984)
±3
(0.118)
M2
S1
±0.5
(0.020)
S1
±0.5
(0.020)
Lead Dia.
See Table
millimeters (inches)
M1
Style
CV43/53/63/73/78
CV44/54/64/74/79
T max
11.1 (0.437)
14.8 (0.583)
S1
5.08 (0.200)
7.62 (0.300)
Note 1. This style is only available in 3 & 4 chip assemblies
HOW TO ORDER
CV
Style
Code
52
5
C
106
M
A
Specification
Code
3
Finish
Code
0
Lead Dia.
Code
A
Lead Space
Code
A = Standard
2
Lead Style
Code
2 = 2 Terminal
4 = 4 Terminal
See Note 1
above
Size Voltage Dielectric Capacitance Capacitance
Code Code
Code
Code
Tolerance
5 = 50V
1 = 100V
2 = 200V
7 = 500V
A = C0G
C = X7R
(
see product section)
(2 significant
C0G: J = ±5% A = Non-customized
digits + no.
K = ±10%
of zeros)
M = ±20%
eg. 105 = 1 μF
X7R: K = ±10%
106 = 10 μF
M = ±20%
107 = 100 μF
P = +100, -0%
3 = Uncoated 0 = Standard
8 = Coated
(classified as
uninsulated)
Note: See page 117 for How to Order BS9100 parts
37
SMPS Capacitors (CH Style)
Chip Assemblies
HORIZONTALLY MOUNTED 4 TERMINAL RADIAL PRODUCT
Part Number format
(CHxxxxxxxxx3xx4)
Typical Part Number
CH782C106MA30A4
W max
L max
DIMENSIONS
Style
CH42-44
CH52-54
CH62-64
CH72-74
CH77-79
CH82-84
CH87-89
CH92-94
*Tolerance ± 0.8
millimeters (inches)
L
(max)
W
(max)
8.7 (0.342)
10.7 (0.421)
13.6 (0.535)
21.6 (0.850)
16.6 (0.653)
38.2 (1.503)
38.2 (1.503)
40.6 (1.598)
S
(nom)
8.2 (0.322)
10.2 (0.400)
15.2 (0.600)
15.2 (0.600)
21.2* (0.834)
10.2 (0.400)
15.2 (0.600)
21.2* (0.834)
S Lead
Dia
(nom)
0.7 (0.028)
0.9 (0.035)
0.9 (0.035)
0.9 (0.035)
0.9 (0.035)
0.9 (0.035)
1.0 (0.039)
1.2 (0.047)
S1
(nom)
5.08 (0.200)
7.62 (0.300)
7.62 (0.300)
15.2 (0.600)
10.2 (0.400)
27.9 (1.100)
27.9 (1.100)
30.5 (1.200)
T max
25 (0.984)
±3
(0.118)
M1
S1
±
0.5
(0.020)
M2
Lead dia
(see table)
10.6 (0.417)
11.9 (0.468)
16.5 (0.649)
17.8 (0.700)
22.7 (0.893)
14.1 (0.555)
17.8 (0.700)
22.7 (0.893)
NOTE: This style is only available in 2, 3 & 4 chip assemblies only
millimeters (inches)
M1 = M2
±
0.5 (0.020)
S
±
0.5
(0.020)
Style
CH42/52/62/72/77/87/92
CH43/53/63/73/78/88/93
CH44/54/64/74/79/89/94
T max
7.4 (0.291)
11.1 (0.437)
14.8 (0.583)
HORIZONTALLY MOUNTED DUAL-IN-LINE PRODUCT
Part Number format
(CHxxxxxxxxxx0A0)
Typical Part Number
CH615C106MA30A0
W max
T
max
2.0 (0.079)
max
L max
DIMENSIONS
Style
CH41-44
CH51-54
CH61-64
CH71-74
CH76-79
CH81-84
CH86-89
CH91-94
L
(max)
9.2
10.7
14.9
16.8
21.6
12.0
18.9
24.0
(0.362)
(0.421)
(0.586)
(0.661)
(0.850)
(0.472)
(0.744)
(0.944)
W
(max)
8.7
10.7
13.6
21.6
16.6
38.2
38.2
40.6
(0.342)
(0.421)
(0.535)
(0.850)
(0.653)
(1.503)
(1.503)
(1.598)
millimeters (inches)
S
(nom)
8.2
10.2
14.0
15.2
20.3*
10.2
15.2
20.3*
(0.322)
(0.400)
(0.551)
(0.600)
(0.800)
(0.400)
(0.600)
(0.800)
No. of
Leads
per side
3
4
5
7
6
14
14
14
13 (0.512)
±
1 (0.039)
L2
2.54 (0.100)
±
0.05 (0.002)
L1
S
±
0.5
(0.020)
*Tolerance ± 0.8 (0.031)
millimeters (inches)
Lead width 0.5 (0.020)
Lead thickness 0.254 (0.010)
L1 = L2 ± 0.5 (0.020)
Style
CH41/51/61/71/76/81/86/91
CH42/52/62/72/77/82/87/92
CH43/53/63/73/78/83/88/93
CH44/54/64/74/79/84/89/94
T max
3.8 (0.150)
7.4 (0.291)
11.1 (0.437)
14.8 (0.583)
HOW TO ORDER
CH
Style
Code
52
5
C
106
M
A
Specification
Code
3
Finish
Code
0
Lead Dia.
Code
A
Lead Space
Code
A = Standard
0
Lead Style
Code
0 = Straight dual
in line
4 = 4 Terminal
Size Voltage Dielectric Capacitance Capacitance
Code Code
Code
Code
Tolerance
5 = 50V
1 = 100V
2 = 200V
7 = 500V
A = C0G
C = X7R
(
see product section)
(2 significant
C0G: J = ±5% A = Non-customized
digits + no.
K = ±10%
of zeros)
M = ±20%
eg. 105 = 1 μF
X7R: K = ±10%
106 = 10 μF
M = ±20%
107 = 100 μF
P = +100, -0%
3 = Uncoated 0 = Standard
8 = Coated
(classified as
uninsulated)
Note: See page 117 for How to Order BS9100 parts
38
SMPS Capacitors (CH Style)
Chip Assemblies
HORIZONTALLY MOUNTED ‘L’ LEAD SMT PRODUCT
Part Number format
(CHxxxxxxxxxx0A7)
Typical Part Number
CH411C275KA30A7
Style
W max
2.54 (0.1)
±
0.5 (0.02)
CH41-44
CH51-54
CH61-64
CH71-74
CH76-79
CH81-84
CH86-89
CH91-94
DIMENSIONS
L
(max)
9.2
10.7
14.9
16.8
21.6
12.0
18.9
24.0
(0.362)
(0.421)
(0.586)
(0.661)
(0.850)
(0.472)
(0.744)
(0.944)
W
(max)
8.7
10.7
13.6
21.6
16.6
38.2
38.2
40.6
(0.342)
(0.421)
(0.535)
(0.850)
(0.653)
(1.503)
(1.503)
(1.598)
millimeters (inches)
S
(nom)
8.2
10.2
14.0
15.2
20.3*
10.2
15.2
20.3*
(0.322)
(0.400)
(0.551)
(0.600)
(0.800)
(0.400)
(0.600)
(0.800)
No. of
Leads
per side
3
4
5
7
6
14
14
14
T max
L
max
2.54 (0.1)
±
0.5 (0.02)
S
±
0.5 (0.02)
*Tolerance ± 0.8 (0.031)
NOTE: A ‘L’ lead low profile version
(CH....0A5) is available with lead height
1.1 (0.043) max. for single chip assemblies eg.
CH415C225MA30A5
Lead width 0.5 (0.020)
Lead thickness 0.254 (0.010)
L1 = L2 ± 0.5 (0.020)
millimeters (inches)
L2
L1
Style
CH41/51/61/71/76/81/86/91
CH42/52/62/72/77/82/87/92
CH43/53/63/73/78/83/88/93
CH44/54/64/74/79/84/89/94
T max
3.8 (0.150)
7.4 (0.291)
11.1 (0.437)
14.8 (0.583)
HORIZONTALLY MOUNTED ‘J’ LEAD SMT PRODUCT
Part Number format
(CHxxxxxxxxxx0A8)
Typical Part Number
CH411C275KA30A8
L2
L1
T max
L
max
S
±
0.5 (0.020)
2.54 (0.100)
±
0.5 (0.020)
DIMENSIONS
Style
CH41-44
CH51-54
CH61-64
CH71-74
CH76-79
CH81-84
CH86-89
CH91-94
L
(max)
9.2
10.7
14.9
16.8
21.6
12.0
18.9
24.0
(0.362)
(0.421)
(0.586)
(0.661)
(0.850)
(0.472)
(0.744)
(0.944)
W
(max)
8.7
10.7
13.6
21.6
16.6
38.2
38.2
40.6
(0.342)
(0.421)
(0.535)
(0.850)
(0.653)
(1.503)
(1.503)
(1.598)
millimeters (inches)
S
(nom)
8.2
10.2
14.0
15.2
20.3*
10.2
15.2
20.3*
(0.322)
(0.400)
(0.551)
(0.600)
(0.800)
(0.400)
(0.600)
(0.800)
No. of
Leads
per side
3
4
5
7
6
14
14
14
W max
*Tolerance ± 0.8 (0.031)
2.54 (0.100)
±
0.5 (0.020)
Style
CH41/51/61/71/76/81/86/91
CH42/52/62/72/77/82/87/92
CH43/53/63/73/78/83/88/93
CH44/54/64/74/79/84/89/94
millimeters (inches)
NOTE: A ‘J’ lead low profile version (CH....0A3) is available with lead height
1.1 (0.043) max. for single chip assemblies eg. CH515C475MA30A3
Lead width 0.5 (0.020)
Lead thickness 0.254 (0.010)
L1 = L2 ± 0.5 (0.020)
T
3.8
7.4
11.1
14.8
max
(0.150)
(0.291)
(0.437)
(0.583)
HOW TO ORDER
CH
Style
Code
52
5
C
106
M
A
Specification
Code
3
Finish
Code
0
Lead Dia.
Code
A
Lead Space
Code
A = Standard
7
Lead Style
Code
3 = Low profile ‘J’
(single chip)
5 = Low profile ‘L’
(single chip)
7 = ‘L’ Dual in line
8 = ‘J’ Dual in line
Size Voltage Dielectric Capacitance Capacitance
Code Code
Code
Code
Tolerance
5 = 50V
1 = 100V
2 = 200V
7 = 500V
A = C0G
C = X7R
(
see product section)
(2 significant
C0G: J = ±5% A = Non-customized
digits + no.
K = ±10%
of zeros)
M = ±20%
eg. 105 = 1 μF
X7R: K = ±10%
106 = 10 μF
M = ±20%
107 = 100 μF
P = +100, -0%
3 = Uncoated 0 = Standard
8 = Coated
(classified as
uninsulated)
Note: See page 117 for How to Order BS9100 parts
39
SMPS Capacitors (CH/CV Style)
Chip Assemblies
C0G DIELECTRIC ULTRA STABLE CERAMIC
CH/CV41-44
Styles
Cap
μF
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.1
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
CH/CV51-54
Styles
CH/CV61-64
Styles
CH/CV71-74
Styles
Voltage DC
50 100 200 500 50 100 200 500 50 100 200 500 50 100 200 500 50 100 200 500 50 100 200 500 50 100 200 500 50 100 200 500
41
41
41
41
42
42
41 42
41 42
41 41 43
41 41 43
41 41 41 44
41 41 42
41 42 42
42 42 42
42 42 42
42 42 43
42 43 43
43 43 44
43 44
44
51
51
52
52
52
52
51 53
51 53
51 51 54
51 51 52
51 52 52
51 52 52
52 52 52
52 52 53
52 53 53
52 53 54
53 54
53
54
61
61
61
61
62
62
62
61 62
61 61 63
61 61 63
61 61 62 64
61 62 62
61 62 62
62 62 62
62 62 63
62 63 63
62 63 64
63 64
63 64
64
71
71
71 71
71 71
71 72
72 72
72 72
72 72
72 73
73 73
73 74
74
71
71
71
72
72
72
71 72
71 73
71 73
76
76 76
76 76
76
76
76
77
77
77
77
78
78
81
81
81
81
81
82
81 82
81 81 82
81 81 82
86
86
86
86
87
87
86 87
86 87
86
86 86
86 86
86 87
87 87
87 87
87 87
87 88
88 88
88 89
89
86 88
86 88
87 89
87
87
87
88
88
89
91
91
91
92
92
92
92
91 93
91 91 93
91 91 92 94
91 92 92
92 92 92
92 92 92
92 92 93
92 93 93
93 93 94
93 94
94
NB Figures in cells refer to size within ordering information
CH/CV76-79
Styles
CH81-84
Styles
CH86-89
Styles
CH91-94
Styles
72 74 76 76 77
72
72
72
73
73
74
76 76 77
76 77 77
77 77 77
77 77 78
77 77 78
77 78 79
78 78
78 79
79
79 81 81 81 83
81 81 81 83
81 81 82 84
81 82 82
82 82 82
82 82 82
82 82 83
82 83 83
83 83 84
83 84
84
40
京公网安备 11010802033920号
EEWORLD
