SCO-103DR-200.000M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> SCO-103DR-200.000M

Preview

SCO-103DR-200.000M: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size198KB，3 Pages; ManufacturerSunny Electronics Corp; Websitehttp://www.sunny.co.kr; Environmental Compliance

Download Datasheet Parametric View All

SCO-103DR-200.000M Overview

CMOS Output Clock Oscillator,

SCO-103DR-200.000M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Sunny Electronics Corp
package instruction	SMD, 4 PIN
Reach Compliance Code	unknown
Other features	TR, 7/13 INCH
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	200 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.7mm
longest rise time	2 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

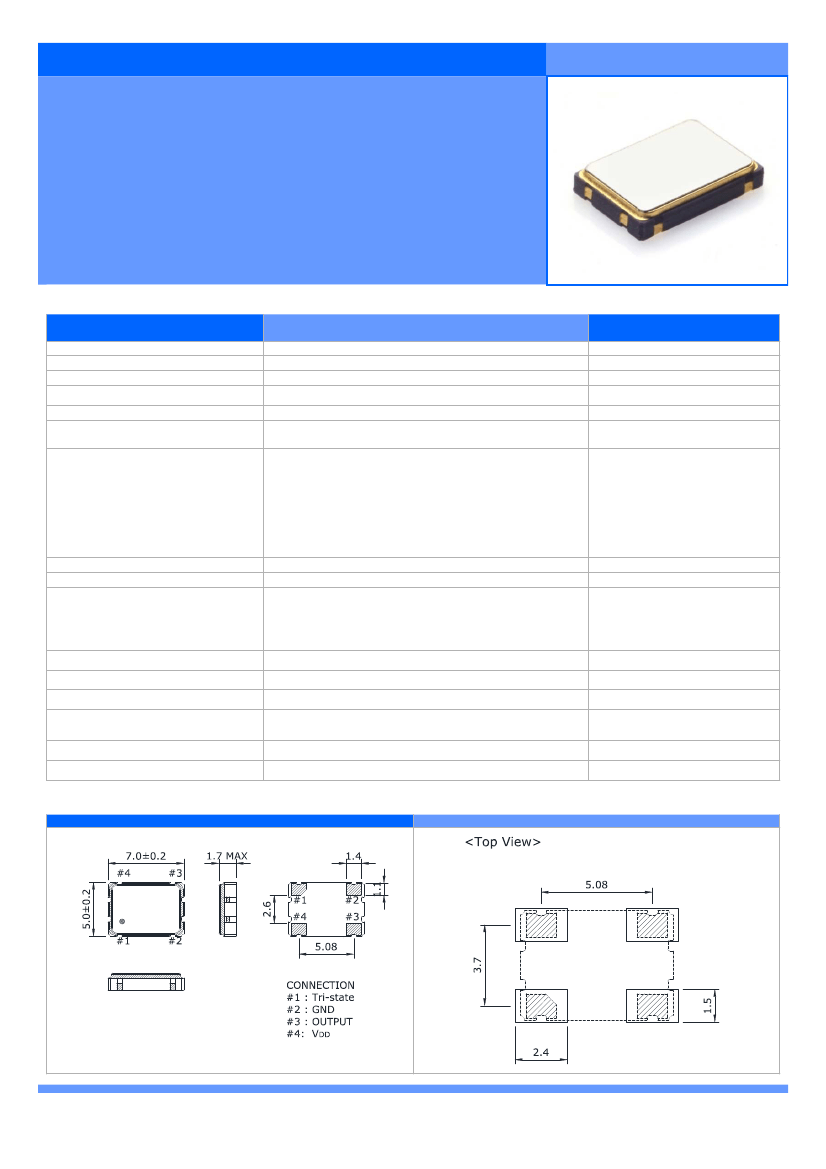

CRYSTAL OSCILLATORS

CERAMIC SMD TYPE

SCO-10

-

External Dimensions : 7.0 × 5.0 mm

1.8 V to 5.0 V Operating Supply Voltage Range

Low Power Consumption

CMOS Output

Tri-state Function Available

Pb-free and RoHS Compliance

■ ELECTRICAL SPECIFICATIONS

ITEM

Output Logic Type

Frequency Range

Supply Voltage(V

DD

)

Operating Temperature Range

Storage Temperature Range

Frequency Stability

Value

CMOS

1.000 MHz to 200.000 MHz

1.8 V

DC

±5 %, 2.5 V

DC

±5 %, 3.3 V

DC

±5 %, 5.0 V

DC

±10 %

0 to +70 ℃, -20 to +70 ℃, -40 to +85 ℃

-55 to +125 ℃

±20 ppm, ±25 ppm, ±50 ppm, ±100 ppm Max.

3mA(1.8V), 4mA(2.5V), 5mA(3.3V), 7mA(5V) Max.

4mA(1.8V), 5mA(2.5V), 7mA(3.3V), 10mA(5V) Max.

10mA(1.8V), 15mA(2.5V), 20mA(3.3V), 25mA(5V) Max.

13mA(1.8V), 17mA(2.5V), 25mA(3.3V) Max.

20mA(1.8V), 30mA(2.5V), 40mA(3.3V) Max.

37mA(1.8V), 50mA(2.5V), 70mA(3.3V) Max.

58mA(2.5V), 75mA(3.3V) Max.

90 % of V

DD

Min.

10 % of V

DD

Max.

7 ns Max.(1.000 MHz to 39.999 MHz)

4 ns Max.(40.000 MHz to 59.999 MHz)

3 ns Max.(60.000 MHz to 99.999 MHz)

2 ns Max.(100.000 MHz to 200.000 MHz)

45 to 55 %, 40 to 60 %

10 ms Max.

15 pF Max.

70 % of V

DD

min. to Enable Output

30 % of V

DD

max. to Disable Output

1 ps Max.

±3 ppm Max.

CMOS XO

Remarks

Over operating temperature

range

1.000 MHz to 25.000 MHz

25.001 MHz to 40.000 MHz

40.001 MHz to 80.000 MHz

80.001 MHz to 100.000 MHz

100.001 MHz to 125.000 MHz

125.001 MHz to 160.000 MHz

160.001 MHz to 200.000 MHz

Input Current

Output Voltage Logic High(V

OH

)

Output Voltage Logic Low(V

OL

)

Rise / Fall Time

Measured over

10 % to 90 % of waveform

Measured at 50 % of waveform

Duty Cycle

Start-up Time

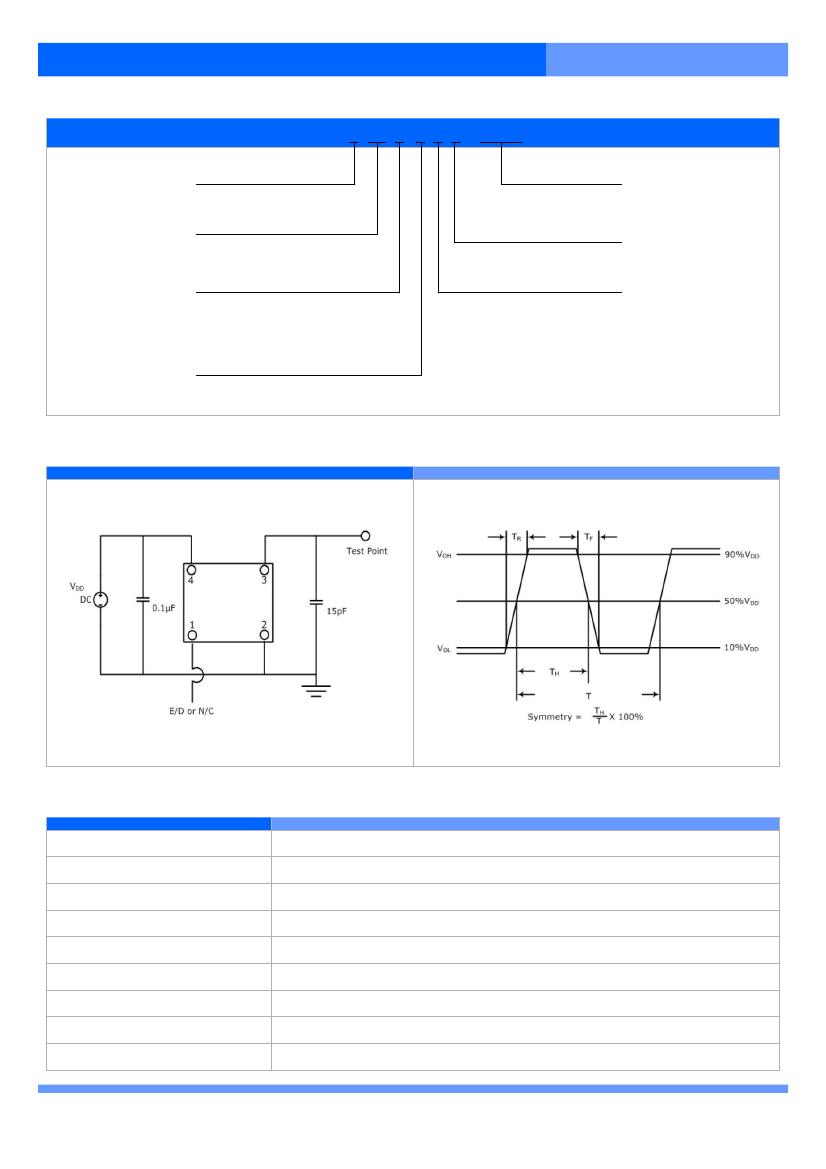

Output Load Condition(CMOS)

Output Enable Function

(V

IH

and V

IL

)

RMS Phase Jitter

Frequency Aging

High Impedance

BW : 12 kHz to 20 MHz

25℃, First year

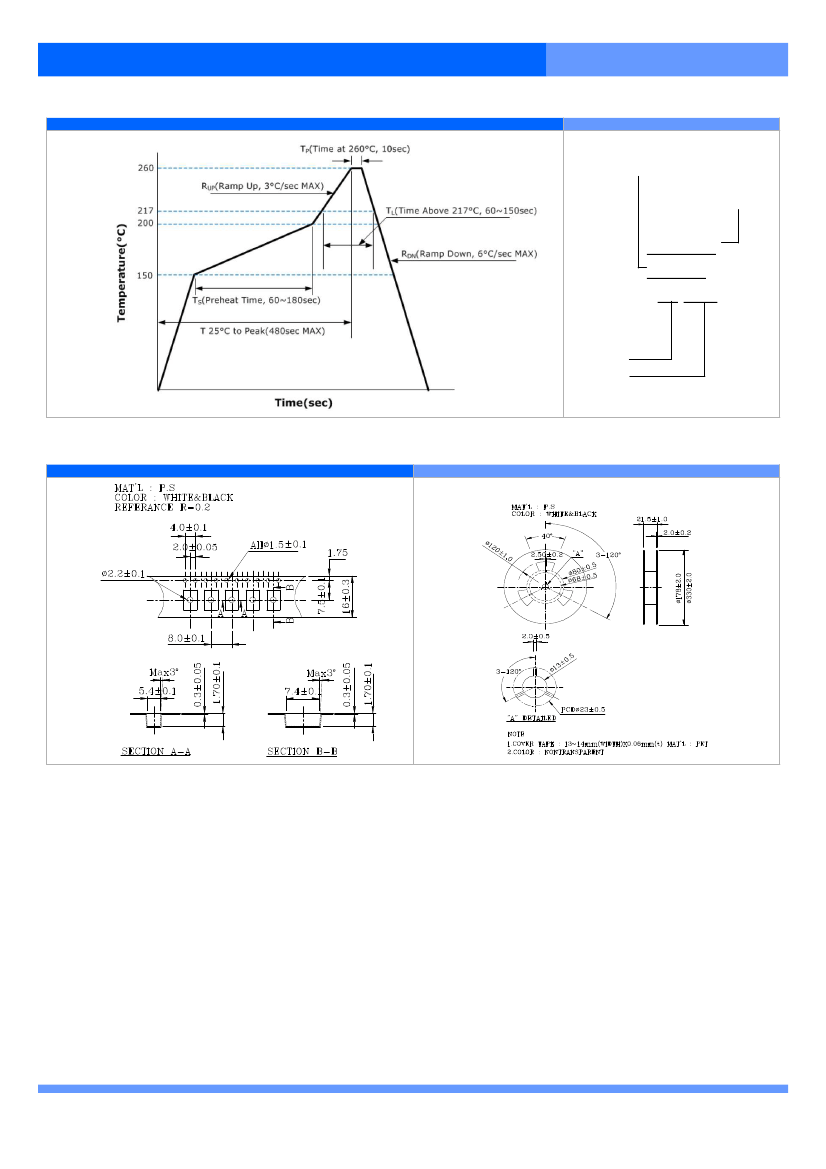

■ MECHANICAL DIMENSIONS

(mm)

■ LAND PATTERN

(mm)

http://www.sunny.co.kr

SUNNY ELECTRONICS CORP
