554720-1 datasheet, PDF - EEWORLD Datasheet

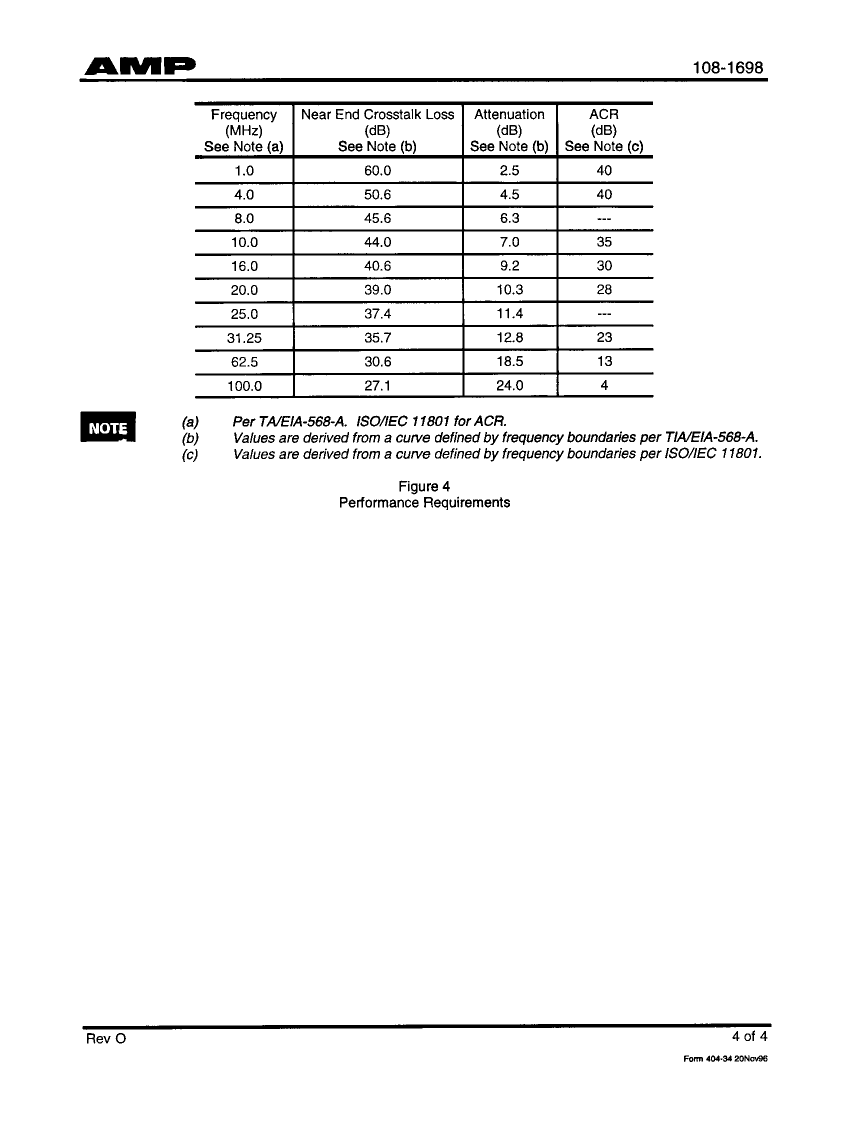

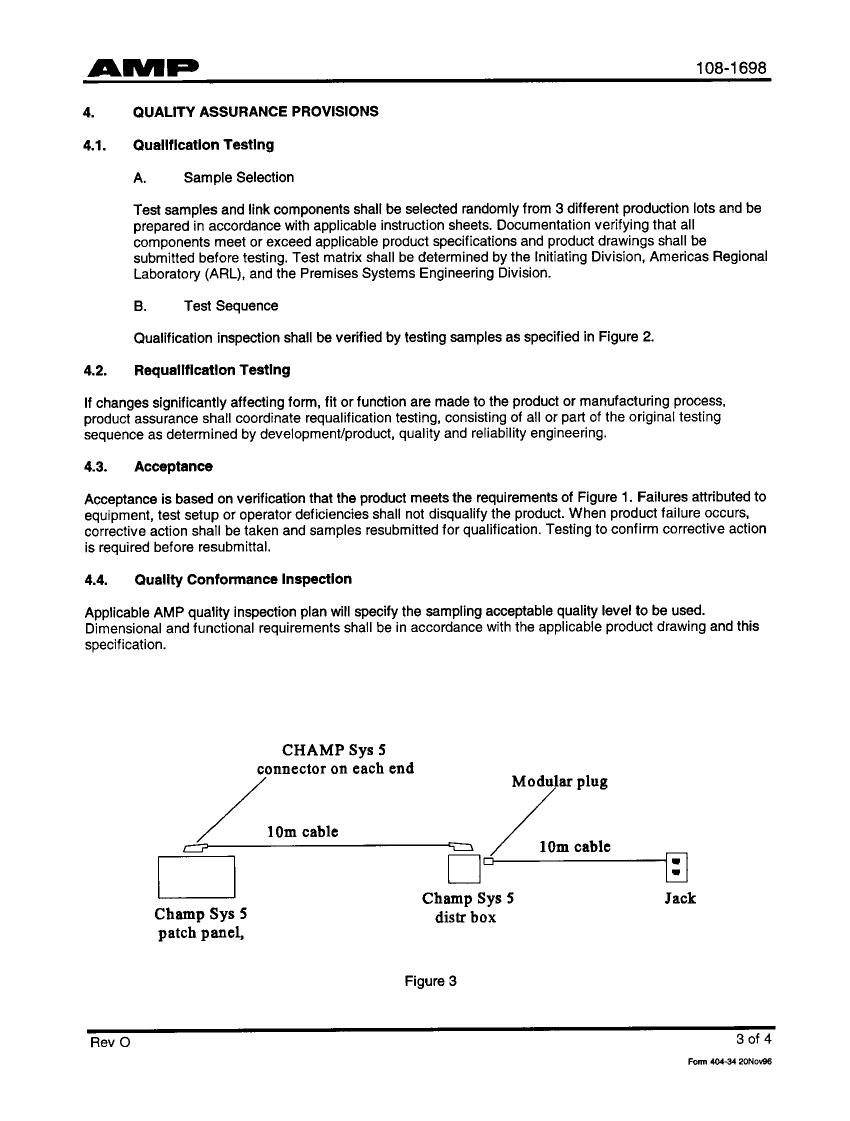

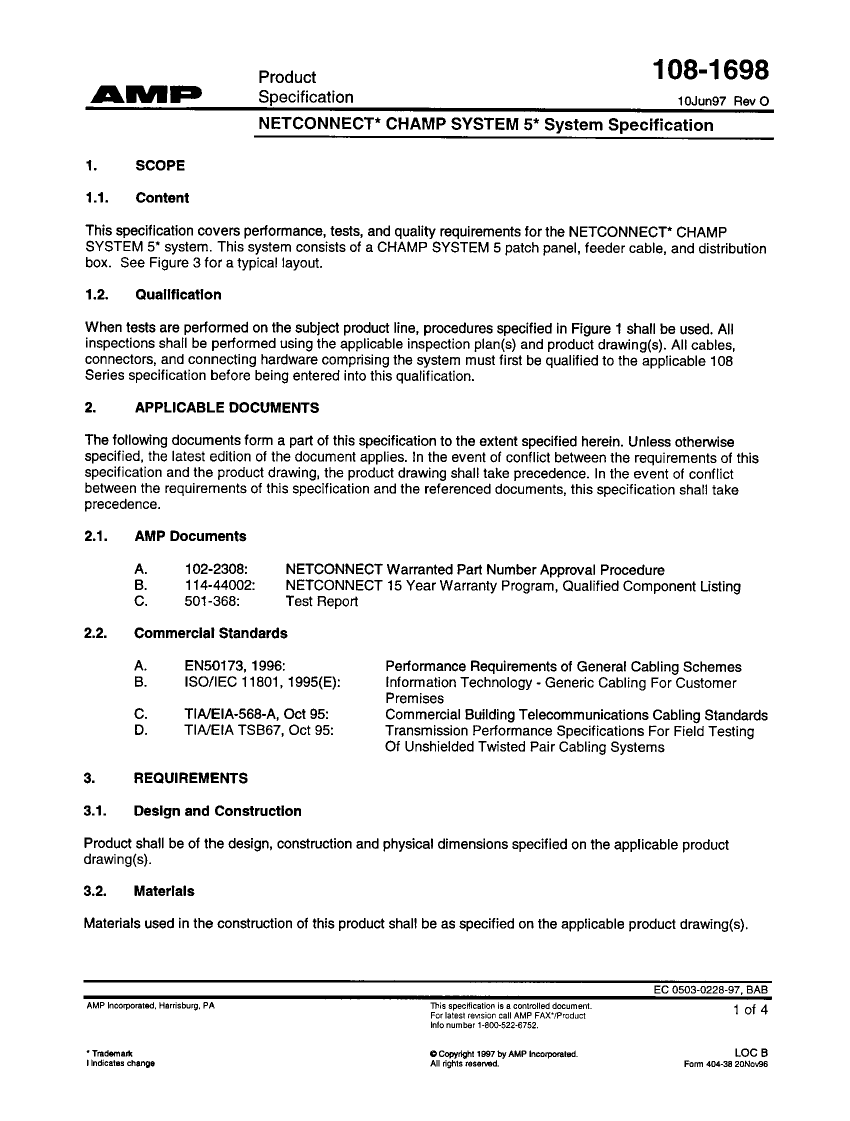

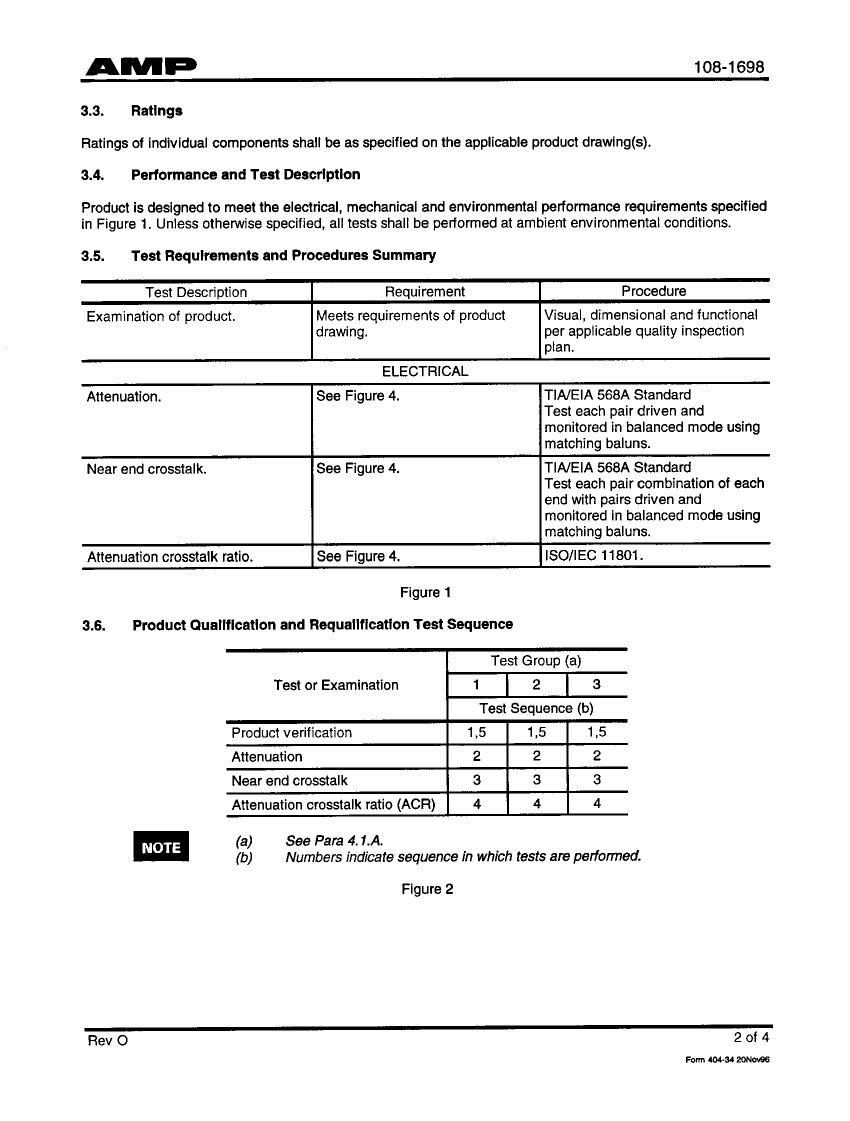

554720-1: Description8 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, IDC, PLUG; CategoryThe connector The connector; File Size86KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

554720-1 Overview

8 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, IDC, PLUG

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STRIP PACKAGING
body width	0.426 inch
subject depth	0.895 inch
body length	0.464 inch
Body/casing type	PLUG
Cable type	WIRE, SOLID, FLAT
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	22.24 N
Insulation resistance	500000000 Ω
Insulator color	CLEAR
insulator material	POLYCARBONATE
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	60 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYCARBONATE
Termination type	IDC
Total number of contacts	8
Maximum wire diameter	24 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	22.24 N
Base Number Matches	1
