362-001-003L000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 362-001-003L000

362-001-003L000: DescriptionFiber Optic Connector, 9/125um, Single Mode, Simplex,; CategoryThe connector The connector; File Size195KB，2 Pages; ManufacturerDiamond SA

Download Datasheet Parametric View All

362-001-003L000 Overview

Fiber Optic Connector, 9/125um, Single Mode, Simplex,

362-001-003L000 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	E-2000
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Coupling type	SNAP
DIN compliance	NO
Fiber size	9/125um
IEC compliance	NO
Insertion loss	0.9 dB
MIL compliance	NO
model	SINGLE
Installation type	CABLE
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

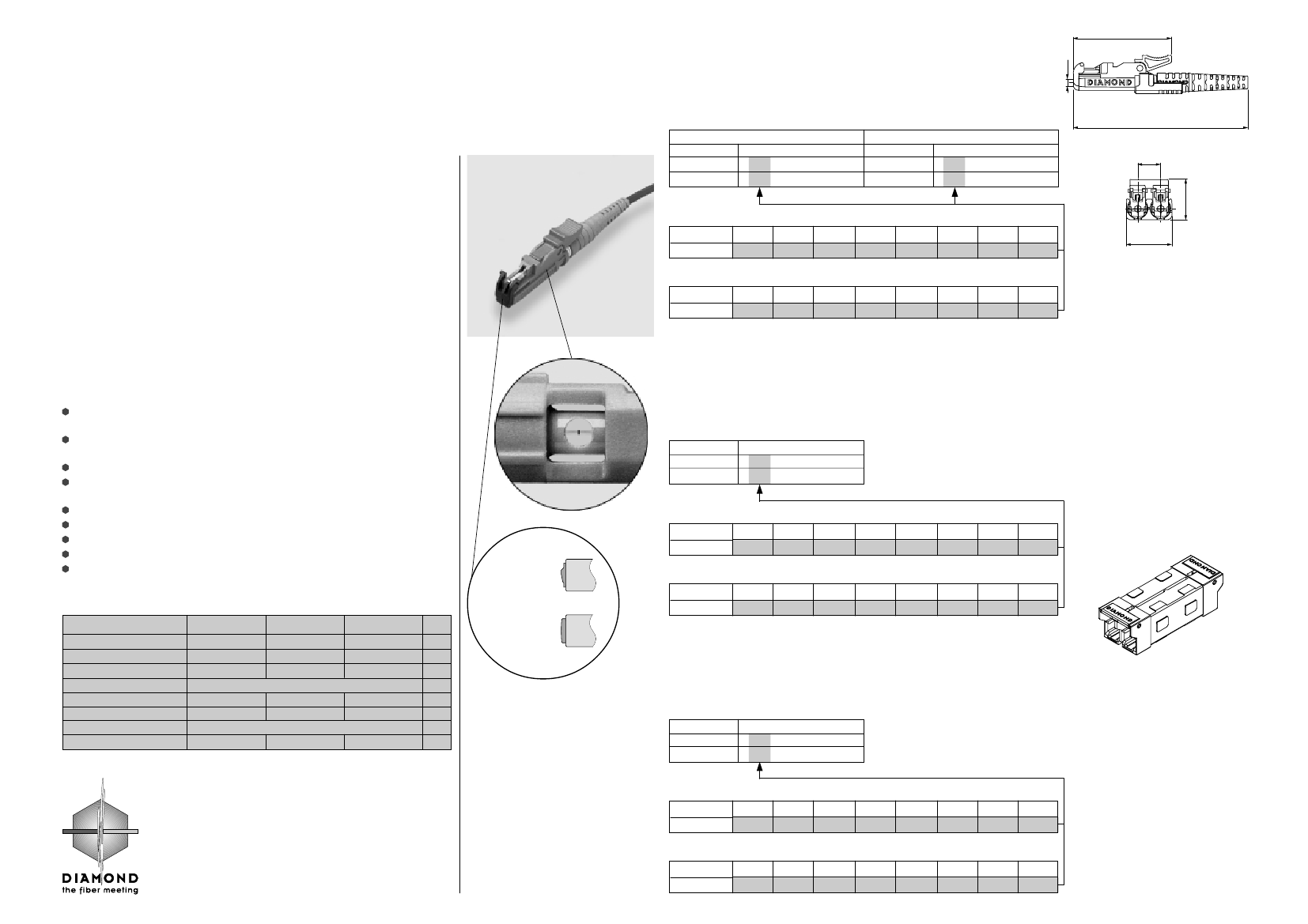

DIAMOND

Fiber Optic Components

The

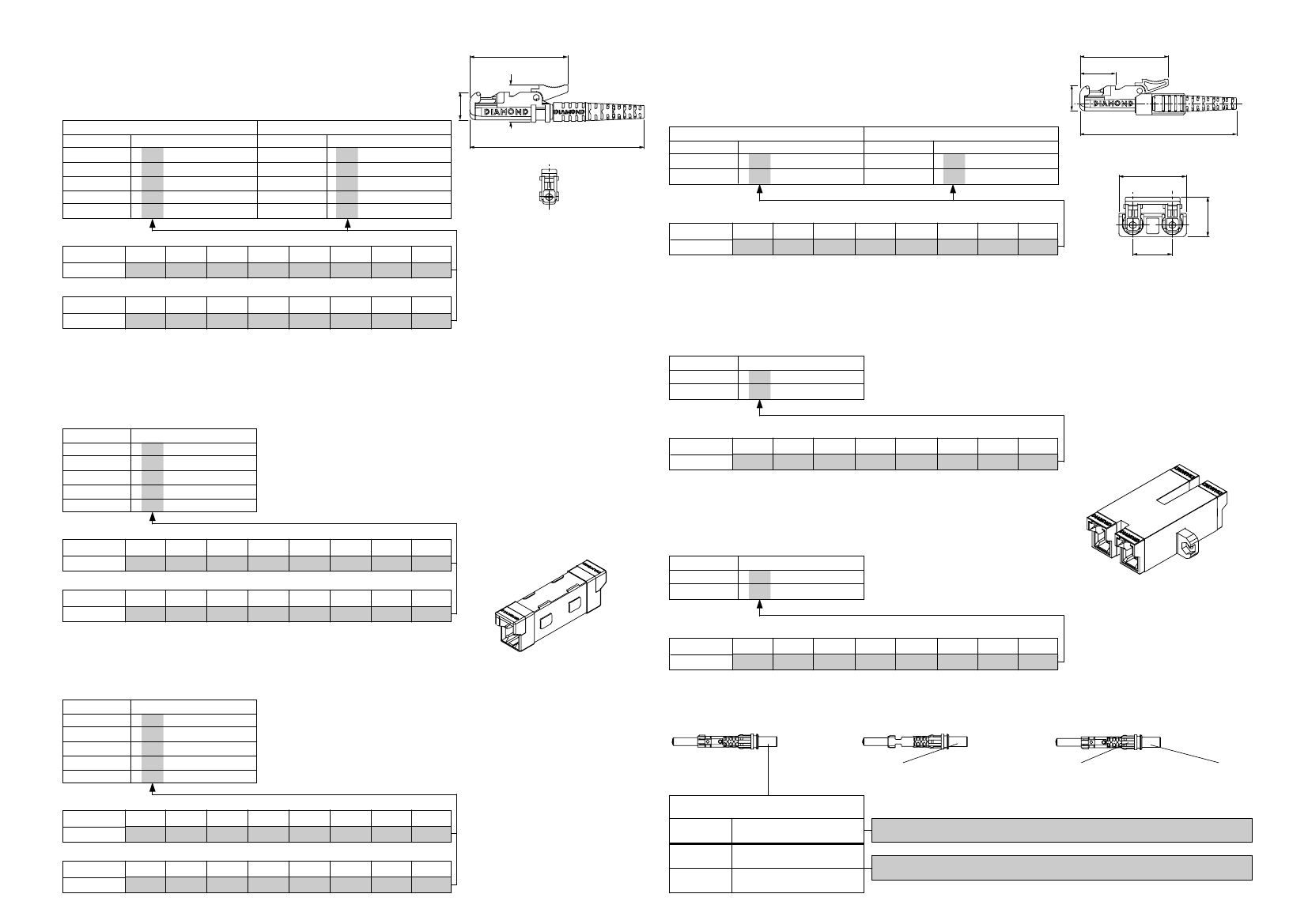

E-2000

FUSION

allows installers to terminate Diamond-quality

E-2000

connectors in the field without the time, mess and expense associated with

epoxying, curing and polishing.

Consisting of a pre-assembled connector with a factory-terminated fiber stub,

the

E-2000

™

FUSION

is terminated directly onto fiber in the field with a fusion

splice. The fiber stub is core-centered via Diamond’s well-known Active Core

Alignment process and factory-polished to the company’s exacting

specifications. Models are availble with single mode or GI multimode fiber

stubs and a choice of 0° PC or 8° APC endface polishes. Other fiber types can

also be accommodated.

The compact, battery-operated fusion splicer permits

E-2000

™

FUSION

con-

nectors to be quickly and easily terminated directly onto 900

µm

secondary-

coated fiber or 2.1-3.5 mm jacketed cable. Only a minimum of operator skill

is required to achieve outstanding connections every time.

™

E-2000

FUSION

SINGLE MODE/MULTIMODE

™

CONNECTOR E-2000

™

COMPACT

MULTIMODE

Type designation:

Ferrule material:

External parts:

Polish geometry:

GI 50/125

Dimensions Fiber/Cable

50/125/900

50/125/900/3000/6500

Order Number

300-001-001L000

300-001-004L000

Dimensions Fiber/Cable

62.5/125/900

62./125/900/3000/6500

31,5

E-2856.6 COMPACT

Zirconia/copper-nickel alloy insert (Pilzferrule)

Plastic (blue)

Convex (PC)

E-28**.6

E-28**.6 DUPLEX

E-28**.6 COMPACT

Ø 2,5

GI 62.5/125

Order Number

7,4

300-001-011L000

300-001-014L000

13,1

COLOR CODING

Thumb-latch

Order No.

blue

501

green

511

black

521

red

531

orange

541

yellow

551

white

561

violet

571

14,6

MECHANICAL KEYING

Thumb-latch No.

Order No.

1-1 (red)

601

2-2 (brown) 3-3 (yellow) 4-4 (orange) 5-5 (violet) 6-6 (white)

611

621

631

641

651

–––

The finished connector incorporates all the features which

have made the

E-2000

™

the growing favorite with users

worldwide, including...

Automatic, built-in protective covers for eye-safety and extended

ferrule life

Interchangeable, user-definable color-coding and mechanical keying

options

Simplex and duplex options

Compatibility with a growing range of

E-2000

™

components, including

active Tx/Rx modules, attenuators, hybrid mating adapters, etc.

Simple, fast, reliable field termination with a minimum of operator skill

Outstanding optical performance

No polishing and epoxy

Battery-operated tooling for up to 30 terminations on a single charge

Eliminates the need to fusion-splice pigtails onto cable ends, thereby

eliminating costly, space-consuming splice trays

SINGLEMODE

Type designation:

Ferrule material:

External parts:

Polish geometry:

Dimensions Fiber/Cable

9/125/900

9/125/900/3000/6500

E-2846.6 COMPACT

Zirconia/copper-nickel alloy insert (Pilzferrule)

Plastic (blue)

Convex (PC)

Order Number

300-001-001L000

300-001-004L000

ADAPTER

For complete product descrip-

tions and ordering information,

please refer to the part-specific

data sheets

E-2211.-2*** COMPACT.

COLOR CODING

Thumb-latch

Order No.

blue

500

green

510

black

520

red

530

orange

540

yellow

550

white

560

violet

570

APC

(green body)

MECHANICAL KEYING

Thumb-latch No.

1-1 (red)

600

2-2 (brown) 3-3 (yellow) 4-4 (orange) 5-5 (violet) 6-6 (white)

610

620

630

640

650

–––

Order No.

Specifications:

GI Multimode

Single mode

Single mode 8° APC

Units

Insertion loss (IL)

Reflectance (RL)

Repeatability of IL

Service life

Operating temperature

Storage temperature

Ferrule material

External parts

typ 0.25 max 0.8

typ -35

max

0.1

-40 / +85

-40 / +90

Plastic (blue)

typ 0.3 max 0.9

min 50

max

0.1max

0.1

typ 0.3 max 0.9

min 70*

-40 / +85°

-40 / +90°

Plastic (green)

(blue body)

Type designation:

Ferrule material:

External parts:

Polish geometry:

Dimensions Fiber/Cable

9/125/900

9/125/900/3000/6500

E-2848.6 COMPACT

Zirconia/copper-nickel alloy insert (Pilzferrule)

Plastic (green)

8° angled (APC)

Order Number

1000 mate/demate cycles

-40 / +85

-40 / +90

Plastic (blue)

C**

Zirconia/copper-nickel alloy insert (Pilzferrule)

300-001-001L000

300-001-004L000

* Measured with high precision reflectometer.

** May be further limited by cable specifications.

COLOR CODING

Thumb-latch

Bestell. Nr.

DIAMOND SA

Via dei Patrizi 5

CH-6616 LOSONE

Tel. ++41-91/785 45 45

Fax ++41-91/785 45 00

e-mail: info@diamond-fo.com

green

502

blue

512

black

522

red

532

orange

542

yellow

552

white

562

violet

572

MECHANICAL KEYING

Specifications subject to change

without notice

002-037-210P008120

Thumb-latch No.

Order No.

1-1 (red)

602

2-2 (brown) 3-3 (yellow) 4-4 (orange) 5-5 (violet) 6-6 (white)

612

622

632

642

652

–––
