3435-0-43-80-08-80-04-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 3435-0-43-80-08-80-04-0

3435-0-43-80-08-80-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size264KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

3435-0-43-80-08-80-04-0 Overview

PCB Terminal

3435-0-43-80-08-80-04-0 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	3435
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

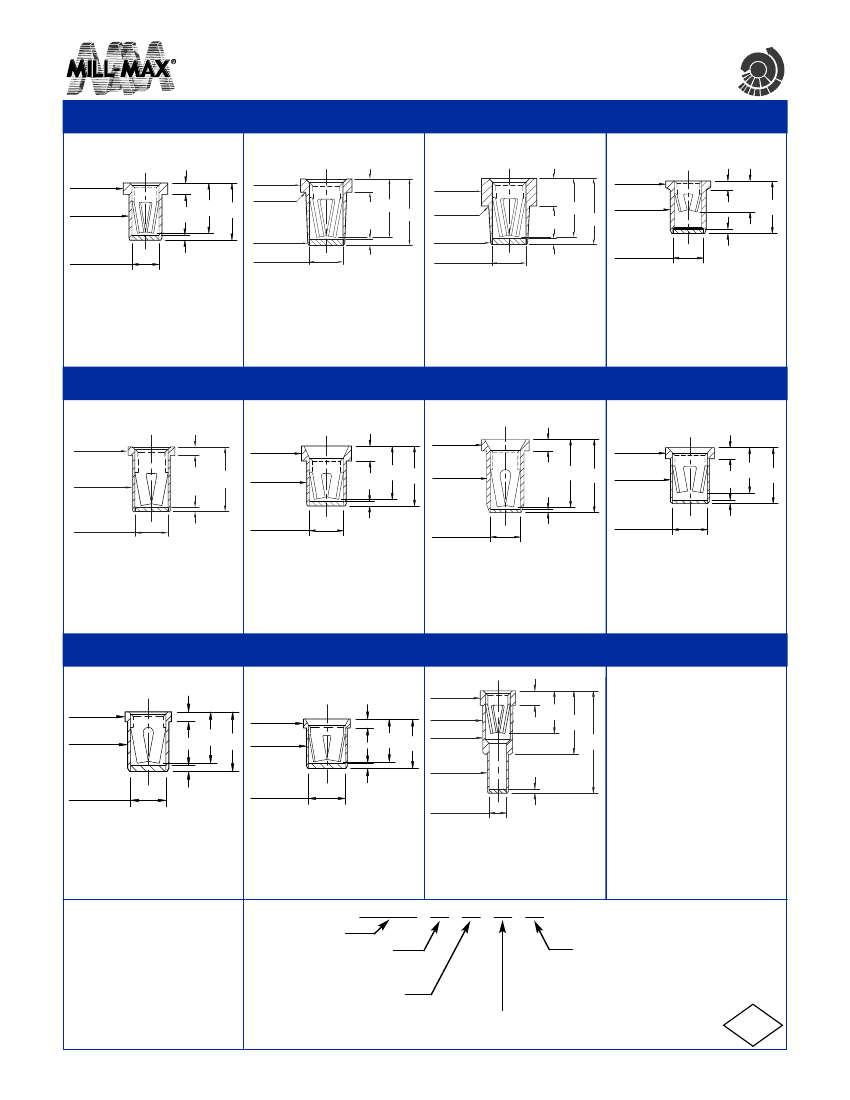

PIN RECEPTACLES

With Organic Fibre Plug® Solder Barrier

(see specific contact range on pages 220 - 228)

CHI

PINS

0337

0,51

4280

1,98 DIA.

1,57 DIA.

0,51

2,26

5280

2,16 DIA.

1,57 DIA.

1,42 DIA.

0,23

1,3 DIA.

0,23

1,14

2,26

2,54

0332

0,46

1,98 DIA.

1,47 DIA.

2,24 2,54

2,29

DIA.

1,83 DIA.

1,57

2,67

2,54

1,42 DIA.

1,19 DIA.

0,23

1,3 DIA.

1,55 DIA.

0,23

0337-0-XX-XX-15-XX-10-0

4280-0-XX-XX-16-XX-10-0

5280-0-XX-XX-16-XX-40-0

0332-0-XX-XX-18-XX-10-0

Solder mount in Ø1,68±0,08 PTH. Solder mount in Ø1,7±0,08 PTH.

Solder mount in Ø1,7±0,08 PTH. Solder mount in Ø2,01±0,08 PTH.

#15

Contact for Ø0,51-0,81 pins.

#16

Contact for Ø0,56-0,86 pins.

#16

Contact for Ø0,56-0,86 pins.

#18

Contact for Ø0,94-1,09 pins.

Also available on 8mm wide carrier Also available on 8mm wide carrier Also available on 16mm wide carrier Also available on 16mm wide carrier

tape: 6,000 parts per 330mm reel. tape: 6,000 parts per 330mm reel. tape: 2,200 parts per 330mm reel. tape: 2,200 parts per 330mm reel.

0479

0,46

2,29

DIA.

0375

0,76

0353

0,76

3,18 DIA.

0384

0,71

3,05 DIA.

4,52 4,88

2,54 DIA.

2,01 DIA.

2,72 3,05

1,83

DIA.

3,56

2,49 DIA.

2,46 DIA.

3,15

3,56

1,63

DIA.

0,23

1,73 DIA.

0,23

1,98 DIA.

0,23

2,24 DIA.

0,23

0479-0-XX-XX-34-XX-10-0

0375-0-XX-XX-02-XX-10-0

0353-0-XX-XX-03-XX-10-0

0384-0-XX-XX-23-XX-10-0

Solder mount in Ø1,96±0,08 PTH. Solder mount in Ø2,21±0,08 PTH. Solder mount in Ø2,69±0,08 PTH. Solder mount in Ø2,67±0,08 PTH.

#02

Contact for Ø1,02-1,27 pins.

#34

Contact for Ø0,81-1,17 pins.

#03

Contact for Ø1,02-1,52 pins.

#23

Contact for Ø1,14-1,65 pins.

Also available on 16mm wide carrier Also available on 12mm wide carrier Also available on 12mm wide carrier Also available on 12mm wide carrier

tape: 2,000 parts per 330mm reel. tape: 4,500 parts per 330mm reel. tape: 1,300 parts per 330mm reel. tape: 1,700 parts per 330mm reel.

0376

0,76

3,56 DIA.

3,18 DIA.

3,96 4,6

0321

0,76

3,96

DIA.

3,45

DIA.

3,63 4,19

3435

1,83 DIA.

1,63 DIA.

1,55

DIA.

0,76

2,24

3,30

5,33

1,09 DIA.

2,72 DIA.

0,46

3,1

DIA.

0,46

0,91 DIA.

0,23

0376-0-XX-XX-07-XX-10-0

0321-0-XX-XX-08-XX-10-0

3435-0-XX-XX-47-XX-04-0

Solder mount in Ø3,38±0,08 PTH. Solder mount in Ø3,66±0,08 PTH. Solder mount in Ø1,17±0,08 PTH.

#08

Contact for Ø2,13-2,59 pins.

#47

Contact for Ø0,64-0,91 and

#07

Contact for Ø1,65-2,08 pins.

0,64 square pins.

Also available on 16mm wide carrier Also available on 16mm wide carrier

tape: 1,500 parts per 330mm reel. tape: 1,700 parts per 330mm reel.

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

SOLDER BARRIER:

Organic Fibre Plug®

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±0,13

DIAMETERS: ±0,05

ANGLES:

± 2°

ORDER CODE: XXXX - 0 - XX - XX - XX - XX -XX - 0

BASIC PART #

SPECIFY PACKAGING:

SPECIFY CONTACT FINISH:



0,76μm GOLD OVER NICKEL (RoHS)

Discrete Receptacles

Supplied on 330mm Reels

5,08μm TIN/LEAD OVER NICKEL



5,08μm TIN OVER NICKEL (RoHS)

SPECIFY SHELL FINISH:

5,08μm TIN/LEAD OVER NICKEL

RoHS



5,08μm TIN OVER NICKEL (RoHS)

CONTACT

2002/95/EC

#02,#07,#08,#15,#16,#18,#23,#34 or #47

CONTACT (DATA ON PAGES 220 - 228)

w w w. m i l l - m a x . c o m

165



516-922-6000
