Part Number

Search

345700-2

Description
DIP6, IC SOCKET
CategoryThe connector    socket
File Size115KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

345700-2 Overview

DIP6, IC SOCKET

345700-2 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Contact to complete cooperationGOLD (20)
Contact completed and terminatedTIN LEAD OVER NICKEL
Device slot typeIC SOCKET
Type of equipment usedDIP6
Shell materialGLASS FILLED POLYETHYLENE
JESD-609 codee0
Manufacturer's serial number345700
Number of contacts6
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Socket/C ard Products
>
Product Feature Selector
> Product Details

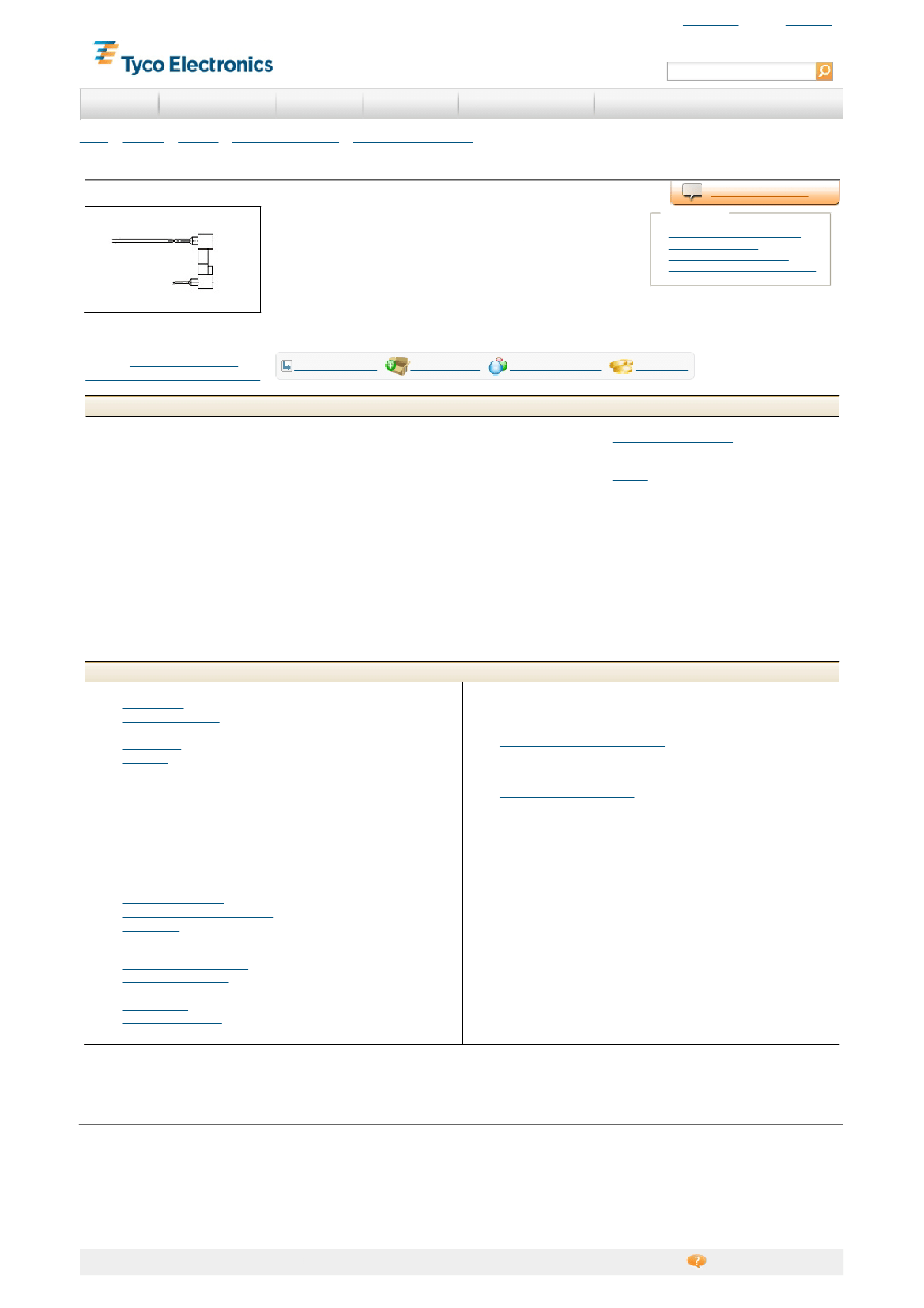

345700-2 Product Details
Live Product Chat
DIP Sockets
Always ELV C om plia nt
(
Sta te m e nt of C om plia nce
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
345700-2
T E I nternal N umber: 3 4 5 7 0 0 - 2
Product Highlights:
l
Socket Style = Standard
l
Through Hole C ontact Termination Type
l
2.54 mm C enterline
l
Row-to-Row Spacing = 7.62 mm
l
6 Positions
View all Features
Pending Obsolescence
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Socket Style
= Standard
l
Number of Positions
= 6
l
Profile = Standard
l
Frame Style
= C losed
l
Leg Style
= Straight
Electrical Characteristics:
l
Insulation Resistance (M?) = 10,000
l
C ontact Resistance (m?) = 30
Termination Related Features:
l
Termination Post Length (mm [in])
= 2.84 [0.112]
l
Solder Tail C ontact Plating = Tin-Lead over Nickel
Body Related Features:
l
C enterline (mm [in])
= 2.54 [0.100]
l
Row-to-Row Spacing (mm [in])
= 7.62 [0.300]
l
Mount Style
= Vertical
Contact Related Features:
l
C ontact Termination Type
= Through Hole
l
C ontact Base Material
= Beryllium C opper
l
C ontact Plating, Mating Area, Material
= Gold (20)
l
C ontact Style
= Screw Machine
l
Mating C ontact Type
= Inner Spring
Housing Related Features:
l
Housing Material = Thermoplastic - GF
Configuration Related Features:
l
Height Above PC Board (mm [in])
= 2.80 [0.110]
Industry Standards:
l
RoHS/ELV C ompliance
= ELV compliant
l
Lead Free Solder Processes
= Not reviewed for lead free solder
process
l
RoHS/ELV C ompliance History = Always was ELV compliant
Conditions for Usage:
l
Temperature Range (?C ) = 105
Packaging Related Features:
l
Packaging Method
= Tube
Other:
l
Brand = AMP
