FTR-B4CB1.5Z-05 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> FTR-B4CB1.5Z-05

FTR-B4CB1.5Z-05: DescriptionPower/Signal Relay, 2 Form C, DPDT, 0.3A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size667KB，10 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

FTR-B4CB1.5Z-05 Overview

Power/Signal Relay, 2 Form C, DPDT, 0.3A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output

FTR-B4CB1.5Z-05 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	5.7 mm
body height	9 mm
Body length or diameter	10.6 mm
Coil operating voltage (DC)	1.13 V
Coil resistance	22.5 Ω
Nominal coil voltage	1.5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	62.5VA@250VAC
Contact (AC) maximum rated R load	1A@250VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	0.3 A
Contact (DC) maximum rated power R load	30W@220VDC
Contact (DC) maximum rated R load	0.3A@220VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Nickel
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
Manufacturer's serial number	FTR-B4
Number of terminals	8
operating hours	3 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	10.6mm x 5.7mm x 9mm
Guideline	BSI; CSA; UL
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	3 ms
seal	PLASTIC SEALED
Terminal length	0.0035 inch
Termination type	SOLDER
weight	1 g
Base Number Matches	1

Preview

Download Datasheet

View All

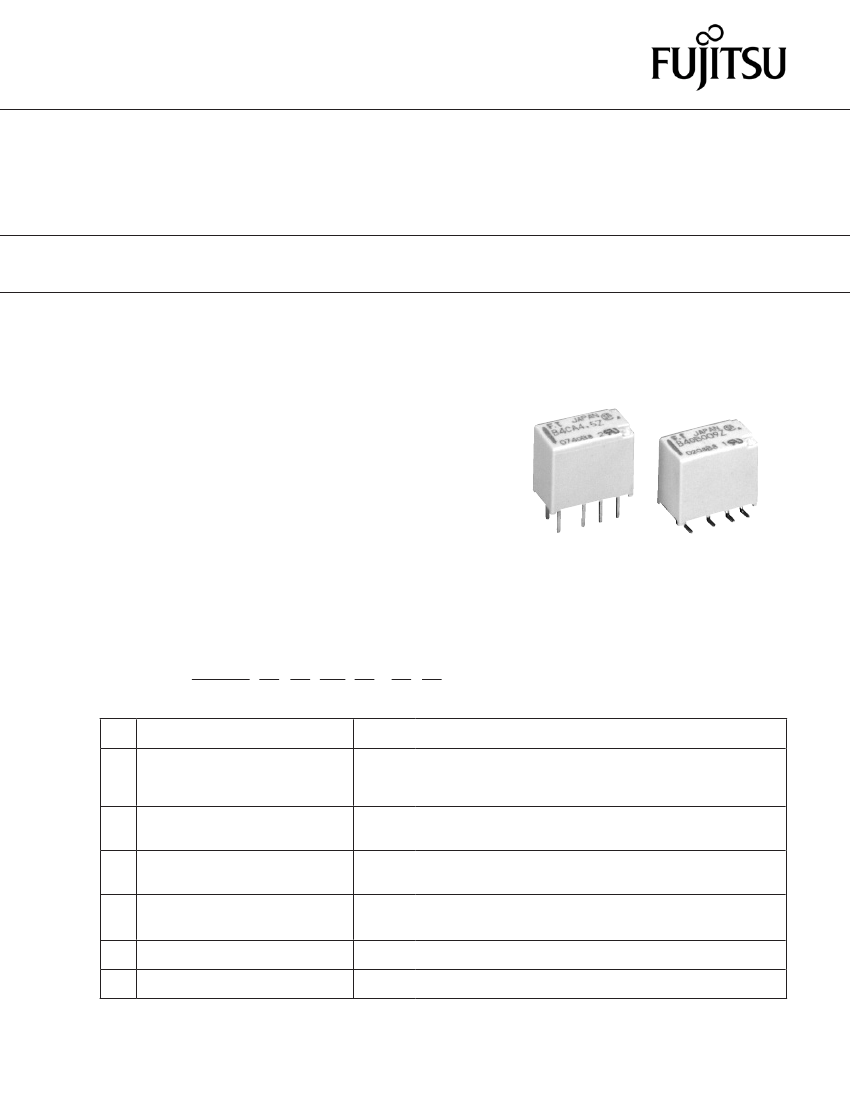

FTR-K1 SERIES

ULTRA MINIATURE RELAY

2 POLES - 2 A (Slim Profile Signal Relay)

FTR-B4 Series

FEATURES

DPDT 2C

Ultra miniature slim type relay for surface mounting

Height: 9.3 mm maximum (THT)

10 mm maximum (SMT)

Weight: Approximately 1.0 g

Conforms to Bellcore & FCC part 68, and Telcordia &

FCC part 68

Conforms to UL1950 / CSA 950, IEC 950 / EN60950

spacing and high breakdown voltage

Clearance: 1.0mm

Creepage: 1.6mm

Basic insulation, 150V working voltage, pollution degree 2

High reliable birfuracted gold overlay silver contact

Low power consumption 140 mW (standard), 100 mW (latching)

RoHS compliant. Please see page 9 for more information

Plastic sealed

PARTNUMBER INFORMATION

FTR-B4

(a)

(b) (c)

[Example]

(a)

(b)

4.5 Z - B 05

(d) (e) (f) (g)

FTR-B4

4.5

: FTR-B4-Series

: Through hole

: Surface mount

: Surface mount, space saving

: Standard type

: Latching type (1 coil)

: 1.5.....24 VDC

Coil rating table at page 3

: Gold overlay silver nickel (standard)

: Gold overlay silver palladium

: Standard enclosing direction

: 500 (standard)

Relay type

Terminal type

(c)

(d)

(e)

(f)

(g)

Coil type

Coil rated voltage

Contact material

Relay enclosing direction *

Number of relays per reel *

Remarks: Actual marking on relay would not carry code FTR and be as below:

Ordering code: FTR-B4CA4.5Z

Actual marking: B4CA4.5Z

*1 - Only surface mount types (G and S) are applicable

*2 - All relays are packaged in tubes unless part number ends with -B05

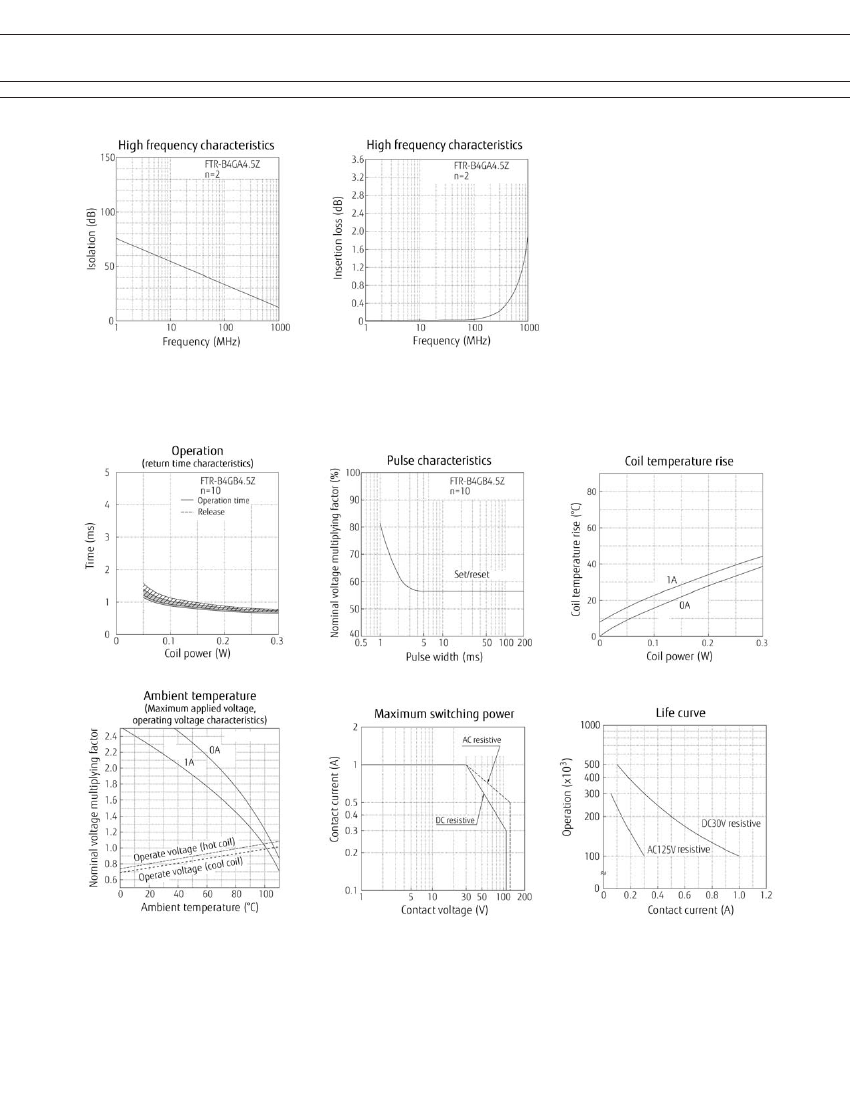

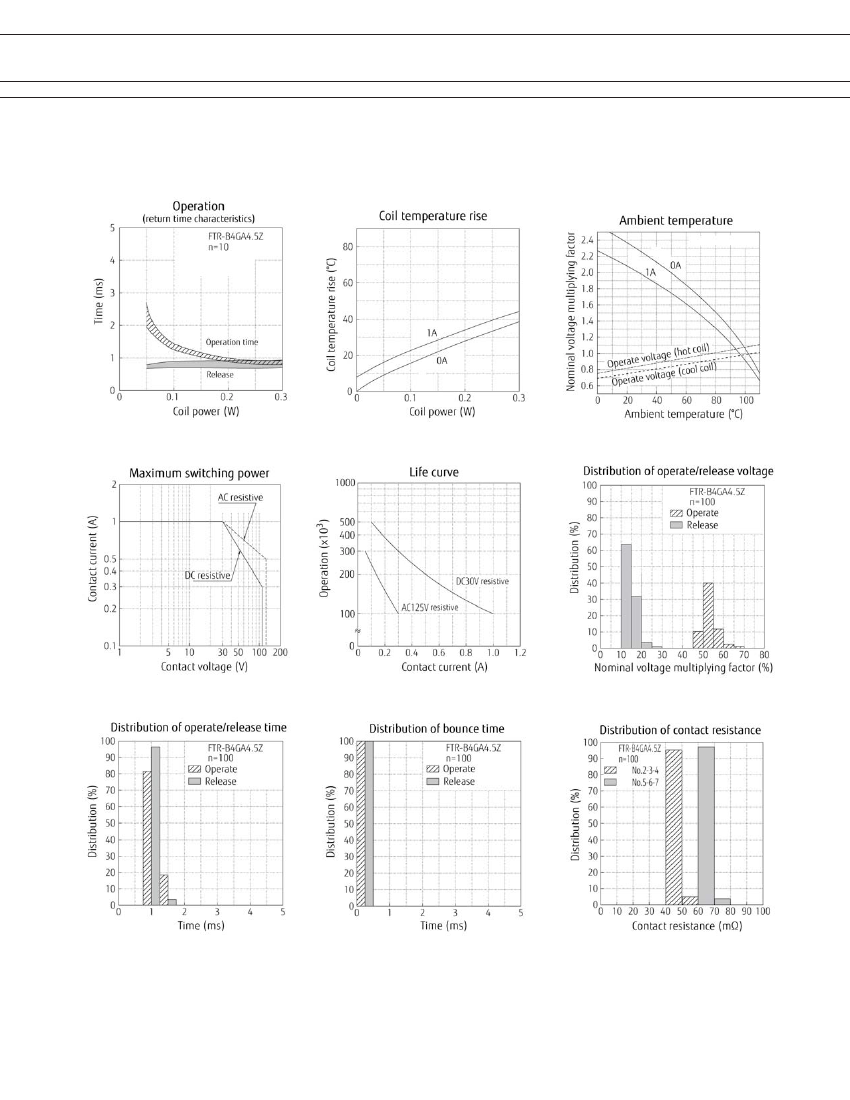

FTR-B4CB1.5Z-05 Related Products

	FTR-B4CB1.5Z-05	FTR-B4CA1.5Z-05	FTR-B4CB024Z-05	FTR-B4CA009Z-05	FTR-B4CA003Z-05	FTR-B4CA012Z-05	FTR-B4CA024Z-05
Description	Power/Signal Relay, 2 Form C, DPDT, 0.3A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output	Power/Signal Relay, 2 Form C, DPDT, 0.3A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output	Power/Signal Relay, 2 Form C, DPDT, 0.3A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output	Power/Signal Relay, 2 Form C, DPDT, 0.3A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output	Power/Signal Relay, 2 Form C, DPDT, 0.3A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output	Power/Signal Relay, 2 Form C, DPDT, 0.3A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output	Power/Signal Relay, 2 Form C, DPDT, 0.3A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant
body width	5.7 mm	5.7 mm	5.7 mm	5.7 mm	5.7 mm	5.7 mm	5.7 mm
body height	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm
Body length or diameter	10.6 mm	10.6 mm	10.6 mm	10.6 mm	10.6 mm	10.6 mm	10.6 mm
Coil operating voltage (DC)	1.13 V	1.13 V	18 V	6.75 V	2.25 V	9 V	18 V
Coil resistance	22.5 Ω	16.1 Ω	4800 Ω	579 Ω	64.3 Ω	1028 Ω	2504 Ω
Nominal coil voltage	1.5 V	1.5 V	24 V	9 V	3 V	12 V	24 V
Coil/Input Power Type	DC	DC	DC	DC	DC	DC	DC
Contact (AC) maximum rated power R load	62.5VA@250VAC	62.5VA@250VAC	62.5VA@250VAC	62.5VA@250VAC	62.5VA@250VAC	62.5VA@250VAC	62.5VA@250VAC
Contact (AC) maximum rated R load	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC
Maximum contact current (AC)	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Maximum contact current (DC)	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A
Contact (DC) maximum rated power R load	30W@220VDC	30W@220VDC	30W@220VDC	30W@220VDC	30W@220VDC	30W@220VDC	30W@220VDC
Contact (DC) maximum rated R load	0.3A@220VDC	0.3A@220VDC	0.3A@220VDC	0.3A@220VDC	0.3A@220VDC	0.3A@220VDC	0.3A@220VDC
Contact resistance	100 mΩ	100 mΩ	100 mΩ	100 mΩ	100 mΩ	100 mΩ	100 mΩ
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	220 V	220 V	220 V	220 V	220 V	220 V	220 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Dielectric strength between coil and contacts	1500 Vrms	1500 Vrms	1500 Vrms	1500 Vrms	1500 Vrms	1500 Vrms	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms	1000 Vrms	1000 Vrms	1000 Vrms	1000 Vrms	1000 Vrms	1000 Vrms
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
End contact material	Silver Nickel	Silver Nickel	Silver Nickel	Silver Nickel	Silver Nickel	Silver Nickel	Silver Nickel
End contact plating	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Input switching control type	Random	Random	Random	Random	Random	Random	Random
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	FTR-B4	FTR-B4	FTR-B4	FTR-B4	FTR-B4	FTR-B4	FTR-B4
Number of terminals	8	8	8	8	8	8	8
operating hours	3 ms	3 ms	3 ms	3 ms	3 ms	3 ms	3 ms
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB hole count	8	8	8	8	8	8	8
physical size	10.6mm x 5.7mm x 9mm	10.6mm x 5.7mm x 9mm	10.6mm x 5.7mm x 9mm	10.6mm x 5.7mm x 9mm	10.6mm x 5.7mm x 9mm	10.6mm x 5.7mm x 9mm	10.6mm x 5.7mm x 9mm
Guideline	BSI; CSA; UL	BSI; CSA; UL	BSI; CSA; UL	BSI; CSA; UL	BSI; CSA; UL	BSI; CSA; UL	BSI; CSA; UL
Relay style	2 FORM C	2 FORM C	2 FORM C	2 FORM C	2 FORM C	2 FORM C	2 FORM C
Relay function	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	3 ms	3 ms	3 ms	3 ms	3 ms	3 ms	3 ms
seal	PLASTIC SEALED	PLASTIC SEALED	PLASTIC SEALED	PLASTIC SEALED	PLASTIC SEALED	PLASTIC SEALED	PLASTIC SEALED
Terminal length	0.0035 inch	0.0035 inch	0.0035 inch	0.0035 inch	0.0035 inch	0.0035 inch	0.0035 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
weight	1 g	1 g	1 g	1 g	1 g	1 g	1 g
Base Number Matches	1	1	1	1	1	1	1
Coil release voltage (DC)	-	0.15 V	-	0.9 V	0.3 V	1.2 V	2.4 V
