RTYS03CTE4423B4423BB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> RTYS03CTE4423B4423BB

Preview

RTYS03CTE4423B4423BB: DescriptionArray/Network Resistor, Divider, 100V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, SOT-23; CategoryPassive components The resistor; File Size24KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

RTYS03CTE4423B4423BB Overview

Array/Network Resistor, Divider, 100V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, SOT-23

RTYS03CTE4423B4423BB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KOA Speer
package instruction	,
Reach Compliance Code	not_compliant
ECCN code	EAR99
Component power consumption	0.1 W
The first element resistor	442000 Ω
JESD-609 code	e0
Manufacturer's serial number	RTY
Installation features	SURFACE MOUNT
Network Type	DIVIDER
Number of components	2
Number of functions	1
Number of terminals	3
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TAPE, EMBOSSED PLASTIC, 7 INCH
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	442000 Ω
surface mount	YES
Temperature Coefficient	50 ppm/°C
Temperature coefficient tracking	5 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	GULL WING
Tolerance	0.1%
Operating Voltage	100 V
Base Number Matches	1

Preview

Download Datasheet

View All

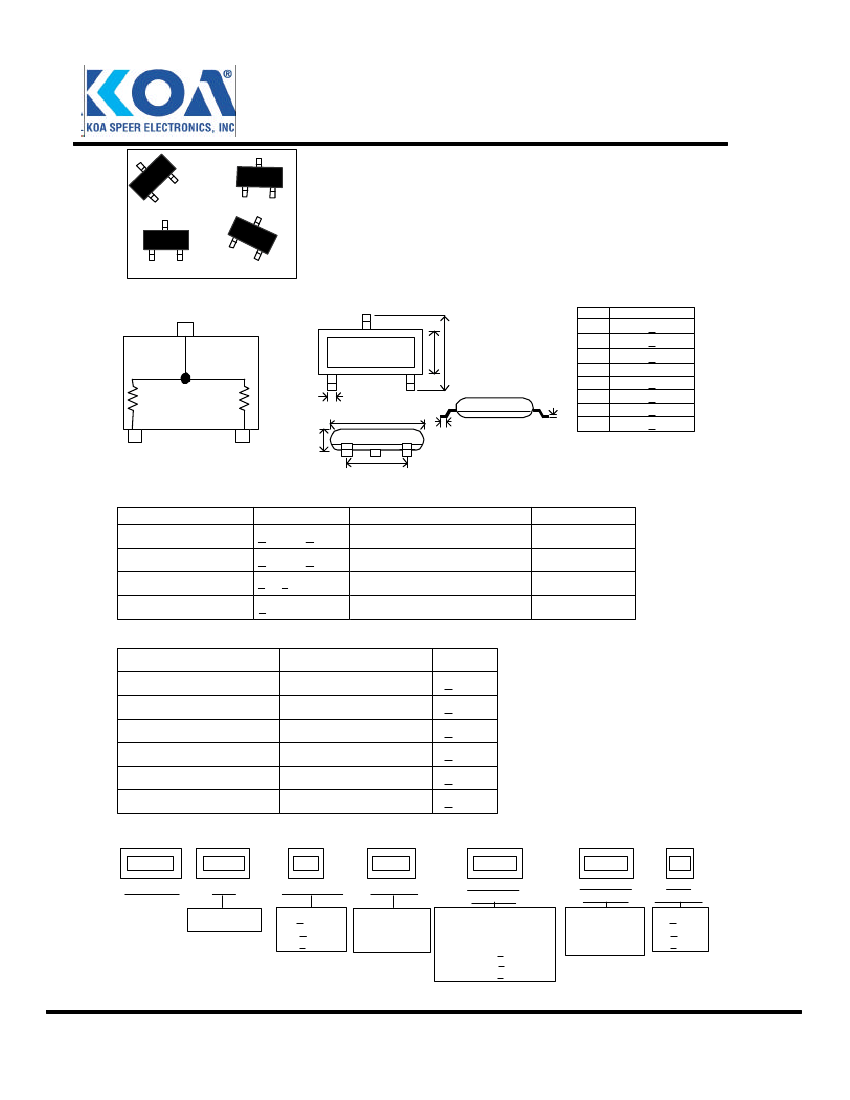

Precision Voltage Divider

RTY

July. 2001

FEATURES

-EMI/RFI attenuation

-Reduced board space

-Better tracking of electrical parameters

-Precision characterisitcs

PACKAGE (SOT-23)

2

RTY

SCHEMATIC (top view)

2

Dim

H

G

A

C

E

F

G

H

I

J

1

3

F

C

I

E

J

R

1

R

2

3

A

Spec

0.95 + 0.15

2.90 + 0.20

1.91 + 0.20

0.44 + 0.10

2.30 + 0.20

1.30 + 0.15

0.31 + 0.10

0.12 + 0.05

SPECIFICATIONS

** Contact KOA factory if a non-standard value is required

Resistance Range

10 ~ 1M

E24 & E96 values **

Resistor Tolerance

Ratio Tolerance

TCR (ppm/

o

C)

o

C)

+0.1% ~ +1%

o

+25~+100ppm/ C

Working Voltage

Insulation Resistance (Min)

Power Rating/Resistor (70

o

C)

Operating Temp. Range (

o

C)

100v Max.

10

Ω

Min

.

100mW

-55 ~ + 150

TCR Tracking (ppm/

+5ppm Min.

ENVIRONMENTAL

Test Method

Resistance to Soldering Heat

Short TIme Overload

Moisture Resistance

Thermal Shock

Life

H.A.S.T.

Test Condition

MIL-R-55342 4.7.7

MIL-R-55342 4.7.5

MIL-STD-202 method 103

MIL-STD-202 method 107

MIL-STD-202, method 108

2 Atm., 121

o

C, 96 hrs

Resistor

+0.25%

+0.50%

+0.25%

+0.50%

ORDERING & SPECIFYING INFORMATION*

RTY

Circuit Type

S03

SIZE

S03 - SOT23

H

TCR(ppm

o

C)

H=+100ppm

C=+50ppm

E=+25ppm

TE

Packaging

TE: 7"

Embossed

Plastic Tape

1002B

R1 Value &

Tolerance

EIA 4 digit value code +

tolerance code. Value: 3

significant fig. & multiplier.

Tol:

F=+1%

D=+0.5%

B=+0.1%

1002B

R2 Value &

Tolerance

B

Ratio

Tolerance

EIA 4 digit vale F=+1%

code +

D=+0.5%

tolerance code B=+0.1%

*Please Note: KSE's Part Numbers Do Not Contain any spaces or hypens.

NOTICE: The information contained in this Data Sheet is believed to be accurate and up to date. KOA Spper Electronics reserves the right to change these

specifications without notice.

TELEPHONE:

814-362-5536

FAX:

814-362-8883
