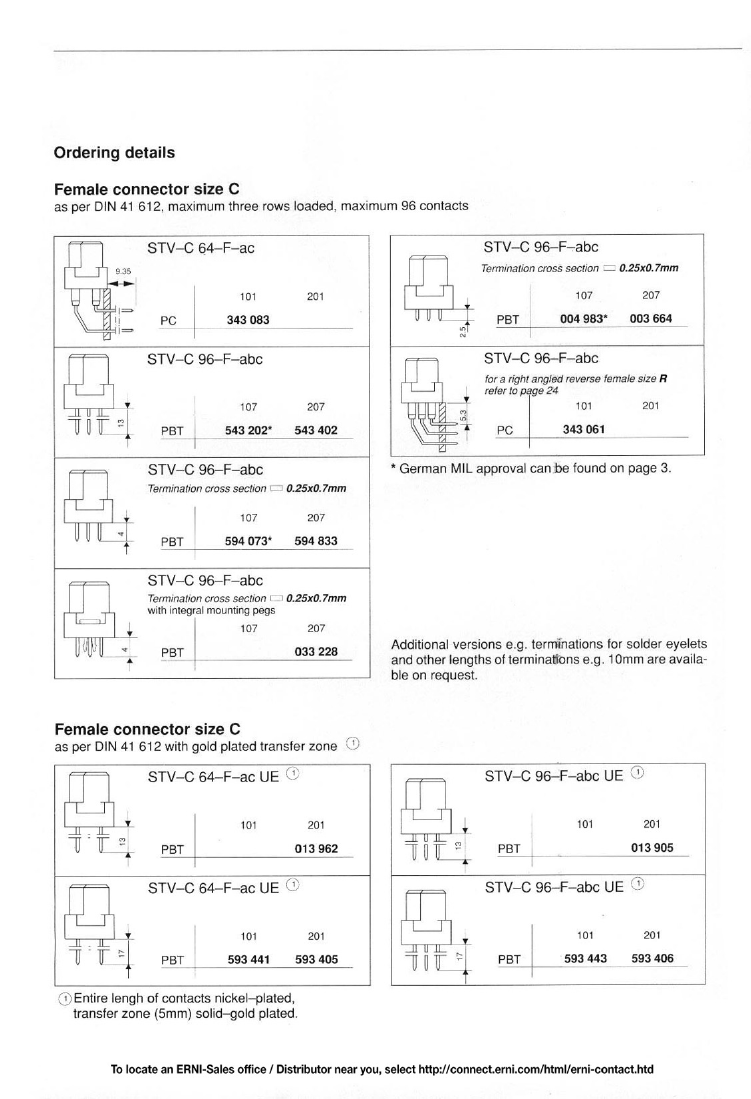

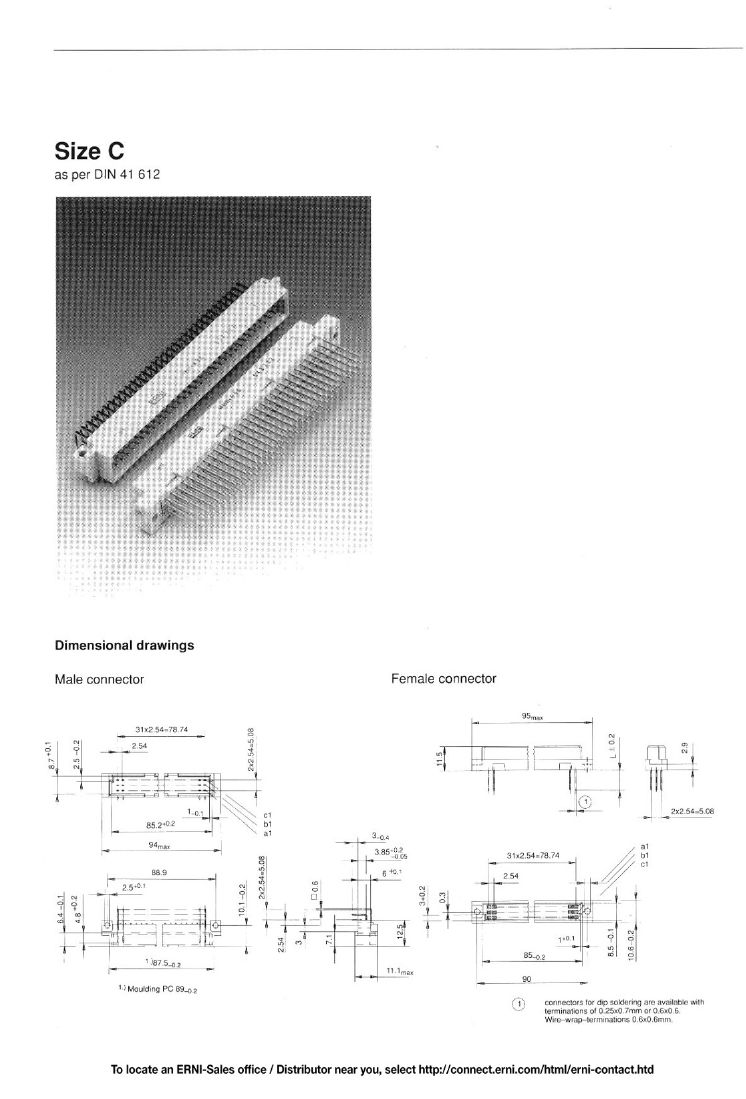

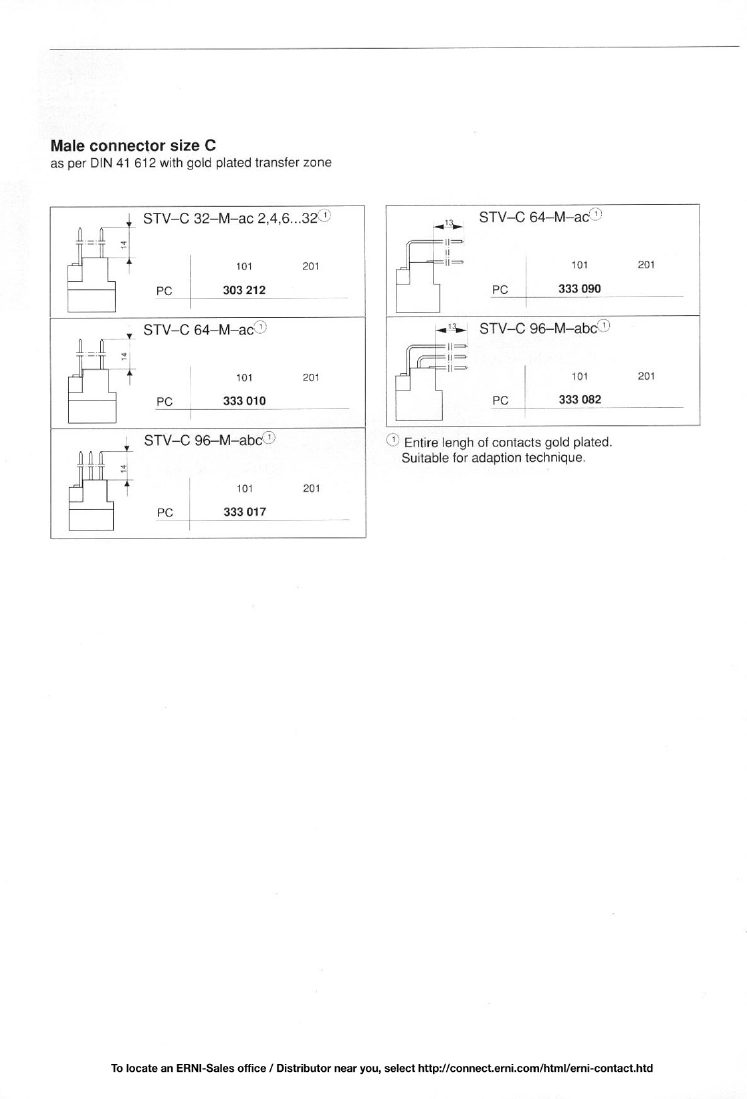

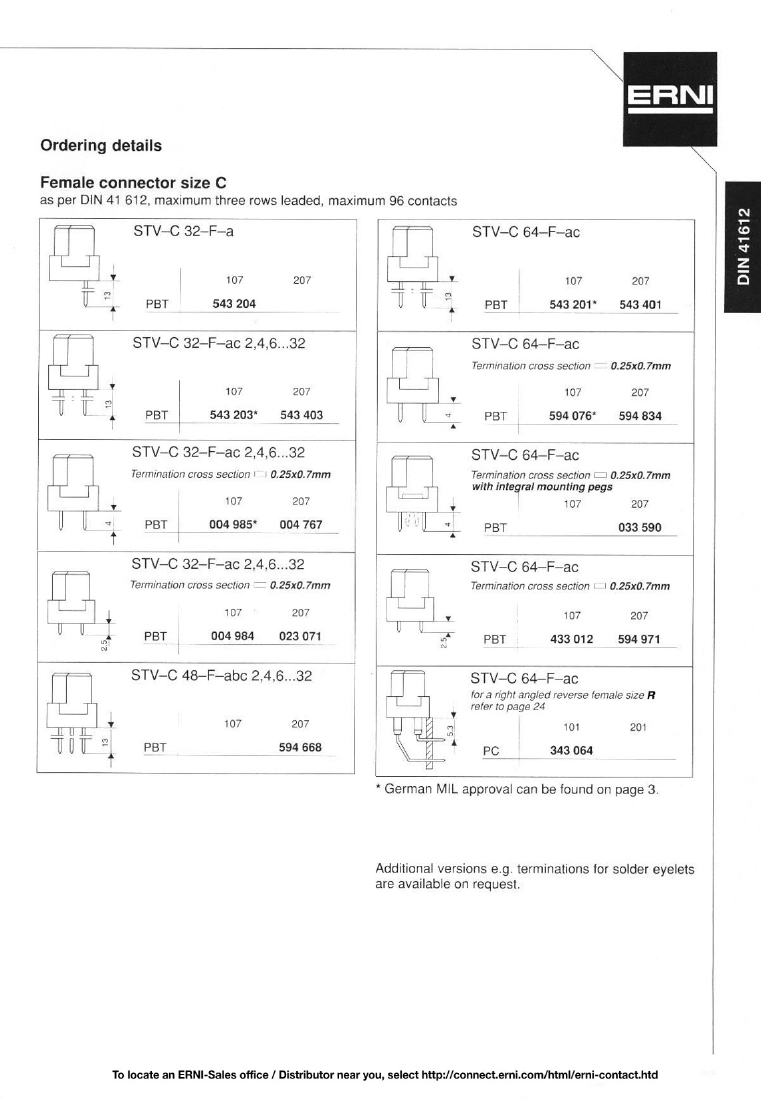

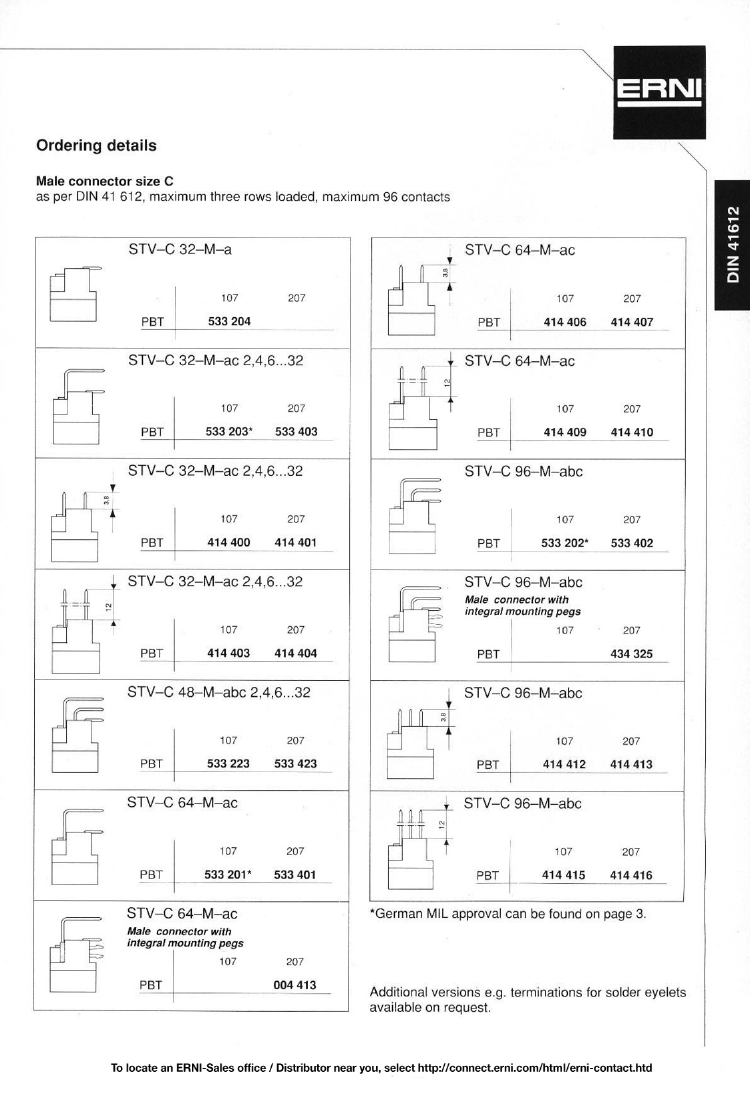

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,
| Parameter Name | Attribute value |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | STANDARD: DIN 41612 |
| body width | 0.417 inch |
| subject depth | 0.862 inch |
| body length | 3.74 inch |
| Body/casing type | PLUG |
| Connector type | BOARD EURO CONNECTOR |
| Contact to complete cooperation | AU |
| Contact completed and terminated | GOLD |
| Contact point gender | FEMALE |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | YES |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 500 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .9452 N |
| Insulation resistance | 1000000000000 Ω |
| insulator material | GLASS FILLED POLYCARBONATE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Loaded row name | A,B,C |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| polarization key | ENDS |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 96 |
| UL Flammability Code | 94V-1 |
| Evacuation force-minimum value | .9452 N |
| Base Number Matches | 1 |
| 343061 | 333010 | 343083 | 343064 | |
|---|---|---|---|---|
| Description | Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug, | Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle, | Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, | Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug, |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| Other features | STANDARD: DIN 41612 | STANDARD: DIN 41612 | STANDARD: DIN 41612 | STANDARD: DIN 41612 |
| Connector type | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR |
| Contact to complete cooperation | AU | AU | NOT SPECIFIED | AU |
| Contact point gender | FEMALE | MALE | FEMALE | FEMALE |
| DIN compliance | YES | YES | YES | YES |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO |
| Installation method | RIGHT ANGLE | STRAIGHT | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 3 | 2 | 2 | 2 |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 96 | 64 | 64 | 64 |
| UL Flammability Code | 94V-1 | 94V-1 | 94V-1 | 94V-1 |
| Base Number Matches | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | EAR99 | - | EAR99 |
| body width | 0.417 inch | 0.437 inch | - | 0.417 inch |
| subject depth | 0.862 inch | 0.492 inch | - | 0.862 inch |
| body length | 3.74 inch | 3.701 inch | - | 3.7 inch |
| Body/casing type | PLUG | RECEPTACLE | - | PLUG |
| Contact completed and terminated | GOLD | GOLD | - | GOLD |
| Contact resistance | 20 mΩ | 20 mΩ | - | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | - | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | - | 1000VAC V |
| Durability | 500 Cycles | 500 Cycles | - | 500 Cycles |
| maximum insertion force | .9452 N | .9452 N | - | .9452 N |
| Insulation resistance | 1000000000000 Ω | 1000000000000 Ω | - | 1000000000000 Ω |
| insulator material | GLASS FILLED POLYCARBONATE | GLASS FILLED POLYCARBONATE | - | GLASS FILLED POLYCARBONATE |
| JESD-609 code | e4 | e4 | - | e4 |
| Plug contact pitch | 0.1 inch | 0.1 inch | - | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | - | 0.1 inch |
| Loaded row name | A,B,C | A,C | - | A,C |
| PCB row number | 3 | 3 | - | 3 |
| Maximum operating temperature | 125 °C | 125 °C | - | 125 °C |
| Minimum operating temperature | -65 °C | -65 °C | - | -65 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | - | 2.54 mm |
| polarization key | ENDS | ENDS | - | ENDS |
| Rated current (signal) | 1 A | 1 A | - | 1 A |
| Guideline | UL, CSA | UL, CSA | - | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
| Evacuation force-minimum value | .9452 N | .9452 N | - | .9452 N |
