311-100SM29J datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 311-100SM29J

Preview

311-100SM29J: DescriptionD Type Connector, 100 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size44KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

311-100SM29J Overview

D Type Connector, 100 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Latch, Receptacle

311-100SM29J Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EMI/RFI SHIELDED, HIGH DENSITY
body width	0.406 inch
subject depth	0.344 inch
body length	3.315 inch
Body/casing type	RECEPTACLE
Connector type	OTHER D TYPE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	311
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation type	CABLE AND PANEL
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	METAL
Termination type	IDC
Total number of contacts	100
UL Flammability Code	94V-0
Maximum wire diameter	30 AWG
Minimum wire diameter	32 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

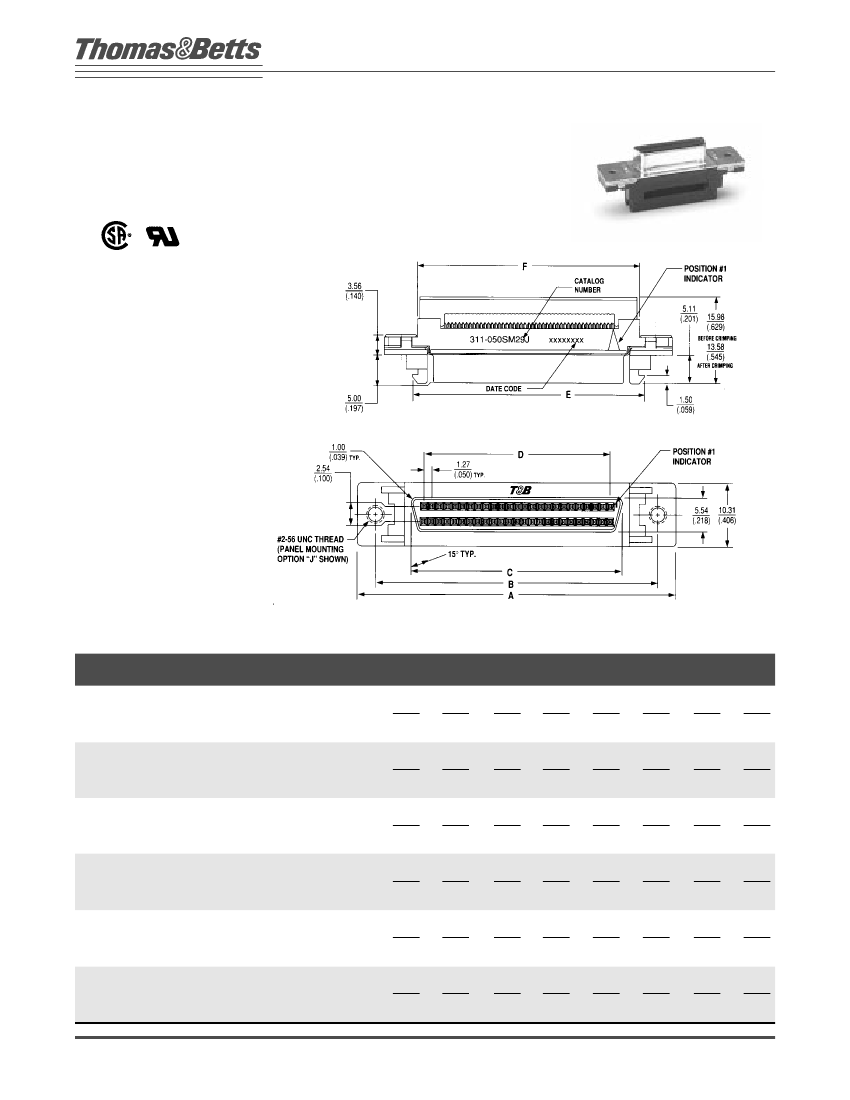

IDC Systems

D-Subminiature

FINE PITCH IDC

METAL SHELL

“D” RECEPTACLE

.050" x .100" CENTERS

LR49571

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Glass reinforced

thermoplastic rated UL 94V-0

C

OLOR

:

Black

C

ONTACTS

:

Beryllium copper, 30 microinches gold

over nickel plating in the mating area, tin/lead

plating in the termination area

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

1 Amp

I

NSULATION

R

ESISTANCE

:

>1000 Megohms

D

IELECTRIC

S

TRENGTH

:

> 1000 VAC at sea level

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

-55˚C TO 125°C

A

PPLICATION

T

OOLING

H

AND

T

OOL

D

IE

:

779-3112179

B

ENCH

P

RESS

P

LATEN

:

779-3113179

M

OUNTING

H

ARDWARE

F

EMALE

J

ACKSOCKET

:

8700040001

(for mounting style “C”)

C

ABLE

See pages 97-104

Ordering Information

NUMBER OF

CONTACTS

26

BULKHEAD

MOUNTING STYLE

4-40 Flush Threads

2-56 Cable Latch w/ Rails

2-56 Cable Latch w/o Rails

4-40 Flush Threads

CATALOG

NUMBER

311-026SM29C

311-026SM29J

311-026SM29N

311-040SM29C

311-040SM29J

311-040SM29N

311-050SM29C

311-050SM29J

311-050SM29N

311-068SM29C

311-068SM29J

311-068SM29N

311-080SM29C

311-080SM29J

311-080SM29N

311-100SM29C

311-100SM29J

311-100SM29N

A

37.21

(1.465)

B

31.24

(1.230)

C

19.46

(.766)

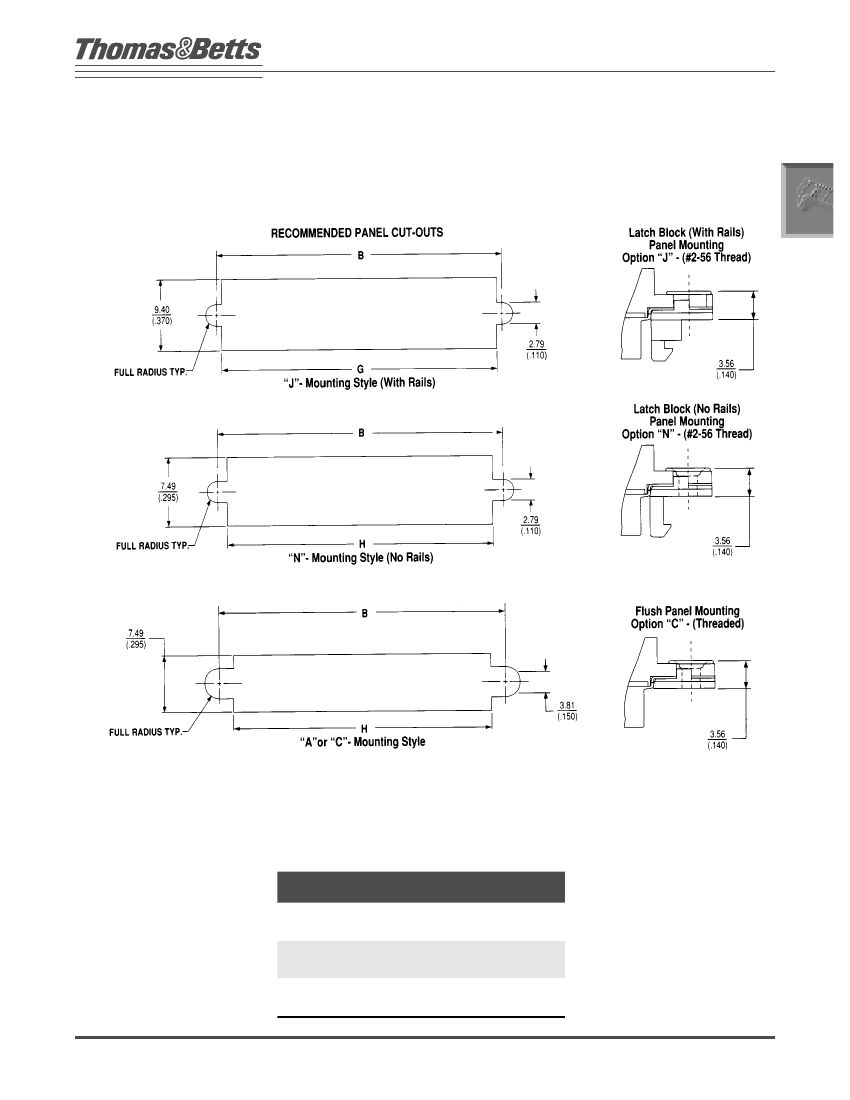

DIMENSIONS

D

E

15.24

(.600)

27.05

(1.065)

F

25.25

(.994)

G

29.80

(1.175)

H

37.56

(1.085)

40

2-56 Cable Latch w/ Rails

2-56 Cable Latch w/o Rails

4-40 Flush Threads

46.10

(1.815)

40.13

(1.580)

28.35

(1.116)

24.13

(.950)

35.94

(1.415)

34.14

(1.344)

38.73

(1.525)

36.45

(1.435)

50

2-56 Cable Latch w/ Rails

2-56 Cable Latch w/o Rails

4-40 Flush Threads

52.45

(2.065)

46.48

(1.830)

34.70

(1.366)

30.48

(1.200)

42.29

(1.665)

40.49

(1.594)

45.10

(1.775)

42.80

(1.685)

68

2-56 Cable Latch w/ Rails

2-56 Cable Latch w/o Rails

4-40 Flush Threads

63.88

(2.515)

57.91

(2.280)

46.13

(1.816)

41.91

(1.650)

53.72

(2.115)

51.92

(2.044)

56.50

(2.225)

54.23

(2.135)

80

2-56 Cable Latch w/ Rails

2-56 Cable Latch w/o Rails

4-40 Flush Threads

71.50

(2.815)

65.53

(2.580)

53.75

(2.116)

49.53

(1.950)

61.34

(2.415)

59.54

(2.344)

64.13

(2.525)

61.85

(2.435)

100

2-56 Cable Latch w/ Rails

2-56 Cable Latch w/o Rails

84.20

(3.315)

78.23

(3.080)

66.45

(2.616)

62.23

(2.450)

74.04

(2.915)

72.24

(2.844)

76.83

(3.025)

74.55

(2.935)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

62
