3305100471: DescriptionDry Reed Relay, SPST, Momentary, 0.005A (Coil), 5VDC (Coil), 25mW (Coil), 0.5A (Contact), 100VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size70KB，1 Pages; ManufacturerStandex

Download Datasheet Parametric View All

3305100471 Overview

Dry Reed Relay, SPST, Momentary, 0.005A (Coil), 5VDC (Coil), 25mW (Coil), 0.5A (Contact), 100VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

3305100471 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	5.08 mm
body height	7.8 mm
Body length or diameter	19.8 mm
Maximum coil current (DC)	0.005 A
Coil operating voltage (DC)	3.8 V
Coil power	25 mW
Coil release voltage (DC)	0.75 V
Coil resistance	1100 Ω
Maximum coil voltage (DC)	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@100VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@100VDC
Maximum contact voltage (AC)	100 V
Maximum contact voltage (DC)	100 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	3305100471
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.7 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	19.8mm x 5.08mm x 7.8mm
Relay action	MOMENTARY
Relay function	SPST
Relay type	DRY REED RELAY
release time	0.1 ms
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

Item No.:

3305100471

Item:

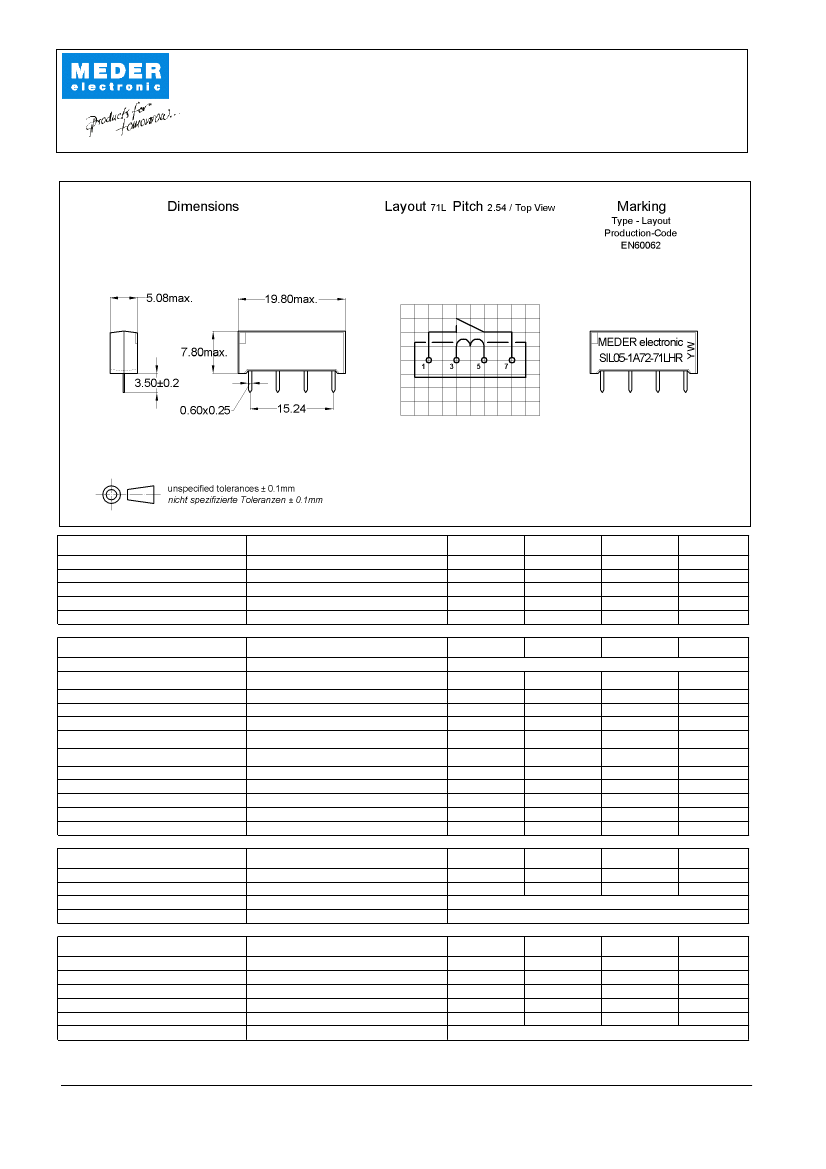

SIL05-1A72-71LHR

Coil Data at 20 °

Coil resistance

Coil voltage

Rated power

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

Contact data 66/1

Contact-form

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Contact resistance dynamic

Insulation resistance

Breakdown voltage (>20 AT)

Operate time incl. bounce

Release time

Capacitance

Conditions

not to exceed their individual max.'s

Min

Typ

A-NO

Max

Unit

DC or Peak AC

!" # $ % & ' "#" '

Start Value

( ! ' )!

" (

Start Value

RH <45 %, 200 V test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

@ 10 kHz across open switch

Special Product Data

Insulation resistance Coil/Contact

Insulation voltage Coil/Contact

Housing material

Connection pins

Conditions

RH <45%, 200 VDC test voltage

according to IEC 255-5

Min

Typ

Max

Unit

epoxy resin

Copper alloy tin plated

Environmental data

Shock

Vibration

Ambient temperature

Storage temperature

Soldering temperature

Cleaning

Conditions

1/2 sine wave duration 11ms

from 10 - 2000 Hz

Min

Typ

Max

Unit

wave sodering max. 5 sec.

fully sealed

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

16.12.08

08.01.09

Last Change by:

THAUKE

Approval at:

08.01.09

Approval by:

JHEYDER

Version:
