33Z3838: DescriptionTelecom Transformer; CategoryPower management transformer; File Size34KB，1 Pages; ManufacturerVitec Electronics Corporation

Download Datasheet Parametric Compare View All

33Z3838 Overview

Telecom Transformer

33Z3838 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DATA COUPLING
high	12.7 mm
length	26.67 mm
Manufacturer's serial number	33Z
Installation features	THROUGH HOLE MOUNTED
physical size	26.67mm X 24.13mm X 12.7mm
surface mount	NO
Transformer type	TELECOM TRANSFORMER
width	24.13 mm
Base Number Matches	1

Preview

Download Datasheet

View All

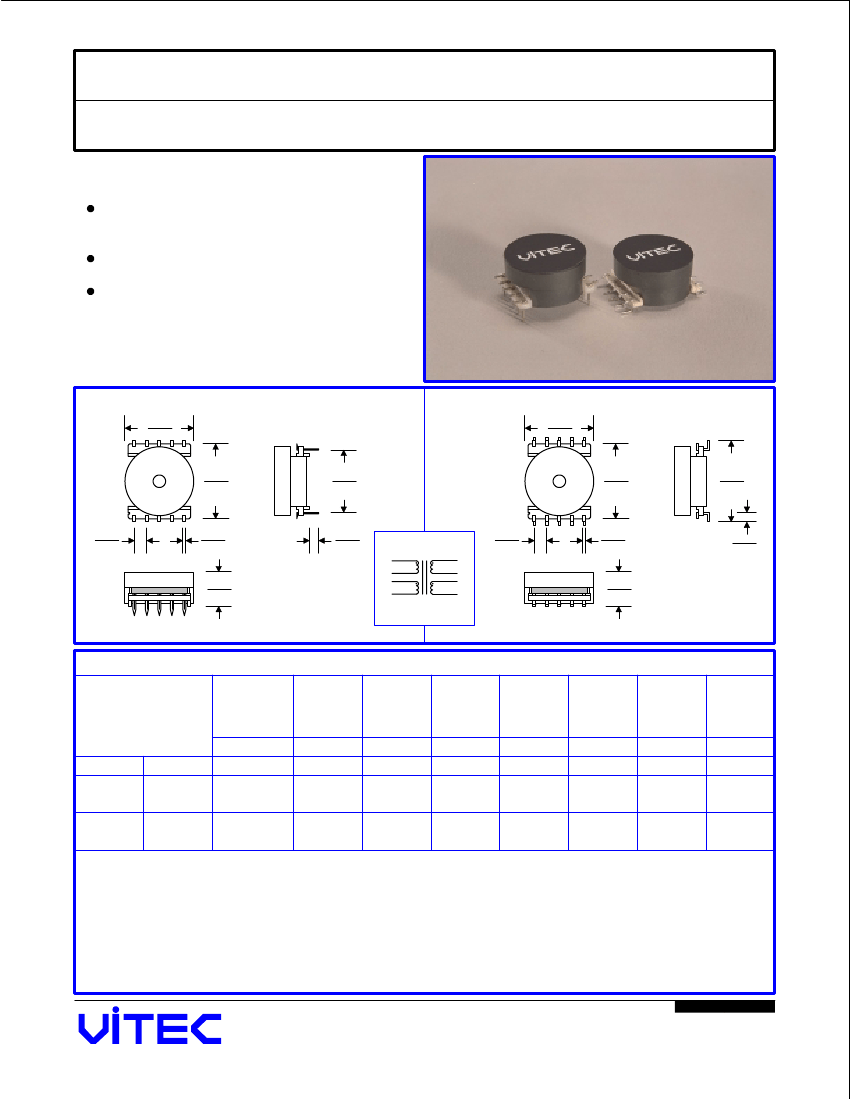

TRANSFORMERS IN SMD OR DIP PACKAGES

ADSL & RADSL applications

FEATURES

Designed to meet or exceed standards for ANSI and

ETSI.

Products matched to leading transceiver ICs.

Dielectric test voltage: 3000 Vrms minimum.

PACKAGE THT

0.950

24.13

PACKAGE SMD

0.920

23.37

VITEC

1.050

26.67

33Z38xx

0.800.2

0.32

VITEC

1.050

26.67

63Z63xx

1.1.065

27.05

0.150

3.81

0.042

1.07

0.130

3.30

SCHEMATIC

1

3

2

4

PRI

SEC

10

8

9

7

0.150

3.81

0.038

0.97

0.140

3.56

0.500

12.70

0.500

12.70

(CHIP)

Drawing NOT to Scale. Dimensions Inches/mm. +/- 0.005/0.127 Unless noted.

(LINE)

Drawing NOT to Scale. Dimensions Inches/mm. +/- 0.005/0.127 Unless noted.

ELECTRICAL CHARACTERISTICS @ 25

o

C

Part

Number

Turns

Ratio

L

P

*

L

C

DCR

Dielectric

Strength

Vrms

MIN

Insertion

Loss

dB

MAX

Longitudinal

Balance

dB

TYP

uH +/- 10%

MIN

uH

MAX

pF

MAX

Ohms

MAX

THT

33Z3837

33Z3838

Notes:

SMD

63Z6337

63Z6338

+/- 5%

1.4:1.4:1:1

1:1:1:1

940

410

10

--

1.20

0.80

3000

3

62

* Test pin 1-4 with pin 2-3 shorted

T-635.1

05/01

26

Vitec Electronics Corporation

www.VitecCorp.com

33Z3838 Related Products

	33Z3838	33Z3837	63Z6337
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	DATA COUPLING	DATA COUPLING	DATA COUPLING
high	12.7 mm	12.7 mm	12.7 mm
length	26.67 mm	26.67 mm	26.67 mm
Manufacturer's serial number	33Z	33Z	63Z
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	SURFACE MOUNT
physical size	26.67mm X 24.13mm X 12.7mm	26.67mm X 24.13mm X 12.7mm	26.67mm X 23.37mm X 12.7mm
surface mount	NO	NO	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	24.13 mm	24.13 mm	23.37 mm
Base Number Matches	1	1	-
