BCW67BE6327: DescriptionSmall Signal Bipolar Transistor, 0.8A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon; CategoryDiscrete semiconductor The transistor; File Size524KB，8 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BCW67BE6327 Overview

Small Signal Bipolar Transistor, 0.8A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon

BCW67BE6327 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.8 A
Collector-emitter maximum voltage	32 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.33 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

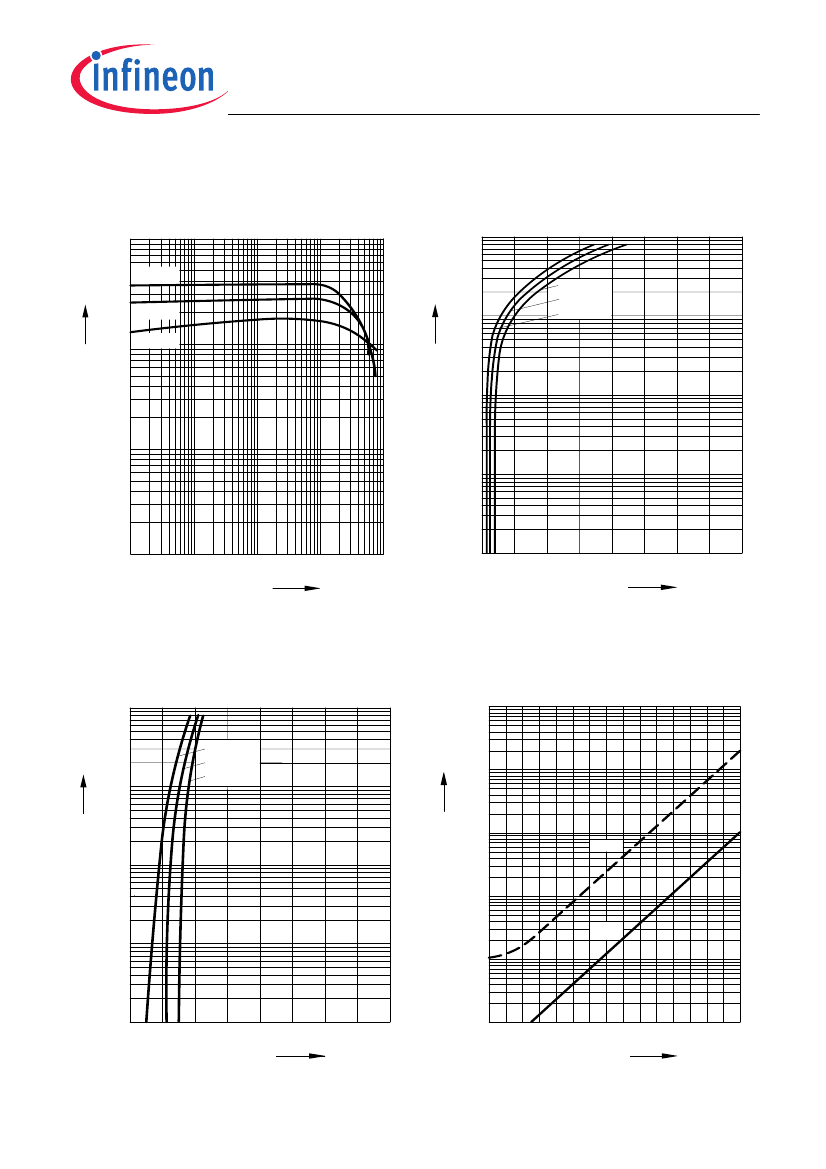

BCW67, BCW68

PNP Silicon AF Transistors

•

For general AF applications

•

High current gain

•

Low collector-emitter saturation voltage

•

Complementary types: BCW66... (NPN)

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

Type

BCW67A

BCW67B

BCW67C

BCW68F

BCW68G

BCW68H

Marking

DAs

DBs

DCs

DFs

DGs

DHs

1=B

Pin Configuration

2=E

3=C

Package

SOT23

2011-09-15
