HRD1510-345 datasheet, PDF - EEWORLD Datasheet

HRD1510-345: DescriptionSynchro or Resolver to Digital Converter, Hybrid, MDIP36, 0.780 X 1.900 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36; CategoryAnalog mixed-signal IC converter; File Size386KB，8 Pages; ManufacturerNatel Engineering Company

Download Datasheet Parametric View All

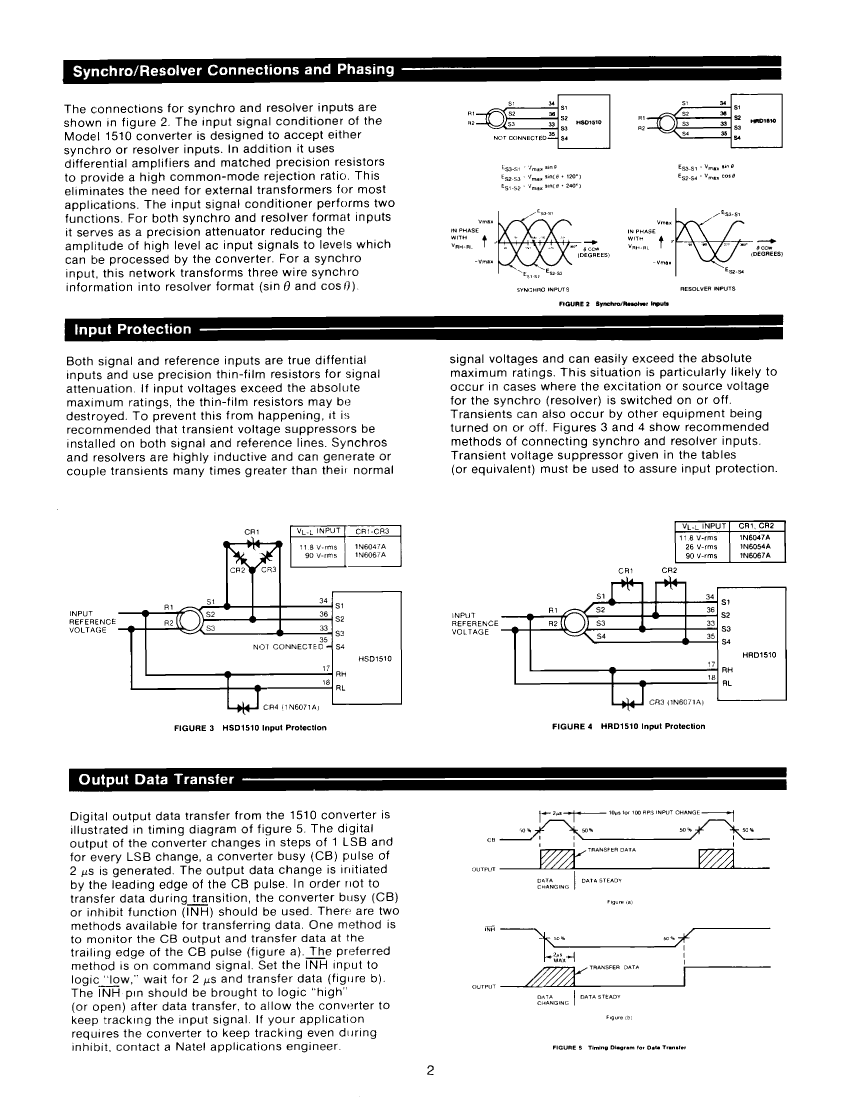

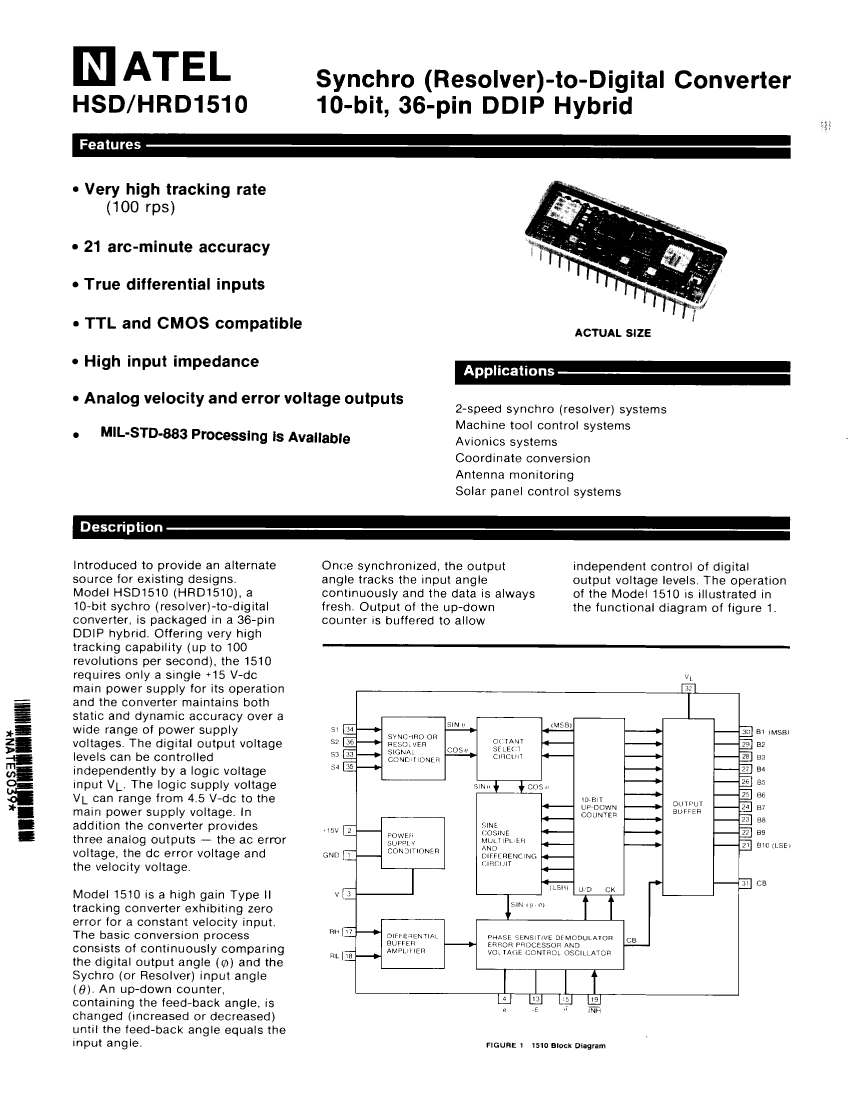

HRD1510-345 Overview

Synchro or Resolver to Digital Converter, Hybrid, MDIP36, 0.780 X 1.900 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36

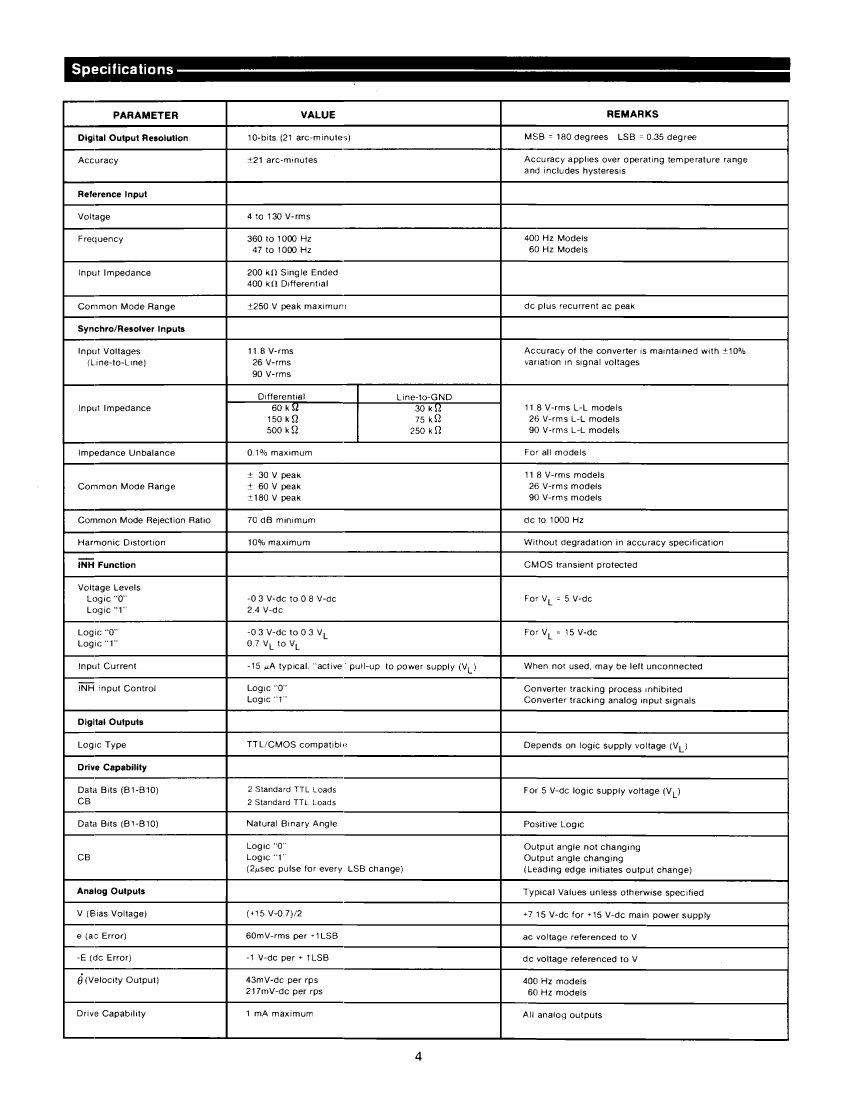

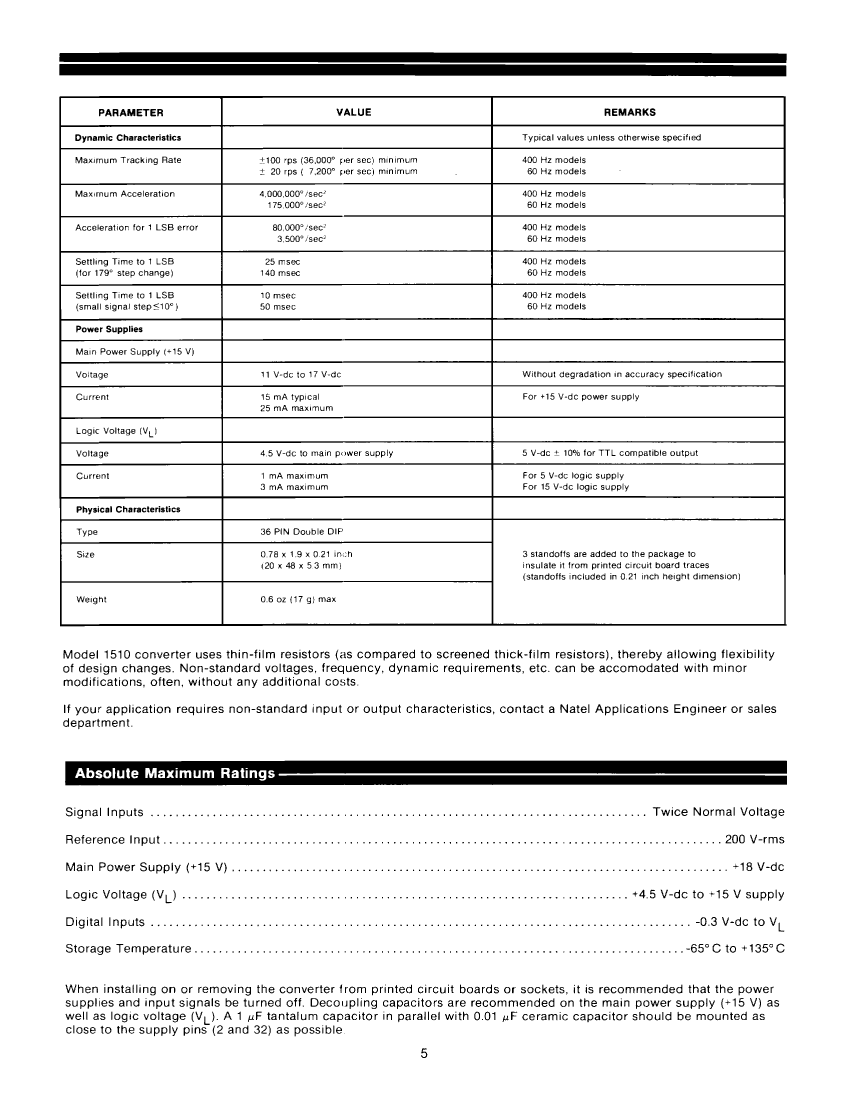

Parameter Name	Attribute value
Maker	Natel Engineering Company
Parts packaging code	DIP
package instruction	DIP,

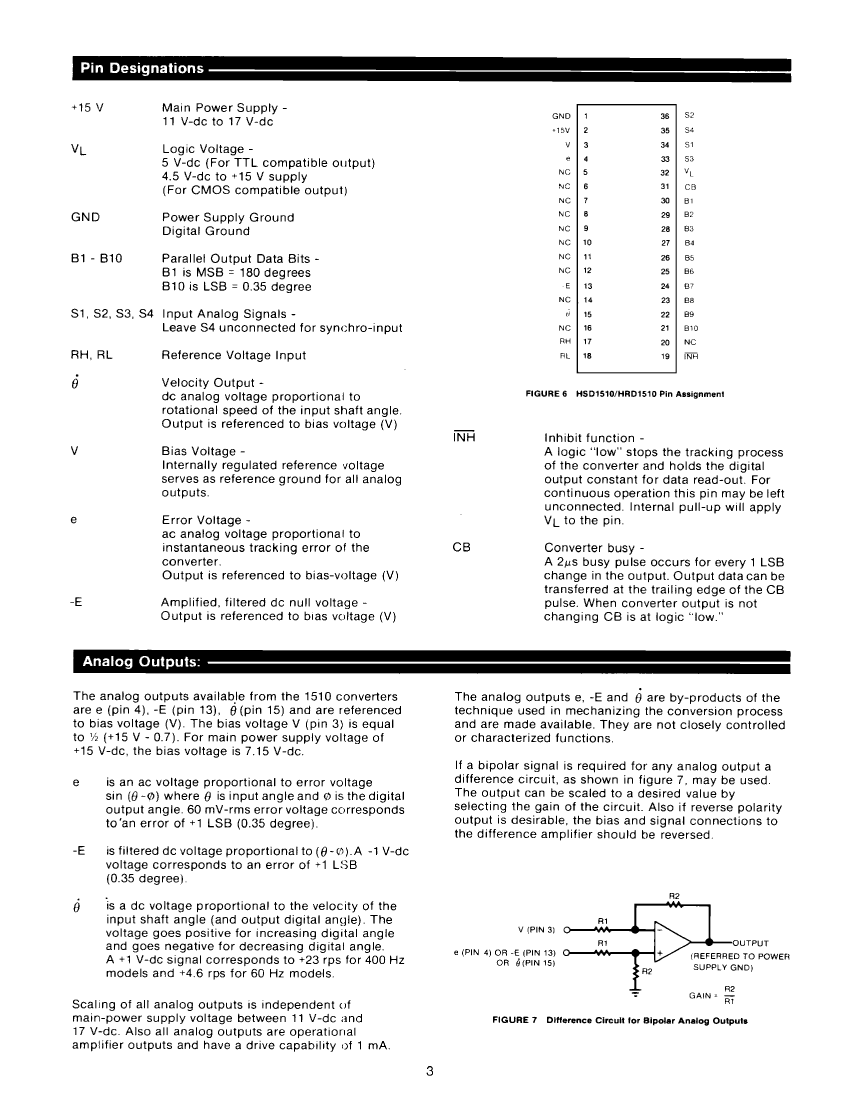

Contacts	36
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EXTERNAL SIGNAL AND REFERENCE TRANSFORMER
Maximum angular accuracy	21 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-MDIP-P36
length	48.13 mm
Number of digits	10
Number of functions	1
Number of terminals	36
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.4 mm
Maximum stabilization time	25 µs
Signal/output frequency	1000 Hz
Maximum slew rate	25 mA
Maximum supply voltage	17 V
Minimum supply voltage	11 V
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum tracking rate	100 rps
width	15.24 mm
Base Number Matches	1
