SMT3106-104MLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SMT3106-104MLF

SMT3106-104MLF: DescriptionGeneral Purpose Inductor, 1000uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，1 Pages; ManufacturerGowanda Electronics; Environmental Compliance

Download Datasheet Parametric View All

SMT3106-104MLF Overview

General Purpose Inductor, 1000uH, 20%, 1 Element, SMD, ROHS COMPLIANT

SMT3106-104MLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Gowanda Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	8.23 Ω
Nominal inductance(L)	1000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	SMT3106LF
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum rated current	0.18 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

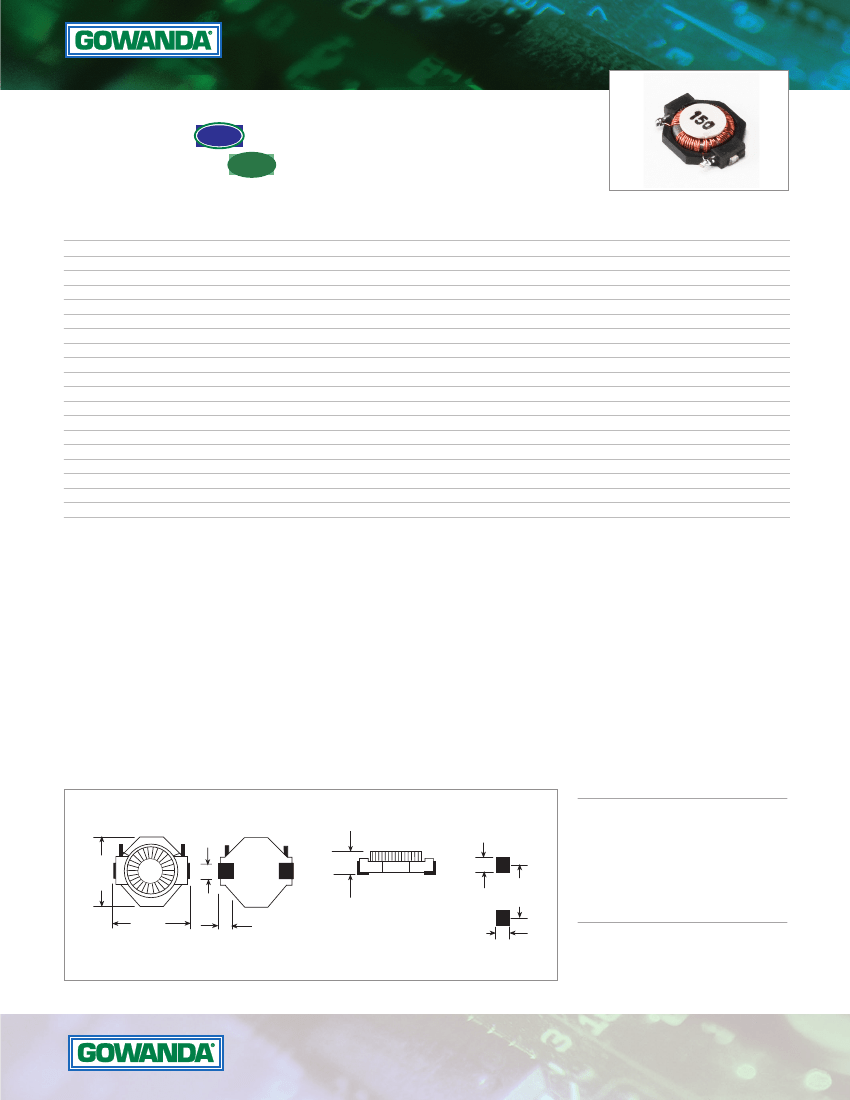

STANDARD POWER INDUCTORS - SURFACE MOUNT

SMT3106

SMT3106LF

PART

NUMBER

SMT3106-101M

SMT3106-151M

SMT3106-221M

SMT3106-331M

SMT3106-471M

SMT3106-681M

SMT3106-102M

SMT3106-152M

SMT3106-222M

SMT3106-332M

SMT3106-472M

SMT3106-682M

SMT3106-103M

SMT3106-153M

SMT3106-223M

SMT3106-333M

SMT3106-473M

SMT3106-683M

SMT3106-104M

Suffix “M” for 20% tolerance

TRADITIONAL

COMPLIANT

RoHS

Wirewound,Toroidal

L µH

@ 100 kHz

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

330

470

680

1000

DCR

OHMS

MAX

0.016

0.018

0.022

0.028

0.031

0.037

0.046

0.056

0.066

0.130

0.182

0.344

0.550

1.04

2.09

4.28

5.06

6.73

8.23

SATURATION CURRENT

A DC

6.8

5.8

4.6

3.4

3.2

2.6

2.1

1.6

1.4

1.1

0.95

0.80

0.64

0.54

0.43

0.36

0.29

0.24

0.20

CURRENT RATING

A DC

4.0

3.8

3.4

3.0

2.9

2.7

2.4

2.2

2.0

1.4

1.2

0.87

0.69

0.50

0.35

0.25

0.23

0.20

0.18

Custom designs are available to meet your specific requirements; please contact factory

*Add “LF” suffix for RoHS requirement. Example: SMT3106-101MLF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.

These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.

NOTES:

TOP VIEW

0.420

(10.67)

MAX

BOTTOM VIEW

0.170

(4.3) MAX

0.120 (3.05)

0.530

(13.46)

MAX

0.030 (0.76) MIN

0.120

(3.05)

in. (mm)

0.070

(1.78) REF

SIDE VIEW

RECOMMENDED

FOOT PRINT

• Operating Temperature Range:

-55°C to +125°C

• Current Rating is based on a 40°C temperature

rise at an ambient temperature of 85°C

• Saturation Current is the approximate value

that will reduce the initial inductance by 20%

470

0.470

(11.94)

CENTERS

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Tape width:

Reel diameter:

700

16 mm

24 mm

13 in.

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

013114
