MS75085-16 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> MS75085-16

Preview

MS75085-16: DescriptionGeneral Purpose Inductor, 560uH, 10%, 1 Element, Ferrite-Core,; CategoryPassive components inductor; File Size2MB，2 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric View All

MS75085-16 Overview

General Purpose Inductor, 560uH, 10%, 1 Element, Ferrite-Core,

MS75085-16 Parametric

Parameter Name	Attribute value
Maker	Gowanda Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	46 Ω
Nominal inductance(L)	560 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.035 A
Guideline	MIL-PRF-15305
self resonant frequency	5 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.79 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

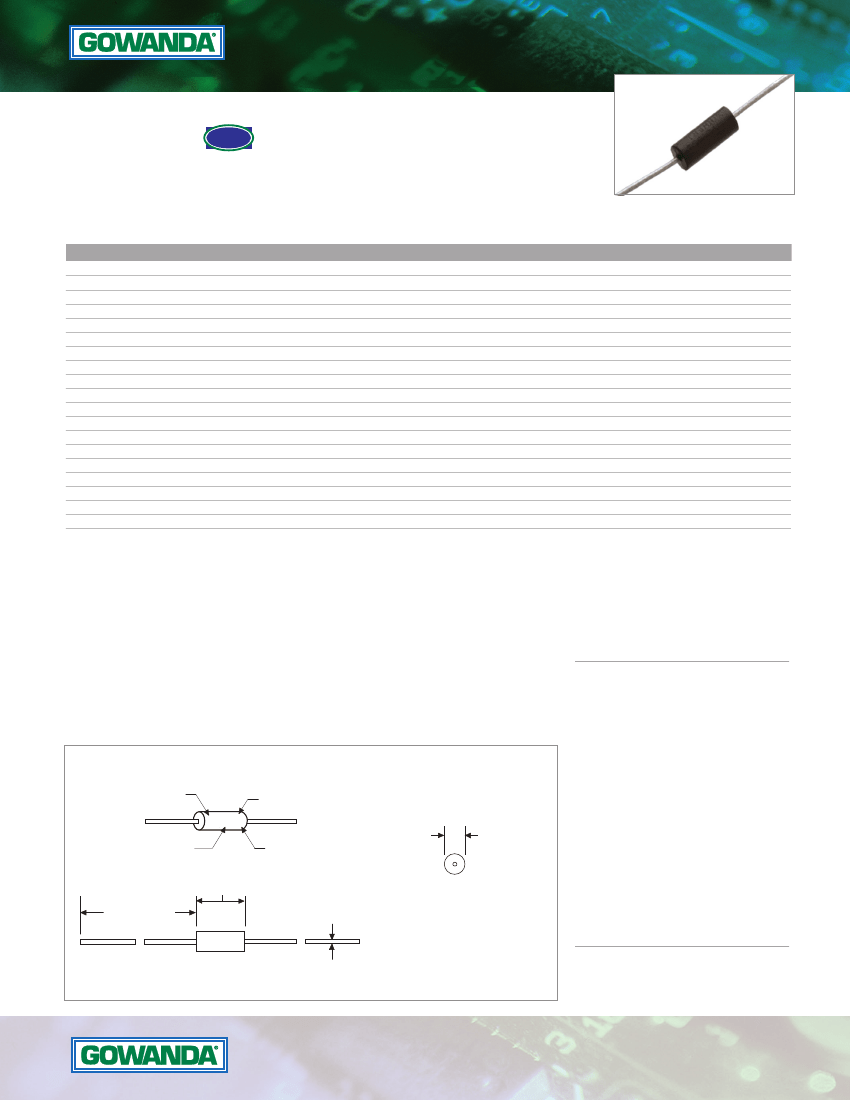

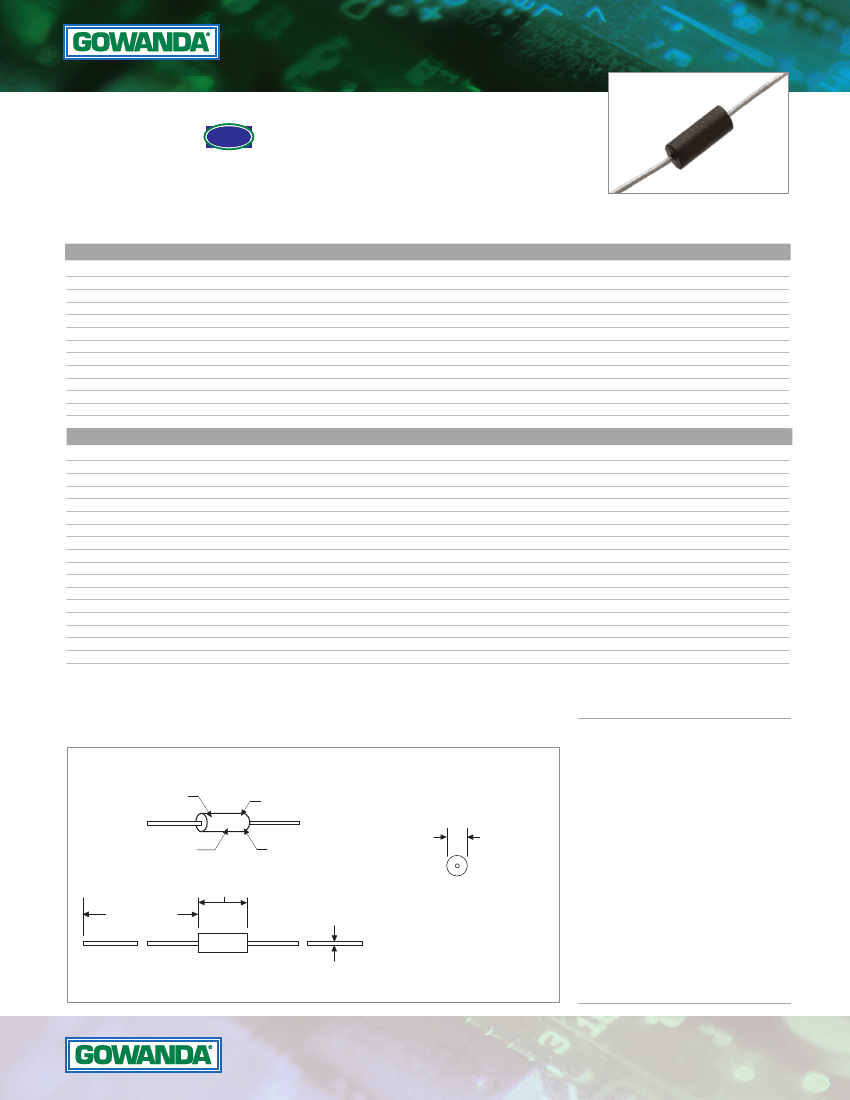

QPL RF INDUCTORS - THRU HOLE

MLRF10M

TRADITIONAL

Pb

Wirewound, Molded, MIL-PRF-15305

MS75083 Phenolic Core, MS75084 Powdered Iron Core, MS75085 Ferrite Core

TEST

FREQ

MHz

PHENOLIC CORE

680

640

600

550

510

430

410

365

330

300

275

250

230

150

140

125

115

100

90

80

75

65

60

55

50

40

35

30

25

20

0.08

0.09

0.10

0.12

0.14

0.16

0.22

0.30

0.35

0.50

0.60

0.85

1.00

0.18

0.22

0.30

0.40

0.55

0.85

1.0

1.2

1.8

2.0

2.7

3.7

2.7

2.8

3.1

3.3

3.5

1350

1270

1200

1105

1025

960

815

700

650

545

495

415

385

590

535

455

395

335

270

250

230

185

175

155

130

155

150

145

140

135

continued next page

PART

NUMBER

MLRF10M100K

MLRF10M120K

MLRF10M150K

MLRF10M180K

MLRF10M220K

MLRF10M270K

MLRF10M330K

MLRF10M390K

MLRF10M470K

MLRF10M560K

MLRF10M680K

MLRF10M820K

MLRF10M101K

MLRF10M121K

MLRF10M151K

MLRF10M181K

MLRF10M221K

MLRF10M271K

MLRF10M331K

MLRF10M391K

MLRF10M471K

MLRF10M561K

MLRF10M681K

MLRF10M821K

MLRF10M102K

MLRF10M122K

MLRF10M152K

MLRF10M182K

MLRF10M222K

MLRF10M272K

MIL PART

NUMBER

MS75083-1

MS75083-2

MS75083-3

MS75083-4

MS75083-5

MS75083-6

MS75083-7

MS75083-8

MS75083-9

MS75083-10

MS75083-11

MS75083-12

MS75083-13

MS75084-1

MS75084-2

MS75084-3

MS75084-4

MS75084-5

MS75084-6

MS75084-7

MS75084-8

MS75084-9

MS75084-10

MS75084-11

MS75084-12

MS75084-13

MS75084-14

MS75084-15

MS75084-16

MS75084-17

L

µH

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10

12

15

18

22

27

Q

MIN

MS75083

SRF

MHz

MIN

DCR

OHMS

MAX

CURRENT

RATING

mA DC

40

25

40

25

38

25

35

25

33

25

33

25

30

25

30

25

30

25

30

25

28

25

28

25

MS75084 POWDERED IRON CORE

25

28

30

37

45

50

55

45

40

50

7.9

2.5

Suffix “K” for 10% tolerance

INDUCTANCE

4.7µH ±10%

GEC YYWWL

TOLERANCE

DATE CODE (YEAR/WEEK)

LOT SYMBOL

0.085/0.105

(2.16/2.67)

DIA

0.240/0.260

(6.10/6.60)

1.250/1.625

(31.75/41.28)

4.7µH ±10%

GEC YYWWL

NOTES:

• Operating Temperature Range:

-55°C to +125°C for MS78083 (Phenolic)

-55°C to +105°C for MS75084 &

MS75085 (Powdered Iron & Ferrite)

• Temperature Class:

Class B (125°C) for MS75083 (Phenolic)

Class A (105°C) for MS75084 &

MS75085 (Powdered Iron & Ferrite)

• Current Rating is @ a 90°C Ambient:

35°C Rise for MS75083 (Phenolic)

15°C Rise for MS75084 & MS75085

(Powdered Iron & Ferrite)

• Weight maximum 0.301 grams (0.0106 ounces)

• DWV 1000 Vrms @ Sea Level

300 Vrms @ 70,000 Feet for MS75083

& MS75084 (Phenolic & Powdered Iron)

200 Vrms @ 70,000 Feet for MS75085

(Ferrite)

• Body color is black

TAPE AND REEL SPECS:

(see page two)

0.0185/0.0215

(0.470/0.546)

DIA

in. (mm)

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

012814

Recommended Resources

Do you really understand the difference between digital ground and analog ground?

MC34011 voltage stabilizing circuit diagram

A circuit diagram of a household inverter power supply with excellent performance

Voltage regulator circuit diagram to expand output voltage range b

Circuit diagram using MAX660 to form voltage doubler and negative voltage output
