BX8082: DescriptionTelecom Transformer; CategoryPower management transformer; File Size64KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

BX8082 Overview

Telecom Transformer

BX8082 Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TURNS RATIO 1:1
high	5.08 mm
length	5.59 mm
Manufacturer's serial number	BX8082
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
physical size	L5.59XB5.84XH5.08 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	5.84 mm
Base Number Matches	1

Preview

Download Datasheet

View All

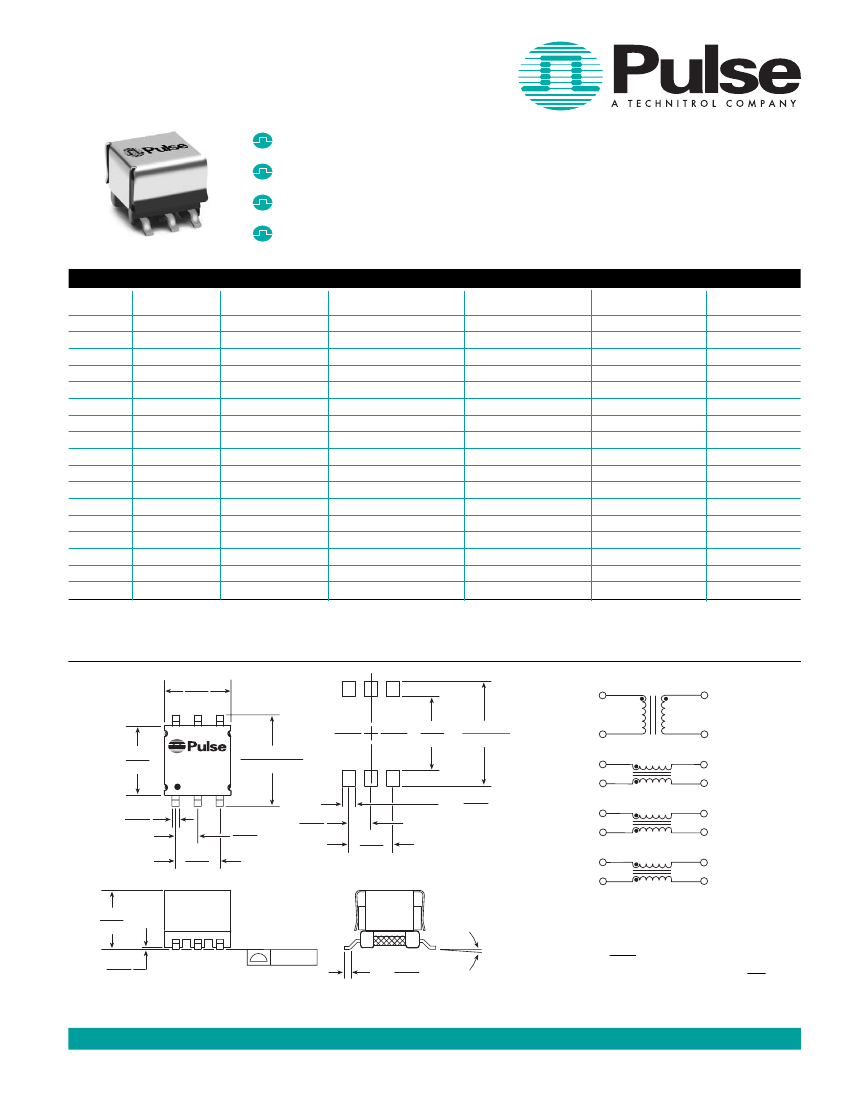

ADSL FREQUENCY

FILTER INDUCTORS

Excellent THD performance in a small footprint

Used exclusively for frequency filtering

SMT compact footprint

Matched to various manufacturers’ ADSL chipsets

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

Part

Number

BX8153

B2125A

B2198

B2184

BX8195

BX8254W

BX8082

B2126A

B2208

BX8253W

B2155

BX8118

B2209

B2127A

B2210

BX2128

BX8115

Application

CPE

Turns Ratio

(±2%)

(1-3)/(4:6) 1:1

(1-6)/(2-5) 1:1

(2-3)/(4-5) 1:1

(1-5)/(2-4) 1:1

(1-6)/(2-5) 1:1

(1-3)/(4:6) 1:1

(1-6)/(2-5) 1:1

(1-3)/(4:6) 1:1

(1-6)/(2-5) 1:1

(1-3)/(4:6) 1:1

(1-6)/(2-5) 1:1

(1-3)/(4:6) 1:1

Inductance

(µH MAX ±7%)

(1-3) = (4-6) = 5.0

(1-6) = (2-5) = 50

(2-3) = (4-5) = 74

(1-5) = (2-4) = 91

(1-6) = (2-5) = 102.5

(1-3) = (4:6) = 110

(1-6) = (2-5) = 140

(1-6) = (2-5) = 170

(1-3) = (4:6) = 185

(1-6) = (2-5) = 205

(1-3) = (4:6) = 282

(1-6) = (2-5) = 300

(1-6) = (2-5) = 340

(1-6) = (2-5) = 455

(1-6) = (2-5) = 500

(1-3) = (4:6) = 500

DC Resistance

(Ω MAX)

(1-3) = (4-6) = 0.7

(1-6) = (2-5) = 2.0

(2-3) = (4-5) = 5.0

(1-5) = (2-4) = 3.5

(1-6) = (2-5) = 6.0

(1-3) = (4:6) = 2.5

(1-6) = (2-5) = 6.0

(1-6) = (2-5) = 6.5

(1-6) = (2-5) = 4.0

(1-3) = (4:6) = 4.8

(1-6) = (2-5) = 6.0

(1-3) = (4:6) = 9.0

(1-6) = (2-5) = 7.0

(1-6) = (2-5) = 7.5

(1-6) = (2-5) = 9.0

(1-6) = (2-5) = 12.0

(1-3) = (4:6) = 9.0

Isolation Voltage

(Vrms)

500

Schematic

NOTE:

Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix

“T”

to this part number (i.e. BX8153T).

Mechanical

.220

5,59

.245

6,22

.345

- .010

8,76

+0,00

- 0,25

+.000

Schematic

.230

5,84

.024

0,61

Part Number

Date Code

Country of Mfg.

.305 ± .010

7,75 ± 0,25

.146

3,71

.200

5,08

.006

0,15

.073

1,85

.073

1,85

.044

1,12

.146

3,71

SUGGESTED PAD LAYOUT

6 X 0° 8°

.005/0,13

6 SURFACES

.025

0,64

Weight

. . . . . . . . . . . . . .0.38 grams

Tape & Reel

. . . . . . . . . . .1000/reel

Tray

. . . . . . . . . . . . . . . . . . .80/tray

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

(See page two for ADSL Frequency Inductor Selection Guide)

US 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Taiwan 886 2 2698 0228

•

Hong Kong 852 2788 6588

•

http://www.pulseeng.com

B843.A (12/03)

BX8082 Related Products

	BX8082	BX8118	BX2128T	BX8115	BX8153	BX8082T	BX8253W	BX8254W	BX2128	BX8195
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Filter, 2 Function(s)
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Reach Compliance Code	unknown	unknown	compliant	unknown	unknown	compliant	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TURNS RATIO 1:1	TURNS RATIO 1:1	TURNS RATIO 1:1	TURNS RATIO 1:1	TURNS RATIO 1:1	TURNS RATIO 1:1	TURNS RATIO 1:1	TURNS RATIO 1:1	TURNS RATIO 1:1	COMMON MODE CHOKE
high	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
length	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.84 mm
Manufacturer's serial number	BX8082	BX8118	BX2128T	BX8115	BX8153	BX8082T	BX8253W	BX8254W	BX2128	BX8195
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TRAY	TRAY	TAPE & REEL	TRAY	TRAY	TAPE & REEL	TRAY	TRAY	TRAY	TRAY
physical size	L5.59XB5.84XH5.08 (mm)	L5.59XB5.84XH5.08 (mm)	L5.59XB5.84XH5.08 (mm)	5.59mm X 5.84mm X 5.08mm	5.59mm X 5.84mm X 5.08mm	L5.59XB5.84XH5.08 (mm)	5.59mm X 5.84mm X 5.08mm	5.59mm X 5.84mm X 5.08mm	L5.59XB5.84XH5.08 (mm)	L5.84XB5.59XH5.08 (mm)/L0.23XB0.22XH0.2 (inch)
width	5.84 mm	5.84 mm	5.84 mm	5.84 mm	5.84 mm	5.84 mm	5.84 mm	5.84 mm	5.84 mm	5.59 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	-
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	-
