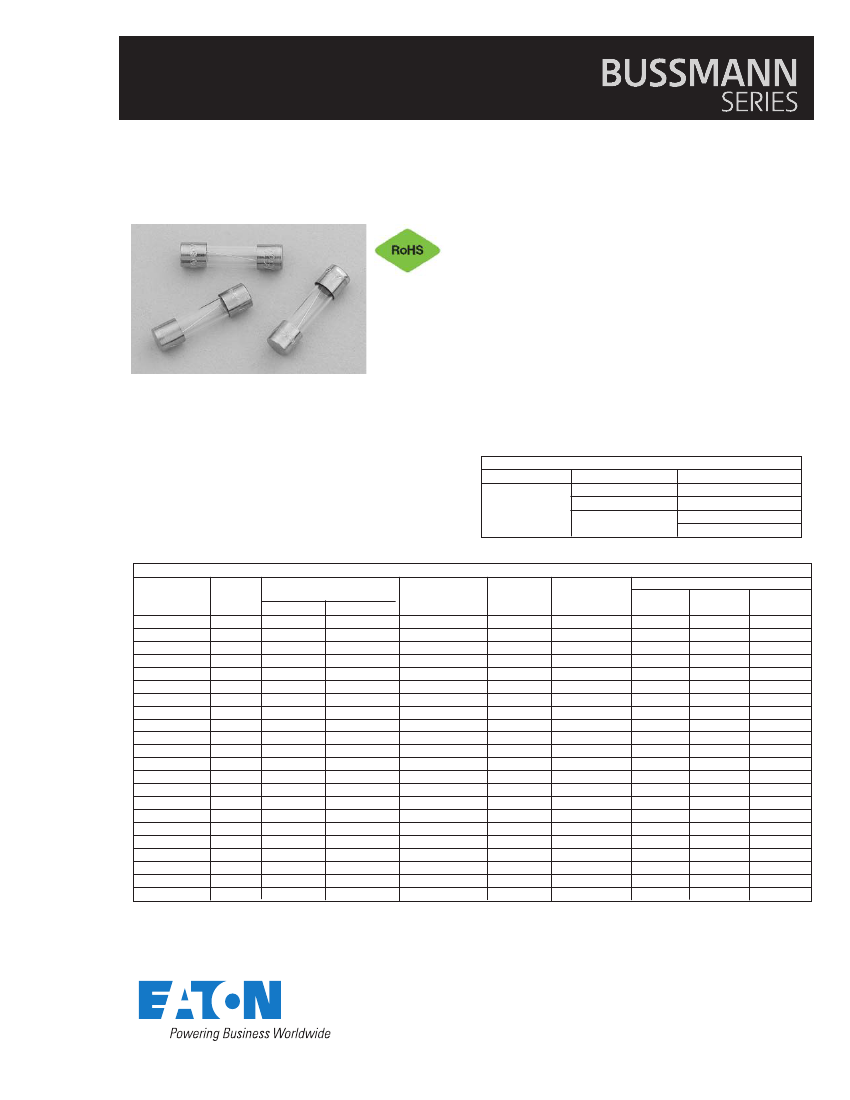

Technical Data
2019
Effective
May
2017
Supersedes
February
2009
GMD
5 mm x
20
mm
Time-delay
glass tube fuses
Agency information
•
UL Listed, Guide JDYX, File E19180
•
UL Recognition Card (4A), Guide JDYX2, File
E19180
•
CSA Certified, Class 1422-01, File 53787
•
PSE/JET, File 1641-31003-1001
Ordering
•
•
Product features
•
•
•
•
•
Time-delay, low breaking capacity
Optional axial leads available
5 x 20mm physical size
Nickel-plated brass endcap construction
Designed to UL/CSA 248-14
•
Specify product code: Insert packaging code prefix
before part number. E.g. BK/GMD-250-R
Specify option code if desired: For axial leads, insert
“V” between catalog series and amp rating. E.g. BK/
GMD-V-250-R
With TR2 packaging code, lead wire length is 19.05mm
Electrical Characteristics
Rated Current % of Amp Rating
Opening Time
100%
None
135%
60 minutes maximum
100mA - 4A
5 seconds minimum
200%
2 minutes maximum
Part Number
GMD-125-R
GMD-150-R
GMD-200-R
GMD-250-R
GMD-300-R
GMD-315-R
GMD-375-R
GMD-400-R
GMD-500-R
GMD-600-R
GMD-630-R
GMD-750-R
GMD-800-R
GMD-1-R
GMD-1.2-R
GMD-1.25-R
GMD-1.5-R
GMD-1.6-R
GMD-2-R
GMD-2.5-R
GMD-3-R
GMD-4-R
Voltage Interrupting Rating (amps)
Rating
at Rated Voltage (50Hz)
Vac
250 Vac
125 Vac
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
35
10,000
250
100
10,000
250
100
10,000
250
100
10,000
250
100
10,000
250
100
10,000
250
100
10,000
250
100
10,000
250
200
10,000
Typical DC
Cold Resistance
(Ω)**
8.125
6.065
5.190
3.455
3.215
2.400
1.625
1.505
1.0645
0.948
0.629
0.4425
0.4475
0.3065
0.299
0.1995
0.158
0.124
0.107
0.0905
0.0655
0.048
Speci cations
Typical
Melting I
2
t
(amps)†
0.043
0.046
0.200
0.4
0.650
0.890
0.890
1.2
1.4
3.1
3.1
4.7
6.6
12
16
16
25
27
42
94
145
300
Typical
Voltage
Drop (mV)‡
1600
1200
1100
950
800
750
650
600
550
450
450
410
380
310
280
245
240
220
200
195
190
190
UL
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
UR
Agency Approvals
PSE
JET
CSA
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
* Interrupting ratings (Interrupting ratings for 125mA - 3A were measured at 70% - 80% power factor on AC. The interrupting ratings for 4A were measured at 100%
power factor on AC)
** Typical DC Cold Resistance (measured at <10% of rated current)
† Typical Melting I
2
t (I
2
t was measured at listed interrupting rating and rated voltage)
‡ Typical Voltage Drop (voltage drop was measured at 20°C ambient temperature at rated current)
Technical Data
2019
Effective
May
2017
GMD
5 mm x 20 mm Time-delay glass tube fuses

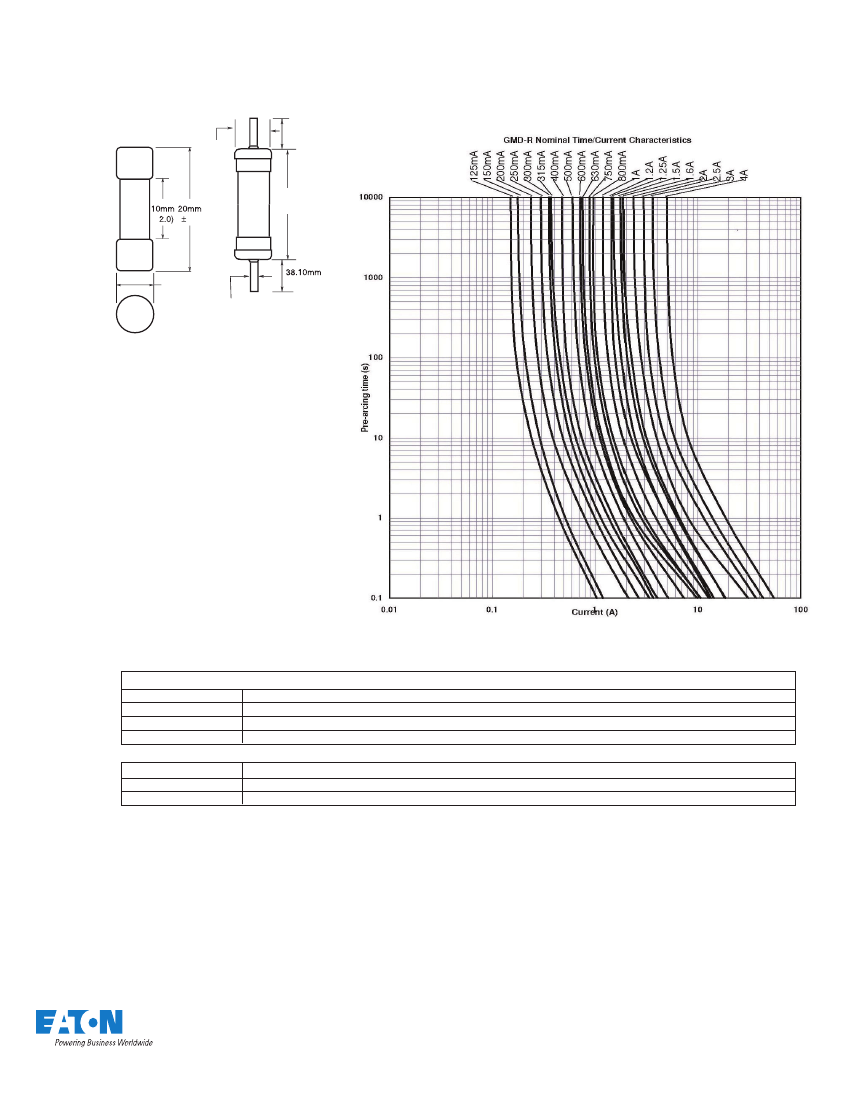

Time-Current Curve
38.10mm
(±.38)
5.54mm
(±.20)
Dimensions - mm
21.10mm
(±.81)
(±
( 0.5)
5.2mm
(+0.1/-0.2)
0.65mm
(REF)
(±.38)
Packaging Pre x
BK
BK1
TR2
Description
100 fuses packed into a cardboard carton
1,000 fuses packed into a poly bag
1,500 fuses packed into tape on a reel (19.05mm lead wire length)
Packaging Code
Option Code
V
Description
Axial leads - copper tinned wire with nickel plated brass endcaps
Option Code
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No. 2019
BU-SB08762
May
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
