5962R9664201VXC datasheet, PDF

5962R9664201VXC: Description4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP16; Categorylogic logic; File Size366KB，11 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

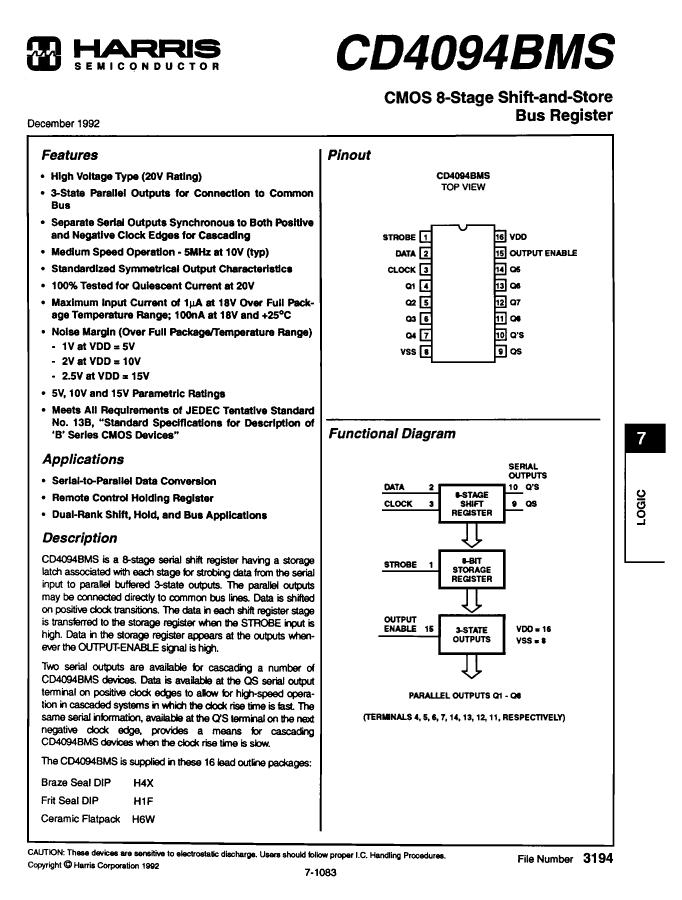

5962R9664201VXC Overview

4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP16

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	PARALLEL OUTPUT IS LATCHED; UNLATCHED SERIAL SHIFT RIGHT OUTPUT
Counting direction	RIGHT
series	4000/14000/40000
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Logic integrated circuit type	SERIAL IN PARALLEL OUT

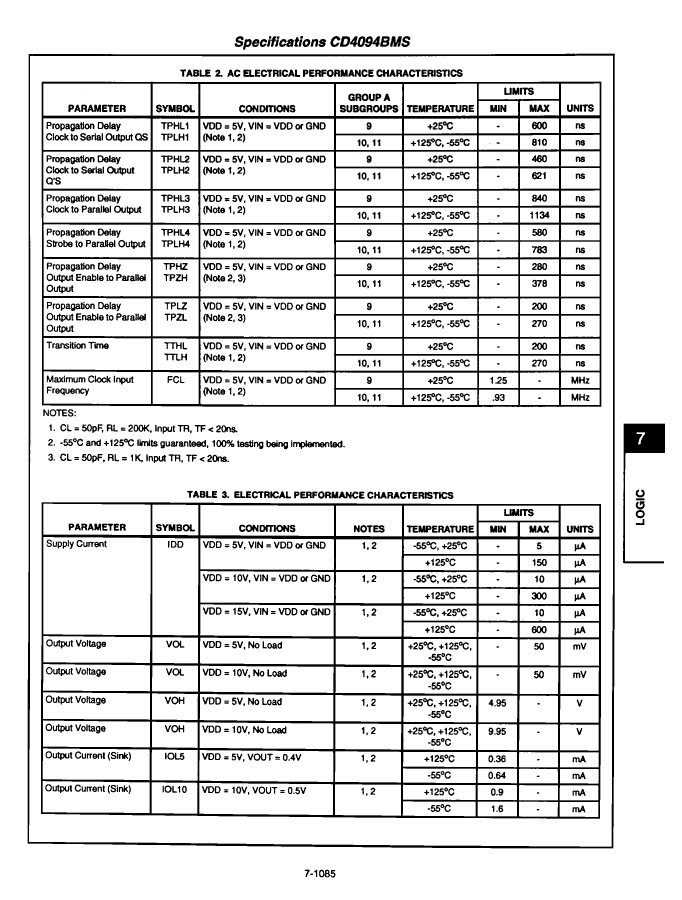

Maximum Frequency@Nom-Sup	930000 Hz
Number of digits	8
Number of functions	1
Number of terminals	16

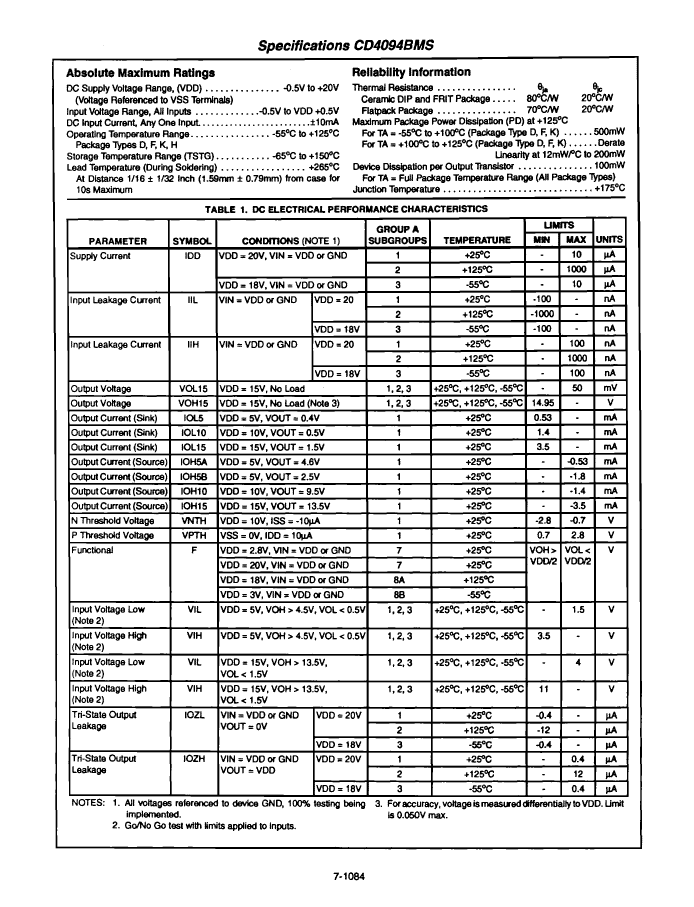

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5/15 V

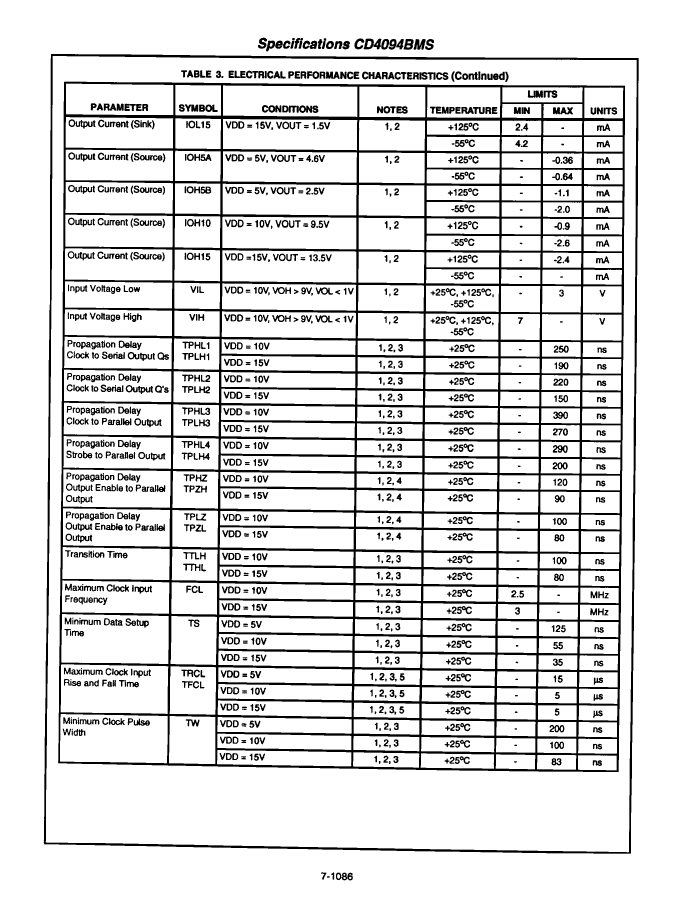

propagation delay (tpd)	1134 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL

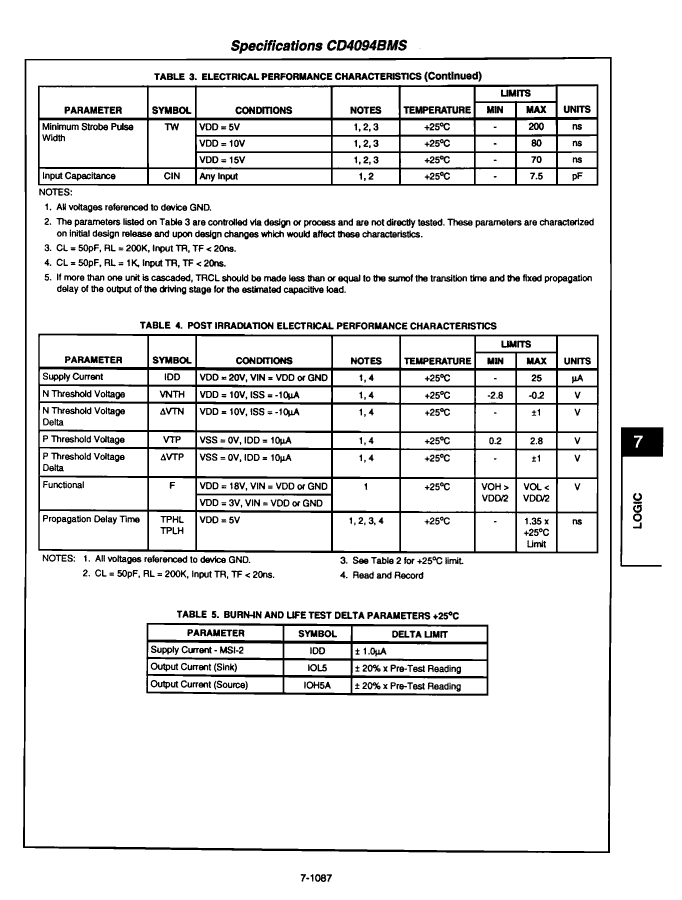

total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
width	6.73 mm
minfmax	1.25 MHz
Base Number Matches	1
