CD74HC4002E datasheet, PDF - EEWORLD Datasheet

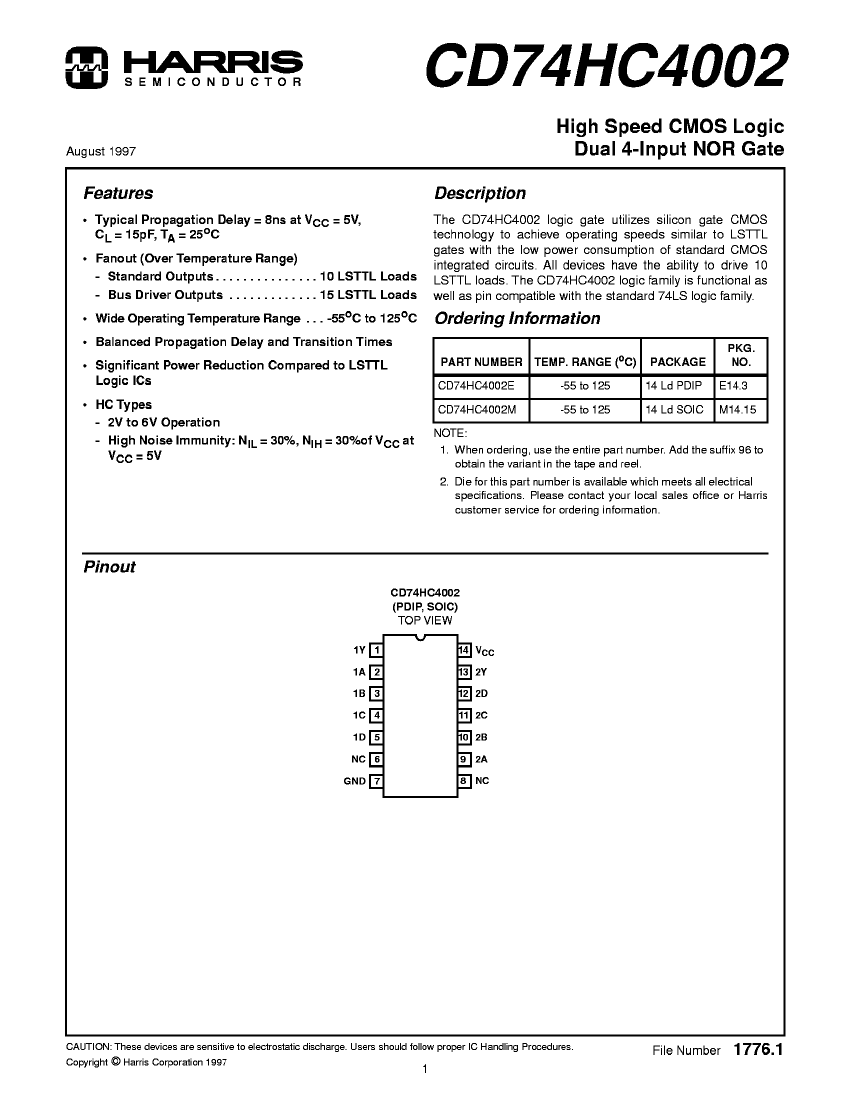

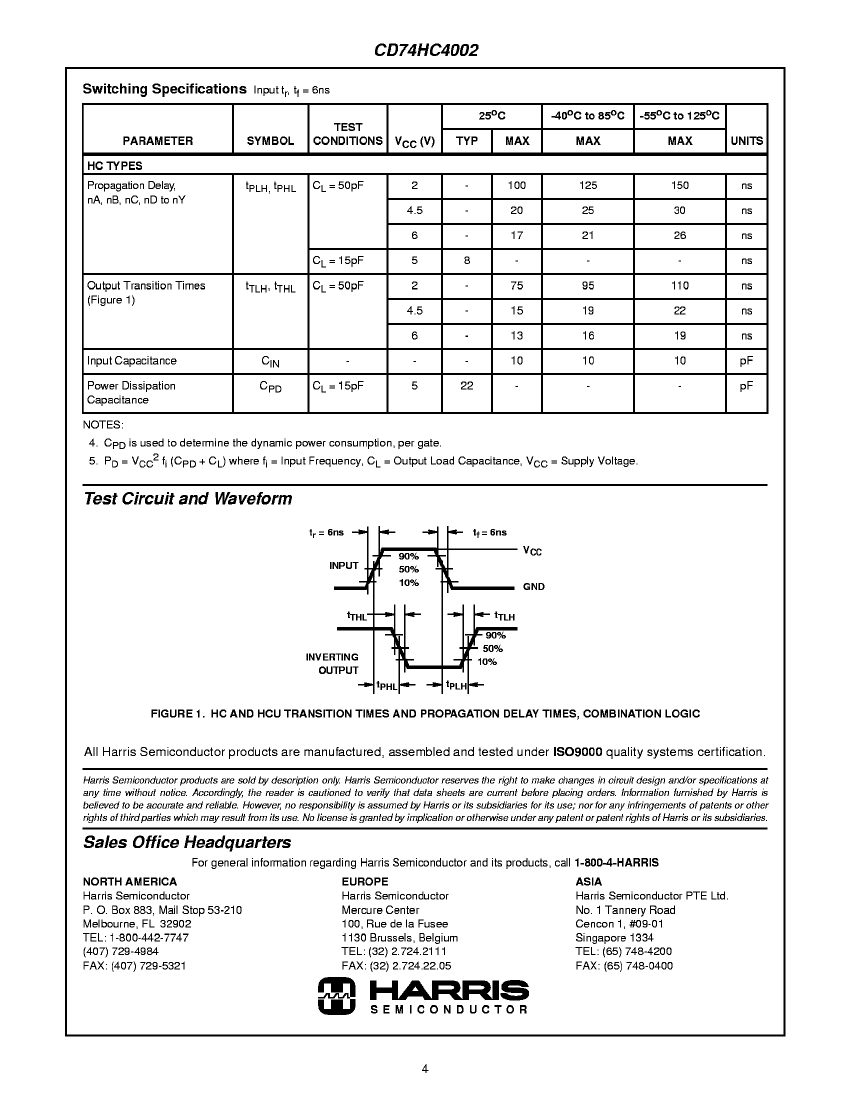

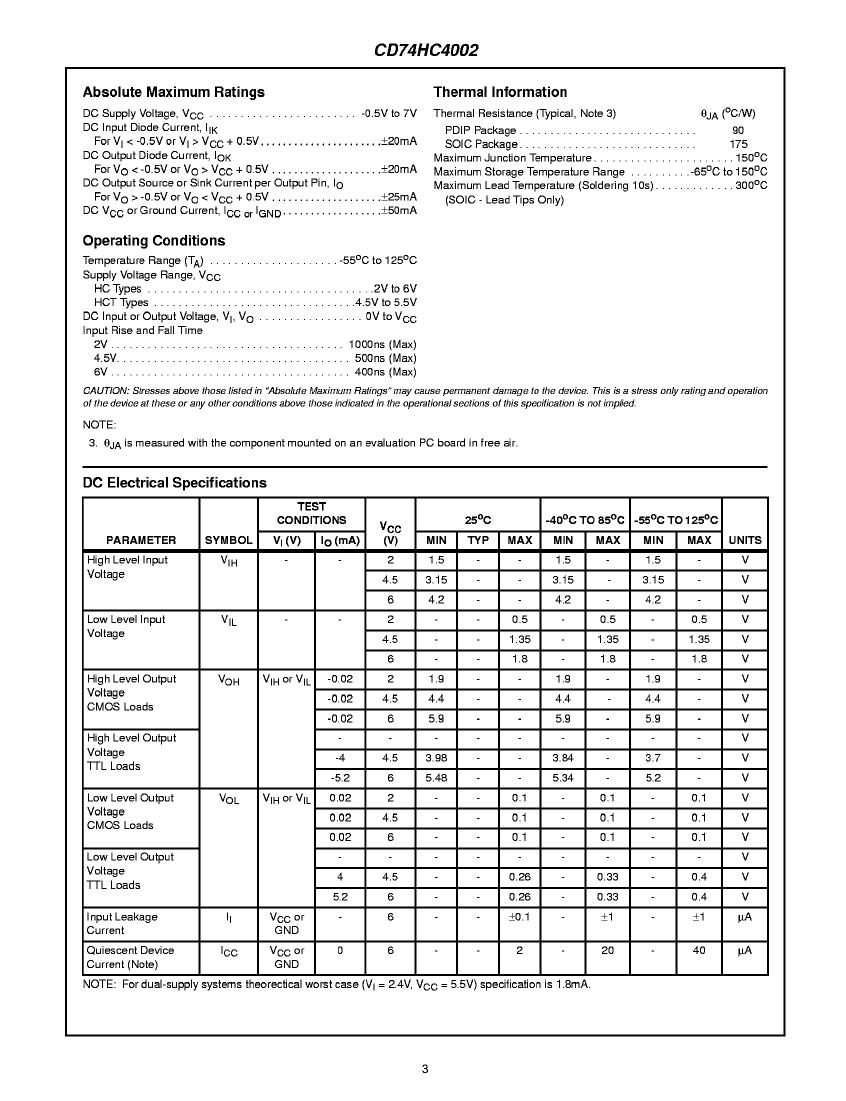

CD74HC4002E: DescriptionNOR Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDIP14; Categorylogic logic; File Size80KB，4 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CD74HC4002E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HC4002E	-	-	View	Buy Now

NOR Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	NOR GATE
MaximumI(ol)	0.004 A
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Prop。Delay @ Nom-Sup	30 ns
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	CD74HC4002E	CD74HC4002M96
Description	NOR Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDIP14	NOR Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDSO14
Is it Rohs certified?	incompatible	incompatible
Maker	Harris	Harris
package instruction	DIP, DIP14,.3	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown
series	HC/UH	HC/UH
JESD-30 code	R-PDIP-T14	R-PDSO-G14
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	NOR GATE	NOR GATE
MaximumI(ol)	0.004 A	0.004 A
Number of functions	2	2
Number of entries	4	4
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	2/6 V	2/6 V
Prop。Delay @ Nom-Sup	30 ns	30 ns
propagation delay (tpd)	30 ns	30 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
