7135-000-00701Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> 7135-000-00701Z

7135-000-00701Z: DescriptionFiber Optic ST Connector; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

7135-000-00701Z Overview

Fiber Optic ST Connector

7135-000-00701Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	FIBER OPTIC ST CONNECTOR
Manufacturer's serial number	7135-000-0070
Base Number Matches	1

Preview

Download Datasheet

View All

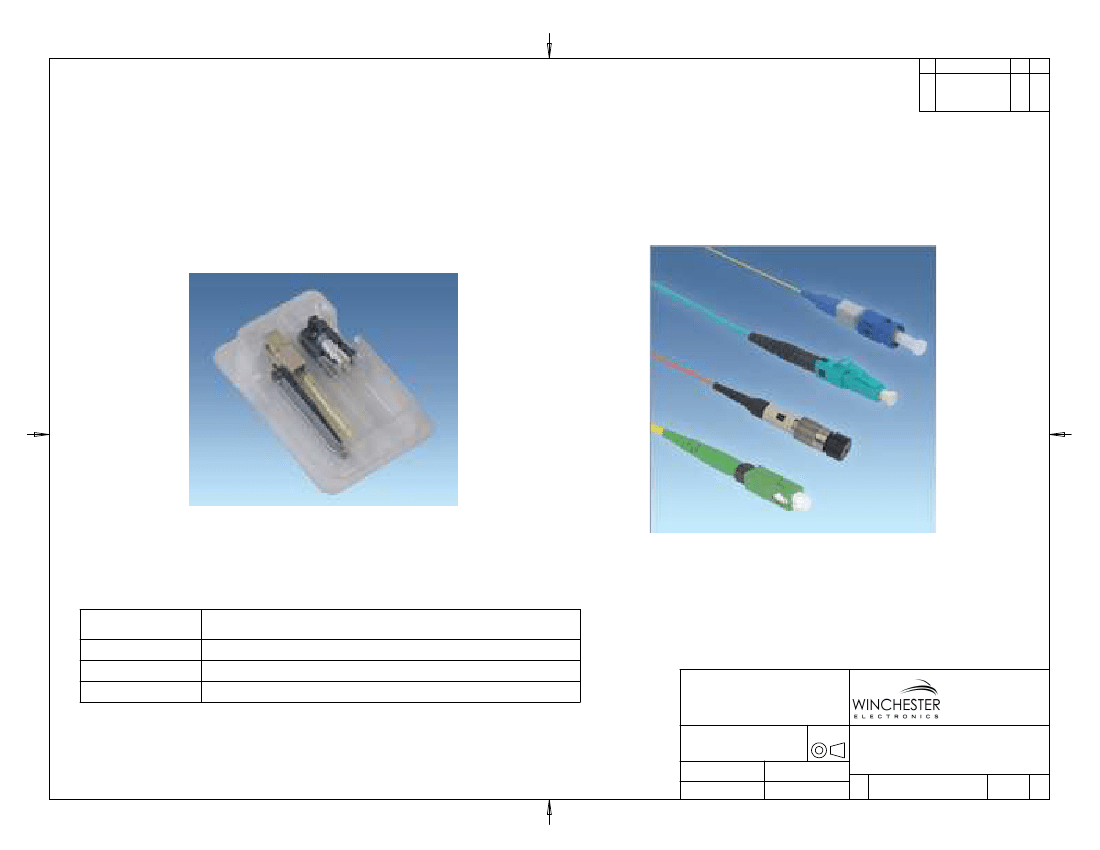

NOTES: UNLESS OTHERWISE SPECIFIED

1. THIS IS THE GENERAL SPECIFICATION DRAWING FOR THE KINGS BY WINCHESTER SPLICE-ON CONNECTOR

ST - MULTIMODE PRODUCT SERIES

2. CONNECTOR SPECIFICATIONS: SC [TIA/EIA-604-3 (FOCIS 3, MM [TIA/EIA568C.3]

3. INSERTION LOSS: MM: 0.1DB AVERAGE, 0.3DB MAX

4. RETURN LOSS: MM: >= 30DB

5. FUSION SPLICE CONNECTOR INSTALLATION KIT PART NUMBER KTH-2336

6. CLEAVE LENGTH FOR CABLE 10MM NOMINAL

7. OTHER TOOLS REQUIRED: KEVLAR SCISSORS, FIBER STRIPPER, JACKET STRIPPER, CT30A FIBER CLEAVER,

LINT FREE WIPES, >95% PURITY ISOPROPYL ALCOHOL OR EQUIVALENT FIBER PREP FLUID

REV

DESCRIPTION

INITIAL RELEASE

PER ER31261

BY APPD

DATE

03/02/11

XXX

CONNECTOR STYLES

(REF. ONLY)

PACKAGING

(REF. ONLY)

PRODUCT P/N

7135-000-00701Z

7135-000-00702Z

7135-000-00703Z

DESCRIPTION

ST PC 62.5UM MULTIMODE FUSECONNECT 900umBEIGE CS011252

ST PC 50UM MULTIMODE FUSECONNECT 900um BLACK CS011253

ST PC 50UM 10G MULTIMODE FUSECONNECT 900um AQUA CS011254

PER ASME Y14.5M-1994

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

DECIMAL: .XX [X.X] ± .xx

.XXX [X.XX] ± .xxx

.XXXX [X.XXX] ± .XXXX

ANGLES: ± 2°

SCALE: X:X

THIRD

ANGLE

Winchester Electronics Corporation

62 Barnes Industrial Road North

Wallingford, Connecticut 06492

CUSTOMER

SALES DRAWING

DRAWN

APPROVED

XXX

DMF029 B

DATE APPROVED

03/02/11

XXX

DATE APPROVED

XX/XX/XX XXX

DATE

06/01/10

DATE

XX/XX/XX

FUSION SPLICE CONNECTORS

ST - MULTIMODE

SD7135-000-0070XZ

SHT

1 01

REV

7135-000-00701Z Related Products

	7135-000-00701Z	7135-000-00703Z	7135-000-00702Z
Description	Fiber Optic ST Connector	Fiber Optic ST Connector	Fiber Optic ST Connector
Reach Compliance Code	unknown	unknown	unknown
Connector type	FIBER OPTIC ST CONNECTOR	FIBER OPTIC ST CONNECTOR	FIBER OPTIC ST CONNECTOR
Manufacturer's serial number	7135-000-0070	7135-000-0070	7135-000-0070
Base Number Matches	1	1	1
