54FCT244ATLB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54FCT244ATLB

54FCT244ATLB: DescriptionLCC-20, Tube; Categorylogic logic; File Size185KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

54FCT244ATLB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54FCT244ATLB	-	-	View	Buy Now

54FCT244ATLB Overview

LCC-20, Tube

54FCT244ATLB Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	LCC
package instruction	HQCCN, LCC20,.35SQ
Contacts	20
Manufacturer packaging code	LC20
Reach Compliance Code	not_compliant
ECCN code	EAR99
Control type	ENABLE LOW
series	FCT
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
length	8.89 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Humidity sensitivity level	1
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	HQCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Prop。Delay @ Nom-Sup	5.1 ns
propagation delay (tpd)	5.1 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1

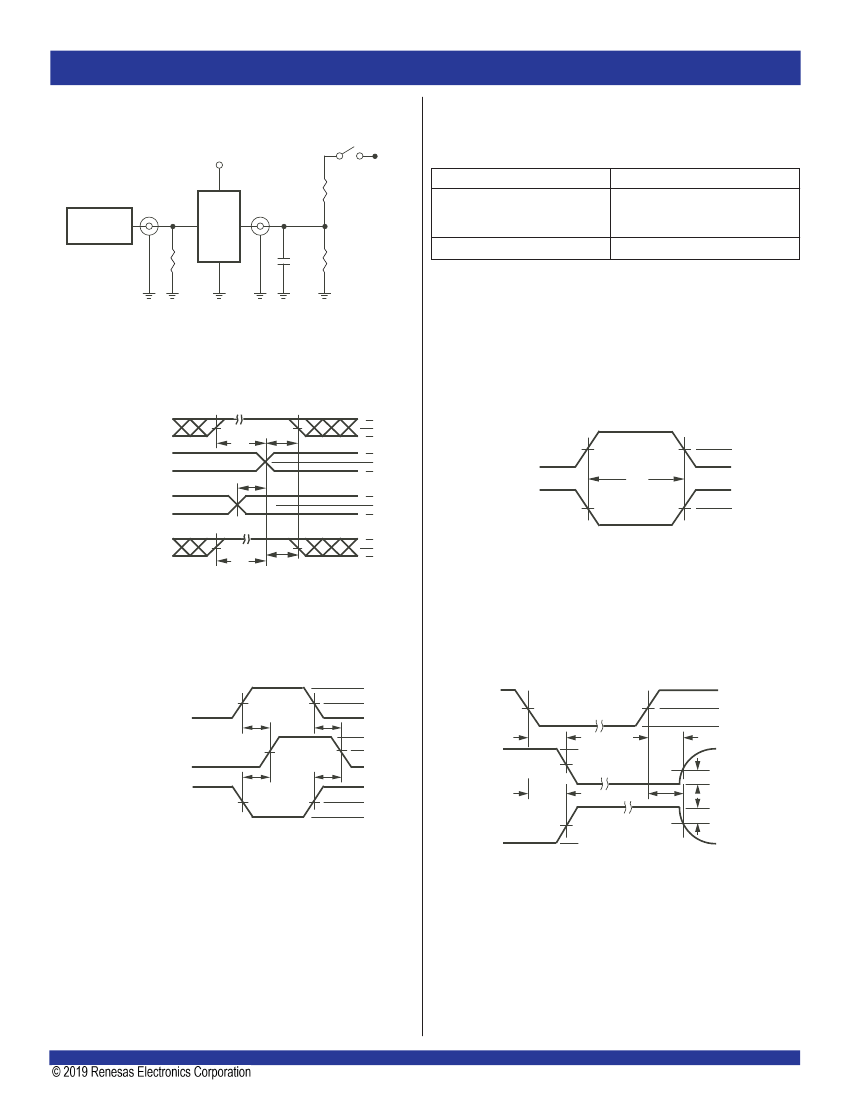

Preview

Download Datasheet

View All

IDT54/74FCT244T/AT/CT

FAST CMOS OCTAL BUFFER/LINE DRIVER

MILITARY AND INDUSTRIAL TEMPERATURE RANGES

FAST CMOS OCTAL

BUFFER/LINE

DRIVER

FEATURES:

IDT54/74FCT244T/AT/CT

•

Std., A, and C grades

Low input and output leakage

≤

1µA (max.)

CMOS power levels

True TTL input and output compatibility:

– V

= 3.3V (typ.)

– V

= 0.3V (typ.)

High Drive outputs (-15mA I

, 64mA I

)

Meets or exceeds JEDEC standard 18 specifications

Military product compliant to MIL-STD-883, Class B and DESC

listed (dual marked)

Power off disable outputs permit "live insertion"

Available in the following packages:

– Industrial: SOIC, SSOP, QSOP, TSSOP

– Military: CERDIP, LCC

DESCRIPTION:

The IDT octal buffer/line driver is built using an advanced dual metal

CMOS technology. The FCT244T is designed to be employed as a memory

and address driver, clock driver, and bus-oriented transmitter/ receiver

which provides improved board density.

FUNCTIONAL BLOCK DIAGRAM

IDT and the IDT logo are registered trademarks of Integrated Device Technology, Inc.

MILITARY AND INDUSTRIAL TEMPERATURE RANGES

DECEMBER 2016

DSC-5586/5
