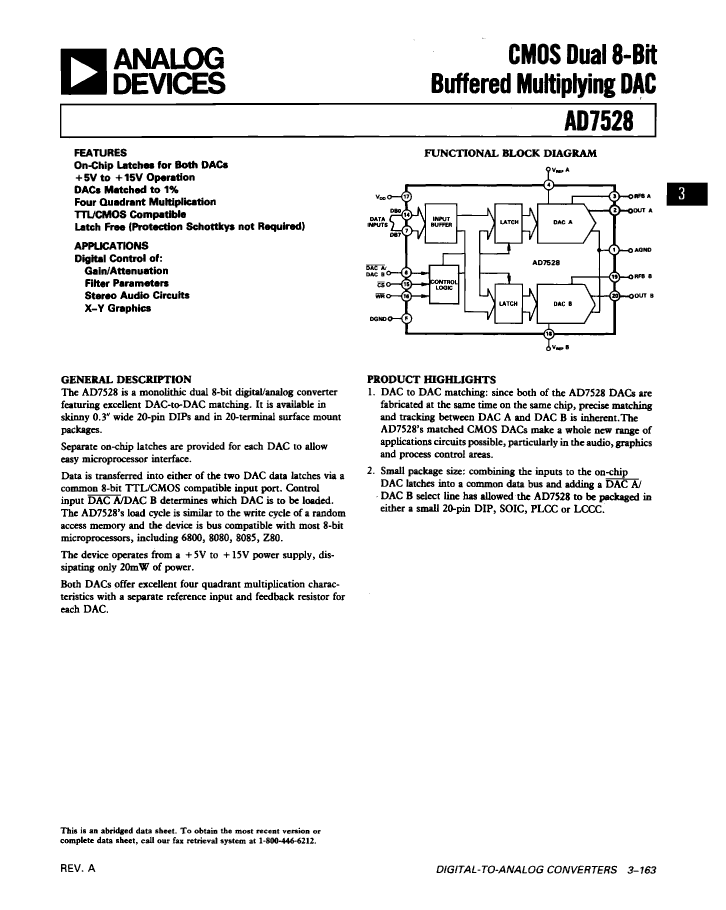

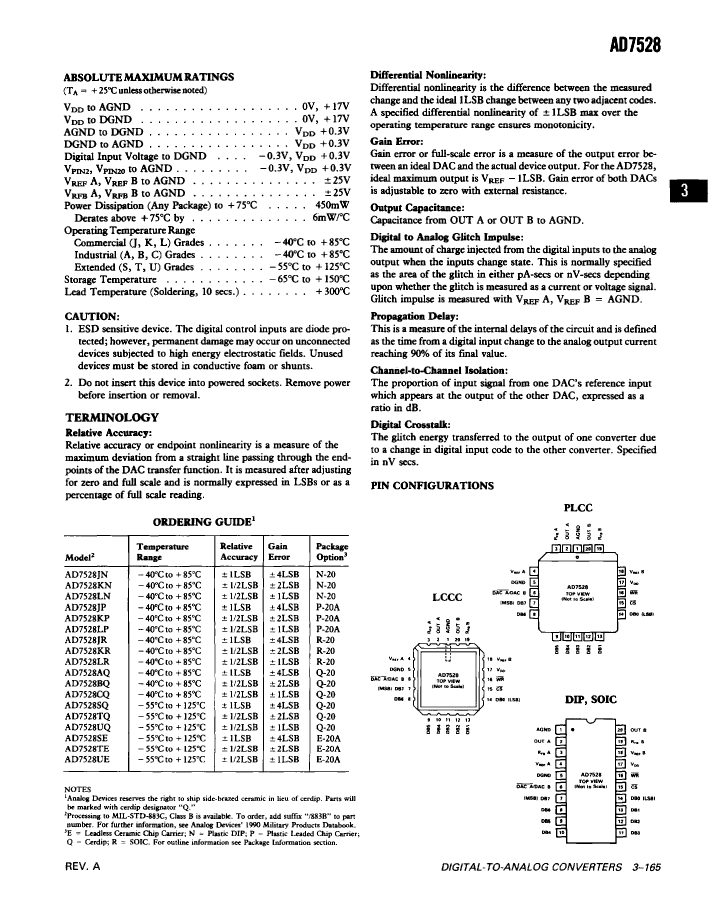

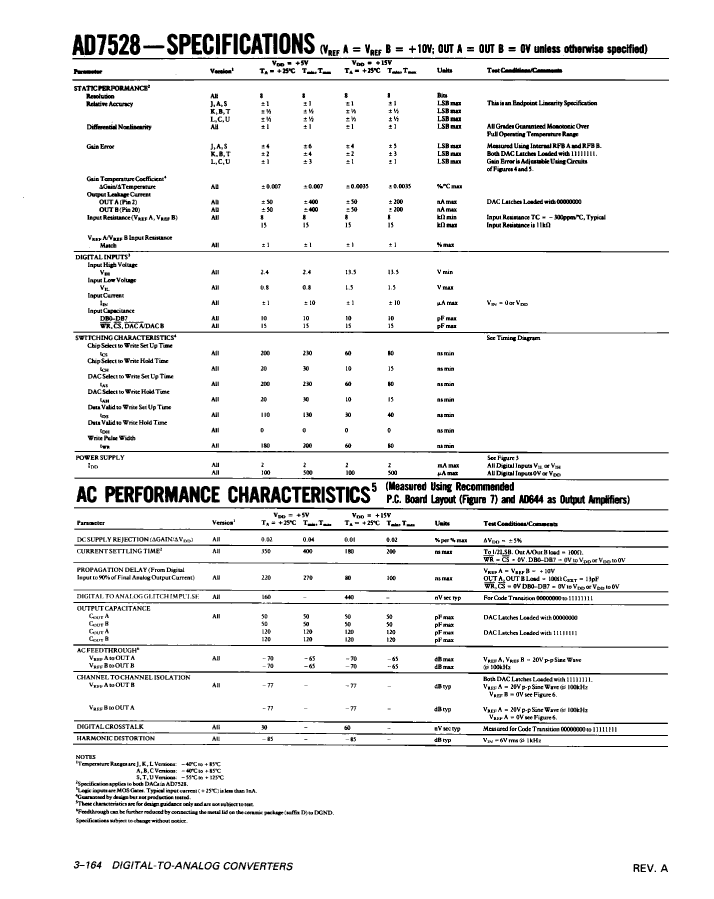

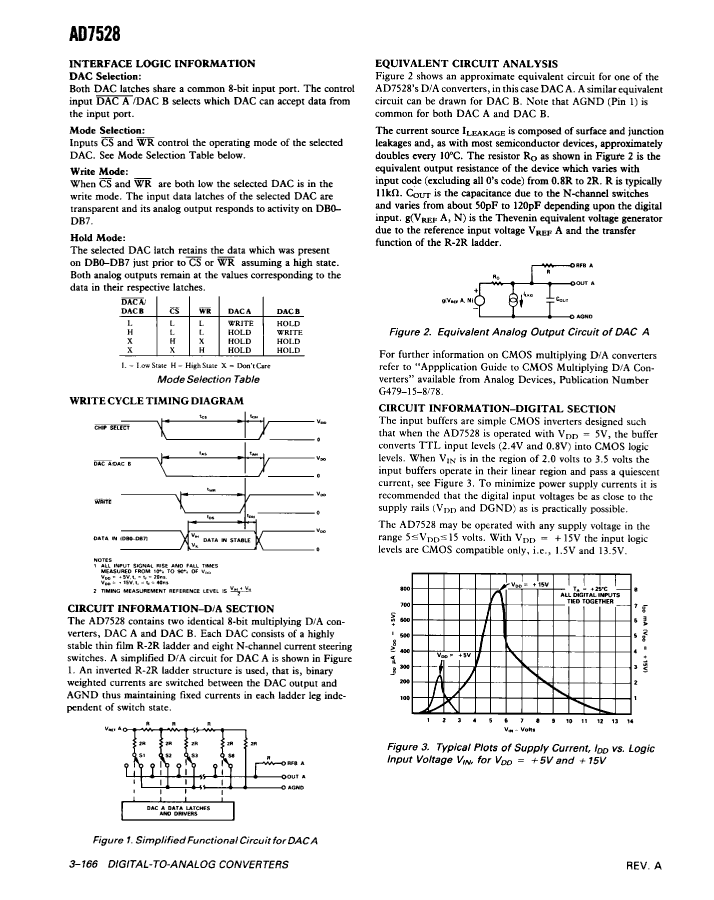

IC DUAL, PARALLEL, 8 BITS INPUT LOADING, 0.18 us SETTLING TIME, 8-BIT DAC, CQCC20, CERAMIC, LCC-20, Digital to Analog Converter
| Parameter Name | Attribute value |
| Maker | ADI |
| Parts packaging code | QLCC |
| package instruction | LCC-20 |
| Contacts | 20 |
| Reach Compliance Code | compliant |
| ECCN code | 3A001.A.2.C |
| Converter type | D/A CONVERTER |
| Enter bit code | BINARY, OFFSET BINARY |
| Input format | PARALLEL, 8 BITS |
| JESD-30 code | S-CQCC-N20 |
| length | 8.89 mm |
| Maximum linear error (EL) | 0.1953% |
| Number of digits | 8 |
| Number of functions | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 2.54 mm |
| Maximum stabilization time | 0.4 µs |
| Nominal settling time (tstl) | 0.35 µs |
| Maximum slew rate | 2 mA |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 8.89 mm |
| Base Number Matches | 1 |
| 5962-87701032X | 5962-8770101RX | 5962-8770103RX | 5962-8770102RX | 5962-87701022X | |
|---|---|---|---|---|---|
| Description | IC DUAL, PARALLEL, 8 BITS INPUT LOADING, 0.18 us SETTLING TIME, 8-BIT DAC, CQCC20, CERAMIC, LCC-20, Digital to Analog Converter | IC DUAL, PARALLEL, 8 BITS INPUT LOADING, 0.18 us SETTLING TIME, 8-BIT DAC, CDIP20, 0.300 INCH, GLASS SEALED, SKINNY, CERDIP-20, Digital to Analog Converter | IC DUAL, PARALLEL, 8 BITS INPUT LOADING, 0.18 us SETTLING TIME, 8-BIT DAC, CDIP20, 0.300 INCH, GLASS SEALED, SKINNY, CERDIP-20, Digital to Analog Converter | IC DUAL, PARALLEL, 8 BITS INPUT LOADING, 0.18 us SETTLING TIME, 8-BIT DAC, CDIP20, 0.300 INCH, GLASS SEALED, SKINNY, CERDIP-20, Digital to Analog Converter | IC DUAL, PARALLEL, 8 BITS INPUT LOADING, 0.18 us SETTLING TIME, 8-BIT DAC, CQCC20, CERAMIC, LCC-20, Digital to Analog Converter |
| Parts packaging code | QLCC | DIP | DIP | DIP | QLCC |
| package instruction | LCC-20 | 0.300 INCH, GLASS SEALED, SKINNY, CERDIP-20 | DIP, | 0.300 INCH, GLASS SEALED, SKINNY, CERDIP-20 | CERAMIC, LCC-20 |
| Contacts | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| ECCN code | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C |
| Converter type | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER |
| Enter bit code | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY |
| Input format | PARALLEL, 8 BITS | PARALLEL, 8 BITS | PARALLEL, 8 BITS | PARALLEL, 8 BITS | PARALLEL, 8 BITS |
| JESD-30 code | S-CQCC-N20 | R-GDIP-T20 | R-GDIP-T20 | R-GDIP-T20 | S-CQCC-N20 |
| length | 8.89 mm | 24.195 mm | 24.195 mm | 24.195 mm | 8.89 mm |
| Number of digits | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN | DIP | DIP | DIP | QCCN |
| Package shape | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | CHIP CARRIER | IN-LINE | IN-LINE | IN-LINE | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Qualified | Qualified | Qualified | Qualified | Qualified |
| Filter level | 38535Q/M;38534H;883B | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 |
| Maximum seat height | 2.54 mm | 5.08 mm | 5.08 mm | 5.08 mm | 2.54 mm |
| Nominal settling time (tstl) | 0.35 µs | 0.18 µs | 0.18 µs | 0.18 µs | 0.18 µs |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | NO LEAD |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | DUAL | DUAL | DUAL | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 8.89 mm | 7.62 mm | 7.62 mm | 7.62 mm | 8.89 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Maker | ADI | ADI | - | ADI | ADI |
