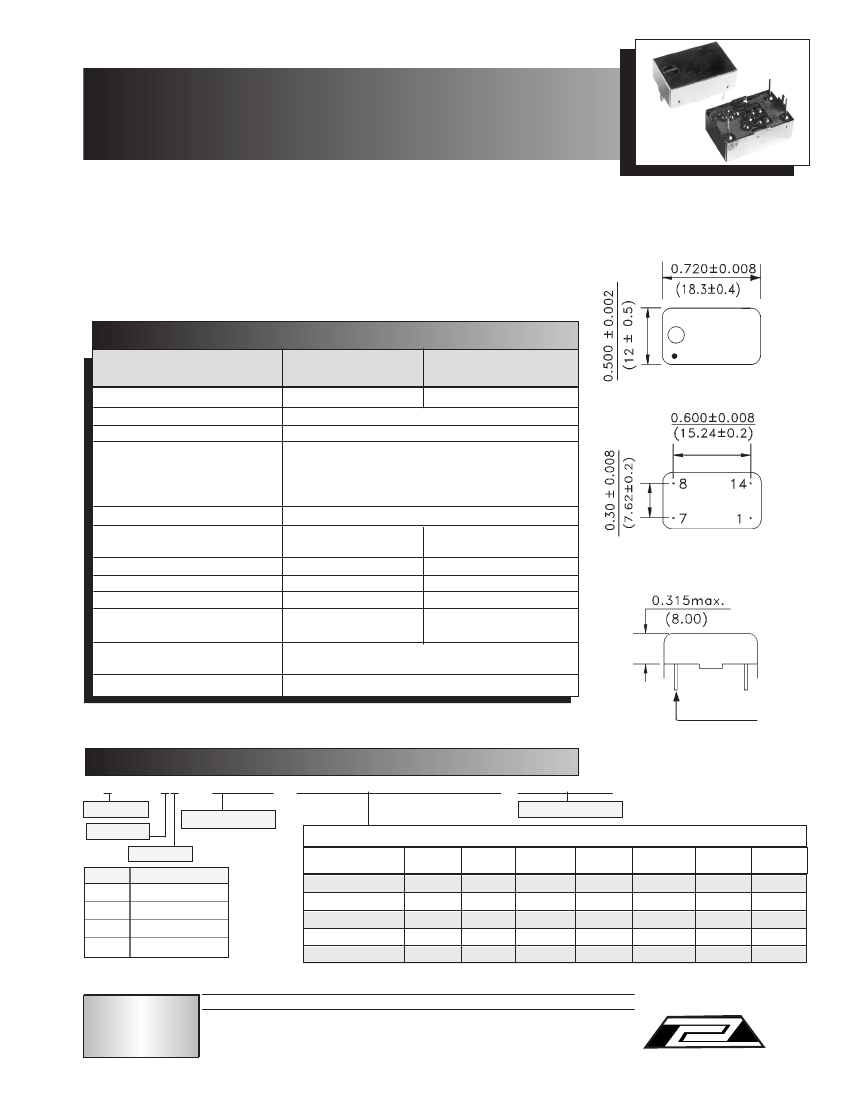

TTL / CMOS
AND
SINE WAVE •
CRYSTAL OSCILLATORS
TEMPERATURE-COMPENSATED XTAL OSCILLATORS
ACTX 1018 and ACVTX 1018 Series
FEATURES:
• Compatible with 14 Pin Dual in Line.
• Compact Size.
• Tight Stability Available.
• Low Current Consumption.
• Control Voltage Function.
• Low can height option.
APPLICATIONS:
• Cellular and Cordless Phones.
• Facsimile and Computer Control.
• Car Telephones.
• Communication Equipment
STANDARD SPECIFICATIONS
PARAMETERS
(F
o
)
Frequency Range
Operating Temperature (T
OPR
)
Storage Temperature
(T
STO
)
Frequency Stability -vs- 25°C
-vs- Temperature
-vs- Aging
-vs- Supply Voltage
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
Duty Cycle or Symmetry
Rise and Fall Times
(T
R
/
T
F
)
Output Load
Output Voltage
(V
OH
)
(V
OL
)
Frequency Adjustment
(Internal Trimmer)
Vc and Freq. Pulling (V Series)
ACTX 1018 (A)
ACVTX1018 (A)
ACTX 1018 S
ACVTX1018S (A)
1 MHz - 26 MHz
8 MHz - 45 MHz
-10°C to + 60°C
(See Options / Table 1)
-40°C to + 85°C
± 0.5 ppm max
± 2.5 ppm max.
(See Options / Table 1)
± 1 ppm per year max.
± 0.5 ppm max.
5 Vdc ± 5% or 3.3 Vdc ± 5% (A Series)
_
20 mA max.
2 mA max. for F < 26 MHz
4 mA max. for F > 26 MHz
40 / 60% max.
N/A
10 ns max.
N/A
15 pF or 2 TT L
10 k
Ω
// 10 pF
0.9 * V
dd
min.
1 V
pp
min. Clipped Sine
0.4 V
dc
max.
0.7 Vpp min. (A Series)
± 3 ppm min.
0.5 V to 4.5 V or 0.3 V to 3.0 V (± 10 ppm min.)
Dimensions: Inches (mm)
For test circuit, waveforms, please see page 67.
Environmental and mechanical specifications on page 68, Group 4.
Marking, see p. 79.
0.024
(
o
0.6) ref.
/
ORDERING OPTIONS
AC X TX 1018 X X
Blank or V
Blank or S
Blank or A
-
Frequency - Temperature & Frequency Stability - Max. Can Height
H5 for 5.08 mm
NOTE:
Pin 1 may be present with no
connection function.
XX.XXXXX MHz
TABLE 1
FUNCTION
TEMPERATURE
RANGE
°C
Frequency - vs.- Temperature
± 0.5 ppm ± 1 ppm ± 1.5 ppm
max.
max.
max.
± 2 ppm
max.
± 2.5 ppm
max.
± 3 ppm
max.
± 5 ppm
max.
PIN #
1
7
8
14
Vc or N/A
GND / Case
Output
V
cc
0°C to + 50°C
-10°C to + 60°C
-20°C to + 70°C
- 30°Cto + 75°C
- 40°Cto + 85°C
C 05
C 10
D 10
C 15
D 15
C 20
D 20
E 20
F 20 (
*
)
C 25
Standard
E 25
F 25 (
*
)
ON
C 30
D 30
E 30
F 30 (
*
)
G 30 (
*
)
C 50
D 50
E 50
F 50 (
*
)
G 50 (
*
)
(
*
) D
EPENDING
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
NOTE: Left blank if standard
•
All specifications and markings subject to change without notice
F
REQUENCY
ABRACON
29 Journey • Aliso Viejo, CA 92656 • USA
(949) 448-7070
•
F
AX
: (949) 448-8484
E-
MAIL
:
abinfo
@
abracon.com •
I
NTERNET
A
DDRESS
:
www.abracon.com
®
- 55 -
C O R P O R AT I O N
