SHD-4135-242: DescriptionLogic IC Output Optocoupler, 4-Element, 5000V Isolation, HERMETIC, CERAMIC, SOIC-16; CategoryLED optoelectronic/LED photoelectric; File Size63KB，4 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

SHD-4135-242 Overview

Logic IC Output Optocoupler, 4-Element, 5000V Isolation, HERMETIC, CERAMIC, SOIC-16

SHD-4135-242 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
package instruction	HERMETIC, CERAMIC, SOIC-16
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Other features	CMOS COMPATIBLE
Configuration	SEPARATE, 4 CHANNELS
Maximum forward current	0.01 A
Maximum insulation voltage	5000 V
Number of components	4
Maximum on-state current	0.025 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER
Base Number Matches	1

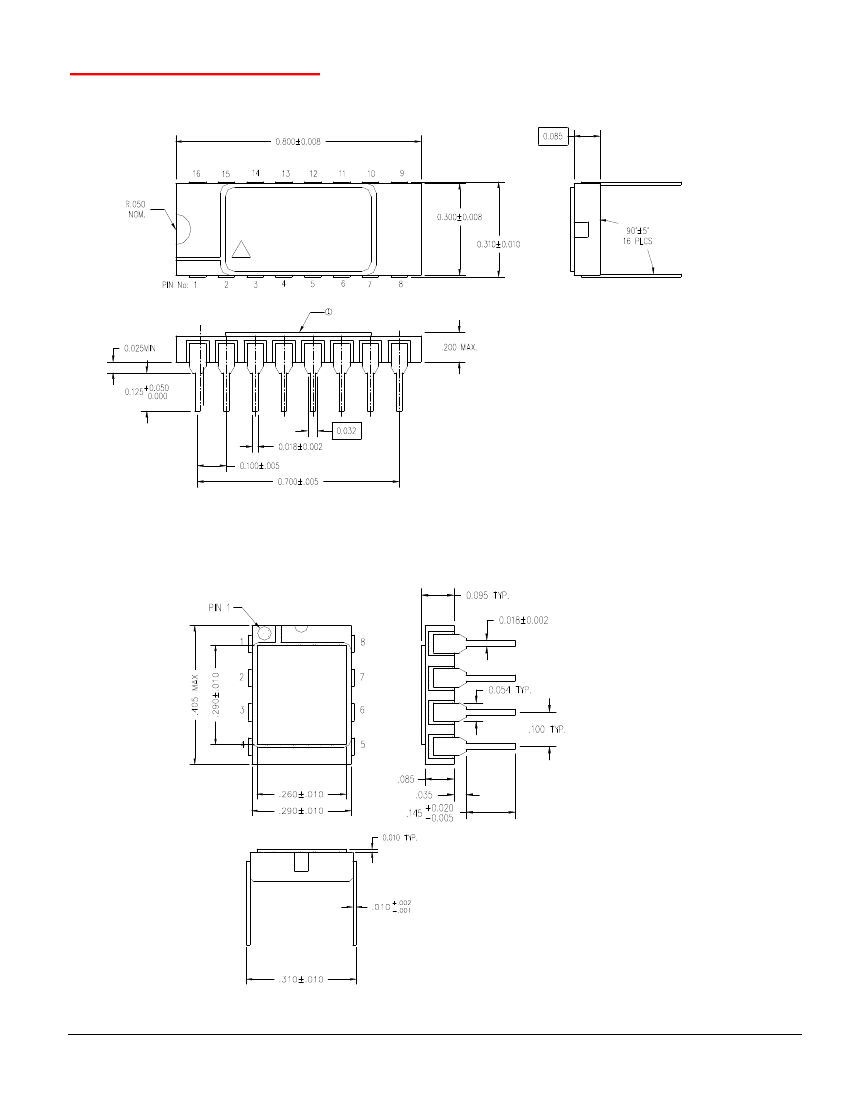

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

DATA SHEET 4135, REV. A

TECHNICAL DATA

SHD-4135-XXX

High Data Rate Optocoupler

Features:

Hermetic / Ceramic packages

60ns propagation delay

40Mbd Typical Signal Rate

Low Input Current (1.6mA to 1.8mA)

CMOS Output

-211 (DIP)

-212 (SOIC)

Applications:

High Speed Isolation

Ground Loop Elimination

Pulse Transformer Replacement

A/D, D/A Conversion

Switching Power Supplies

-221 (DIP)

-222 (SOIC)

-241 (DIP)

-242 (SOIC)

Absolute Maximum Ratings

PARAMETER

Forward Current

Input

Peak Forward Current

Reverse Voltage

SYMBOL

RATING

UNIT

Supply Voltage

Output

Output Voltage

Current

Total Power Dissipation

Isolation Voltage

CEO

ECO

iso

opr

stg

0 to 7

-.5 to 10

200

5000

-55 to +125

-55 to +150

260

rms

Operating Temperature

Storage Temperature

Soldering Temperature

***

sol

< 1 ms duration

AC for 1 min, 40 to 60% RH

For 10 seconds

221 West Industry Court

Deer Park, NY 11729-4681

Phone (631) 586 7600 Fax (631) 242 9798

World Wide Web Site - www.sensitron.com

E-Mail Address - sales@sensitron.com
