539-41.660MHZ-DE0 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 539-41.660MHZ-DE0

539-41.660MHZ-DE0: DescriptionLVPECL Output Clock Oscillator, 41.66MHz Nom, ROHS COMPLIANT, SMD, 6 PIN; CategoryPassive components oscillator; File Size208KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

539-41.660MHZ-DE0 Overview

LVPECL Output Clock Oscillator, 41.66MHz Nom, ROHS COMPLIANT, SMD, 6 PIN

539-41.660MHZ-DE0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPLEMENTARY OUTPUT; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Nominal operating frequency	41.66 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	7.5mm x 5.0mm x 1.5mm
longest rise time	1 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

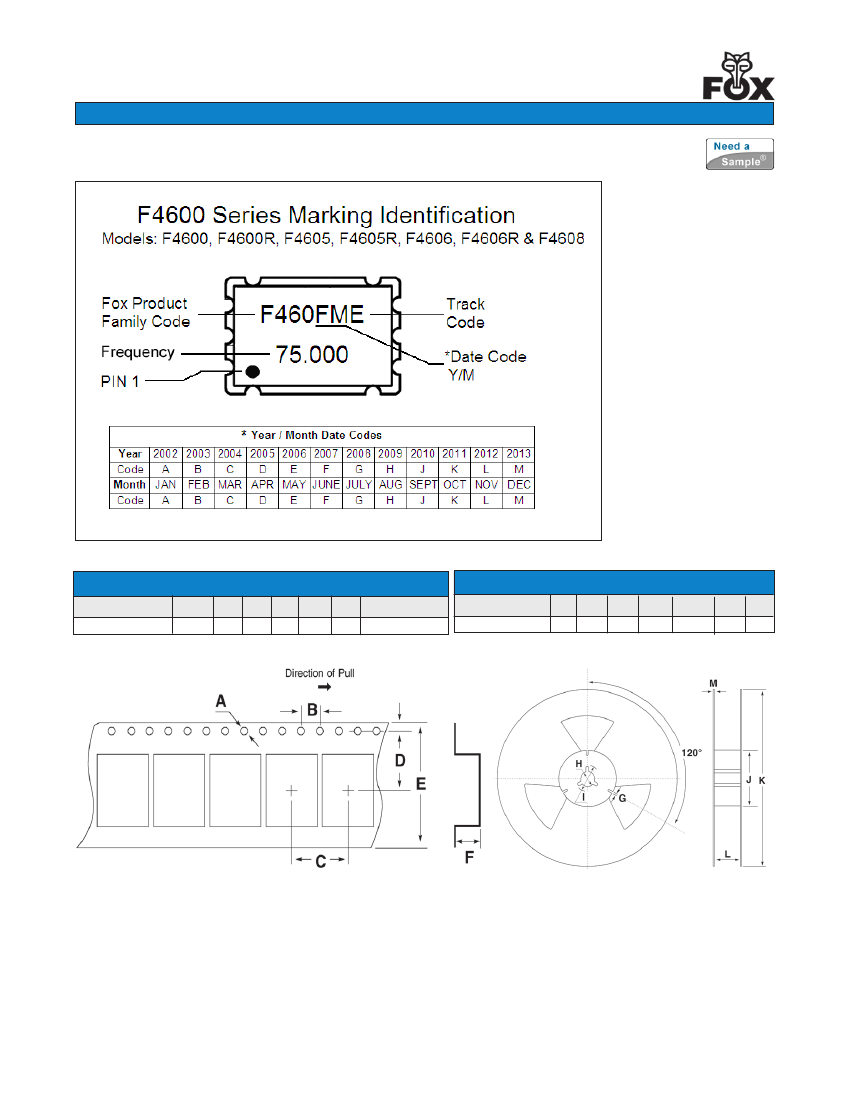

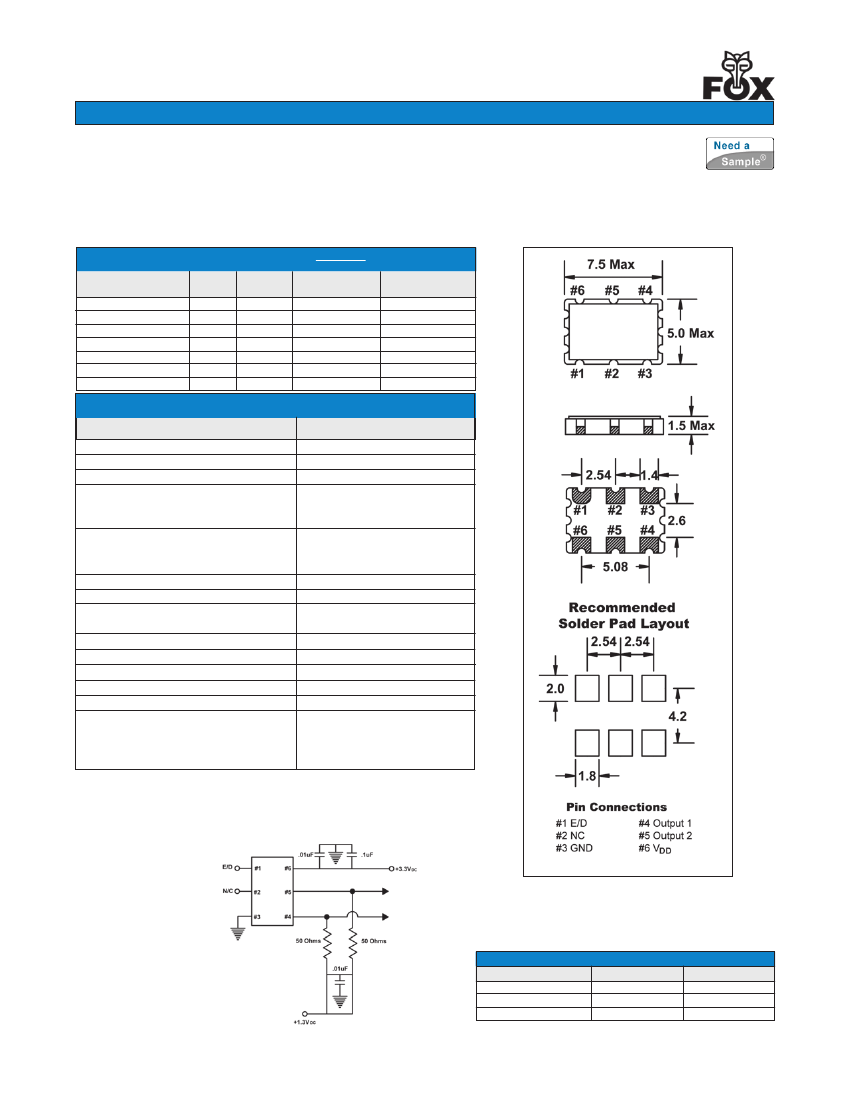

lV-PEcl 7x5mm 3.3V Oscillator

F4600 sERiEs

Page 1 of 2

RoHs compliant / Pb Free

OPTiOns

•

2.5V Version (F4620)

Rev. 2/14/2008

http://www.foxonline.com/need_a_sample.htm

FEATuREs

•

3.3V Operation

•

LV-PECL Output

Complementary Outputs

Standby Function

Tape and Reel

(2,000 pcs. STD)

• Pin 2 E/D (A Series)

• PART nuMbER sElEcTiOn

Learn More - Internet Required

Part Number

535-Frequency-xxxxx

536-Frequency-xxxxx

537-Frequency-xxxxx

538-Frequency-xxxxx

539-Frequency-xxxxx

540-Frequency-xxxxx

541-Frequency-xxxxx

Model

Number

F4600

F4600R

F4605

F4605R

F4606

F4606R

F4608

Operating

Frequency

Stability

Temperature (ºC)

-10 ~ +70

±100PPM

-40 ~ +85

±100PPM

-10 ~ +70

±50PPM

-40 ~ +85

±50PPM

-10 ~ +70

±25PPM

-40 ~ +85

±25PPM

-10 ~ +70

±20PPM

Frequency

Range (MHz)

41.660 ~ 280.000

41.660 ~ 170.000

41.660 ~ 280.000

41.660 ~ 170.000

41.660 ~ 210.000

41.660 ~ 170.000

• ElEcTRicAl cHARAcTERisTics

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

stg

)

Supply Voltage

)

Input Current

)

41.660 Mhz ~ 250.000 MHz

250.000+ Mhz ~ 280.000 MHz

Output Symmetry (50% Vp-p Level)

41.660 MHz ~ 170.000 MHz

170.000 Mhz ~ 280.000 MHz

Rise Time (T

) (20% ~ 80% Vp-p)

Fall Time (T

)(80% ~ 20% Vp-p)

Output Voltage

)

Standby Current

Output Load

Start-up Time

)

Output Disable Time

Output Enable Time

Jitter

12kHz ~ 20MHz

RMS Period

Cycle-to-Cycle

MAX

(unless otherwise noted)

41.660 ~ 280.000 MHz

-55ºC ~ +125ºC

3.3V ± 5%

60mA

88mA

45% ~ 55%

40% ~ 60%

1nS

1.7V

2.2V Min

30µA

See Recommended Circuit

10mS

100nS

10mS

0.3pS Typ.

2.5pS Typ.

20pS Typ.

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration.

An internal pullup resistor from pin 1 to pin 6 allows active output if pin 1 is left open.

Note: A 0.01µF bypass capacitor should be placed between

(Pin 6) and GND (Pin 3) to

minimize power supply line noise.

All specifications subject to change without notice.

All dimensions are in millimeters.

• EnAblE / DisAblE FuncTiOn

OUTPUT (Pin 4)

(Pin 1)

ACTIVE

OPEN

'1' Level V

≥

70% V

ACTIVE

'0' Level V

≤

30% V

High Z

OUTPUT (Pin 5)

ACTIVE

High Z

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com
