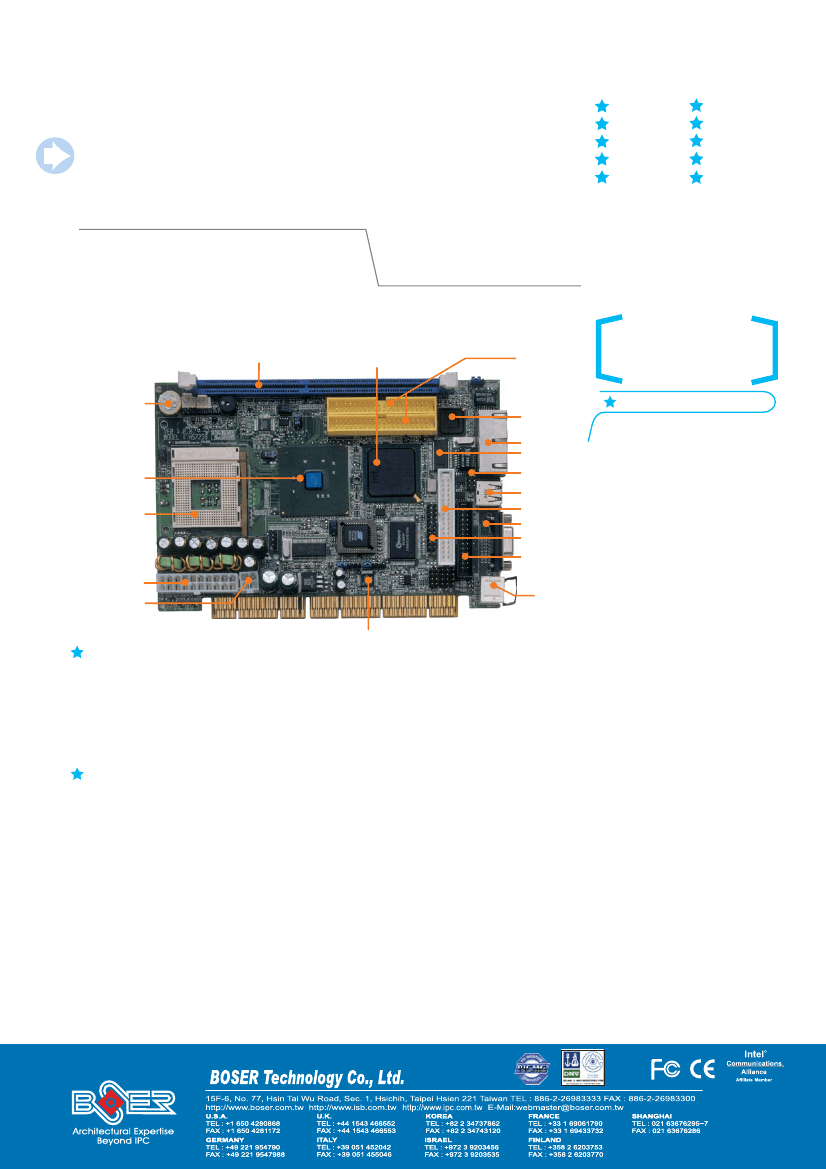

Mini PCI
DDR
Audio
ATA/33/66/100
USB2.0
WDT
H/W Monitor
HS-7238
DDR
Battery
PCI-ISA Bus
Single Board Computer
DVI/CRT
Dual LAN
Wireless LAN
Pentium 4 PCI-ISA Bus SBC with DVI/CRT,
Audio, Dual LAN & Wireless LAN
Intel 82801DB
IDE
USB2.0!!
DVI Display!!
Wireless LAN!!
Ordering Guide
●
HS-7238
Pentium 4 PCI-ISA Bus SBC with
VGA, Audio & Dual LAN
Intel 82559
Dual RJ-45
Intel 82562
Intel 82845G
Internal USB
External USB
PGA 478
FDD
DVR or CRT
COM 1~COM 2
Parallel
ATX Power In
4-pin ATX Power In
USB or PS/2 KB/MS
AC97
Features
●
PGA 478 for Intel Pentium 4 up to 2.8GHz CPU
●
Mini PCI Local Bus support
●
One DDR socket with a max. capacity of 512MB
●
Intel 82845G/82801DB system chipset
●
Winbond W83627, ITE IT8888 super I/O chipset
●
Intel 82845G CRT display controller
●
Intel 82559 and Intel 82562 10/100 Based LAN
●
AC97 3D audio controller
●
Fast PCI ATA/33/66/100 IDE controller
●
Two COM, two USB2.0 connectors
●
Supports Hardware Monitor
●
Supports DVI display (optional)
●
Supports wireless LAN module (optional)
Specifications
* CPU:
PGA 478 for Intel Pentium 4 up to 2.8GHz CPU
* Bus Interface:
PCI-ISA and Mini PCI Local Bus (no 3.3V output
through goldfinger)
* Memory:
One DDR socket with a max. capacity of 512MB
* Chipset:
Intel 82845G/82801DB
* I/O Chipset:
Winbond W83627, ITE IT8888
* VGA:
Intel 82845G CRT display controller
* DVI:
Supports DVI display (optional)
* LAN:
Intel 82559 and Intel 82562 10/100 Based LAN
* Wireless LAN:
Supports wireless LAN module (optional)
* Audio:
AC97 3D audio controller
* IDE:
Four IDE disk drives supporting ATA/33/66/100 and with
transfer rates of 33/66/100MB/sec.
* FDD:
Supports up to two floppy disk drives
* Parallel:
One enhanced bi-directional parallel port supporting
SPP/ECP/EPP
* Serial Port:
16C550 UART-compatible RS-232 x 2 serial ports with
16-byte FIFO
* USB:
Two USB2.0 connectors
* Keyboard/Mouse:
PS/2 6-pin Mini DIN
* BIOS:
Award PnP Flash BIOS
* Watchdog Timer:
Software programable time-out intervals from
1~256 sec.
* CMOS:
Battery backup
* Power Connector:
One 4-pin and one 20-pin ATX power
connectors
* Operating Temperature:
0~60
o
C
* Hardware Monitor:
Winbond W83627
* Dimensions:
18.6 x 12.2 cm
