MKS5838-6-0-808 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MKS5838-6-0-808

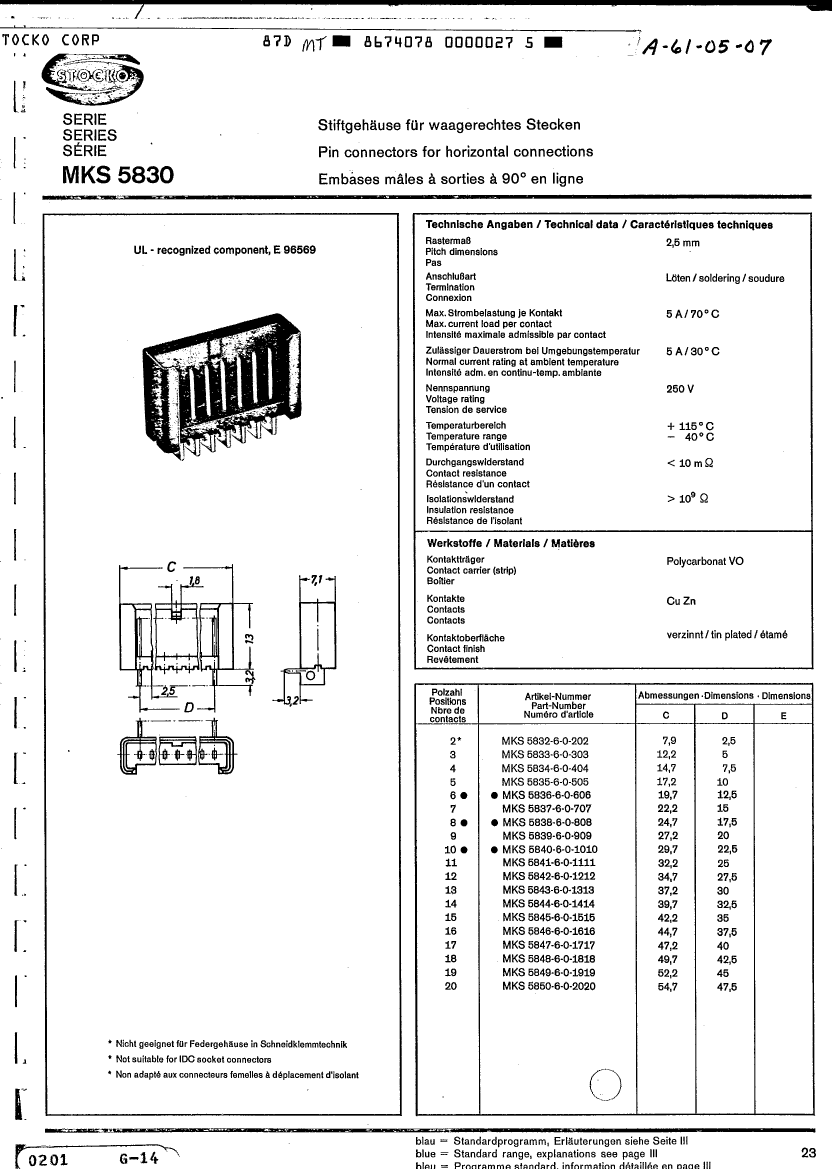

MKS5838-6-0-808: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MKS5838-6-0-808 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle

MKS5838-6-0-808 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Stocko Contact GmbH & Co Kg
Reach Compliance Code	compliant
body width	0.279 inch
subject depth	0.638 inch
body length	0.972 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYCARBONATE
Manufacturer's serial number	MKS5830
Plug contact pitch	0.098 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

MKS5838-6-0-808 Related Products

	MKS5838-6-0-808	MKS5833-6-0-303	MKS5832-6-0-202	MKS5837-6-0-707	MKS5836-6-0-606	MKS5845-6-0-1515	MKS5841-6-0-1111	MKS5839-6-0-909	MKS5849-6-0-1919	MKS5842-6-0-1212
Description	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle	Board Connector, 19 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.279 inch	0.279 inch	0.279 inch	0.279 inch	0.279 inch	0.279 inch	0.279 inch	0.279 inch	0.279 inch	0.279 inch
subject depth	0.638 inch	0.638 inch	0.638 inch	0.638 inch	0.638 inch	0.638 inch	0.638 inch	0.638 inch	0.638 inch	0.638 inch
body length	0.972 inch	0.48 inch	0.311 inch	0.874 inch	0.776 inch	1.661 inch	1.268 inch	1.071 inch	2.055 inch	1.366 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
Manufacturer's serial number	MKS5830	MKS5830	MKS5830	MKS5830	MKS5830	MKS5830	MKS5830	MKS5830	MKS5830	MKS5830
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	115 °C	115 °C	115 °C	115 °C	115 °C	115 °C	115 °C	115 °C	115 °C	115 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	3	2	7	6	15	11	9	19	12
Maker	Stocko Contact GmbH & Co Kg	-	Stocko Contact GmbH & Co Kg	Stocko Contact GmbH & Co Kg	Stocko Contact GmbH & Co Kg	Stocko Contact GmbH & Co Kg	Stocko Contact GmbH & Co Kg	Stocko Contact GmbH & Co Kg	Stocko Contact GmbH & Co Kg	Stocko Contact GmbH & Co Kg
Base Number Matches	1	1	1	1	1	1	-	-	-	-
Rated current (signal)	-	5 A	-	5 A	-	5 A	5 A	5 A	5 A	-
