Lift |
Spacing 5.08 mm

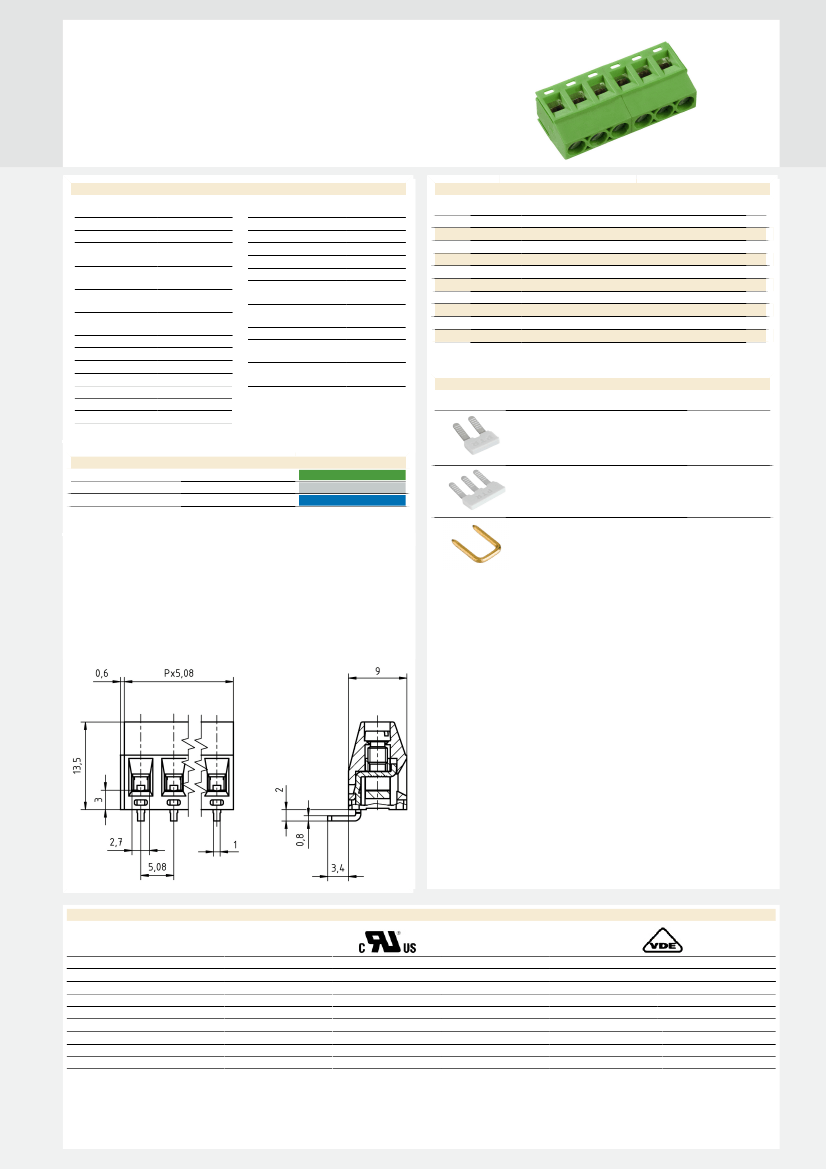

AKZ350/..-5.08-H-GREEN
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
0.14 mm²
2.5 mm²
0.14 mm²
1.5 mm²
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Leere Zeile
-
-
265 °C
3-4 s
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
Width (mm)
10.76
15.84
20.92
26.00
31.08
36.16
41.24
46.32
51.40
56.48
61.56
Article Designation
AKZ350/2-5.08-H-GREEN
AKZ350/3-5.08-H-GREEN
AKZ350/4-5.08-H-GREEN
AKZ350/5-5.08-H-GREEN
AKZ350/6-5.08-H-GREEN
AKZ350/7-5.08-H-GREEN
AKZ350/8-5.08-H-GREEN
AKZ350/9-5.08-H-GREEN
AKZ350/10-5.08-H-GREEN
AKZ350/11-5.08-H-GREEN
AKZ350/12-5.08-H-GREEN
Article Number
50350020201F
50350030201F
50350040201F
50350050201F
50350060201E
50350070201E
50350080201E
50350090201E
50350100201D
50350110201D
50350120201D
PU
200
200
200
200
100
100
100
100
50
50
50
Stranded with Ferrule 0.25 mm²
min
Stranded with Ferrule 1.5 mm²
max
Dimensions
Stripped Length
PCB Hole Diameter
Materials
Clamp
Screw
Solder Tag
Brass
Steel
Copper Alloy
6.0 mm
1.3 mm
Accessories
Figure
Designation
Bridge, 2-pole, insulated, BRI/2-5.0/5.08-
LIGHT GREY
Article Number
50000000006
Colours
GREEN
LIGHT GREY
BLUE
RAL6018
RAL7035
RAL5015
RAL6018
Bridge, 3-pole, insulated, BRI/3-5.0/5.08-
LIGHT GREY
50000000007
RAL7035
RAL5015
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Bridge, 2-pole, BR/2-5.0/5.08-L7.0
50000000008
Ratings
Usegroup
Rated Voltage
Rated Current
Rated Wire Size
solid
stranded
Torque
Screw Size
Test Voltage
B
300 V
16 A
AWG 22-12
AWG 22-12
0.45 Nm
M3
1.6 kV
C
150 V
16 A
AWG 22-12
AWG 22-12
0.45 Nm
M3
1.6 kV
D
300 V
10 A
AWG 22-12
AWG 22-12
0.45 Nm
M3
1.6 kV
min
0.5 mm²
0.5 mm²
250 V
24 A
max
2.5 mm²
1.5 mm²
0.50 Nm
M3
2.0 kV
