KJ7T14N35SN27 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> KJ7T14N35SN27

Preview

KJ7T14N35SN27: DescriptionMIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

KJ7T14N35SN27 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KJ7T14N35SN27	-	-	View	Buy Now

KJ7T14N35SN27 Overview

MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle

KJ7T14N35SN27 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999, LOW PROFILE
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FLUID/IMMERSION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	14
Termination type	CRIMP
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

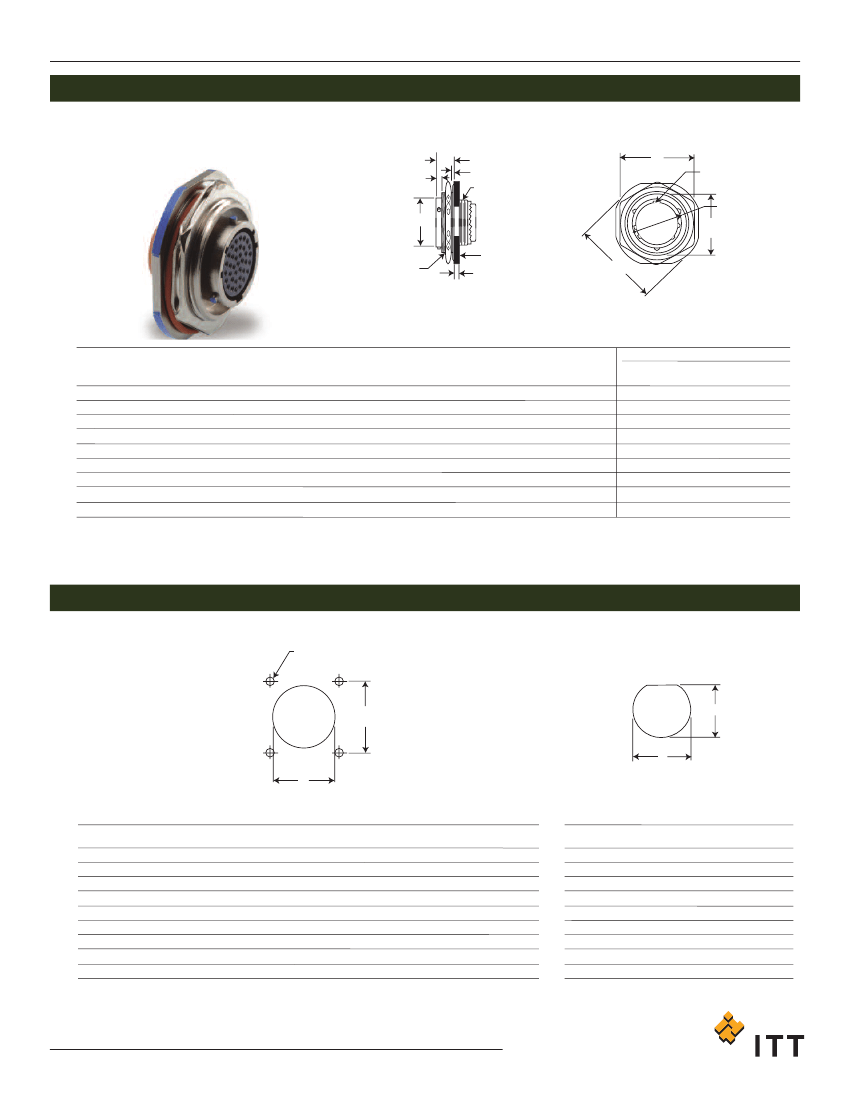

Cannon KJ

MIL-DTL-38999 Series II Connectors

Jam Nut Receptacle

MS27474

(MS service class E, P, T)

KJ7

P

G

R

.109 (2.77) MAX.

PANEL THICKNESS

T THREAD

POLARIZING

KEYWAY

J DIA.

C

BLUE BAND

(INDICATES REAR

RELEASE COTACT

RETENTION SYSTEM)

.105 (2.66) MAX.

S DIA.

D MOUNTING

FLAT

V THREAD

NOTE: For backshell dimensions and configurations, see pages 26 and 28.

Overall length With Backshells

Shell

C

Size Dia. Max.

8

10

12

14

16

18

20

22

24

.474 (12.04)

.591 (15.01)

D

Max.

G

Max.

J

Max.

P

Max.

R

Max. Hex.

S

Dia. Max.

T

Thread

7/16-28UNEF-2A

9/16-24UNEF-2A

V

Thread

7/8-20UNEF-2A

1-20UNEF-2A

E

F

P

Straight Cable Clamp Potting Max.

.840 (21.34)

.860 (21.84)

1.555 (39.50)

1.790 (45.47)

1.930 (49.02)

1.900(48.26)

1.020 (25.91)

1.080 (27.43)

.818 (20.78) .145 (3.68) .563 (14.30) .443 (11.25) 1.079 (27.41) 1.381 (35.08)

.942 (23.93) .145 (3.68) .680 (17.27) .443 (11.25) 1.205 (30.61) 1.506 (38.25)

.751 (19.08) 1.066 (27.08) .145 (3.68) .859 (21.82) .443 (11.25) 1.329 (33.76) 1.631 (41.43)

.876 (22.25) 1.191 (30.25) .145 (3.68) .984 (24.99) .443 (11.25) 1.455 (36.96) 1.756 (44.60)

11/16-24UNEF-2A 1-1/8-18UNEF-2A

13/16-20UNEF-2A 1-1/4-18UNEF-2A

1.001 (25.43) 1.321 (33.55) .145 (3.68) 1.108 (28.14) .443 (11.25) 1.579 (40.11) 1.944 (49.38) 1-15/16-20UNEF-2A 1-3/8-18UNEF-2A

1.126 (28.60) 1.441 (36.60) .145 (3.68) 1.233 (31.32) .443 (11.25) 1.705 (43.31) 2.022 (51.36)

1.251 (31.78) 1.566 (39.78) .171 (4.34) 1.358 (34.49) .469 (11.91) 1.829 (46.46) 2.147 (54.53)

1.376 (33.95) 1.691 (42.95) .171 (4.34) 1.483 (37.67) .469 (11.91) 2.017 (51.23) 2.271 (57.68)

1.501 (38.13) 1.816 (46.13) .171 (4.34) 1.610 (40.89) .469 (11.91) 2.142 (54.41) 2.396 (60.86)

1-1/16-18UNEF-2A 1-1/2-18UNEF-2A

1-3/16-18UNEF-2A 1-5/8-18UNEF-2A

1-5/16-18UNEF-2A

1-7/16-18UNEF-2A

1-3/4-18UNS-2A

1-7/8-18UNS-2A

Performance Specifications-Pages 3 and 4.

Contacts, Sealing Plugs, Assembly Tools - Pages 22, 28, and 29.

Contact Arrangements - Pages 20 and 21.

Panel Cutouts

Flange Mounted Receptacle

P +_ .005 (0.13)

4 HOLES

Jam Nut Receptacle

R

(T.P.)

B +.000 (0.00)

-.010 (0.25)

A

+.010 (0.25)

-.000 (0.00)

A

+.010 (0.25)

-.000 (0.00)

Shell

Size

8

10

12

14

16

18

20

22

24

A

Dia.

.610 (15.49)

.734 (18.64)

.860 (21.84)

.985 (25.02)

1.110 (28.19)

1.234 (31.34)

1.360 (35.54)

1.484 (37.69)

1.611 (40.92)

P

Dia.

.125 (3.18)

.152 (3.86)

R

.594 (15.09)

.719 (18.26)

.812 (20.62)

.906 (23.01)

.969 (24.61)

1.062 (26.97)

1.156 (29.36)

1.250 (31.75)

1.375 (34.93)

Mfg.

Screw

#4

#6

Shell

Size

8

10

12

14

16

18

20

22

24

A

Dia.

.885 (22.48)

1.010 (25.65)

1.135 (28.82)

1.260 (32.00)

1.385 (35.18)

1.510 (38.35)

1.635 (41.53)

1.760 (44.70)

1.885 (47.88)

B

Dia.

.830 (21.08)

.955 (24.26)

1.085 (27.56)

1.210 (30.73)

1.335 (33.91)

1.460 (37.08)

1.585 (40.26)

1.710 (43.43)

1.835 (46.61)

Dimensions shown in inches (mm)

Specifications and dimensions subject to change

www.ittcannon.com

15

KJ7T14N35SN27 Related Products

	KJ7T14N35SN27	KJ7T14N35SN	KJ7T24N29SD	KJ7E24N29SD	KJ7P24B24SC	KJ7T12N98PN	KJ7E14N18PD	KJ7T10B5SA	KJ7E18A32SD
Description	MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	MIL Series Connector, 29 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	MIL Series Connector, 29 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	MIL Series Connector, 24 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	MIL Series Connector, 10 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle	MIL Series Connector, 18 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle	MIL Series Connector, 5 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	MIL Series Connector, 32 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compli	compli	compli	compli	compliant
Other features	STANDARD: MIL-DTL-38999, LOW PROFILE	STANDARD: MIL-DTL-38999, LOW PROFILE	STANDARD: MIL-DTL-38999, LOW PROFILE, POLARIZED	STANDARD: MIL-DTL-38999, LOW PROFILE, POLARIZED	STANDARD: MIL-DTL-38999, LOW PROFILE, POLARIZED	STANDARD: MIL-DTL-38999, LOW PROFILE	STANDARD: MIL-DTL-38999, LOW PROFILE, POLARIZED	STANDARD: MIL-DTL-38999, LOW PROFILE, POLARIZED	STANDARD: MIL-DTL-38999, LOW PROFILE, POLARIZED
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	GOLD	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE	MALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Environmental characteristics	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	OLIVE DRAB CADMIUM PLATED	NICKEL PLATED	NICKEL PLATED	OLIVE DRAB CADMIUM PLATED	CADMIUM PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	14	14	24	24	24	12	14	10	18
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	37	37	29	29	24	10	18	5	32
Maker	-	-	ITT	ITT	ITT	ITT	ITT	ITT	-
