HN62314BF-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HN62314BF-20

HN62314BF-20: Description512KX8 MASK PROM, 200ns, PDSO32, PLASTIC, SOP-32; Categorystorage storage; File Size90KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HN62314BF-20 Overview

512KX8 MASK PROM, 200ns, PDSO32, PLASTIC, SOP-32

HN62314BF-20 Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP,
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	200 ns
JESD-30 code	R-PDSO-G32
length	20.45 mm
memory density	4194304 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	32
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.05 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

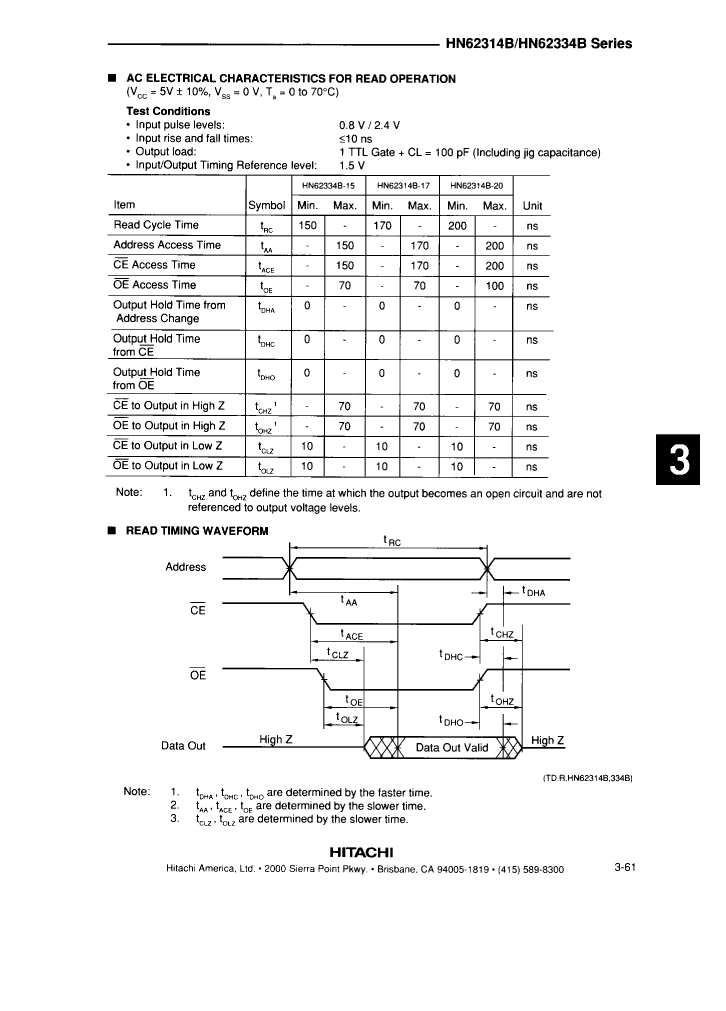

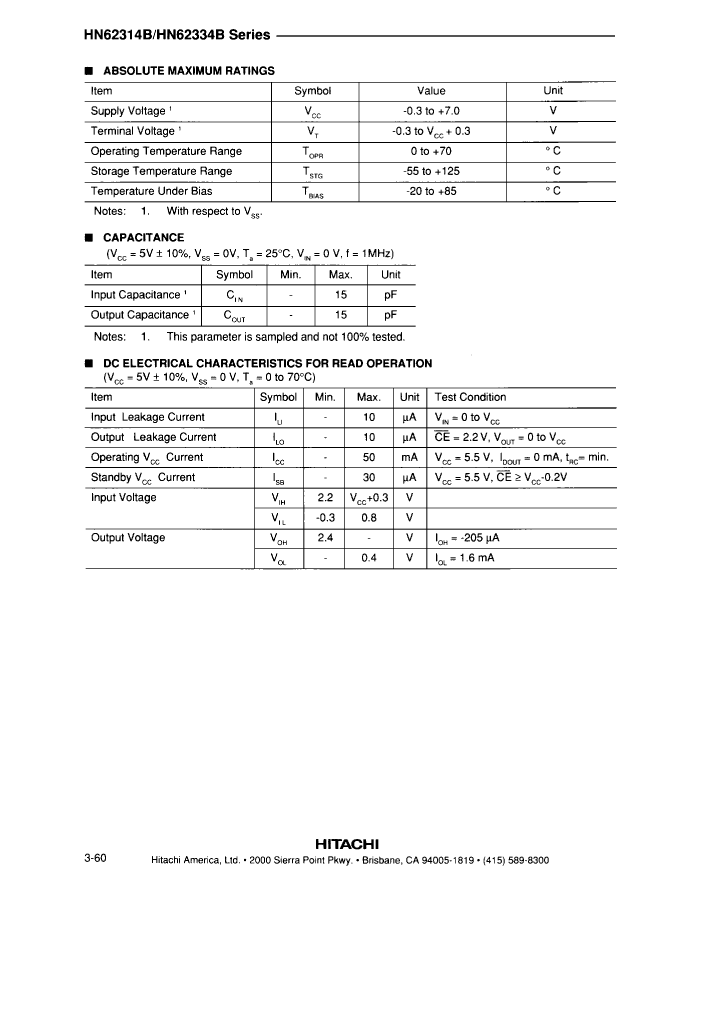

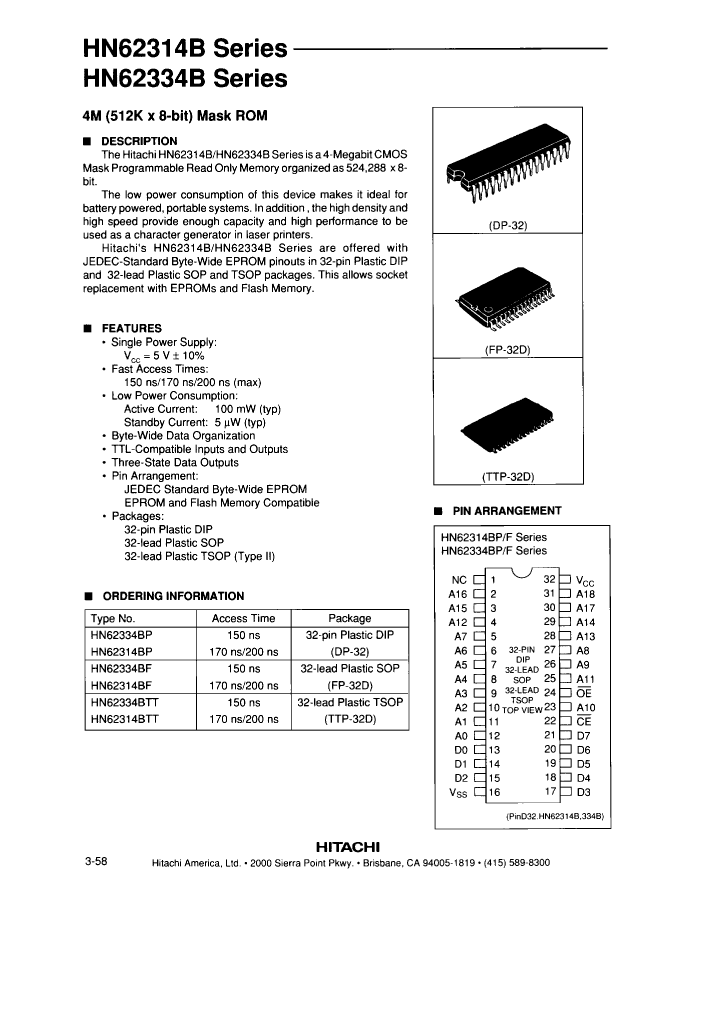

Preview

Download Datasheet

View All

HN62314BF-20 Related Products

	HN62314BF-20	HN62314BTT-20	HN62314BTT-17	HN62314BP-20	HN62314BF-17	HN62314BP-17
Description	512KX8 MASK PROM, 200ns, PDSO32, PLASTIC, SOP-32	512KX8 MASK PROM, 200ns, PDSO32, PLASTIC, TSOP2-32	512KX8 MASK PROM, 170ns, PDSO32, PLASTIC, TSOP2-32	512KX8 MASK PROM, 200ns, PDIP32, PLASTIC, DIP-32	512KX8 MASK PROM, 170ns, PDSO32, PLASTIC, SOP-32	512KX8 MASK PROM, 170ns, PDIP32, PLASTIC, DIP-32
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SOIC	TSOP2	TSOP2	DIP	SOIC	DIP
package instruction	SOP,	TSOP2,	TSOP2,	DIP,	SOP,	DIP,
Contacts	32	32	32	32	32	32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	200 ns	200 ns	170 ns	200 ns	170 ns	170 ns
JESD-30 code	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDIP-T32	R-PDSO-G32	R-PDIP-T32
length	20.45 mm	20.95 mm	20.95 mm	41.9 mm	20.45 mm	41.9 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP2	TSOP2	DIP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	IN-LINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.05 mm	1.2 mm	1.2 mm	5.08 mm	3.05 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
width	-	10.16 mm	10.16 mm	15.24 mm	-	15.24 mm
