Preview

5076: DescriptionRF Connector Adapter, 2.9MM-3.5MM, Female-Female, ROHS COMPLIANT; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

5076 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5076	-	-	View	Buy Now

5076 Overview

RF Connector Adapter, 2.9MM-3.5MM, Female-Female, ROHS COMPLIANT

5076 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	2.9MM-3.5MM
Other features	INSERTION LOSS MAX AT 50 GHZ
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BETWEEN
Maximum operating frequency	50 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

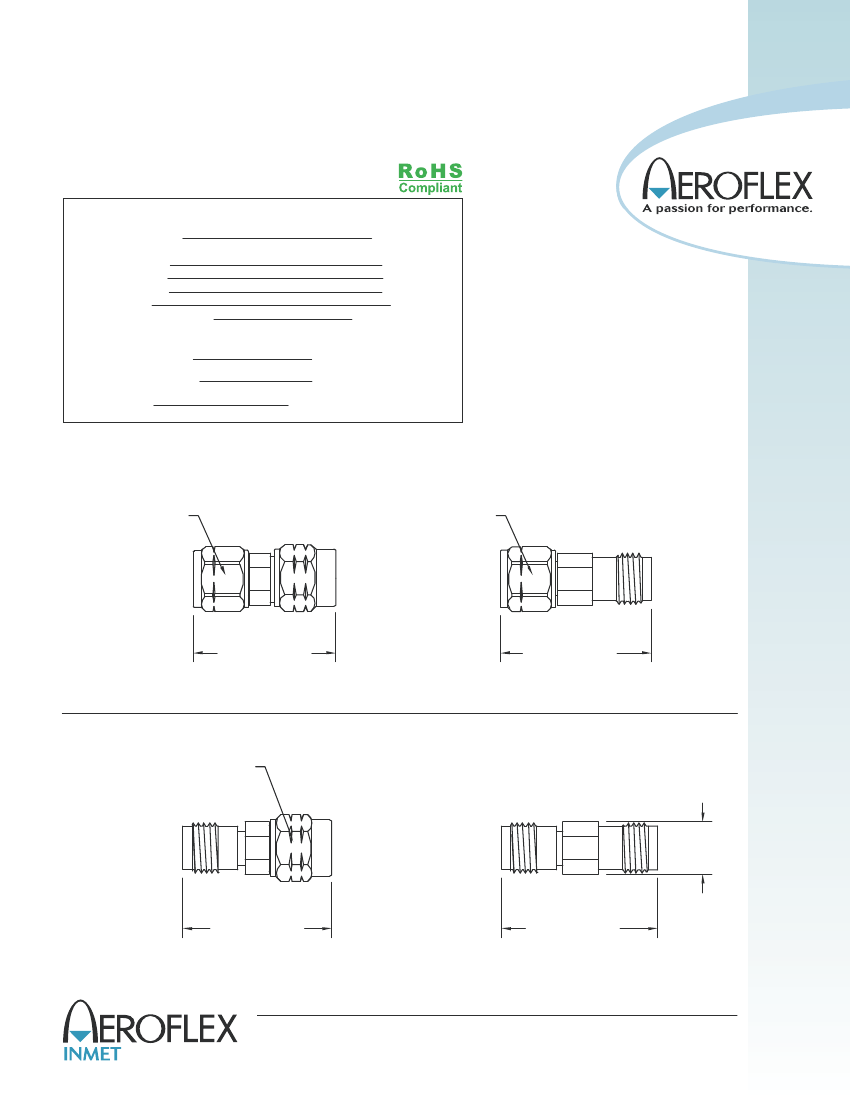

ADAPTERS, BETWEEN SERIES

2.4mm / 1.85mm, DC - 50 GHz

SPECIFICATIONS:

Models: 5075, 5076, 5077 5078

,

Electrical:

Frequency Range

VSWR

DC - 18 GHz

18 - 26 GHz

26 - 50 GHz

Impedance

Operating Temp. Range

DC - 50 GHz

1. 5:1 Max.

1

1.25:1 Max.

1.35:1 Max.

50 Ohms

-65°C to +125°C

Mechanical:

2.4mm Connectors

Mates with 1.85mm & V* Connectors

Passivated Stainless Steel

Gold Plated Beryllium Copper

*V is a trademark of Anritsu Corp.

1.85mm Connectors

Mates with 2.4mm & V* Connectors

Conductors

Model Number:

5075

2.4mm MALE / 1.85mm MALE

Model Number:

5076

2.4mm MALE / 1.85mm FEMALE

2x 5/16 HEX

5/16 HEX

.76±.02

[19.30±0.51]

.81±.03

[20.57±0.76]

Model Number:

5077

2.4mm FEMALE / 1.85mm MALE

Model Number:

5078

2.4mm FEMALE / 1.85mm FEMALE

5/16 HEX

Ø.28

[7.11]

.80±.03

[20.32±0.76]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Units that offer very low return loss (VSWR) are also available.

.84±.02

[21.34±0.51]

5075: REV A

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com

5076 Related Products

	5076
Description	RF Connector Adapter, 2.9MM-3.5MM, Female-Female, ROHS COMPLIANT
Maker	API Technologies
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	2.9MM-3.5MM
Other features	INSERTION LOSS MAX AT 50 GHZ
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BETWEEN
Maximum operating frequency	50 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.35
Base Number Matches	1
