NXP Semiconductors

Data Sheet: Advance Information

Document Number: MC10XS4200

Rev. 7.0, 5/2018

Dual

24 V,

10 mOhm high-side switch

The 10XS4200 device is part of a 24 V dual high-side switch product family with

integrated control, and a high number of protective and diagnostic functions. It

has been designed for truck, bus, and industrial applications. The low R

DS(ON)

channels (<10 mΩ) can control different load types; bulbs, solenoids, or DC

motors. Control, device configuration, and diagnostics are performed through a

16-bit serial peripheral interface (SPI), allowing easy integration into existing

applications. This device is powered by SMARTMOS technology.

Both channels can be controlled individually by external or internal clock signals,

or by direct inputs. Using the internal clock allows fully autonomous device

operation. Programmable output voltage slew-rates (individually programmable)

helps improve electromagnetic compatibility (EMC) performance. To avoid

shutting off the device upon inrush current, while still being able to closely track

the load current, a dynamic overcurrent threshold profile is featured. Switching

current of each channel can be sensed with a programmable sensing ratio.

Whenever communication with the external microcontroller is lost, the device

enters a Fail-safe operation mode, but remains operational, controllable, and

protected.

Features

•

Two fully protected 10 mΩ (@ 25 °C) high side switches

Up to 8.5 A steady state current per channel

Separate bulb and DC motor latched overcurrent handling

Individually programmable internal/external PWM clock signals

Overcurrent, short-circuit, and overtemperature protection with

programmable autoretry functions

Accurate temperature and current sensing

Openload detection (channel in OFF and ON state), also for LED

applications (7.0 mA typ.)

Normal operating range: 8.0 to 36 V, extended range: 6.0 to 58 V

3.3 V and 5.0 V compatible 16-bit SPI port for device control,

configuration and diagnostics at rates up to 8.0 MHz

PWR

10XS4200

HIGH-SIDE SWITCH

FK SUFFIX (PB-FREE)

98ASA00428D

23 PIN PQFN (12 X12 mm)

10XS4200

I/O

SCLK

CSB

MCU

I/O

VDD

CLOCK

FSB

SCLK

CSB

RSTB

IN0

IN1

CONF0

CONF1

FSOB

SYNC

CSNS

VPWR

HS0

LOAD

HS1

LOAD

GND

I/O

A/D

GND

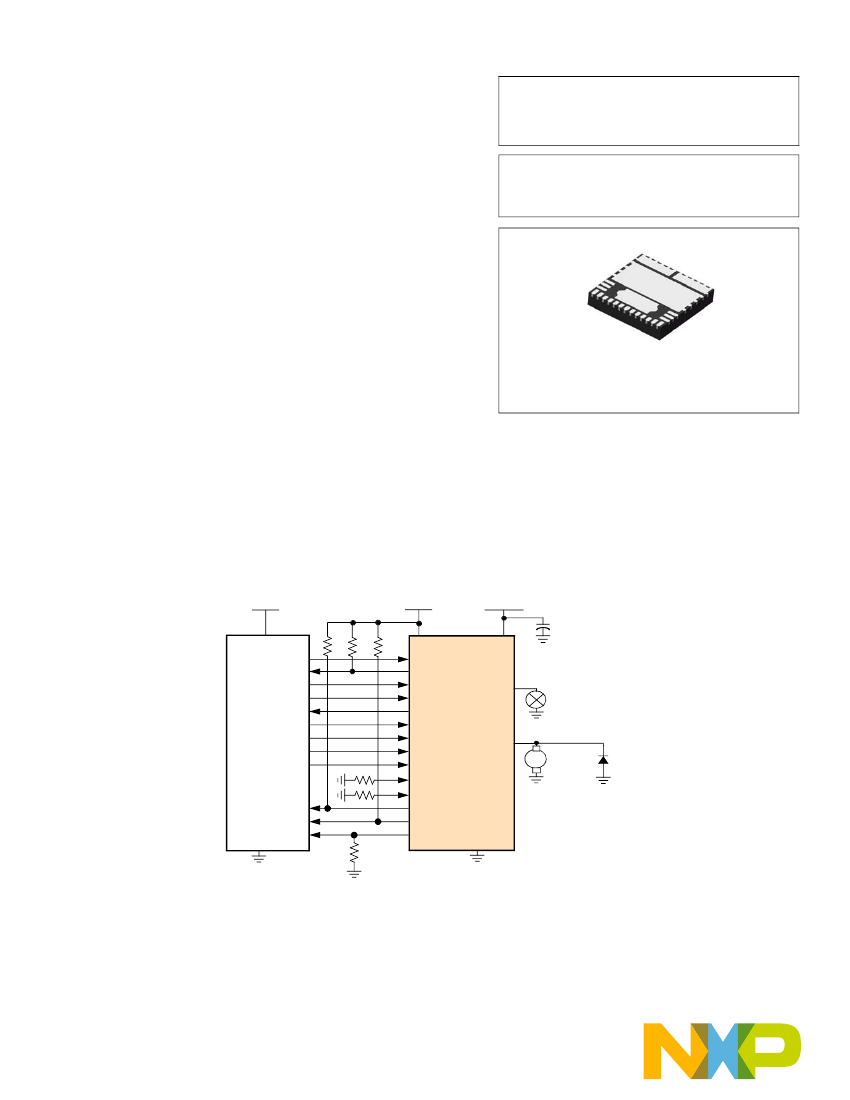

Figure 1. Simplified application diagram

* This document contains certain information on a new product.

Specifications and information herein are subject to change without notice.

Table of Contents

Orderable parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

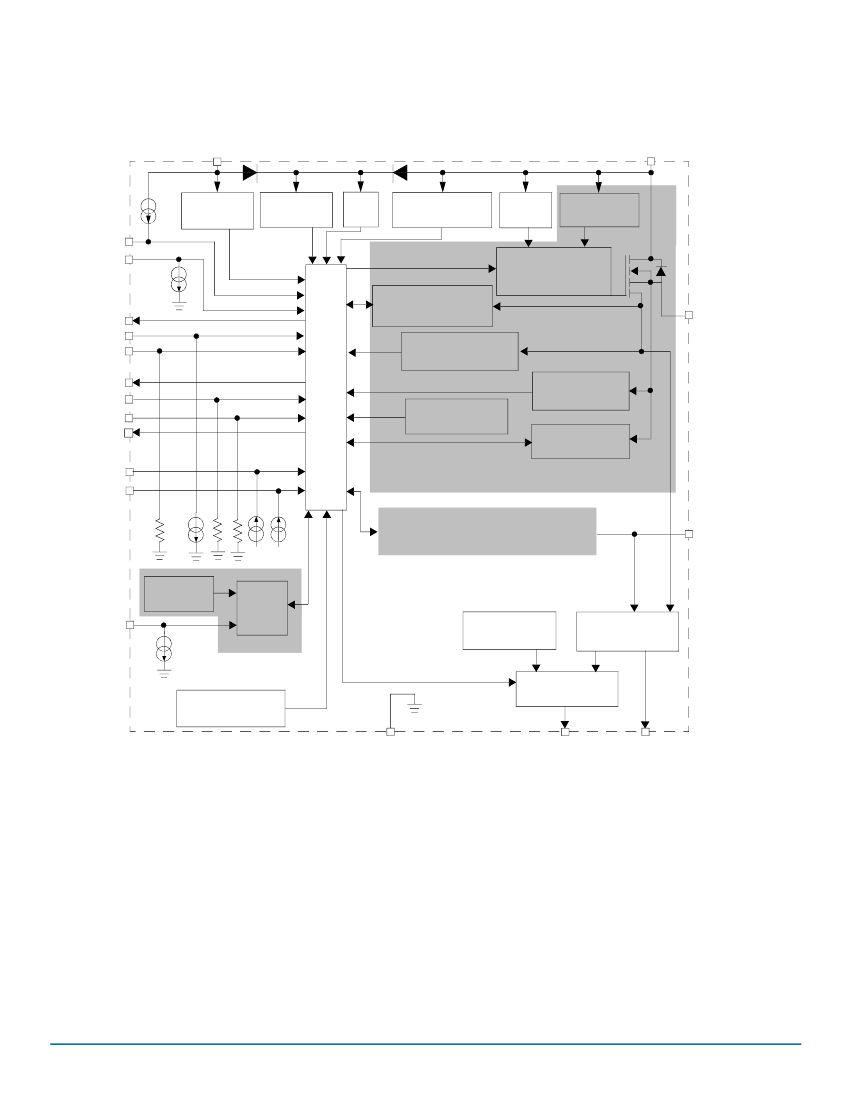

Internal block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4.1 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4.2 Static electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.4 Timing diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.2 Pin assignment and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.3 Functional internal block description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Functional device operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.1 Operation and operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.3 Logic commands and SPI registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Typical applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

8.2 Package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

10XS4200
