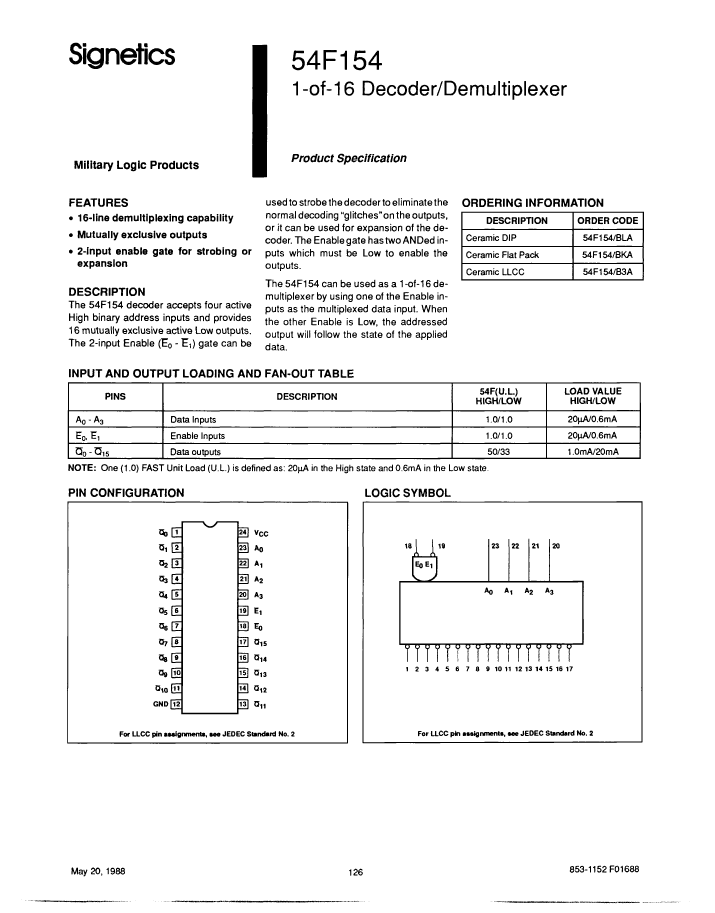

54F154/BLA datasheet, PDF - EEWORLD Datasheet

54F154/BLA: DescriptionDecoder/Driver, F/FAST Series, Inverted Output, TTL, CDIP24; Categorylogic logic; File Size152KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

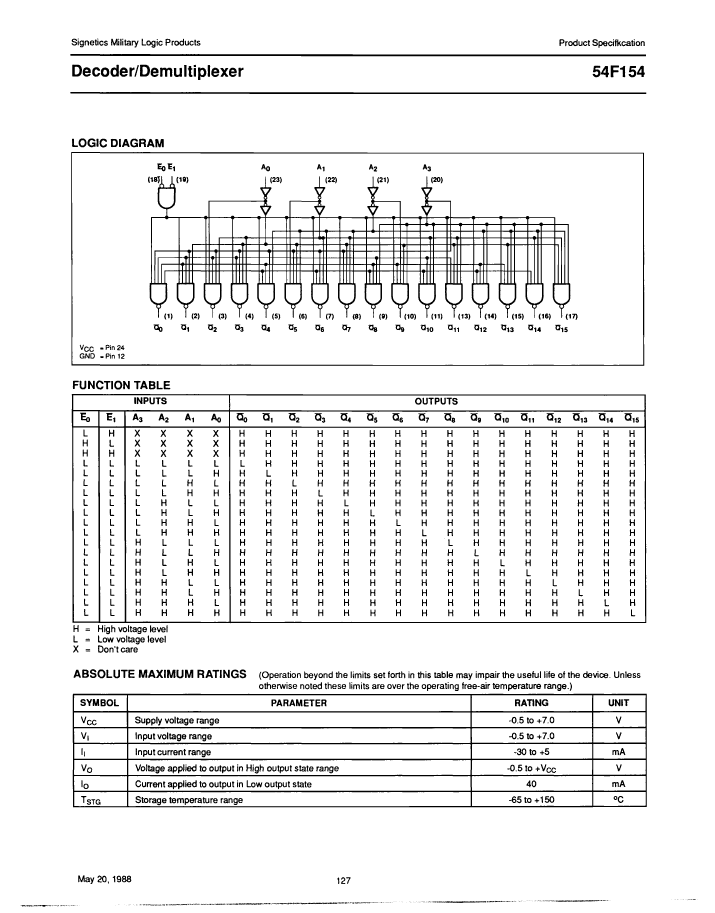

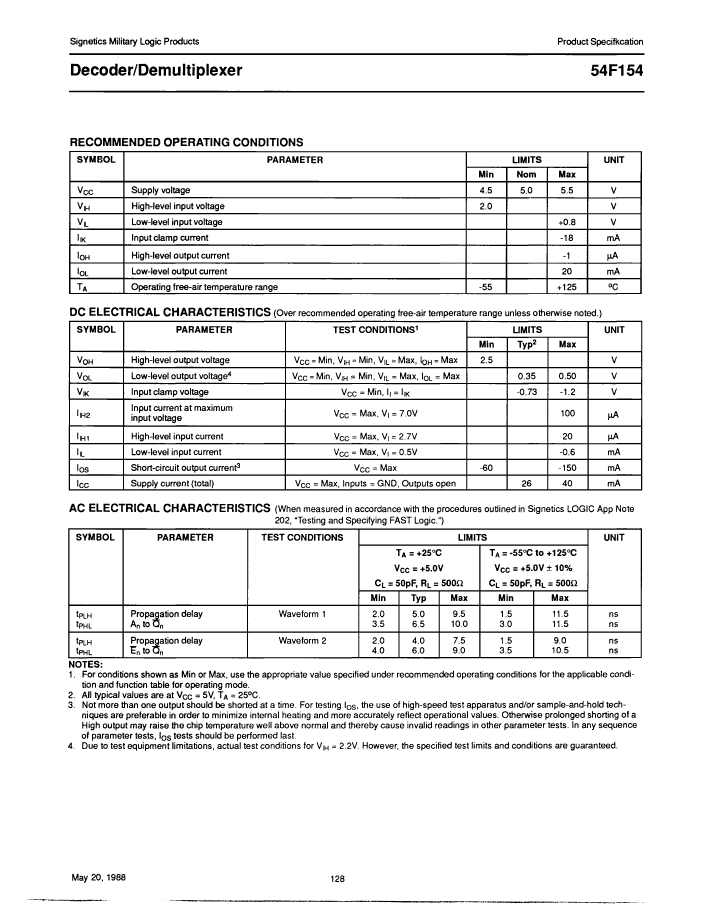

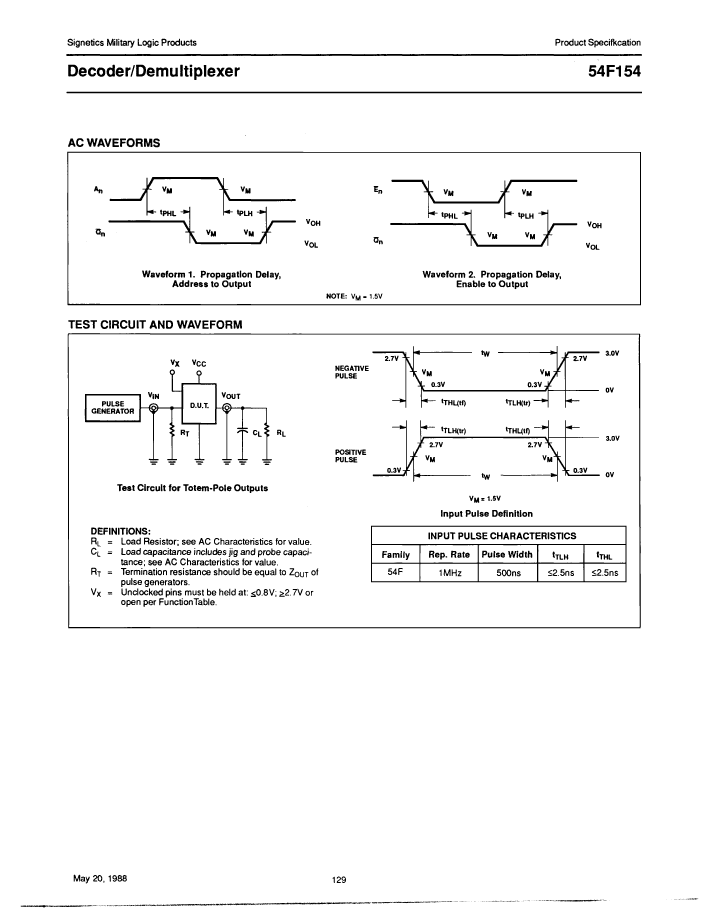

54F154/BLA Overview

Decoder/Driver, F/FAST Series, Inverted Output, TTL, CDIP24

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
series	F/FAST
JESD-30 code	R-CDIP-T24
Load capacitance (CL)	50 pF
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	40 mA
propagation delay (tpd)	11.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	54F154/BLA	54F154/BKA	54F154/B3A
Description	Decoder/Driver, F/FAST Series, Inverted Output, TTL, CDIP24	Decoder/Driver, F/FAST Series, Inverted Output, TTL, CDFP24	Decoder/Driver, F/FAST Series, Inverted Output, TTL, CQCC28
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDIP-T24	R-CDFP-F24	S-CQCC-N28
Load capacitance (CL)	50 pF	50 pF	50 pF
Number of functions	1	1	1
Number of terminals	24	24	28
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	40 mA	40 mA	40 mA
propagation delay (tpd)	11.5 ns	11.5 ns	11.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	DUAL	DUAL	QUAD
Base Number Matches	1	1	1
