302R29W102KV3E-SC datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 302R29W102KV3E-SC

302R29W102KV3E-SC: DescriptionCeramic Capacitor, Multilayer, Ceramic, 3000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 1808, CHIP; CategoryPassive components capacitor; File Size493KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric Compare View All

302R29W102KV3E-SC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	302R29W102KV3E-SC	-	-	View	Buy Now

302R29W102KV3E-SC Overview

Ceramic Capacitor, Multilayer, Ceramic, 3000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 1808, CHIP

302R29W102KV3E-SC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Johanson Dielectrics
package instruction	, 1808
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V):250
capacitance	0.001 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.16 mm
JESD-609 code	e3
length	4.8 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	10%
Rated (AC) voltage (URac)	250 V
Rated (DC) voltage (URdc)	3000 V
size code	1808
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	2.03 mm
Base Number Matches	1

Preview

Download Datasheet

View All

afety

ertified

apaCitorS

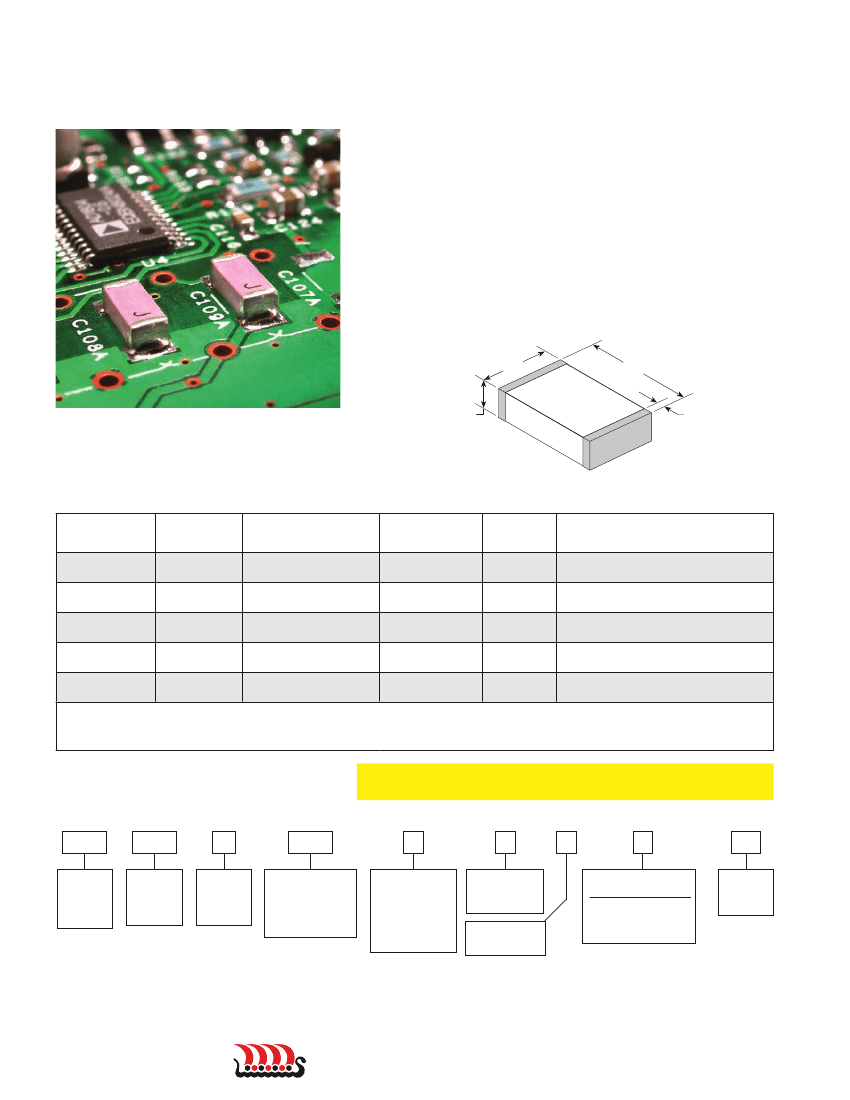

Johanson Dielectrics Type SC ceramic chip capacitors are

designed for AC voltage surge and lightning protection in

line-to-ground interface applications in computer network,

modem, facsimile and other equipment.

Johanson’s safety capacitor offering includes four different

case sizes and NPO and X7R dielectric materials.

These devices are surface mount ready with barrier

terminations and tape and reel packaging.

Additional information on capacitor safety ratings may be

found below. Specific certification details may be found

under each product listing on the facing page.

E/B

SAFETY

RATING

X2/Y3

X1/Y2

VOLTAGE

RATING

250 VAC

WITHSTANDING

VOLTAGE

1,500 VAC

IMPULSE

VOLTAGE

2,500 V

5,000 V

CASE

SIZE

1808

1812

1808

2211

2220

JOHANSON

ORDERING P/N

302R29______V3E-****-SC

302S43______V3E-****-SC

502R29______V3E-****-SC

502R30______V3E-****-SC

502S47______V3E-****-SC

X Capacitors are defined as suitable for use in situations where failure of the capacitor would not lead to danger of electric shock.

Y Capacitors are defined as suitable for use in situations where failure of the capacitor could lead to danger of electric shock.

ow to

rder

afety

ertified

302

IMPULSE

VOLTAGE

302 = 3000V

502 = 5000V

demanding environments & processes. Visit our website for full details.

NOW AVAILABLE

with Polyterm

soft termination option for

R29

SIZE

See Size

Chart

DIELECTRIC

N = NPO

W = X7R

101

CAPACITANCE

1st two digits are

significant; third digit

denotes number of

zeros; 101 = 100 pF

TOLERANCE

NPO: J = ± 5%

K = ± 10%

X7R: K = ± 10%

M = ± 20%

TERMINATION

V = Ni barrier w/

100% Sn Plating

MARKING

3 = Special (J)

****

TYPE

SC = Safety

Certified

TAPE MODIFIER

Code

Tape

Reel

Embossed

7”

Tape specifications

conform to EIA RS481

P/N written: 302R29N101KV3E-****-SC

www.johanson dielectrics.com
