5962-89581022X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 5962-89581022X

5962-89581022X: DescriptionIC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference; CategoryPower/power management The power supply circuit; File Size310KB，9 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-89581022X Overview

IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference

5962-89581022X Parametric

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	S-CQCC-N20
length	8.89 mm
Number of functions	1
Output times	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	10.05 V
Minimum output voltage	9.95 V
Nominal output voltage	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	33 V
Minimum supply voltage (Vsup)	13 V
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	25 ppm/°C
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Fine-tuning/adjustable output	YES
width	8.89 mm
Base Number Matches	1

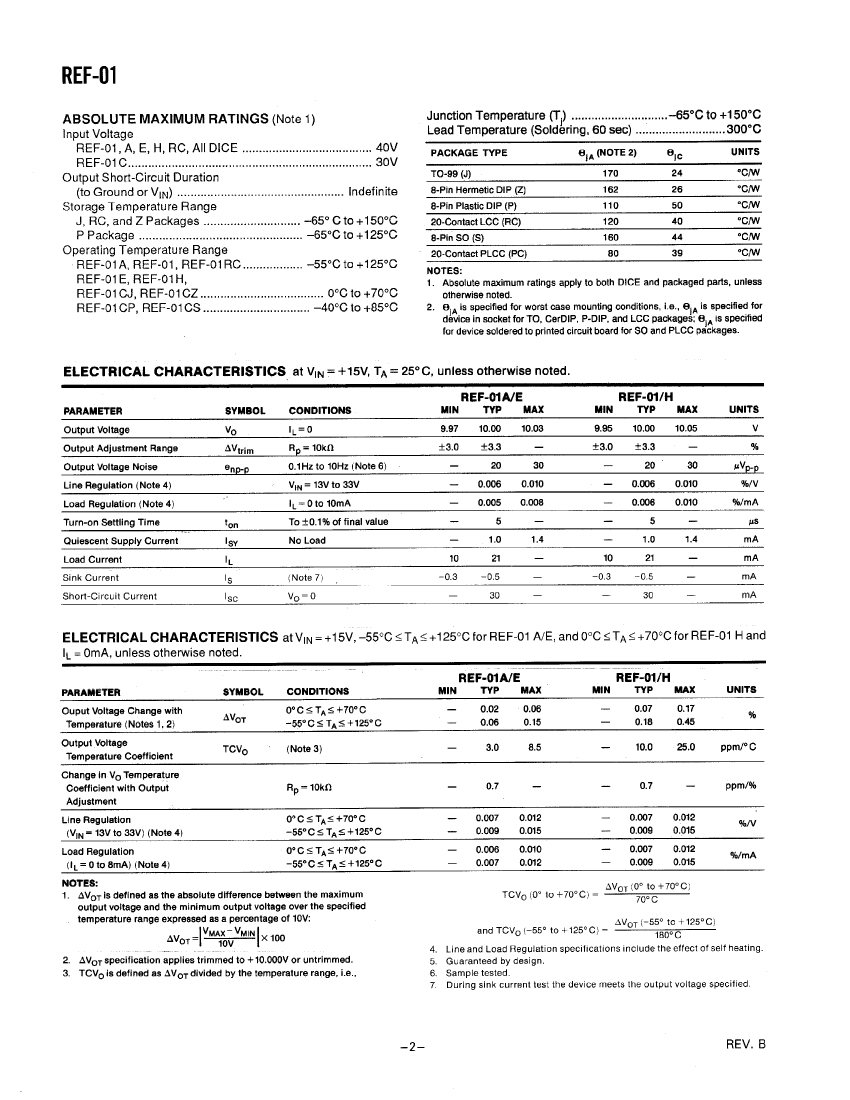

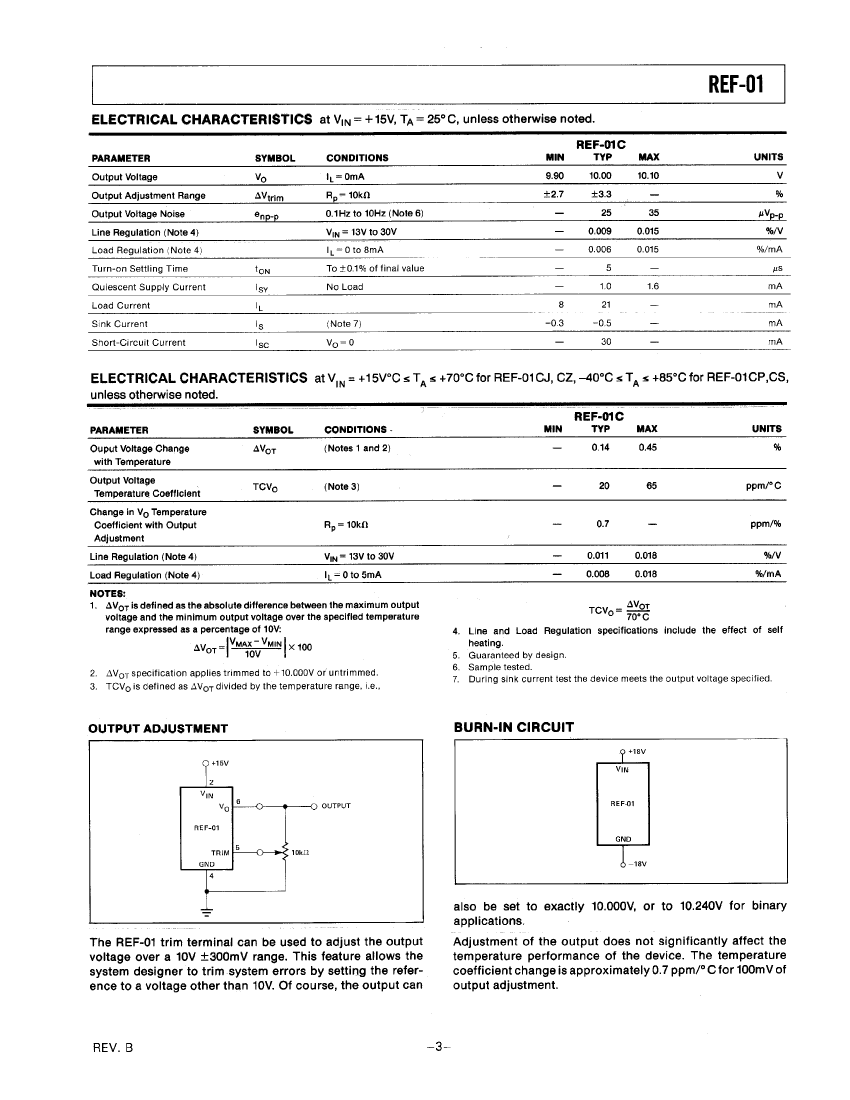

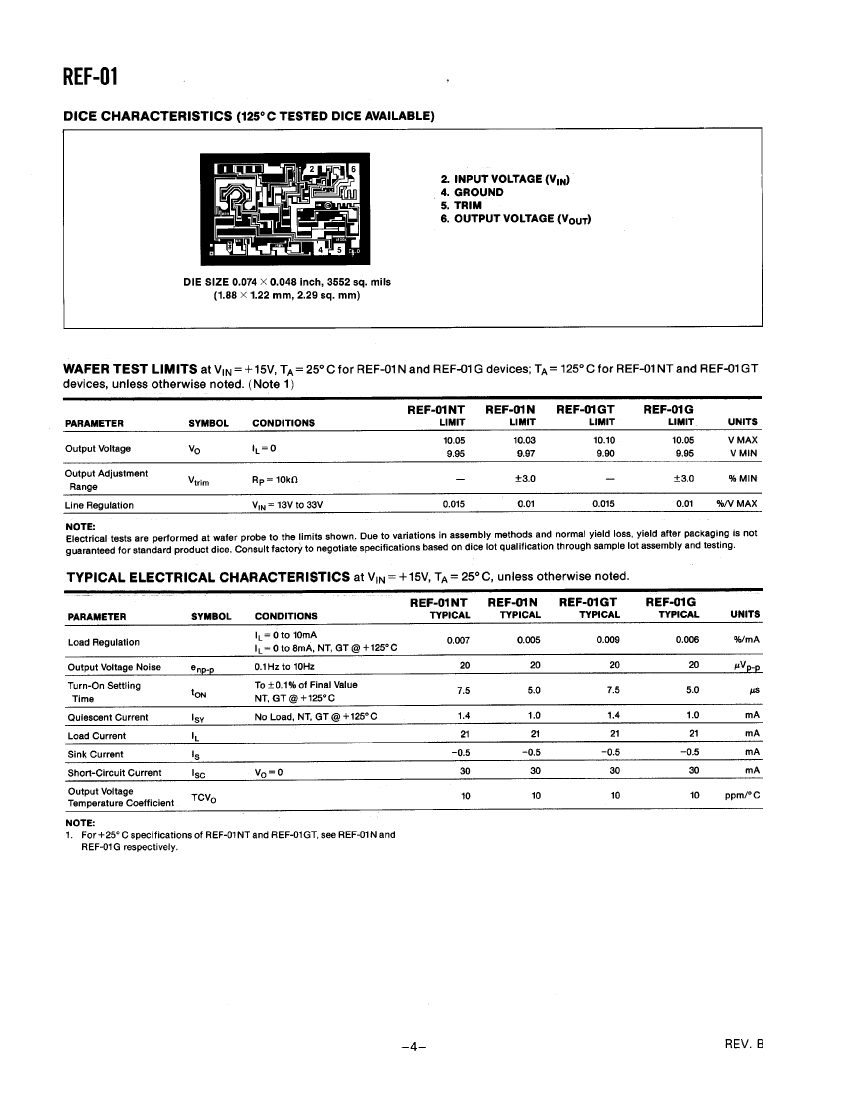

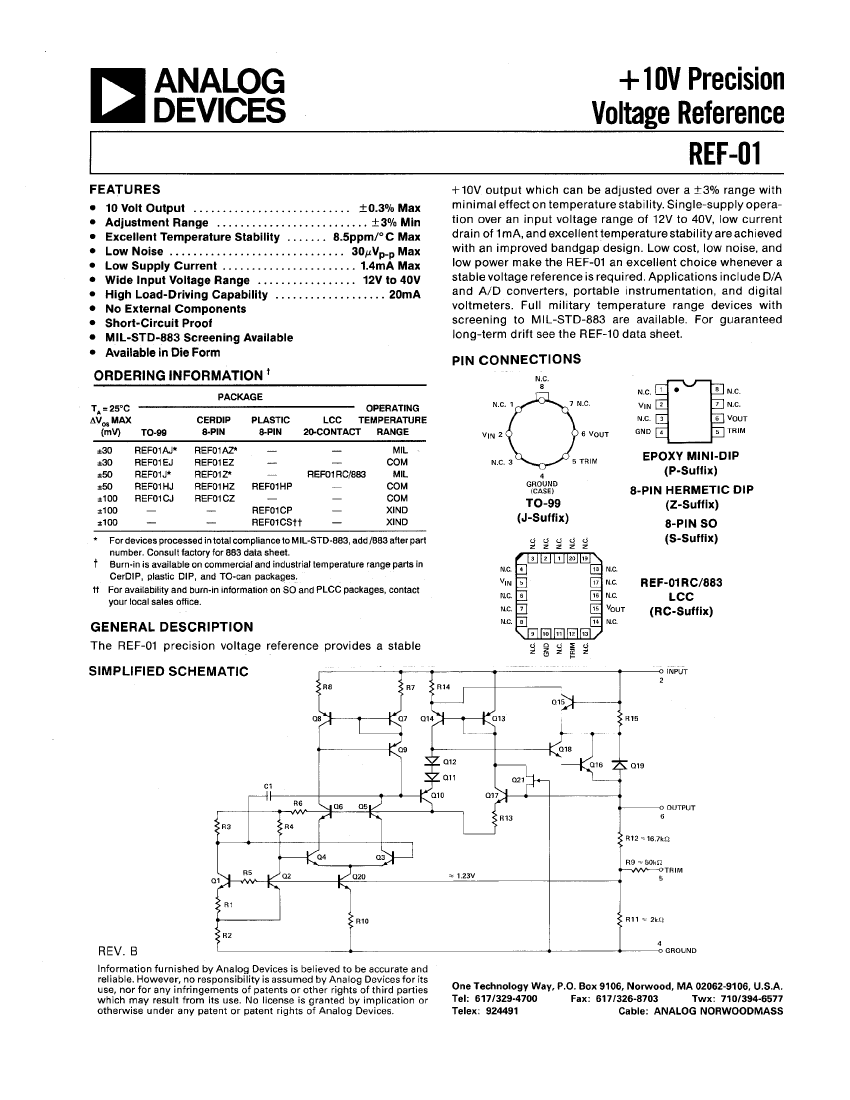

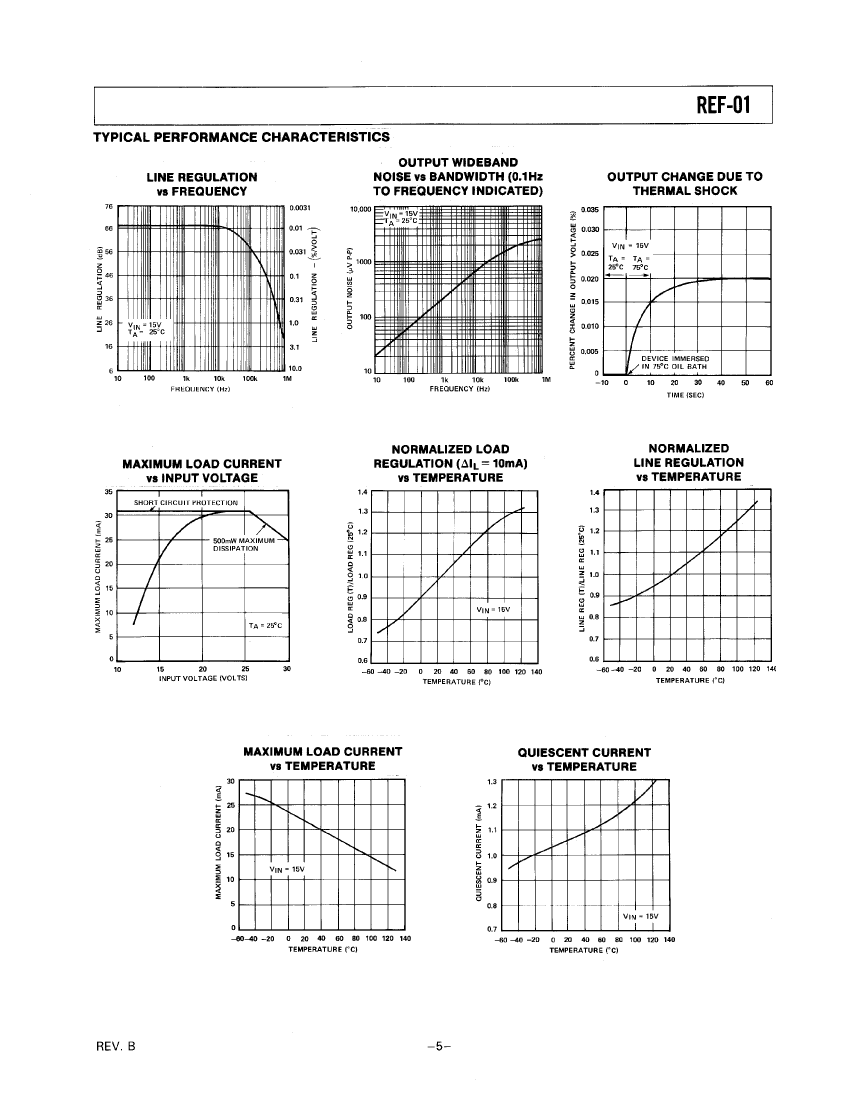

Preview

Download Datasheet

View All

5962-89581022X Related Products

	5962-89581022X	5962-89581012X	5962-89581022A	5962-89581012A	REF01RC/883C	REF01NBC	REF01Z/883C	REF01BIHJ	REF01GBC
Description	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, UUC4, 0.074 X 0.048 INCH, DIE-4, Voltage Reference	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10V, CDIP8, HERMETIC SEALED, CERDIP-8	THREE TERM VOLTAGE REFERENCE, MBCY8	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, UUC4, 0.074 X 0.048 INCH, DIE-4, Voltage Reference
package instruction	QCCN,	QCCN,	CERAMIC, LCC-20	CERAMIC, LCC-20	CERAMIC, LCC-20	0.074 X 0.048 INCH, DIE-4	HERMETIC SEALED, CERDIP-8	METAL CAN, TO-99, 8 PIN	0.074 X 0.048 INCH, DIE-4
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	unknown	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20	R-XUUC-N4	R-GDIP-T8	O-MBCY-W8	R-XUUC-N4
Number of functions	1	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	4	8	8	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	25 °C	125 °C	70 °C	25 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	25 °C	-55 °C	-	25 °C
Maximum output voltage	10.05 V	10.05 V	10.05 V	10.03 V	10.05 V	10.3 V	10.05 V	10.33 V	10.3 V
Minimum output voltage	9.95 V	9.95 V	9.95 V	9.97 V	9.95 V	9.7 V	9.95 V	9.67 V	9.7 V
Nominal output voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, GLASS-SEALED	METAL	UNSPECIFIED
encapsulated code	QCCN	QCCN	QCCN	QCCN	QCCN	DIE	DIP	TO-99	DIE
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	UNCASED CHIP	IN-LINE	CYLINDRICAL	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	OTHER	MILITARY	COMMERCIAL	OTHER
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	THROUGH-HOLE	WIRE	NO LEAD
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	UPPER	DUAL	BOTTOM	UPPER
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maker	ADI	ADI	ADI	ADI	-	ADI	ADI	ADI	ADI
Parts packaging code	QLCC	QLCC	QLCC	QLCC	QLCC	DIE	DIP	-	DIE
Contacts	20	20	20	20	20	4	8	-	4
length	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	-	-	-	-
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	-	MIL-STD-883	-	-
Maximum seat height	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	5.08 mm	-	-
Maximum supply voltage (Vsup)	33 V	33 V	33 V	33 V	33 V	-	33 V	40 V	-
Minimum supply voltage (Vsup)	13 V	13 V	13 V	13 V	13 V	-	13 V	12 V	-
Maximum voltage temperature coefficient	25 ppm/°C	25 ppm/°C	25 ppm/°C	8.5 ppm/°C	25 ppm/°C	-	25 ppm/°C	25 ppm/°C	-
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-	2.54 mm	-	-
width	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	-	7.62 mm	-	-
Base Number Matches	1	1	1	1	1	-	-	-	-
JESD-609 code	-	e0	e0	e0	e0	-	-	e0	e0
Terminal surface	-	TIN LEAD	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	TIN LEAD	-	-	TIN LEAD	TIN LEAD
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Peak Reflow Temperature (Celsius)	-	-	220	NOT APPLICABLE	NOT APPLICABLE	220	NOT SPECIFIED	NOT SPECIFIED	220
Maximum supply current (Isup)	-	-	2 mA	2 mA	1.4 mA	-	1.4 mA	1.4 mA	-
Maximum time at peak reflow temperature	-	-	30	NOT APPLICABLE	NOT APPLICABLE	30	NOT SPECIFIED	NOT SPECIFIED	30
