3EZ5.1D5
THRU
3EZ75D5
3 W Glass Passivated
Junction Silicon
Zener Diode
5.1-75
Volts
DO-15
•
Excellent Clamping Capability
Lead Free Finish/RoHS Compliant(Note C)("P" Suffix
Designates Compliant. See Ordering Information)
Halogen
free available upon request by adding suffix "-HF"
Mechanical Data
WEIGHT: 0.015 ounce, 0.04 gram
•
•
Marking : Cathode band and type number
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
D
Maximum Ratings @ 25
o
C Unless Otherwise Specified
Peak Pulse Power
Dissipation (Note A)
o
Derate above 75 C
A
P
D
3
24
15
Watts
mW/
o
C
D
Cathode
Mark
B
Peak Forward Surge
Current 8.3ms single
half sine-wave
I
FSM
superimposed on rated
load (JEDEC Method)
(Note B)
Operating And
T
J
, T
STG
Storage
Temperature Range
Amps
C
-55
o
C to
+150
o
C
DIMENSIONS
NOTES:
A. Mounted on 5.0mm
2
(.013mm thick) land areas.
B. Measured on 8.3ms, single half sine-wave or equivalent
square wave, duty cycle = 4 pulses per minute maximum.
C.
High Temperature Solder Exemption Applied, see EU Directive Annex 7.
INCHES
DIM
MIN
A
B
C
D
0.230
0.104
0.02
6
1.000
MAX
0.300
0.140
0.034
-----
MIN
5.80
2.60
0.7
0
25.40
MM
NOTE
MAX
7.60
3.60
0.86
-----
www.mccsemi.com
Revision:
B
1 of 5
2013/01/01
MCC
3EZ5.1D5
THRU
3EZ75D5
ELECTRICAL CHARACTERISTICS (T
A
=25
C
unless otherwise noted) V
F
=1.2 V max , I
F
=200 mA for all types
0
TM
Micro Commercial Components
Type No.
(Note 1.)
Nominal
Zener Voltage
V
z
@
I
ZT
Volte
Test
current
I
ZT
mA
Maximum Zener Impedance (Note 3)
Z
ZT
@ I
ZT
Ohms
Z
Zk
@ I
ZK
Ohms
I
ZK
mA
Leakage Current
I
R
µA
Max
Maximum Zener
Current
I
ZM
mA
V
R
Volts
(Note 2.)
3EZ5.1D5
3EZ5.6D5
3EZ6.2D5
3EZ6.8D5
3EZ7.5D5
3EZ8.2D5
3EZ9.1D5
3EZ10D5
3EZ11D5
3EZ12D5
3EZ13D5
3EZ14D5
3EZ15D5
3EZ16D5
3EZ17D5
3EZ18D5
3EZ19D5
3EZ20D5
3EZ22D5
3EZ24D5
3EZ27D5
3EZ28D5
3EZ30D5
3EZ33D5
3EZ36D5
3EZ39D5
3EZ43D5
3EZ47D5
3EZ51D5
3EZ56D5
3EZ62D5
3EZ68D5
3EZ75D5
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
14
15
16
17
18
19
20
22
24
27
28
30
33
36
39
43
47
51
56
62
68
75
147
134
121
110
100
91
82
75
68
63
58
53
50
47
44
42
40
37
34
31
28
27
25
23
21
19
17
16
15
13
12
11
10
3.5
2.5
1.5
2.0
2.0
2.3
2.5
3.5
4
4.5
4.5
5
5.5
5.5
6
6
7
7
8
9
10
12
16
20
22
28
33
38
45
50
55
70
85
550
600
700
700
700
700
700
700
700
700
700
700
700
700
750
750
750
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
5
5
5
5
5
5
3
3
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
1.0
2.0
3.0
4.0
5.0
6.0
7.0
7.6
8.4
9.4
9.9
10.6
11.4
12.2
13
13.7
14.4
15.2
16.7
18.2
20.6
21
22.5
25.1
27.4
29.7
32.7
35.6
38.8
42.6
47.1
51.7
56.0
520
480
435
393
360
330
297
270
225
246
208
193
180
169
159
150
142
135
123
112
100
96
90
82
75
69
63
57
53
48
44
40
36
Notes:
1. TOLERANCES - Suffix indicates 5% tolerance any other tolerance will be considered as a special device.
2. ZENER VOLTAGE (Vz) MEASUREMENT - guarantees the zener voltage when measured at 40 ms
from the diode body, and an ambient temperature of 25
3.ZENER IMPEDANCE (Zz) DERIVATION - The zener impedance is derived from the 60 cycle ac voltage,
which results when an ac current having an rms falue equal to 10% of the dc zener current (I
ZT
or I
ZK
)is
superimposed on I
ZT
or I
ZK
)is
.
Revision: C
www.mccsemi.com
2 of 5
2015/10/14
MCC

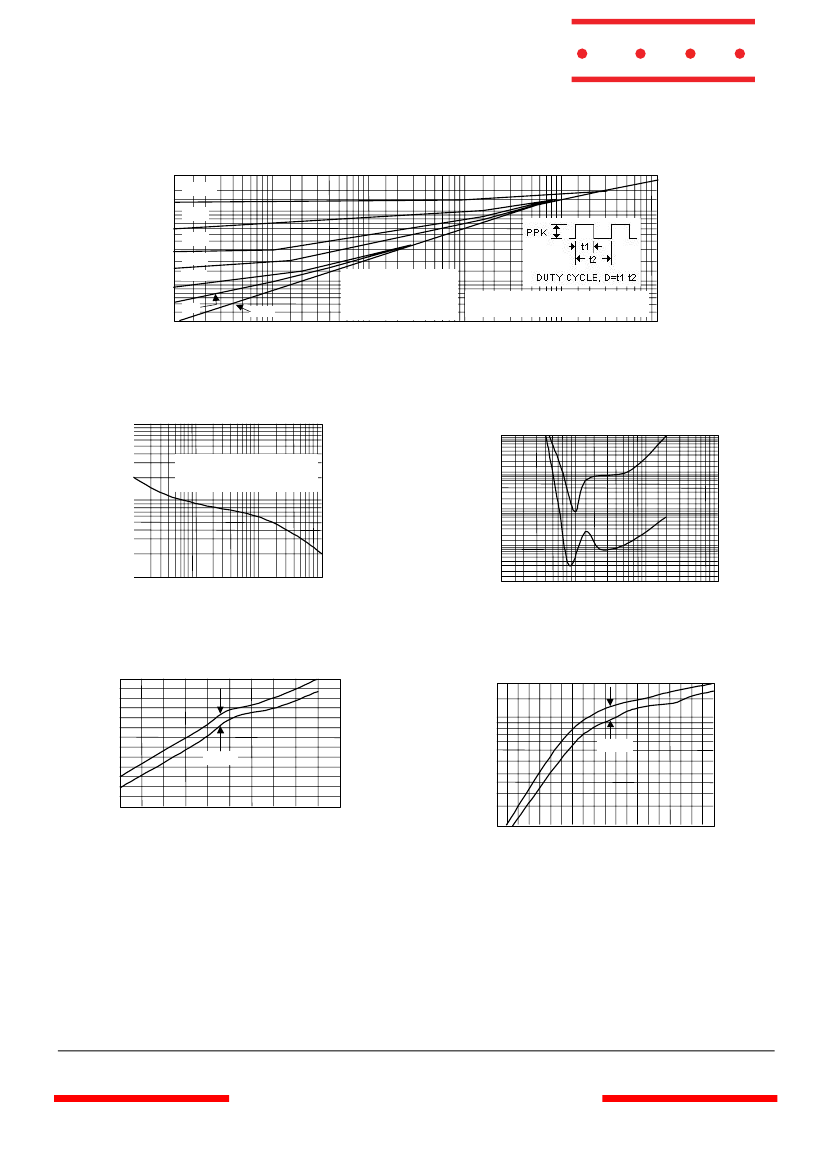

RATING AND CHARACTERISTICS CURVES
3EZ5.1D5 THRU 3EZ75D5
30
TM
Micro Commercial Components
JL (t,D) TRANSIENT THERMAL
RESISTANCE
o
JUNCTION-TO-LEAD(
C/W)
20
10
7
5
3
2
1
0.7
0.5
D = 0.5
0.2
0.1
0.05
0.02
NOTE BELOW 0.1 SECOND,
THERMAL RESPONSE
CURVE IS APPLICABLE TO
ANY LEAD LENGTH (L)
0.002
0.005
0.01
0.02
0.05
/
SINGLE PULSE TJL = JL(t)PPK
REPETITIVE PULSES TJL = JL(t,D)PPK
0.1
0.2
0.5
1
2
5
10
(s)
0.01
0.0002
0.3
0.0001
D=0
0.0005
0.001
Fig. 2-TYPICAL THERMAL RESPONSE L,
PPK, PEAK SURGE POWER(WATTS)
1K
500
300
200
100
50
30
20
10
.1
RECTANGULAR NONREPETITIVE
WAVEFORM TJ = 25 PRIOR TO
INITIAL PULSE
IR, REVERSE LEADAGE(uAdc)
@VR AS SPECIFIED IN ELEC.
CHAR. TABLE
100
0.1
0.05
0.03
0.02
0.01
0.005
0.003
0.002
0.001
0.0005
0.0003
0.0002
0.0001
1
2
5
10
20
50
100
200
500
1K
.2 .3
5
1
2 3 5
10
20
50
P.W. PULSE WIDTH (ms)
NOMINAL VZ (VOLTS)
Fig. 3-MAXIMUM SURGE POWER
8
Fig. 4-TYPICAL REVERSE LEAKAGE
200
VZ, TEMPERATURE
COEFFICIENT(mV/) @ IZT
VZ, TEMPERATURE
COEFFICIENT(mV) @ IZT
6
4
2
0
-2
-4
3
4
6
8
10
12
RANGE
100
RANGE
50
40
30
20
10
0
20
40
60
80
100
120
140
160
180
200
VZ, ZENER VOLTAGE @IZT (VOLTS)
VZ, ZENER VOLTAGE @IZT (VOLTS)
Fig. 5-UNITS TO 12 VOLTS
Fig. 6-UNITS 10 TO 200 VOLTS
www.mccsemi.com
Revision:
C
3 of 5
2015/10/14
MCC
RATING AND CHARACTERISTICS CURVES
3EZ5.1D5 THRU 3EZ75D5
TM
Micro Commercial Components
100
100
IZ, ZENER CURRENT (mA)
50
30
20
10
5
3
2
1
0.5
0.3
0.2
0.1
0
1
2 3
4
5
6 7
8
9 10
IZ, ZENER CURRENT (mA)
50
30
20
10
5
3
2
1
0.5
0.3
0.2
0.1
0
10
20 30 40
50 60
70 80 90
100
VZ, ZENER VOLTAGE (VOLTS)
VZ, ZENER VOLTAGE (VOLTS)
Fig. 7-VZ = 3.9 THRU 10 VOLTS
Fig. 8-VZ = 12 THRU 82 VOLTS
100
IZ, ZENER CURRENT (mA)
50
30
20
10
5
3
2
1
0.5
0.3
0.2
0.1
100
120
140
160
180
200
.. JL, JUNCTION-LEAD THERMAL
RESISTANCE (../W)
80
70
60
50
40
30
20
10
0
0
PRIMARY PATH OF
CONDUCTION IS THROUGH
THE CATHODE LEAD
1/8
1/4
3/8
1/2
5/8
3/4
7/8
1
VZ, ZENER VOLTAGE (VOLTS)
L, LEAD LENGTH TO HEAT SINK (INCH)
Fig. 9-VZ = 100 THRU 200 VOLTS
Fig. 10-TYPICAL THERMAL RESISTANCE
www.mccsemi.com
Revision:
C
4 of 5
2015/10/14
MCC
TM
Micro Commercial Components
Ordering Information :
Device
Part Number-TP
Part Number-AP
Part Number-BP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel:
4Kpcs/Reel
Ammo Packing:
3Kpcs/Ammo
Box
Bulk:
25Kpcs/Carton
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp .
does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp .
and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express written
approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited
below.
Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
www.mccsemi.com
Revision:
C
5 of 5
2015/10/14
